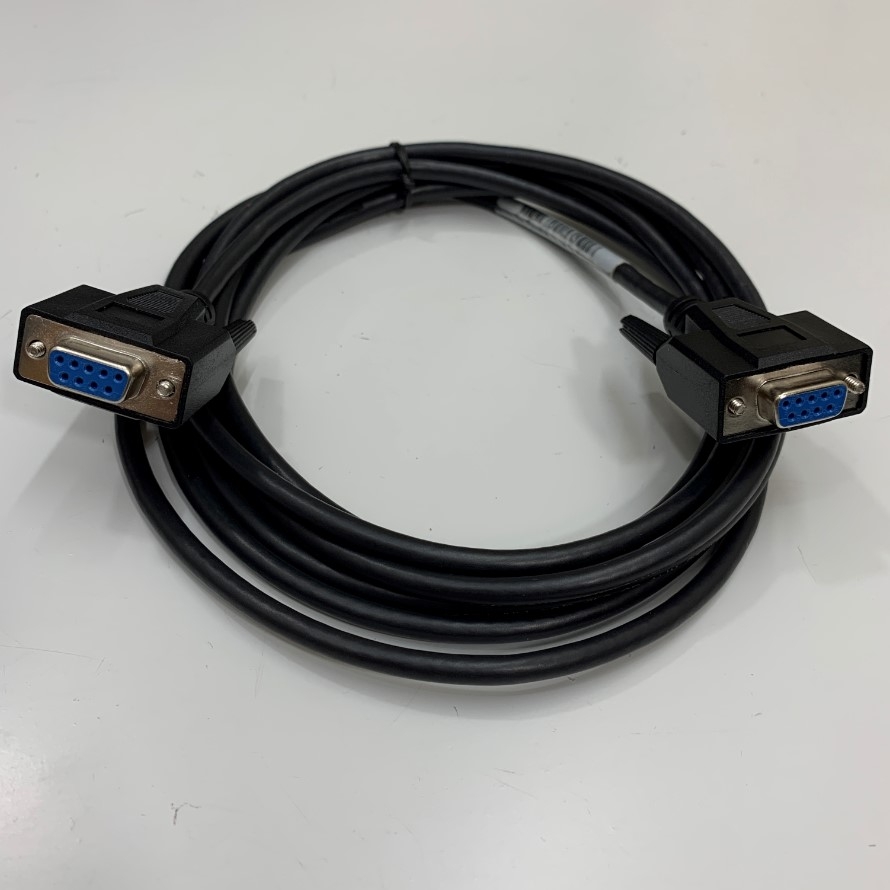

Cáp HIOKI 9637 Cable RS-232C Interface Communication Data Dài 1.8M 6.5ft Serial Crossover with DB9 Female to Female Shielded Molex 28AWG E116273 UL 80°C 30V OD 5.5mm Color Black

Cable HIOKI Model 9637 RS-232C HIOKI Instruction RM3544 RM3544-01 RESISTANCE METER

Configuring RS-232C Interface Communications

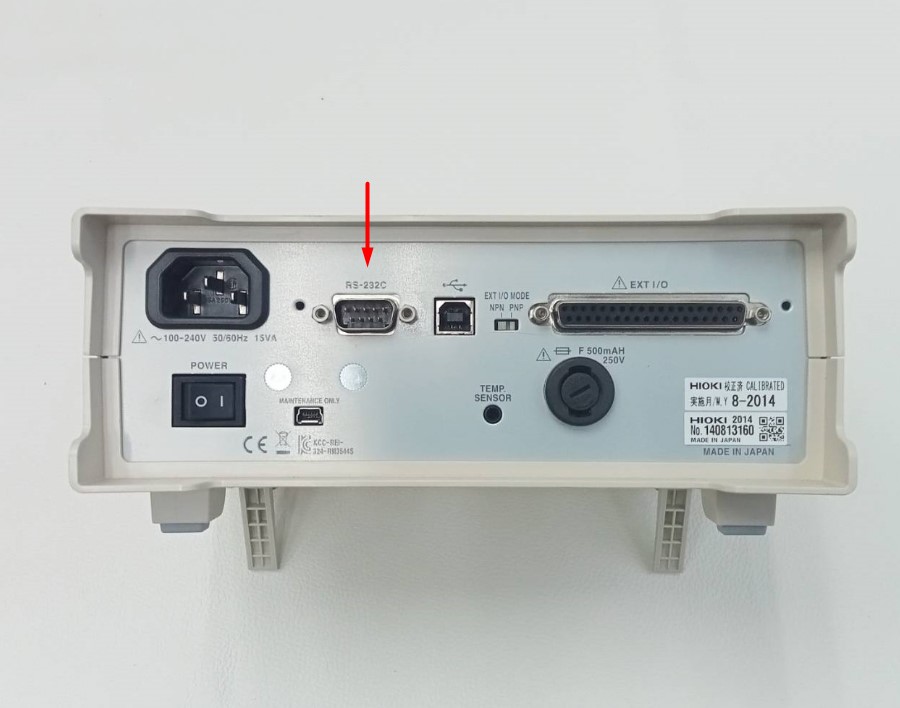

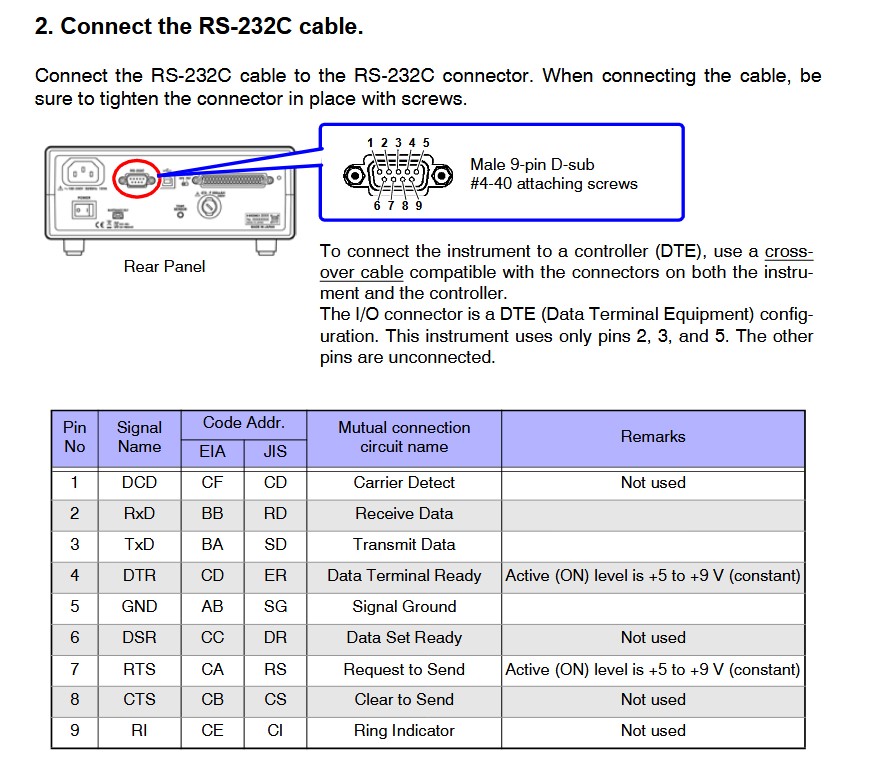

Connect the RS-232C cable

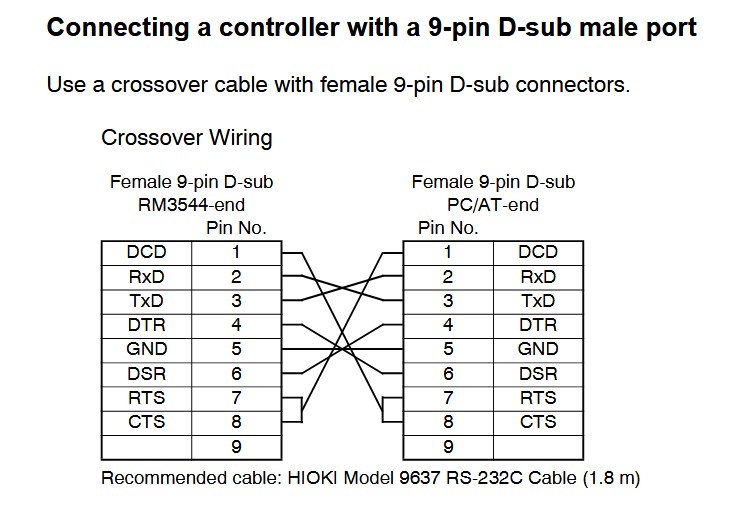

HIOKI Model 9637 RS-232C Connecting a controller with a 9-pin D-sub male port

MOLEX 4 PAIR 28 AWG EXF E116273 (UL) 75°C CL2 OR AWM STYLE 20276 80°C ROHS  COMPLIANT

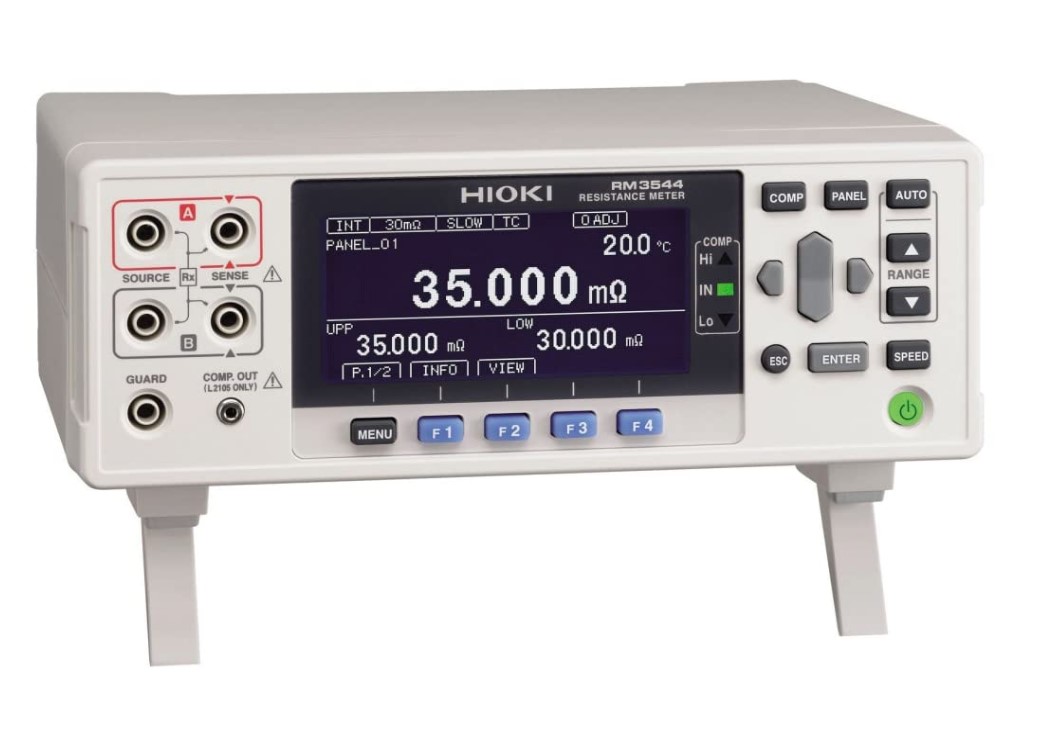

Hioki RM3544-01 Precision Resistance Meter with EXT I/O interface

MÁY THIẾT BI ĐO ĐIỆN TRỞ RM3544 Hioki RESISTANCE METER

HIOKI 9637 RS-232C 케이블 For 3154,BT3560s,etc - 오실로 - 오실로

Product Parameters of Transparent B9 Female to DB9 Female Null Modem Crossover shielding serial Cable
Brand: Thientruongpc - ViệtNam/Thientruongpc
Part Number: 9637 RS-232C
Cable Type: RS232C Serial Null Modem Cable DB9 Serial Cable

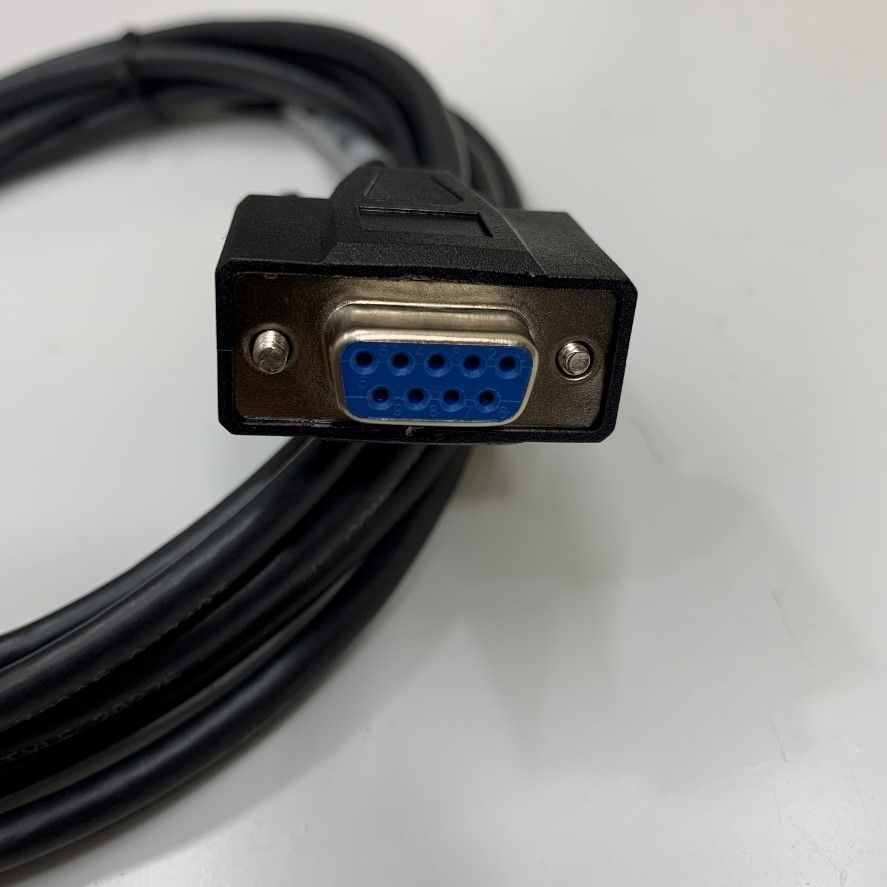

Connector 1: DB9 Pin Female Connector x1
Connector 2: DB9 Pin Female Connector x1
Connector plating: Nickle Plated
Gender: Female to DB9 Female
Wire: UL 28AWG - Shielded Cable OD=5.5mm
Pin-Out: Null Modem Crossover Connection: 1-7,8 / 2-3 / 3-2 / 4-6 / 5-5 / 6-4 / 7,8 -1 / Shield-Shield
Cable Length:  6.5 ft [1.8 m]
Color: Black

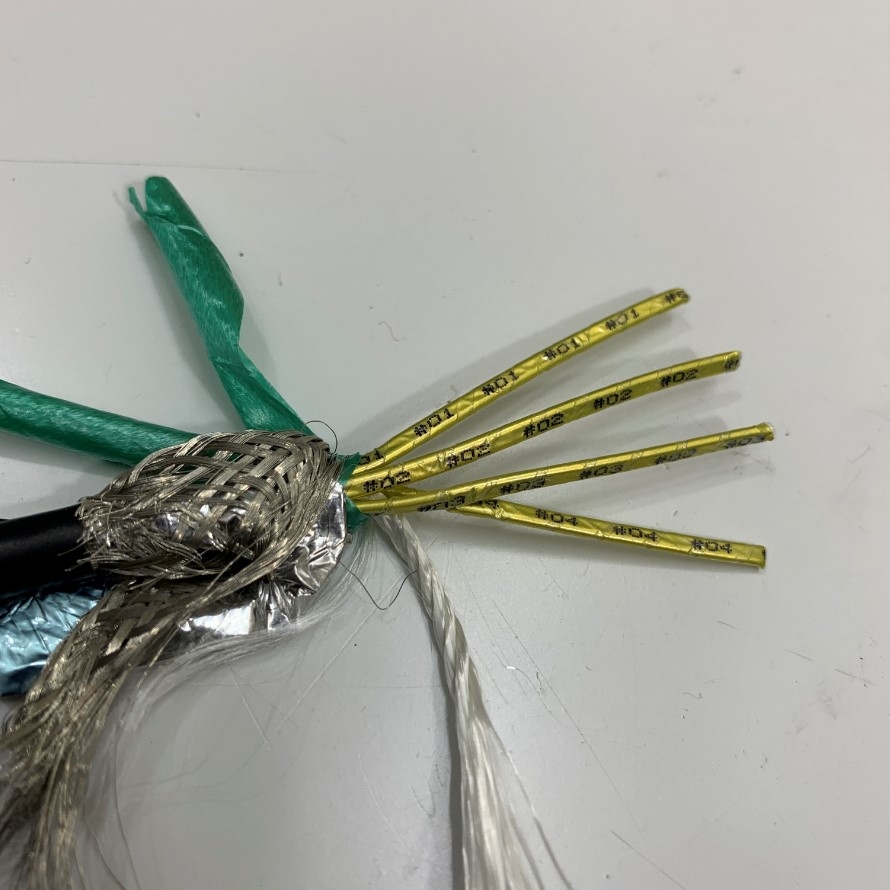

Cable MOLEX 28 AWG EXF E116273 (UL) 75°C CL2 OR AWM STYLE 20276 80°C ROHS  COMPLIANT
Cáp HIOKI 9637 Cable RS-232C Interface Communication Data Dài 1.8M 6.5ft Serial Crossover with DB9 Female to Female Shielded Molex 28AWG E116273 UL 80°C 30V OD 5.5mm Color Black
