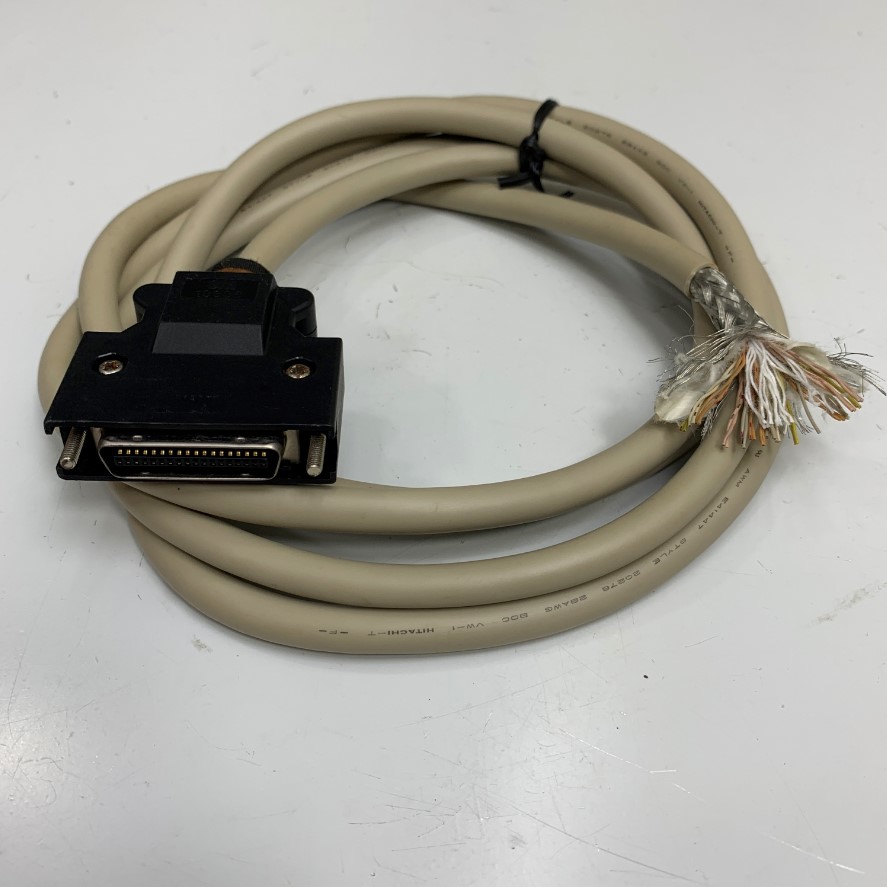

Cáp Dài 1.5M 5ft Connector 3M 10336 Cable SCSI MDR 36 Pin Male to 36 Core Bare Wire Open End Cable Hitachi 36 Core x 0.07mm² OD 7.5mm For Servo Drive witch Interface Modular Terminal Board I/O

Mã SP: 10518

Thương hiệu: KTT Cable Servo Drive/Industrial

Loại sản phẩm: Cable MDR 36 Pin to 36 Wire

Đánh giá

:

Giá

:

1.200.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Mua Hàng Online

Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
: vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800

‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

Specifications
Servo Motor Interface IO Control Cable
Brand: Thientruongpc - ViệtNam/Thientruongpc
Cable Type: Communication IO Data Cable

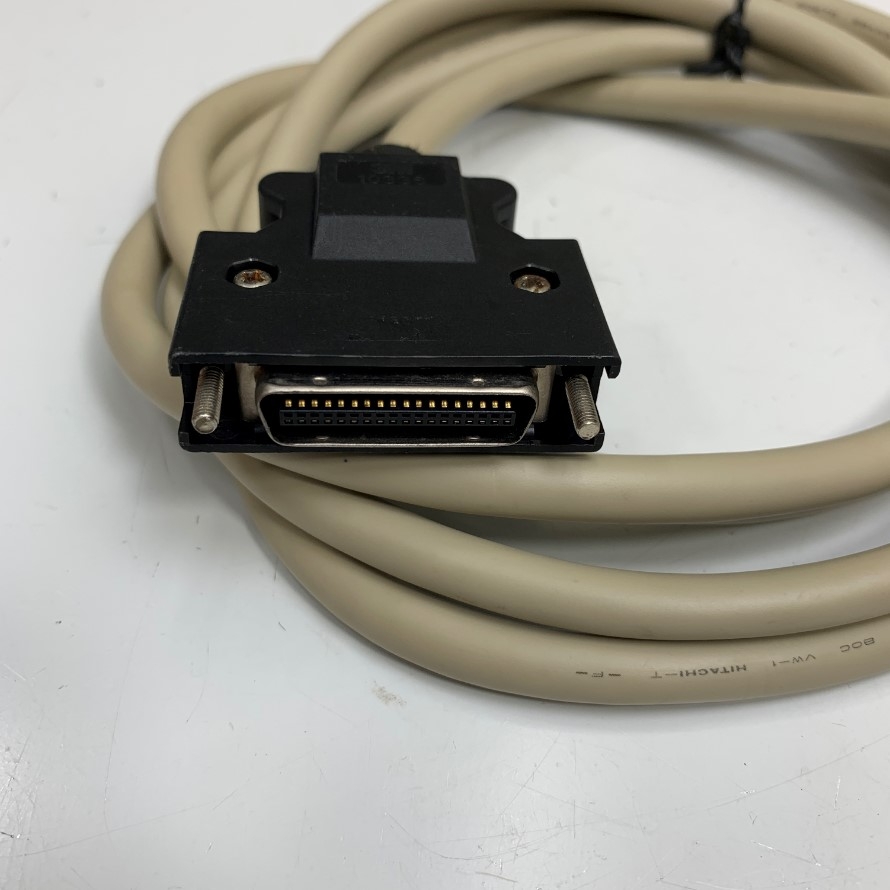

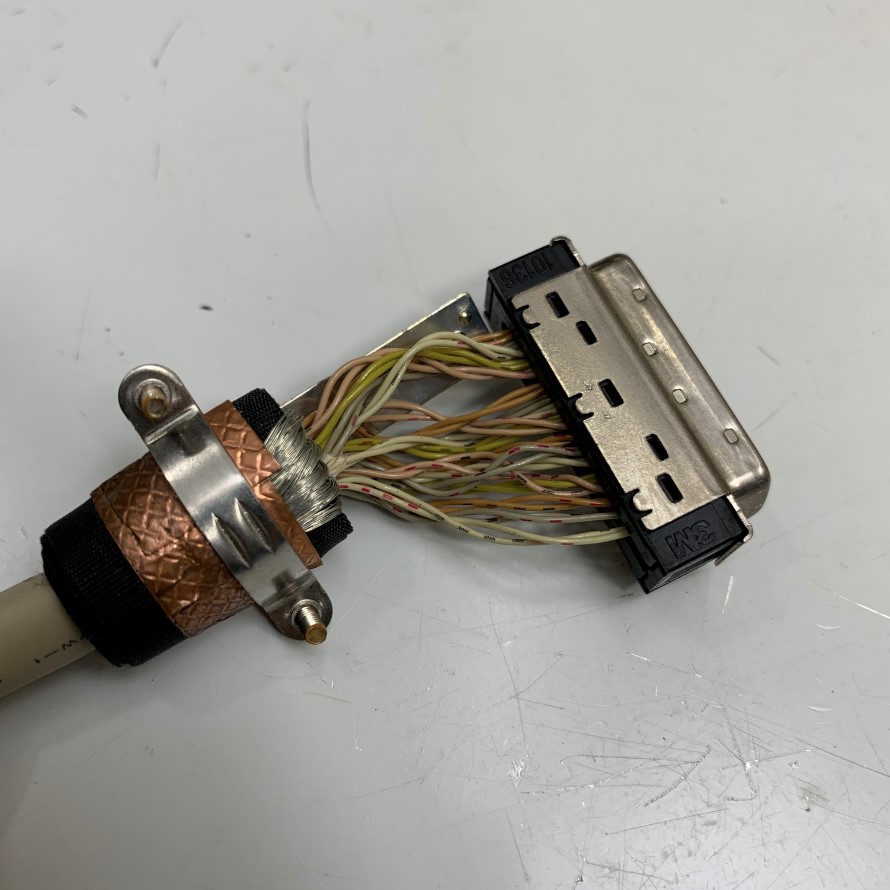

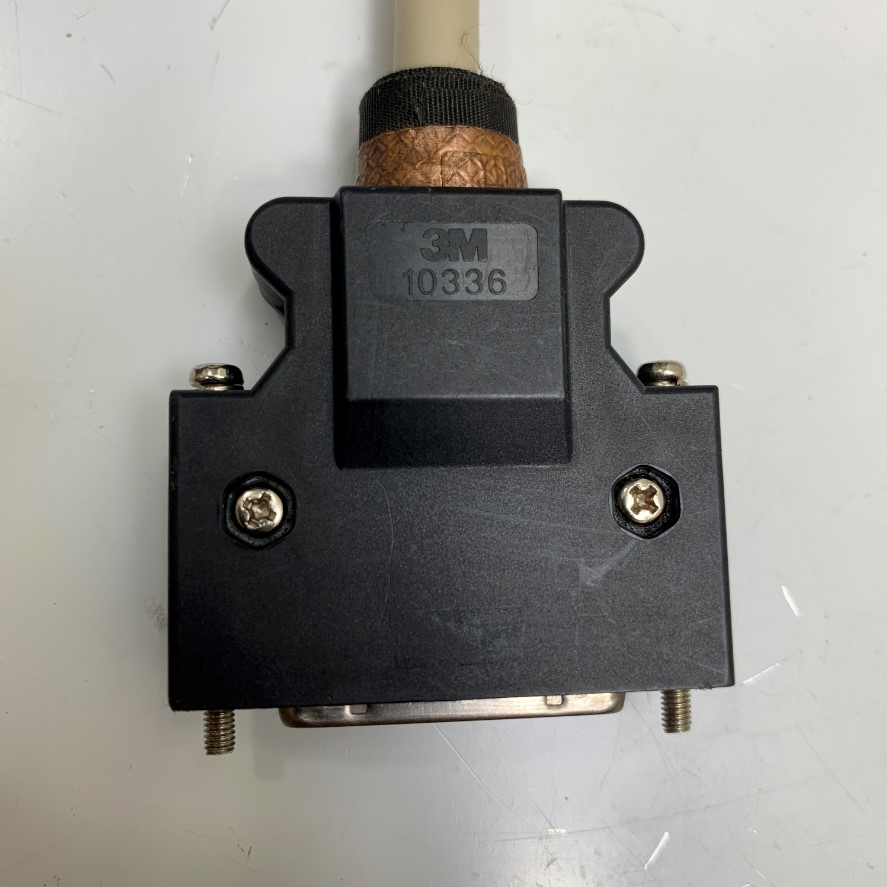

Connector 1: Connector 3M 10336 Cable SCSI MDR 36 Pin Male With Screw (Jack Hand Crimping Tool IDC Pitch 1.27mm)

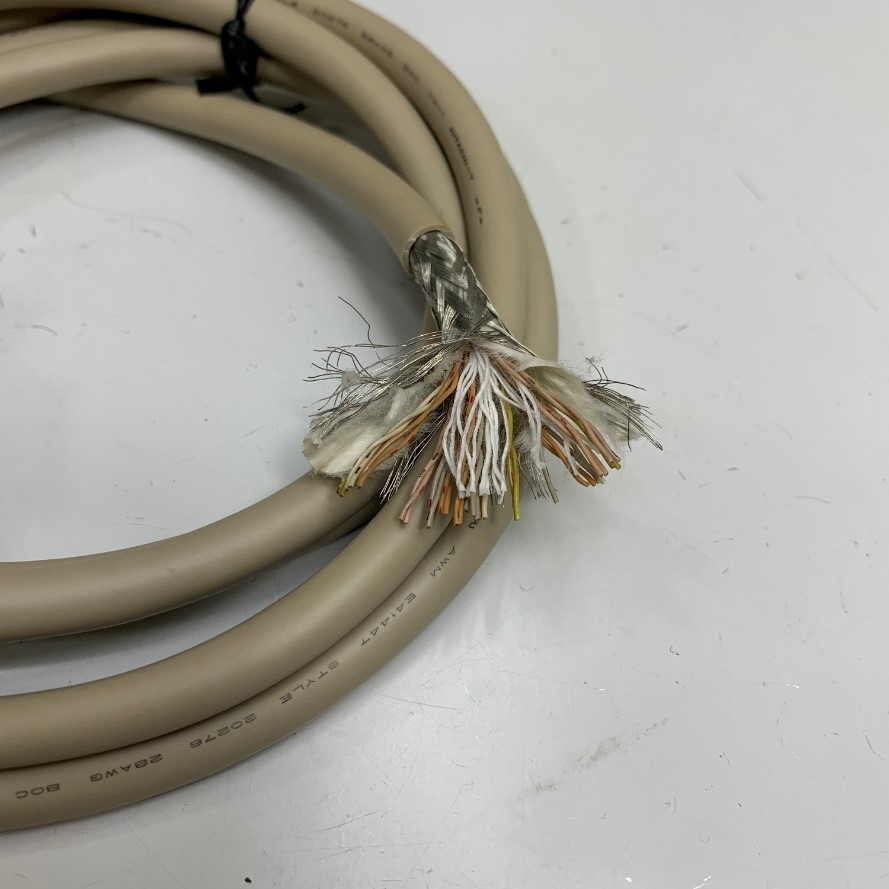

Connector 2: 36 Core Bare Wire Open End
Connector plating: Connector Gold Plated
Gender: MDR 36 Pin Male to 36 Core
Wire: UL 28AWG - Shielded Cable OD=7.5mm

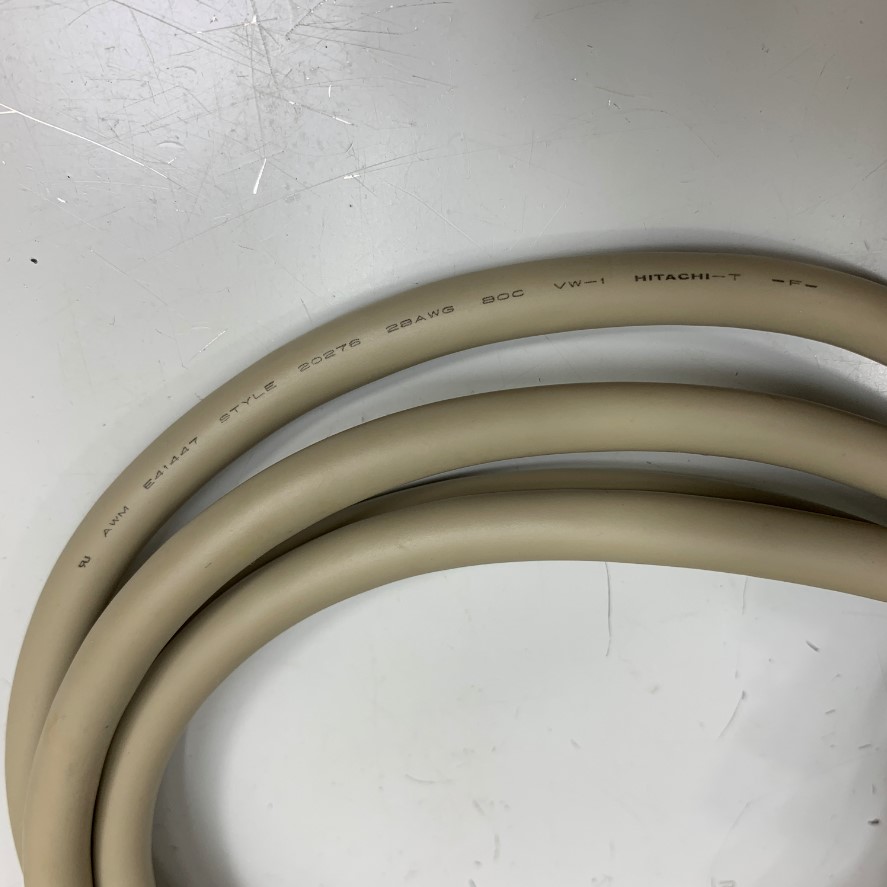

Cable Shielded Hitachi 18PR 36 Core x 0.07mm² E41447 STYLE 20276 28AWG 80C VW-1
Max Operating Temperature: 85 °C
Min Operating Temperature: -25 °C
Pin-Out: Connection: 1-Bare Wire/2-Bare Wire/3-Bare Wire/.-. / .-. /34-Bare Wire/35-Bare Wire/36-Bare Wire/Shield-Shield
Cable Length: 1.5M ~ 5ft
Color: Gray
Cáp Dài 1.5M 5ft Connector 3M 10336 Cable SCSI MDR 36 Pin Male to 36 Core Bare Wire Open End Cable Hitachi 36 Core x 0.07mm² OD 7.5mm For Servo Drive witch Interface Modular Terminal Board I/O
