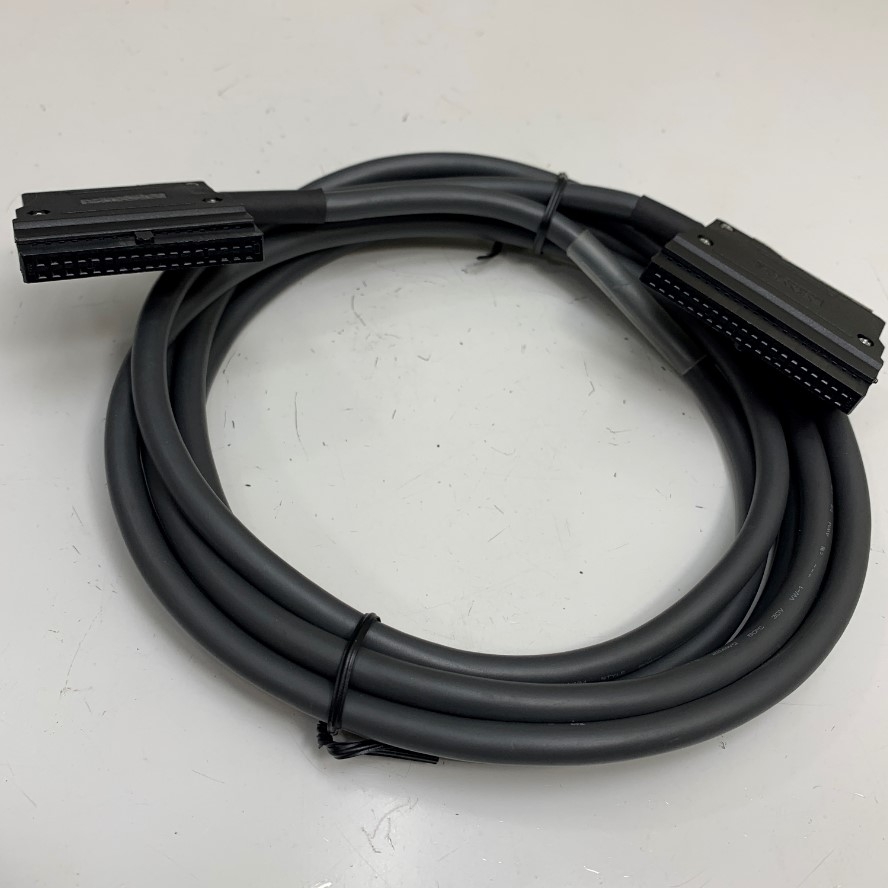

Cáp 2M 6.5ft Siron X211-1-2000MM CN1 IDC 34 Pin to CN2 IDC 40 Pin Pitch 2.54mm Cable 28AWG PVC For PLC Keyence Kv Series witch Terminal Blocks T007,T011,T063

Mã SP: 11626

Thương hiệu: SIRON

Loại sản phẩm: X211-1-2000 Cable PLC

Đánh giá

:

Giá

:

1.100.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: China/Original SIRON
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Hiển: ‭094.816.2498‬

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Khoa: ‭‭‭098.131.9702

CN1 refers to PLC, CN2 refers to terminal block

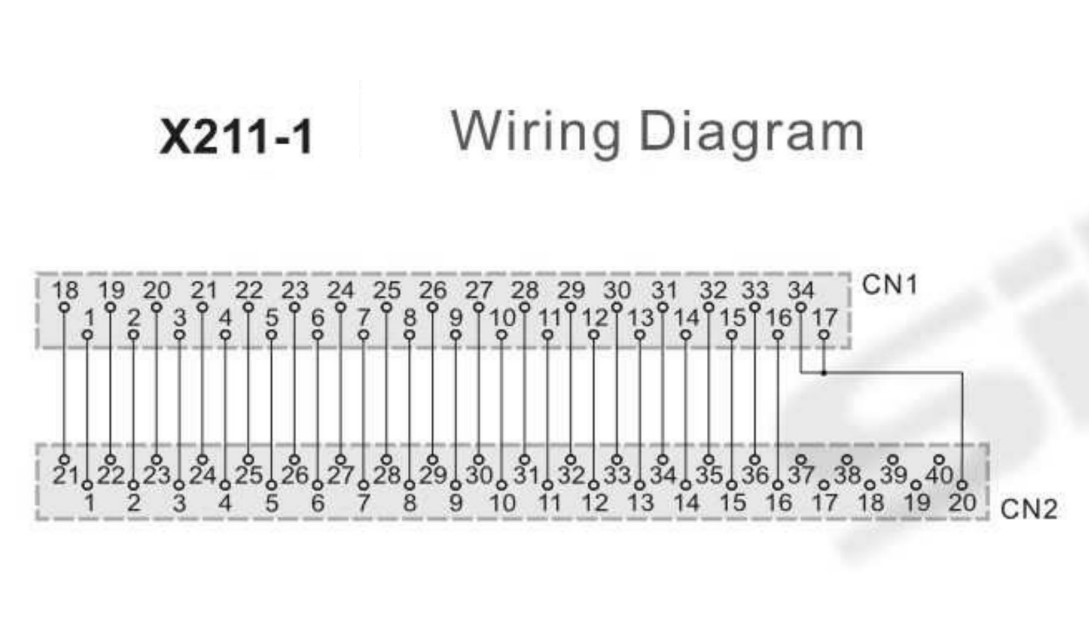

Wiring Diagram

Corresponding to CN1 KEYENCE (KV-C32XA/C; KV-NC32EX; KV-64XA/C; KV-32XTD; KV-NC32EXT)

Corresponding to CN2 Relay Terminal Block Siron (T007,T011,T063)

Specifications
Brand: China/Original SIRON PLC Cable
Cable Type: Round IDC Cable
Cable Type: IDC 40 Pin Pitch 2.54mm to IDC 34 Pin Board Cable

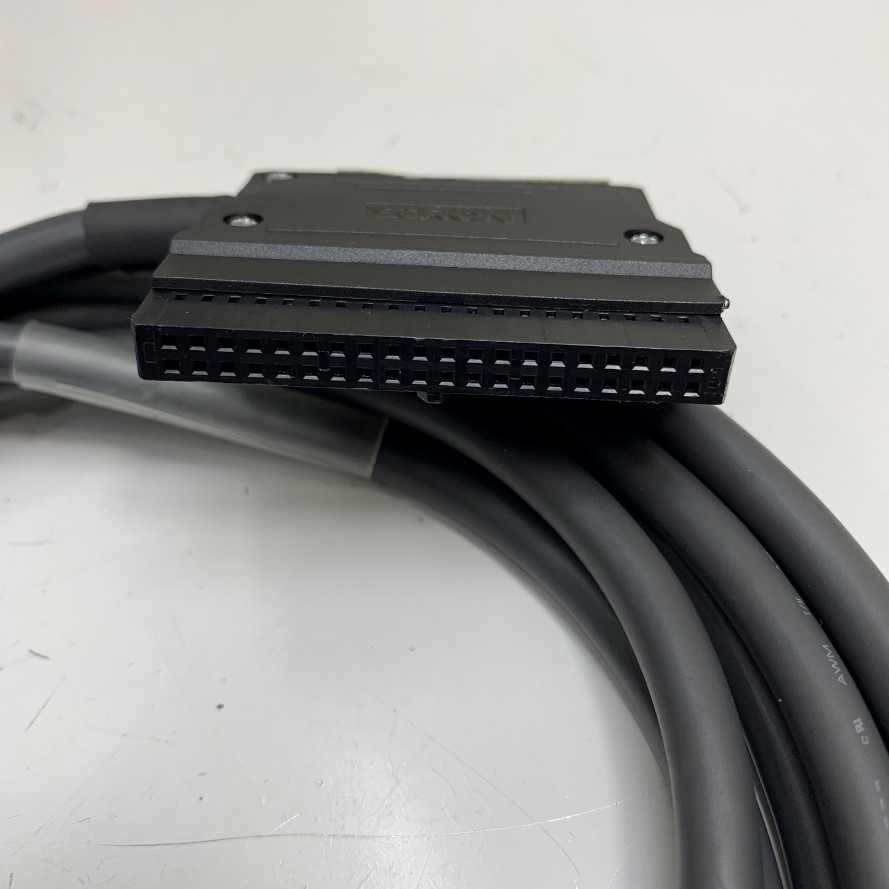

Connector 1: 40-Way IDC 40 Pin Female Connector FC 2*20 Pitch 2.54mm 2-Row 90 Degree Angle

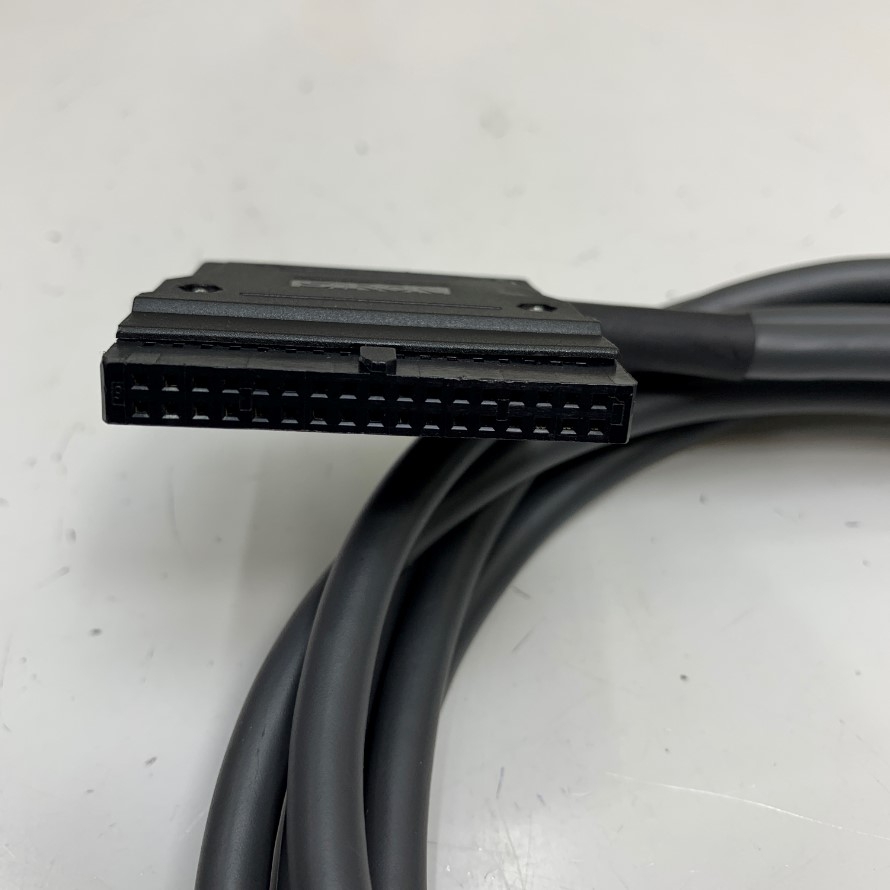

Connector 2: 34-Way IDC 34 Pin Female Connector FC 2*17 Pitch 2.54mm 2-Row 90 Degree Angle
Connector plating: Gold Plated/Nickle Plated
Gender: IDC 34 Pin to CN2 IDC 40 Pin Pitch 2.54mm
Wire: UL 28AWG - Cable OD=7.5mm
Jacket: PVC
Cable: E148000 AWM STYLE 20276 VW-1 28AWG 80°C 300V FT1
Cable Length: 2M ~ 6.5ft
Color: Black
Cáp 2M 6.5ft Siron X211-1-2000MM CN1 IDC 34 Pin to CN2 IDC 40 Pin Pitch 2.54mm Cable 28AWG PVC For PLC Keyence Kv Series witch Terminal Blocks T007,T011,T063
Corresponding to CN1 KEYENCE (KV-C32XA/C; KV-NC32EX; KV-64XA/C; KV-32XTD; KV-NC32EXT)
Corresponding to CN2 Relay Terminal Block Siron (T007,T011,T063)
