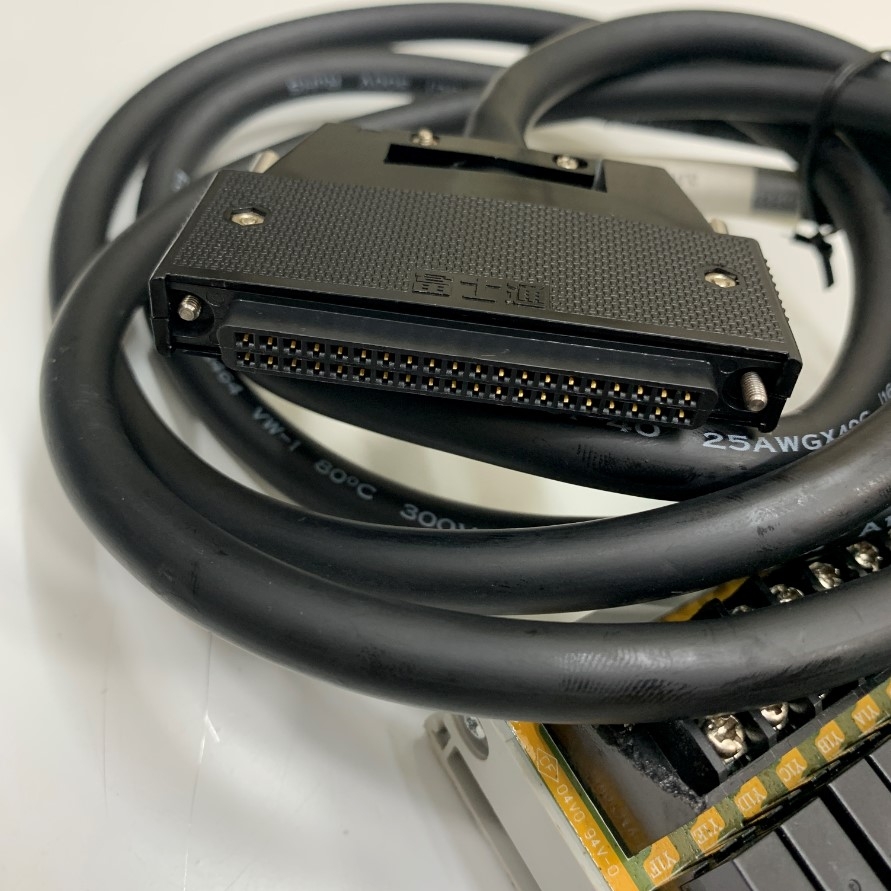

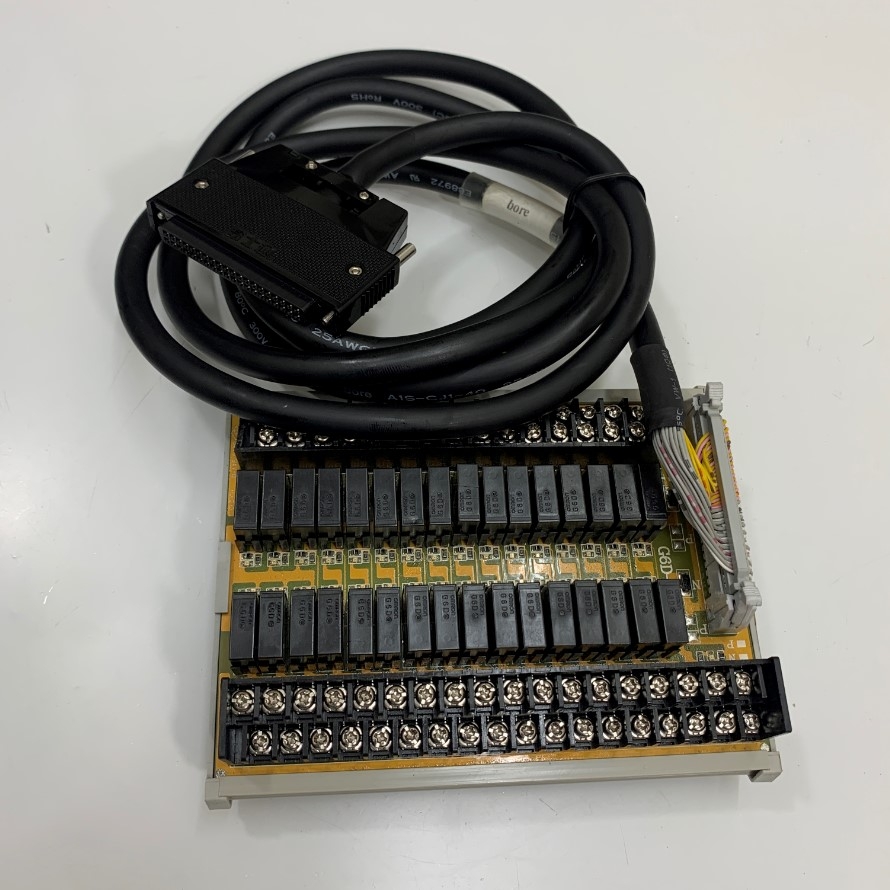

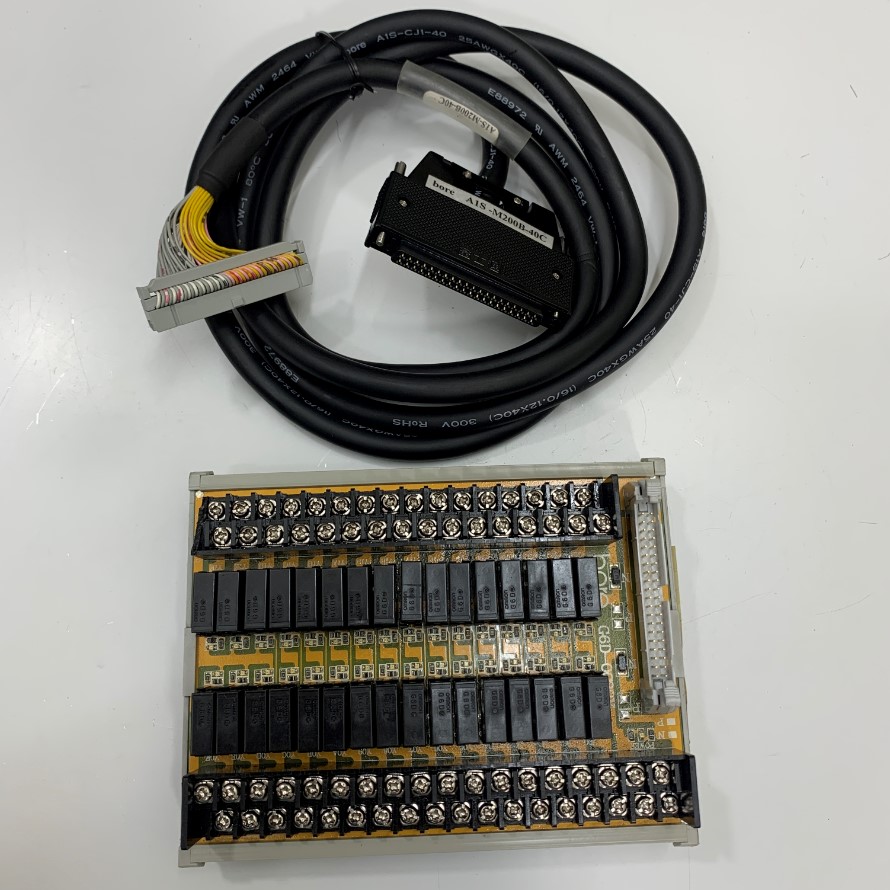

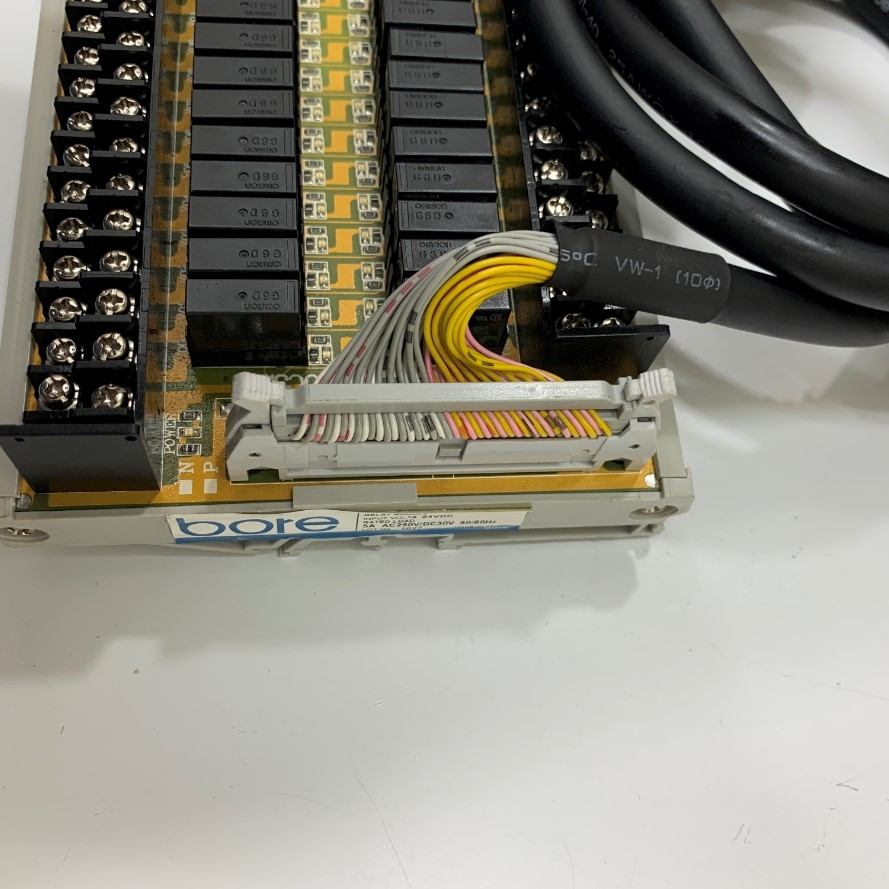

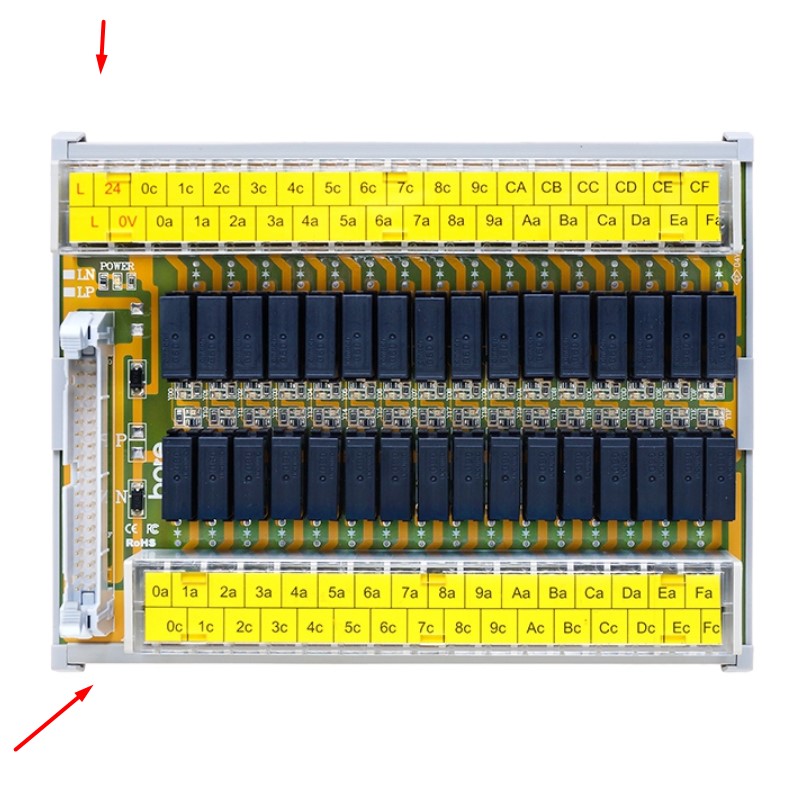

Bộ Cáp PLC bore A1S-M200B-40C 6.5Ft Dài 2M + Bore Relay Module G6D-OC32YMS

Item Number: G6D-OC32YMS
Product Dimension: L153 x W121 x H51.3 mm
Number of Modules: 32
Relay Brand: Bore-OMRON
Relay Model No.: Bore-OMRON G6D-1A-ASI-DC24
Contact Type: 1a ( SPDT )
Connector Type:    IDC/MIL Connector ( 40PIN )
Input Signal: DC Power
Output Signal: DC
Terminal Block Brand: DECA
Terminal Block Type: 7.62mm Barrier Terminal Block
Correspond PLC Brand: SIEMENS
Correspond PLC Model No.: 6ES7322
Contact Protector    Fast Recovery Diodes ( COM contact of load is - )
Power Indicator LED    Green Light
Motion Indicator LED    Red Light
Rated Coil Voltage    DC-24V
Insulation Resistance    1,100 Ω
Rated Coil Current    8.3 mA
Power Consumption    6.4
Current Consumption    0.27
Contact Max. Current    5A
Contact Max. Voltage    AC-250V / DC-30V
Dielectric Strength ( Between coil & contacts )    3000 VAC, 50/60 Hz for 1 min
Dielectric Strength ( Between contacts of same polarity )    750 VAC, 50/60 Hz for 1 min
Mechanical Endurance    AC coil:10, 000, 000 operations min.； DC coil: 20, 000, 000 operations min.
Electrical Endurance    70,000 operations min.(Resistive load AC-250V:5A/DC-30V:5A) (at operation frequency of 1, 800 operations/hr)
300,000 operations min.(Resistive load AC-250V:2A/DC-30V:2A) (at operation frequency of 1, 800 operations/hr)
Rated Voltage    DC 24V
Bộ Cáp PLC bore A1S-M200B-40C 6.5Ft Dài 2M + Bore Relay Module G6D-OC32YMS
