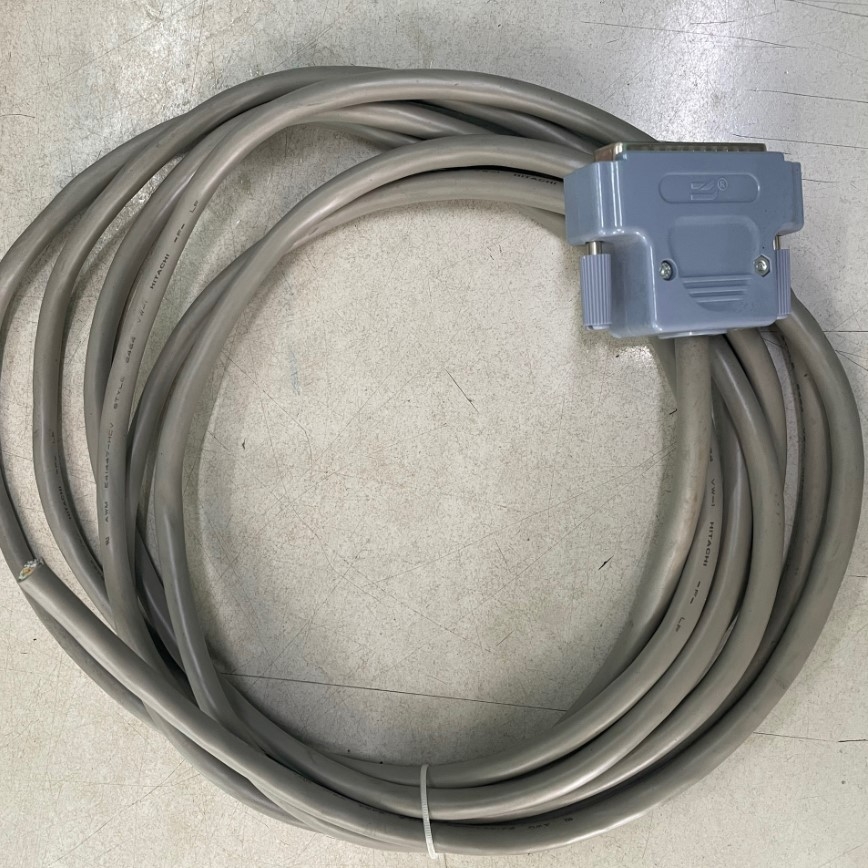

Cáp 20M 66ft Connector DB50 Male D-Sub 3 Rows 50 Pin to 20 Core Bare Wire Open End Cable Grey OD 9mm For I/O Cable Model Terminal with Control Reduction CNC Machining

Mã SP: 11184

Thương hiệu: KTT Industrial/PLC/CNC

Loại sản phẩm: DB50 Male to 20 Core End

Đánh giá

:

Giá

:

5.500.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

Cable DB50 Male to 50 Core Bare Wire Open End DIN Rail Mount  I/O Cable Model Terminal with Control

Specifications
I/O Cable Model Terminal with Control Reduction CNC Machining Cable
Brand: ViệtNam/Thientruongpc I/O Signal Data Cable
Cable Type: Communication I/O Data Cable

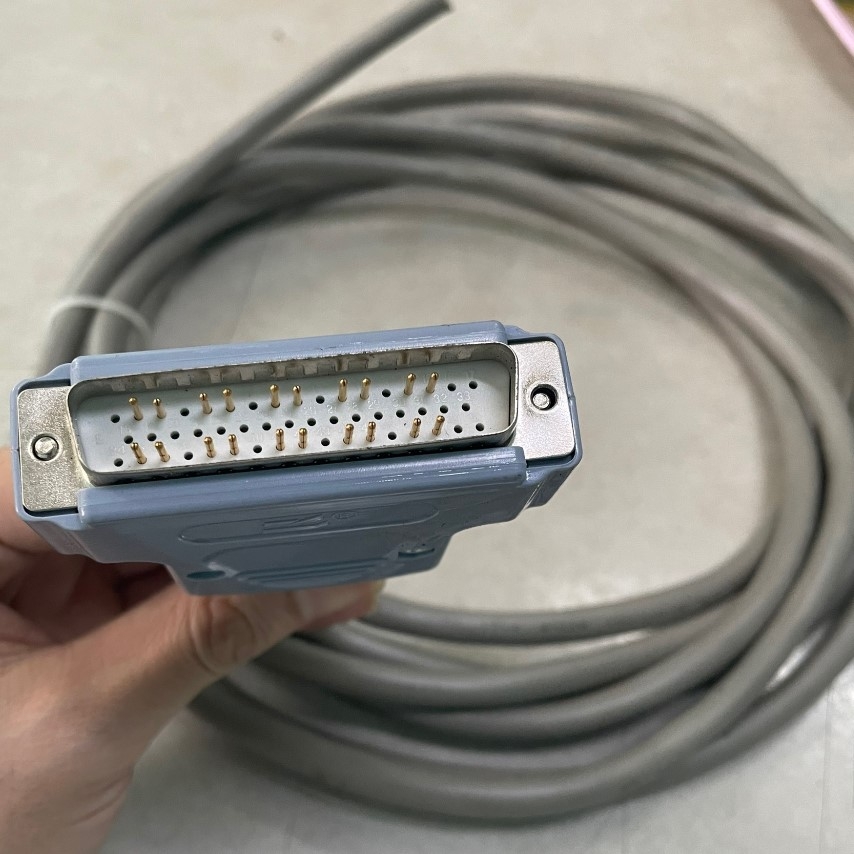

Connector 1: Jack DB50 3 Rows Male Solder Connector With Screw (DB-50H W-ROM Housing Shell)

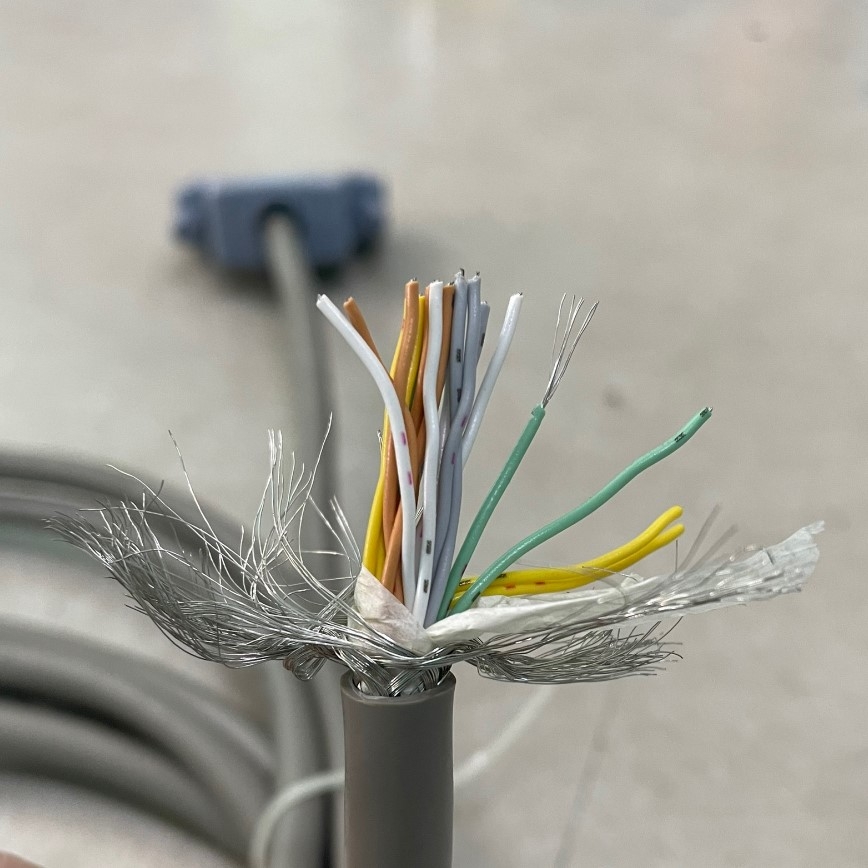

Connector 2: 20 Core Bare Wire Open End
Connector plating: Connector Gold Plated
Gender: DB 50 Pin Male to 20 Core

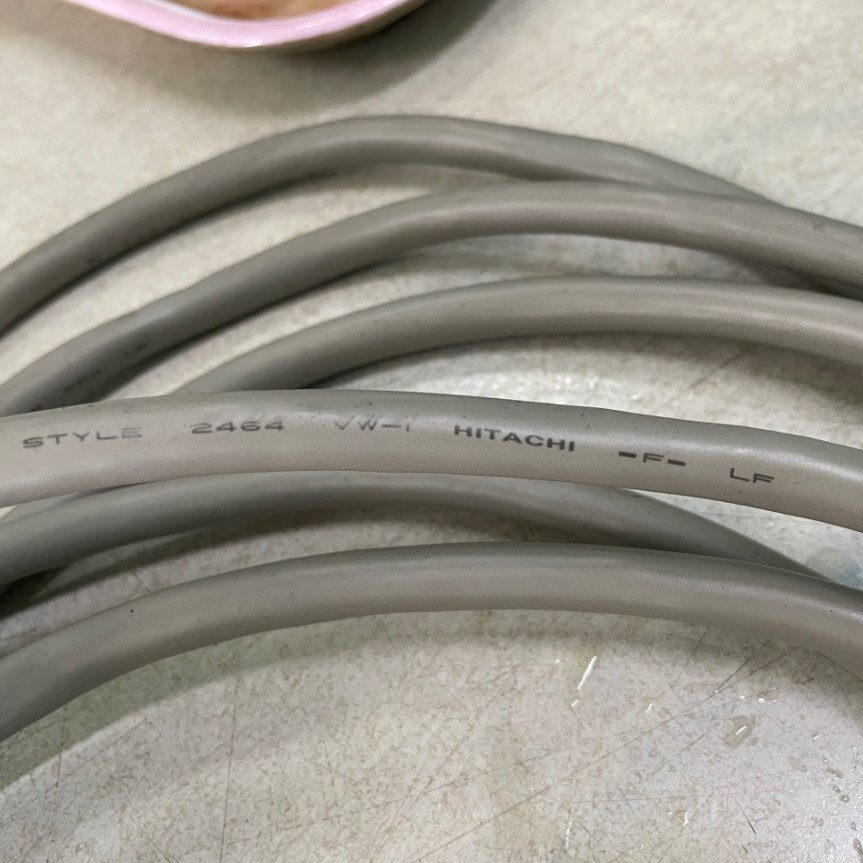

Wire: 28AWG - Cable OD=9.0mm (HITACHI 20 Core x 0.2mm² OD 9.0mm Cable Shielded Gray Color)
Cable: 80°C 300V VW-1
Max Operating Temperature: 85 °C
Min Operating Temperature: -25 °C
Pin-Out: Connection: 1-Core Bare Wire Open / 2-Core Bare Wire Open / 3-Core Bare Wire Open / .-. / .-.  50-Core Bare Wire Open / Shield-Shield
Cable Length: 20M ~ 66ft
Color: Grey
Cáp 20M 66ft Connector DB50 Male D-Sub 3 Rows 50 Pin to 20 Core Bare Wire Open End Cable Grey OD 9mm For I/O Cable Model Terminal with Control Reduction CNC Machining
