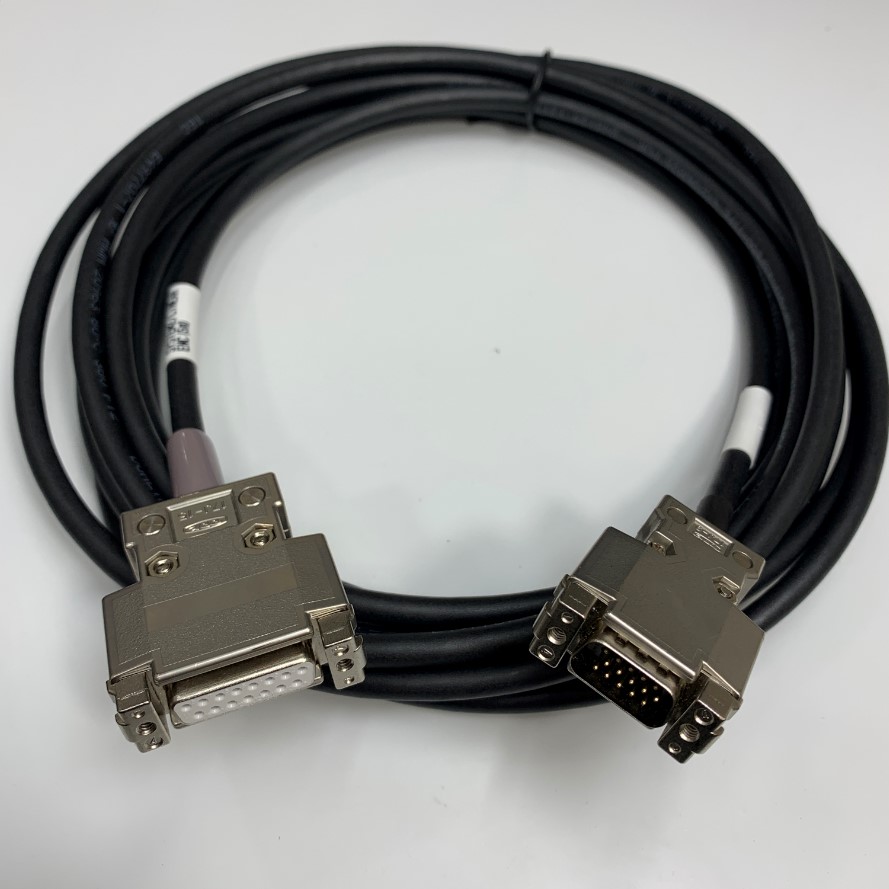

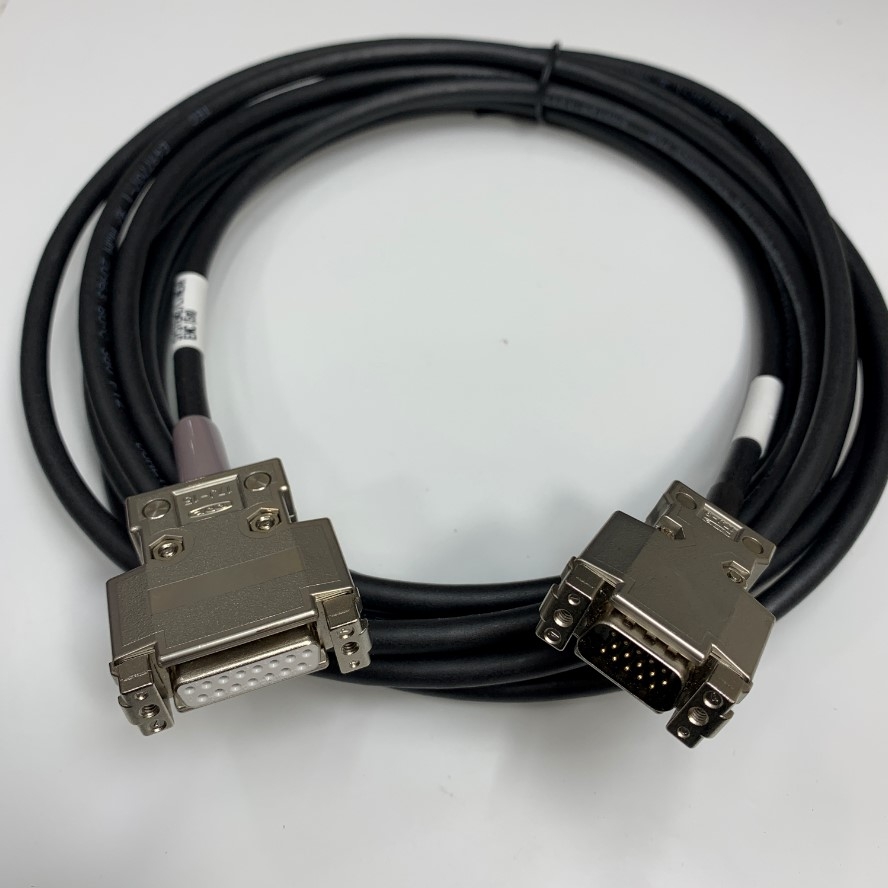

Cáp 5M 17ft SYSTEM2/LINEAR ENC(5M) Metal Shell Connector DDK DB15 Female to DB15 HD VGA Male Cable TEC E497707-1 AWM 20963 80C 30V 4x2x26AWG OD 6.8mm For Industrial Cable
Mã SP: 11806
Thương hiệu: Original Cable
Loại sản phẩm: DB15 Female to DB15 HD VGA
Đánh giá
:Giá
:3.800.000₫
(Giá sản phẩm chưa bao gồm VAT)
Mô tả :
Xuất xứ/Nguồn hãng: Japan/Industrial Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng
Mua Hàng Online
Mr Khanh: 091.301.5851
Mr Lam: 085.514.0226
Mr Hiển: 094.816.2498
Mr Khôi: 037.308.1800
Mr Khoa: 098.131.9702

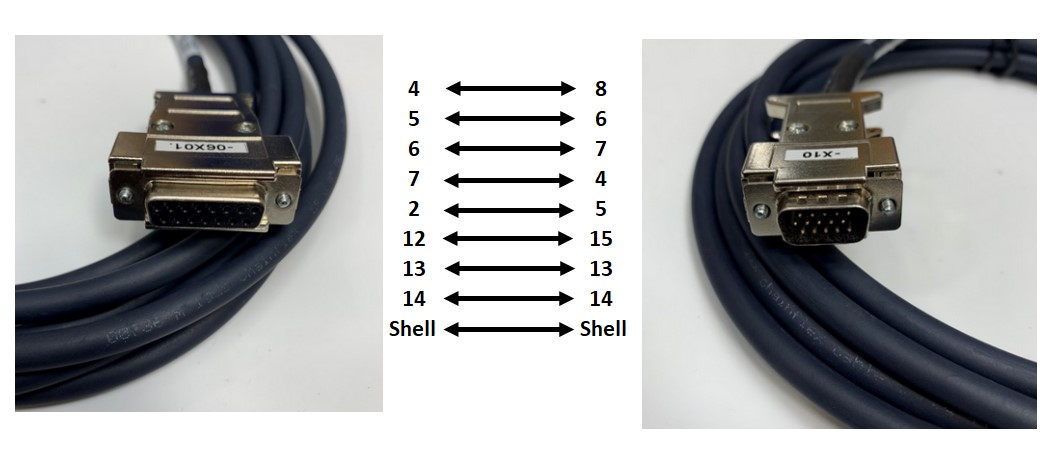

WIRING DIAGRAM
Specifications
Brand: Japan/Industrial Cable

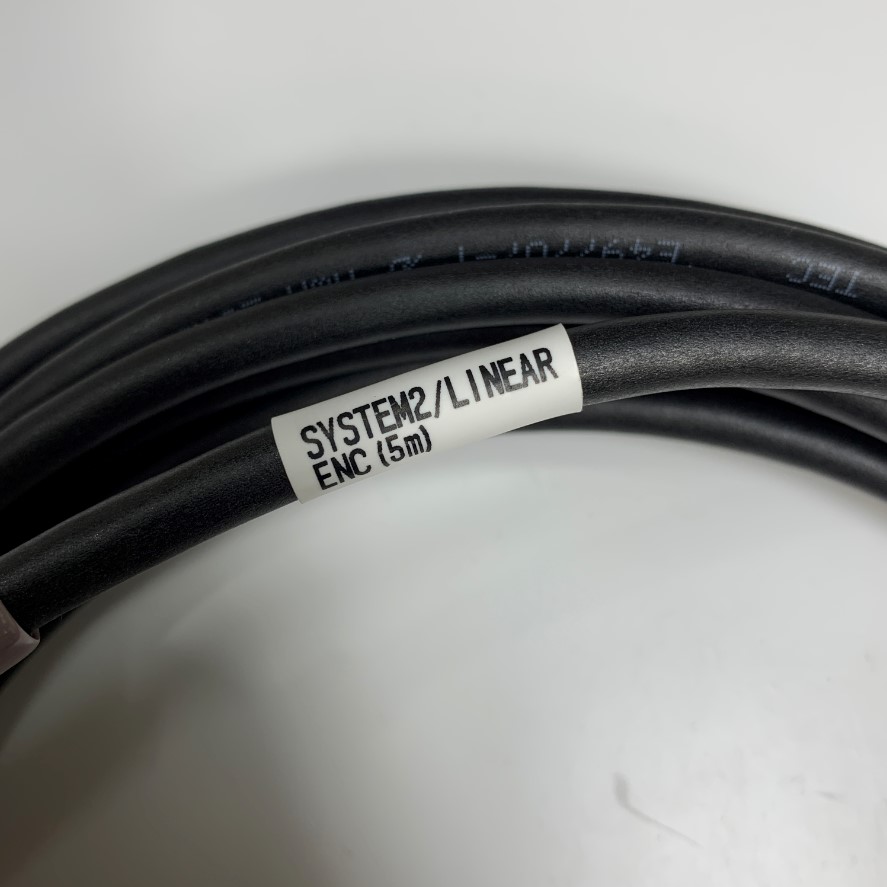

PartNumbe: SYSTEM2/LINEAR ENC(5M)

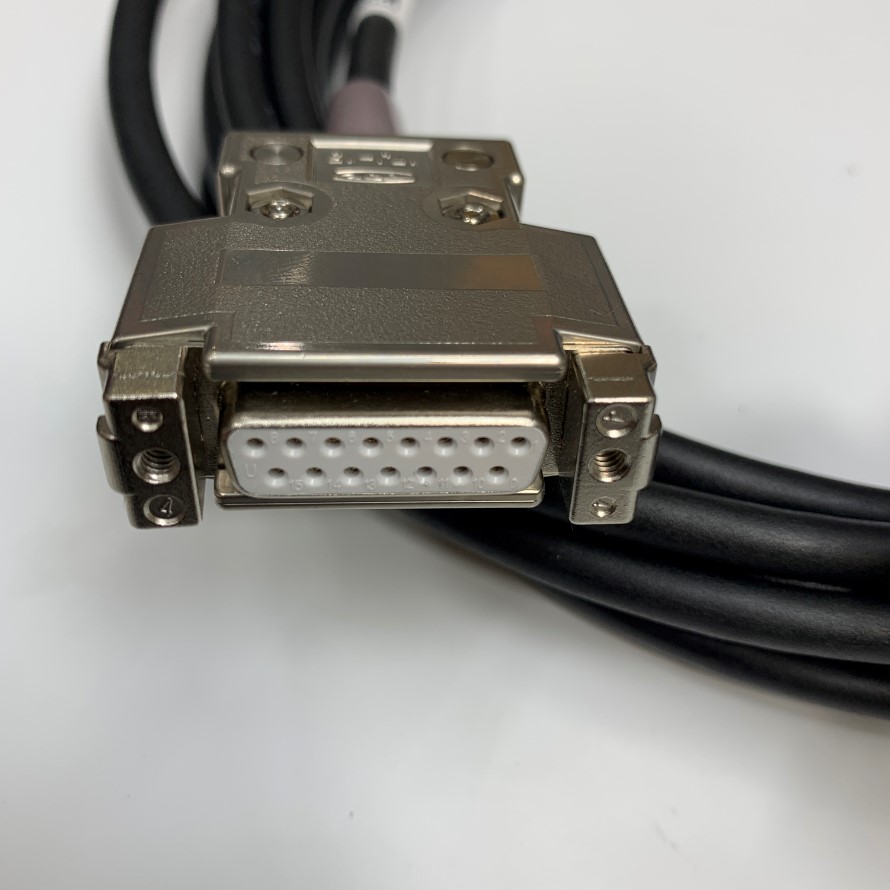

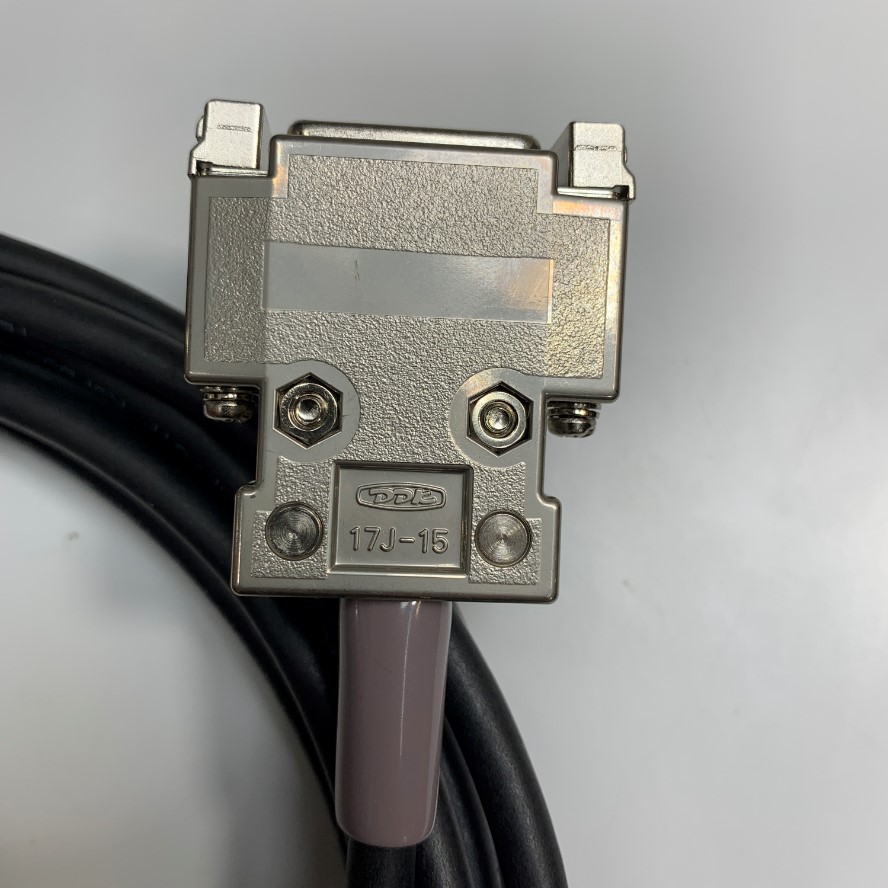

Connector 1: DB15 Female Connector (DDK 17J-15 Metal Shell)

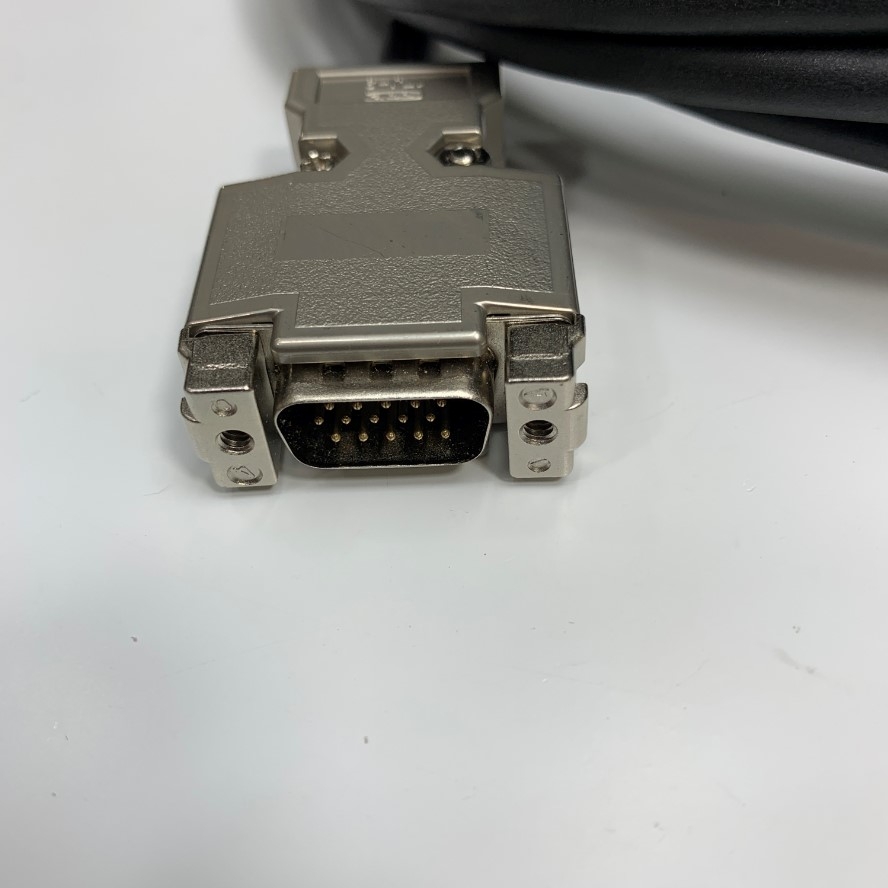

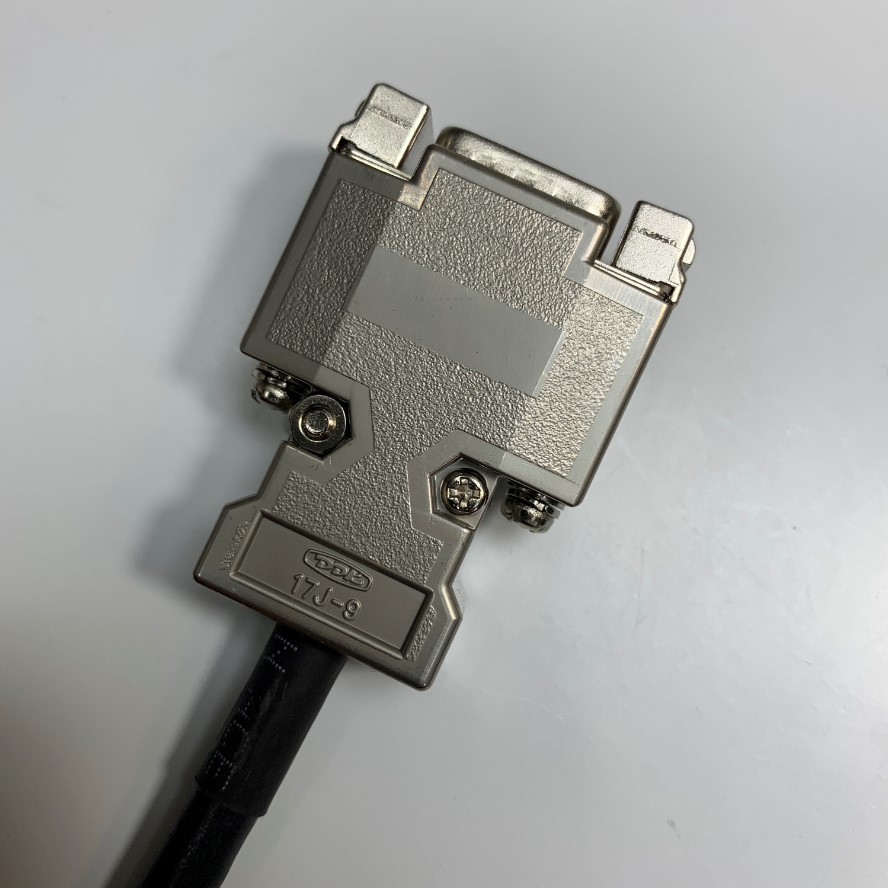

Connector 2: DB15 HD VGA Connector (DDK 17J-9 Metal Shell)
Cable Type: DB15 Female 15 Pin 2-Row to DB15 Male VGA HD 15 Pin 3-Row
Number of Conductors: 8
Connector plating: Gold Plated

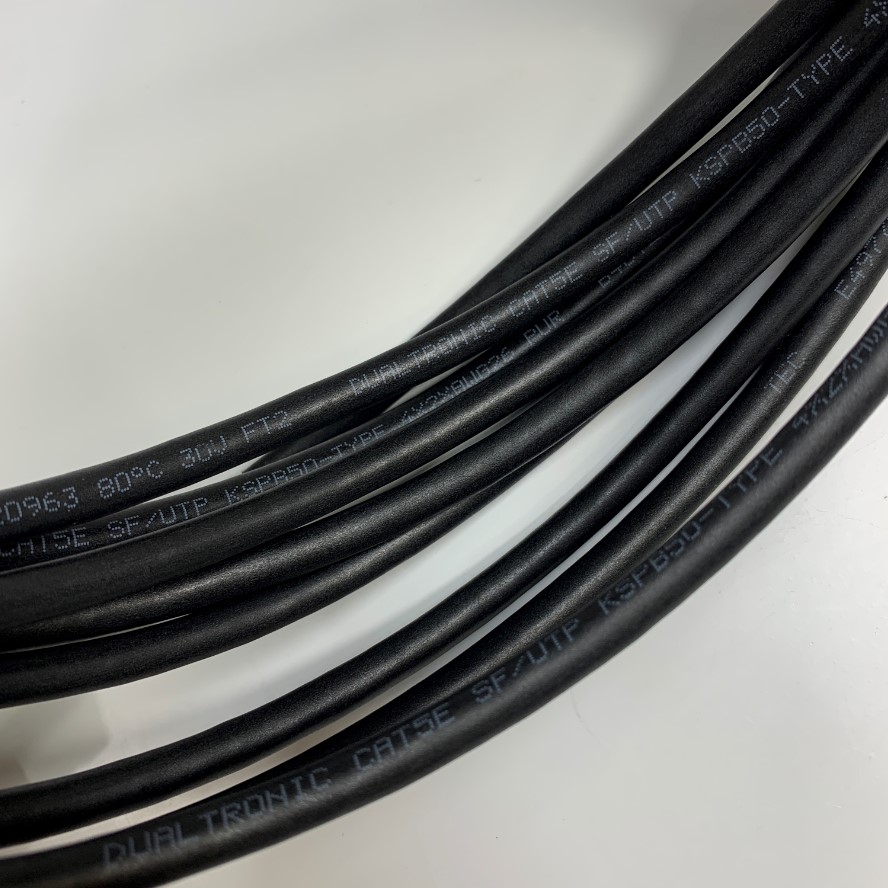

Cable TEC E497707-1 AWM 20963 80C 30V FT2 DUALTRONIC SF/UTP KSP50-TYPE 2x2xAWG26 PUR
Wire Gauge (AWG): 23AWG
Jacket Material: PVC 80°C 30V
Cable Style: Round
Wire Diameter (mm): 6.8mm
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Black
Length : 5M ~ 17ft
Cáp 5M 17ft SYSTEM2/LINEAR ENC(5M) Metal Shell Connector DDK DB15 Female to DB15 HD VGA Male Cable TEC E497707-1 AWM 20963 80C 30V 4x2x26AWG OD 6.8mm For Industrial Cable
