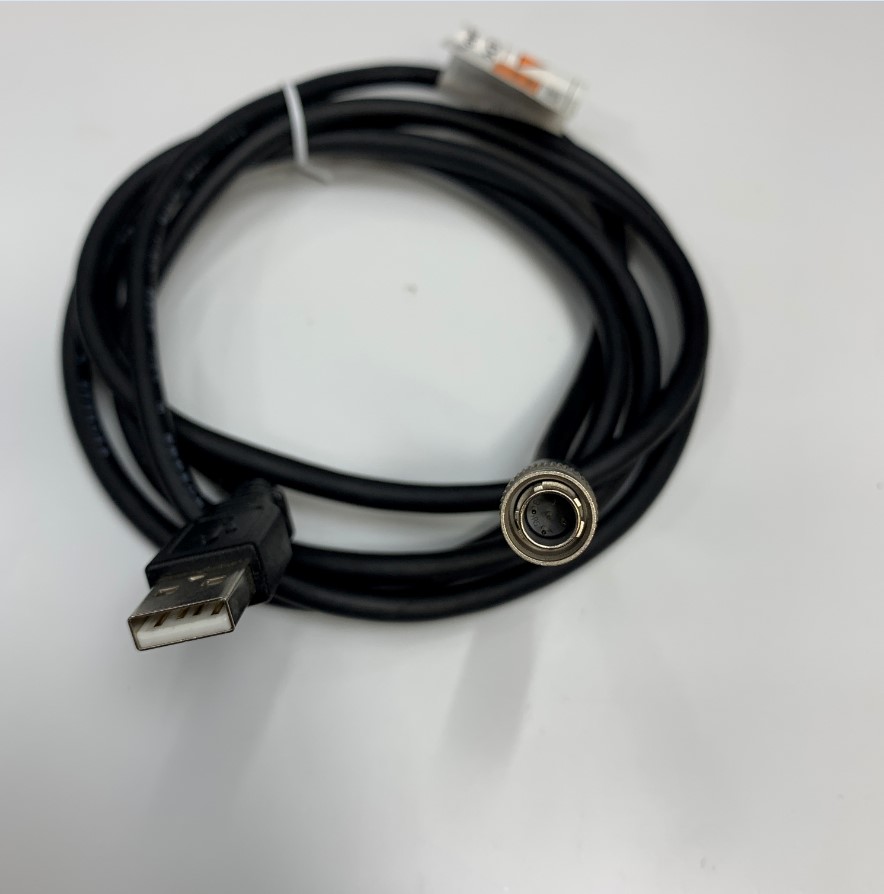

Cáp 1.6M 5.3ft DC MCA015200427020 Cable Connector Hirose HR10A-7P-5P(73) 5 Pin Male to USB 2.0 Male Cabel E203693 80C 30V DUSUNG OD 5.2mm

Mã SP: 11781

Thương hiệu: Industrial Origin Cable

Loại sản phẩm: Connector HR10A-7P-5P(73) to USB

Đánh giá

:

Giá

:

1.200.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Taiwan/Industrial Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Mua Hàng Online

Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Hiển: ‭094.816.2498‬

Mr Khôi: ‭‭‭037.308.1800

‬ Mr Khoa: ‭‭‭098.131.9702

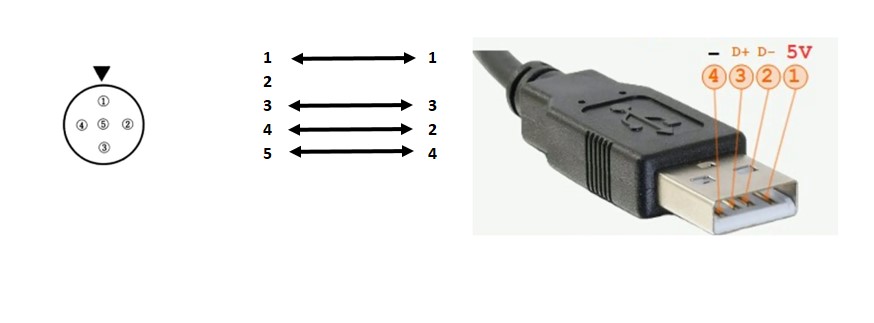

Wiring Diagram Cable

Specifications
Taiwan/Industrial Cable
Cabel type: Hirose HR10A-7P-5P(73) 5 Pin Male to USB 2.0 Male

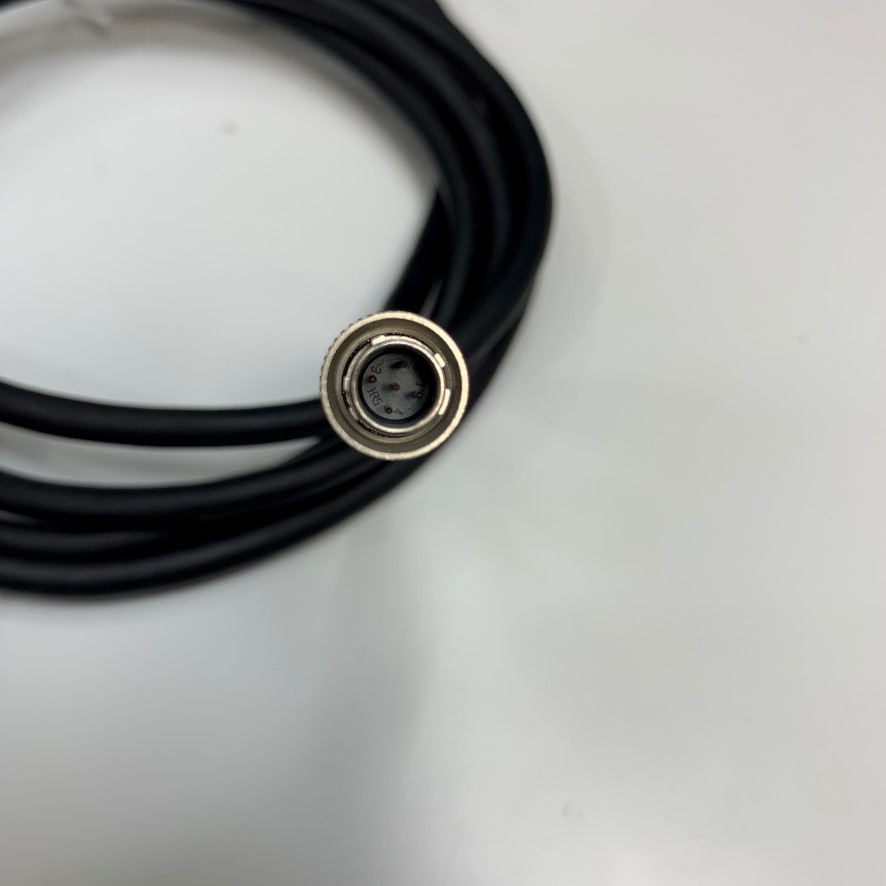

Connector A: Hirose HR10A-7P-5P(73) 5 Pin Male

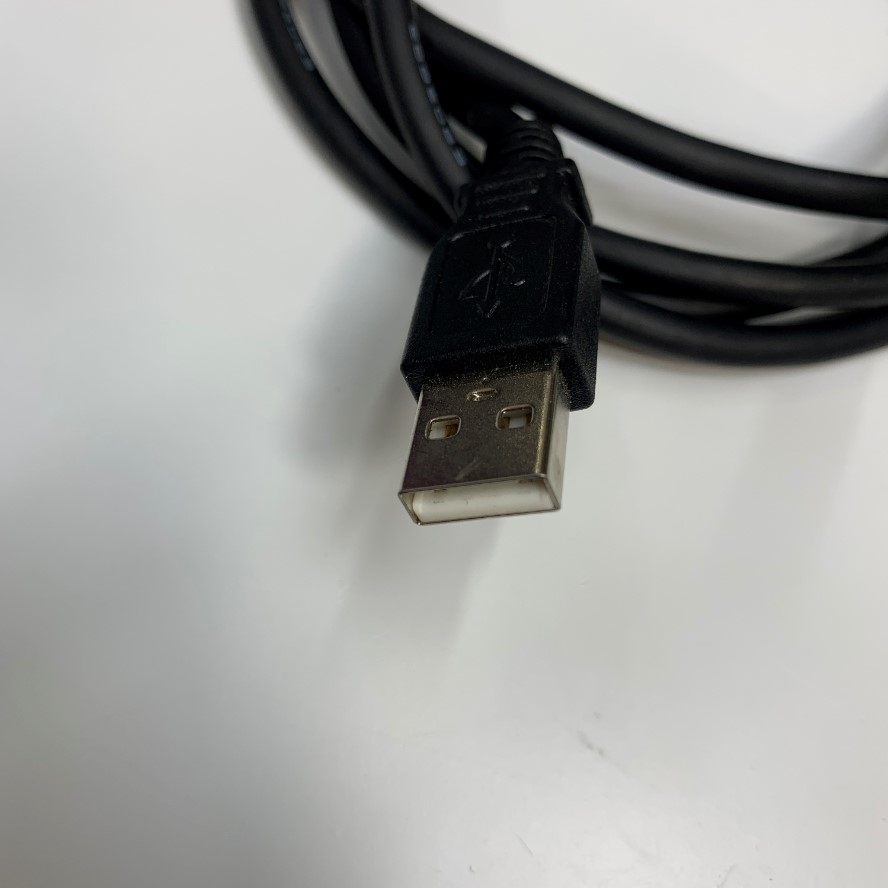

Connector B: USB 2.0 Male
Gender: Hirose HR10A-7P-5P(73) 5 Pin Male to USB 2.0 Male
Connector plating: Gold Plated, Nickel Plated
Number of Conductors: 4
Cable structure: 4 x 28AWG
Cable diameter: 5.2mm
Material: Cu
Shield structure: Yes
Operating Temperature: -20°C to 85°C
Cable Jacket Color: Black
Cable length: 1.6M ~ 5.3ft
Cáp 1.6M 5.3ft DC MCA015200427020 Cable Connector Hirose HR10A-7P-5P(73) 5 Pin Male to USB 2.0 Male Cabel E203693 80C 30V DUSUNG OD 5.2mm
