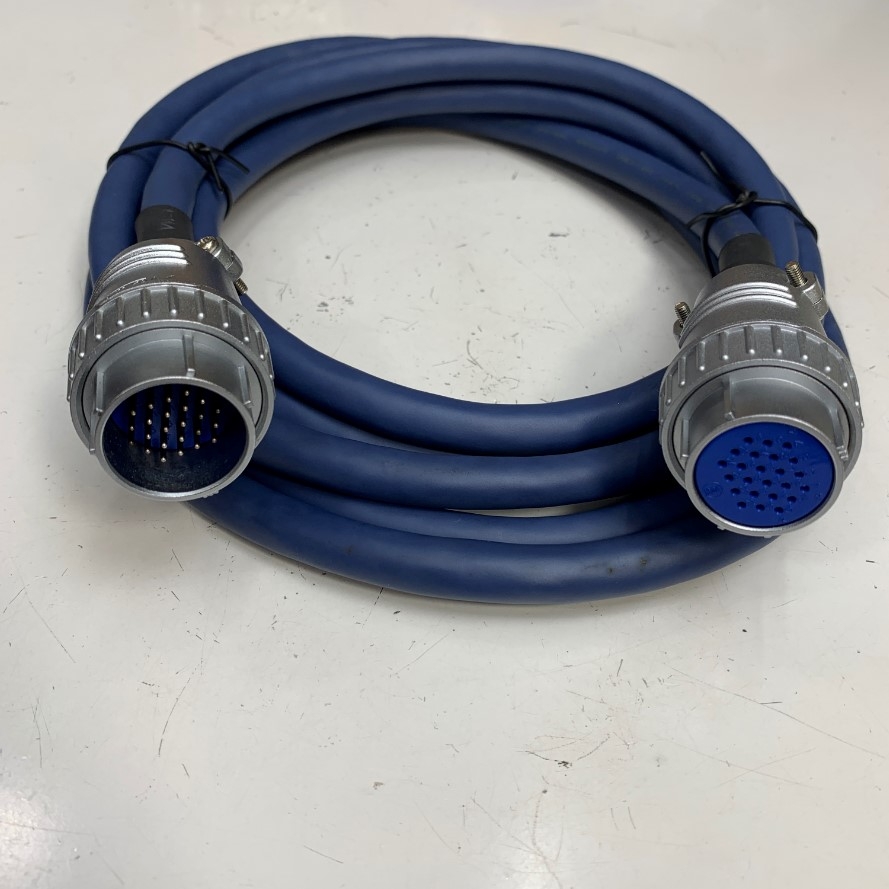

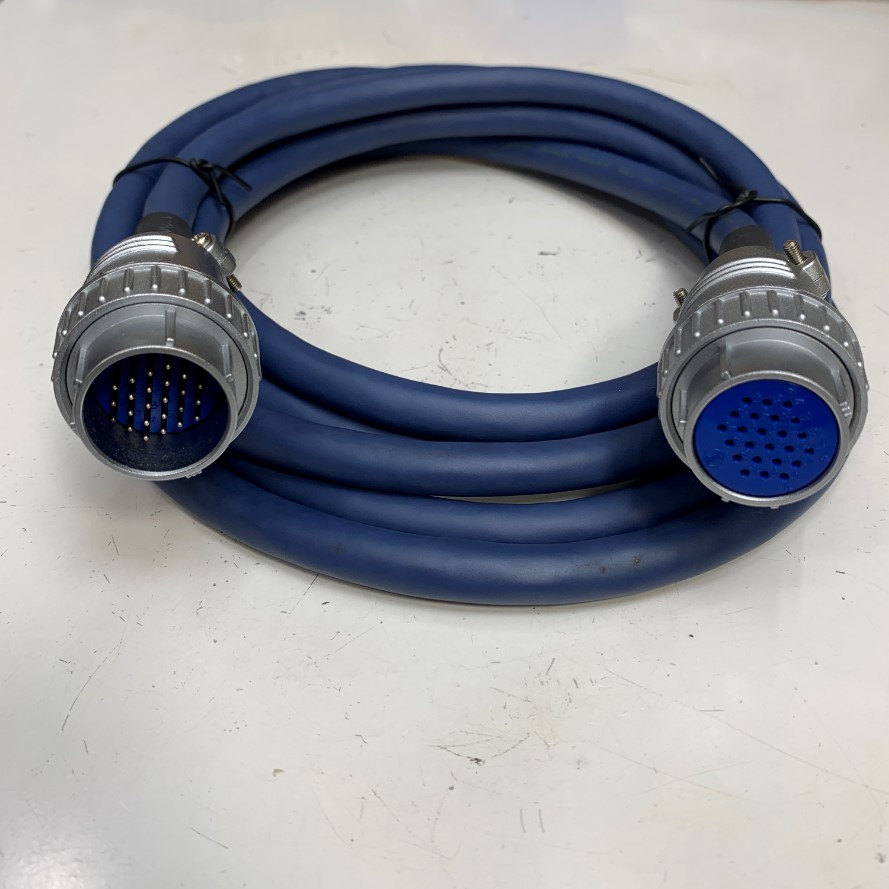

  • Cáp 3M 10ft Industrial Circular Connector NANABOSHI NJC-28-24-PM 24 Pin Male to Female Plug Cable 24 x 0.3mm² 25AWG E66085-C 80C 300V VW-1 MISUMI CORD OD 11.5mm For Power Cable and Control Robotics, CNC Machines

Cáp 3M 10ft Industrial Circular Connector NANABOSHI NJC-28-24-PM 24 Pin Male to Female Plug Cable 24 x 0.3mm² 25AWG E66085-C 80C 300V VW-1 MISUMI CORD OD 11.5mm For Power Cable and Control Robotics, CNC Machines

Mã SP: 11728

Thương hiệu: Original NANABOSHI

Loại sản phẩm: NJC-28-24-PM 24 Pin Male to Female Plug

Đánh giá

:

Giá

:

5.000.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Japan/Original NANABOSHI Plug Power Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Hiển: ‭094.816.2498‬

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Khoa: ‭‭‭098.131.9702

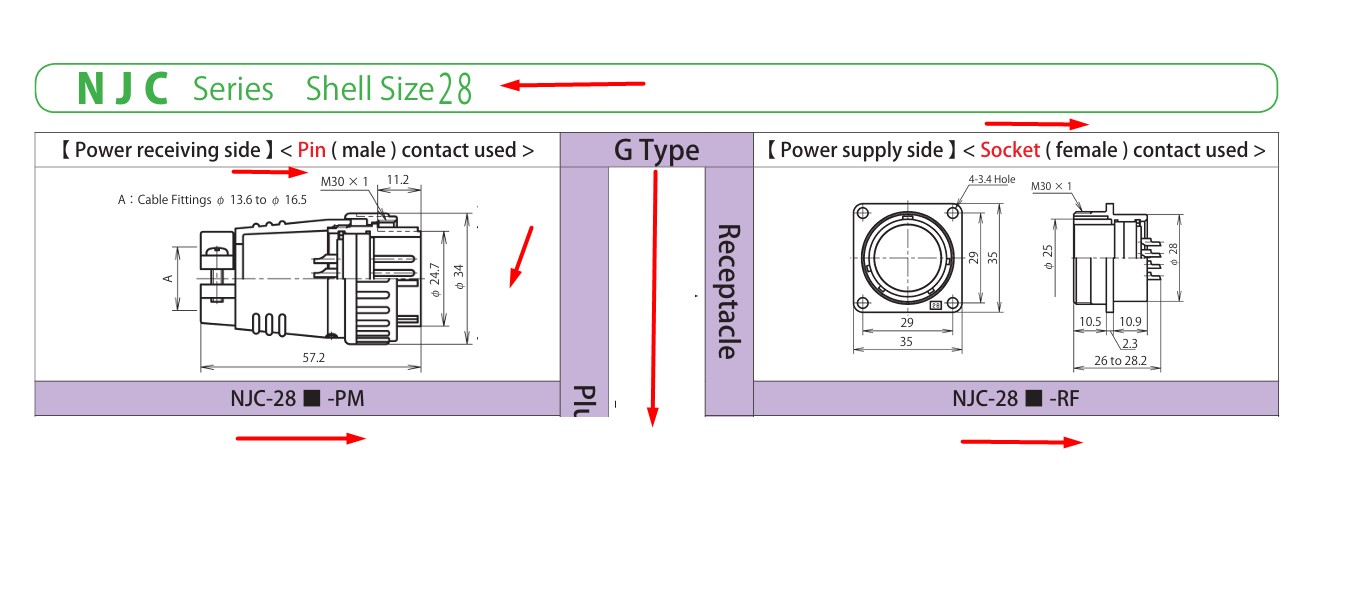

Circular Connector NANABOSHI NJC Series Shell Size 28

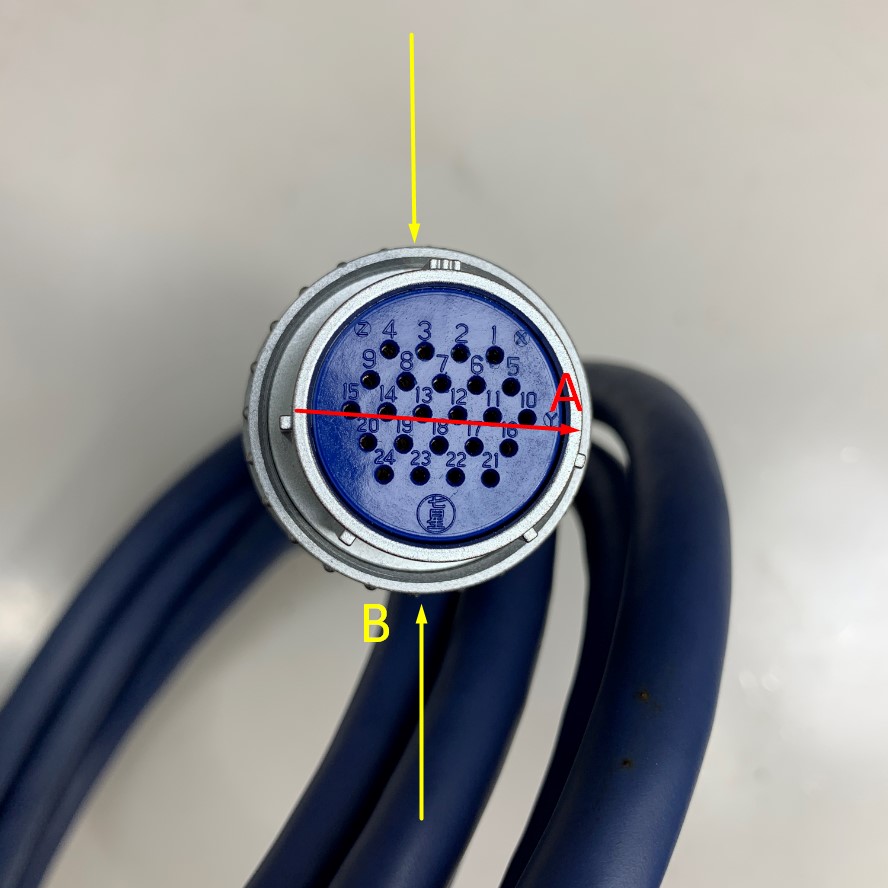

Dimension(mm) ΦA=24.7, ΦB=34

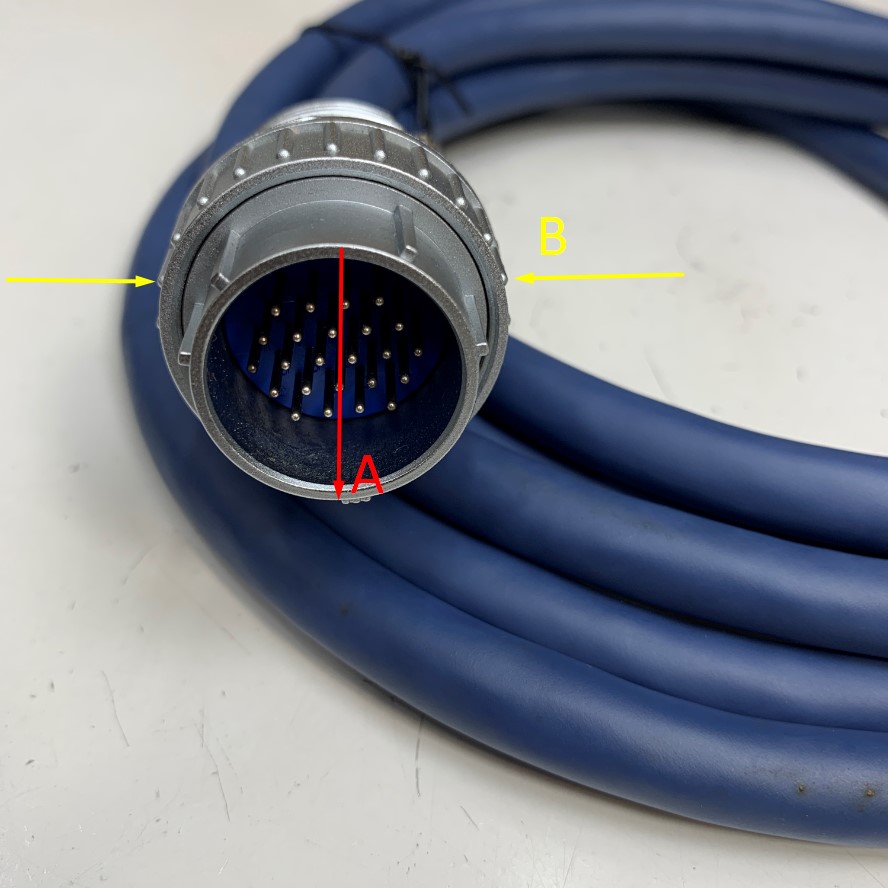

Dimension(mm) ΦA=24.7, ΦB=34

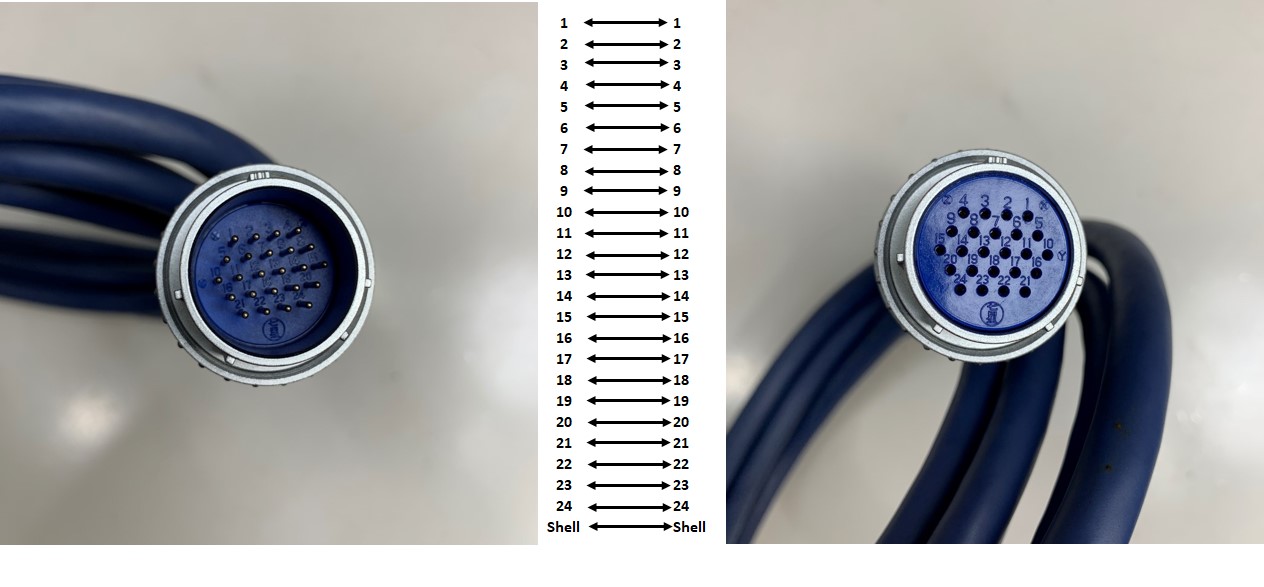

Wiring Diagram Cable

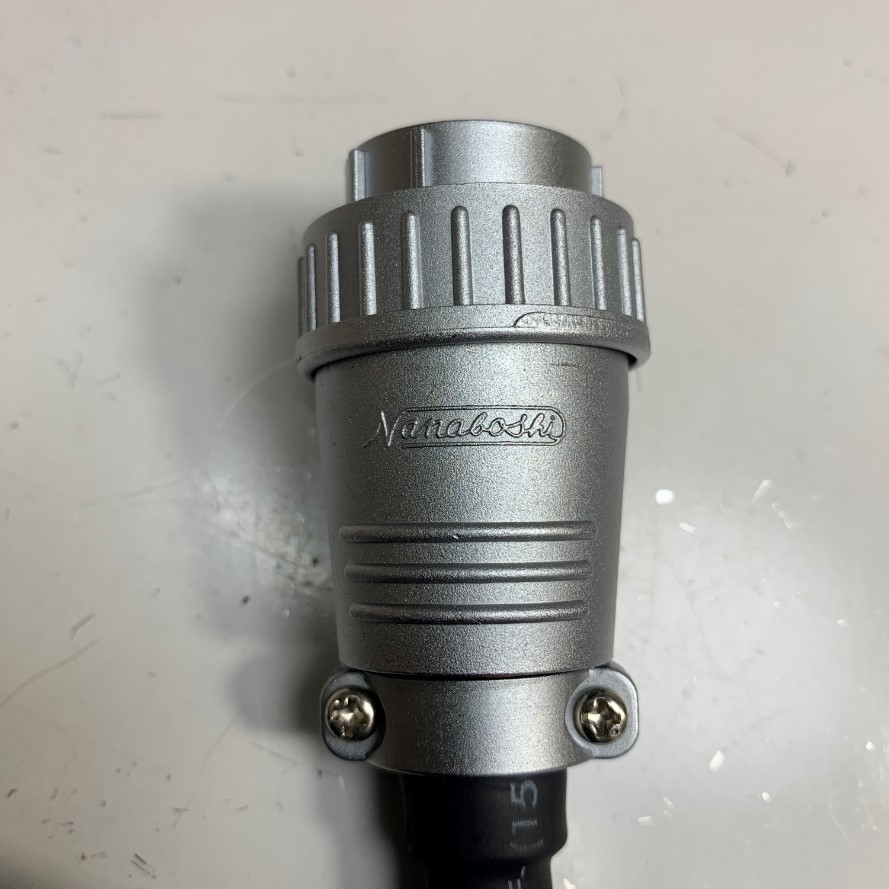

Brand: Japan/Original NANABOSHI Plug Power Cable
Specifications

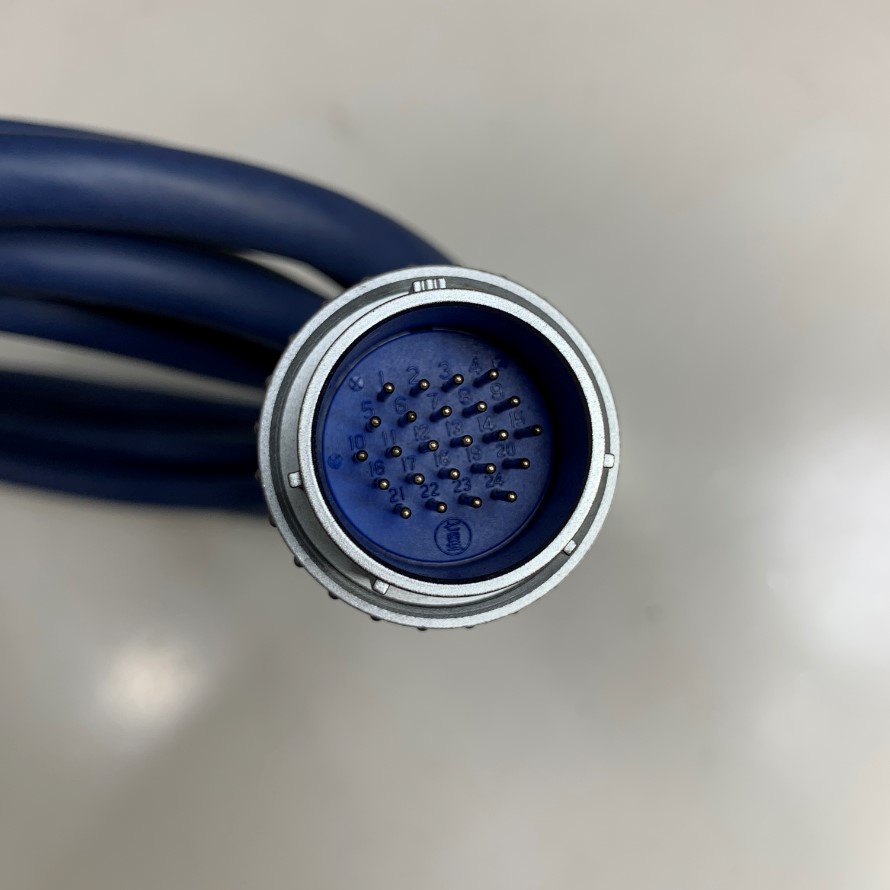

Connector 1: Connector NANABOSHI NJC-28-24-PM 24 Pin Male
Connector 2: Connector NANABOSHI NJC-28-24-PM 24 Pin Female
Number of Conductors: 12-Pair
Connector Plating: Gold Plated
Operating Temperature: -20°C to 80°C
Jacket Material: PVC (Polyvinyl Chloride)
Gender: NANABOSHI NJC-28-24-PM 24 Pin Male to Female Plug
Wire Gauge (AWG): 25 AWG
Jacket Material: PVC
Cable Style: Round
Cabel 24 x 0.3mm² 25AWG E66085-C 80C 300V VW-1 MISUMI CORD
Wire Diameter (mm): 11.5mm
Color: Blue
Length : 3M ~ 10ft
Pin-Out: NANABOSHI NJC-28-24-PM:
Cáp 3M 10ft Industrial Circular Connector NANABOSHI NJC-28-24-PM 24 Pin Male to Female Plug Cabel 24 x 0.3mm² 25AWG E66085-C 80C 300V VW-1 MISUMI CORD OD 11.5mm For Power Cable and Control Robotics, CNC Machines
