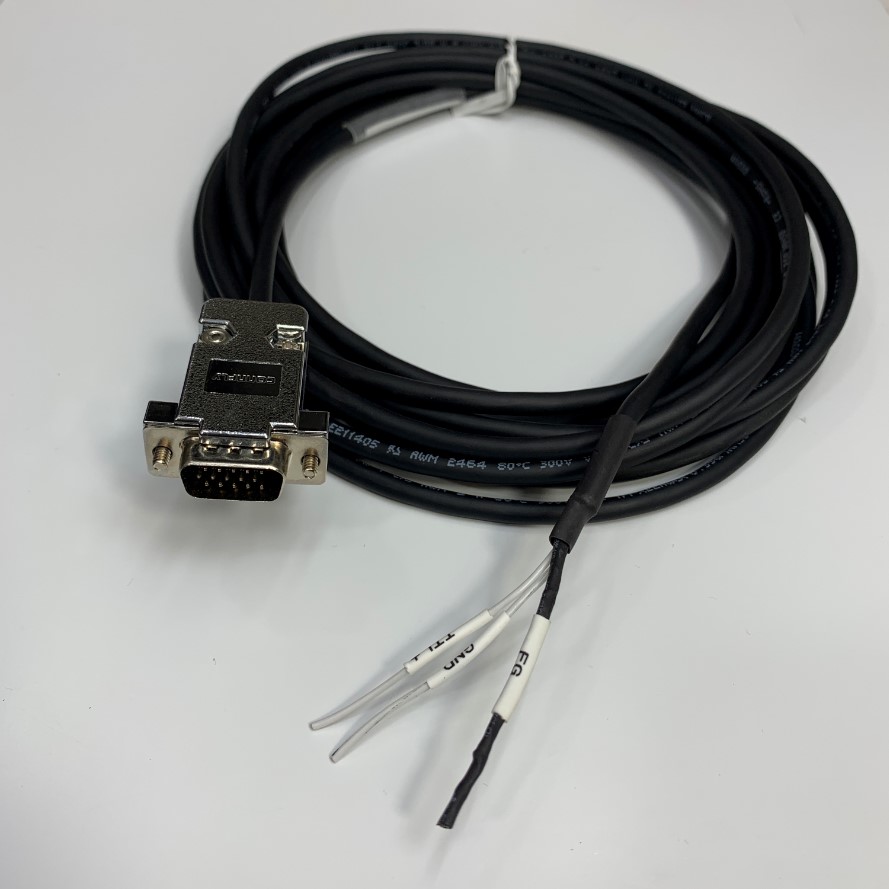

Cáp 5M 17ft Connector DB15 VGA 3 Rows 15 Pin Male to 2 Core Open End Cable Shielded ILSAN E211405 80C 300V 1Pr x 22AWG(0.3SQ) For Industrial Communication

Mã SP: 11719

Thương hiệu: Original Cable

Loại sản phẩm: DB15 VGA 3 Rows to 2 Core

Đánh giá

:

Giá

:

600.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Korea/Original Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Hiển: ‭094.816.2498‬

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Khoa: ‭‭‭098.131.9702

Wiring Diagram Cable

Cáp Industrial Communication
Brand: Korea/Original Cable
Specifications

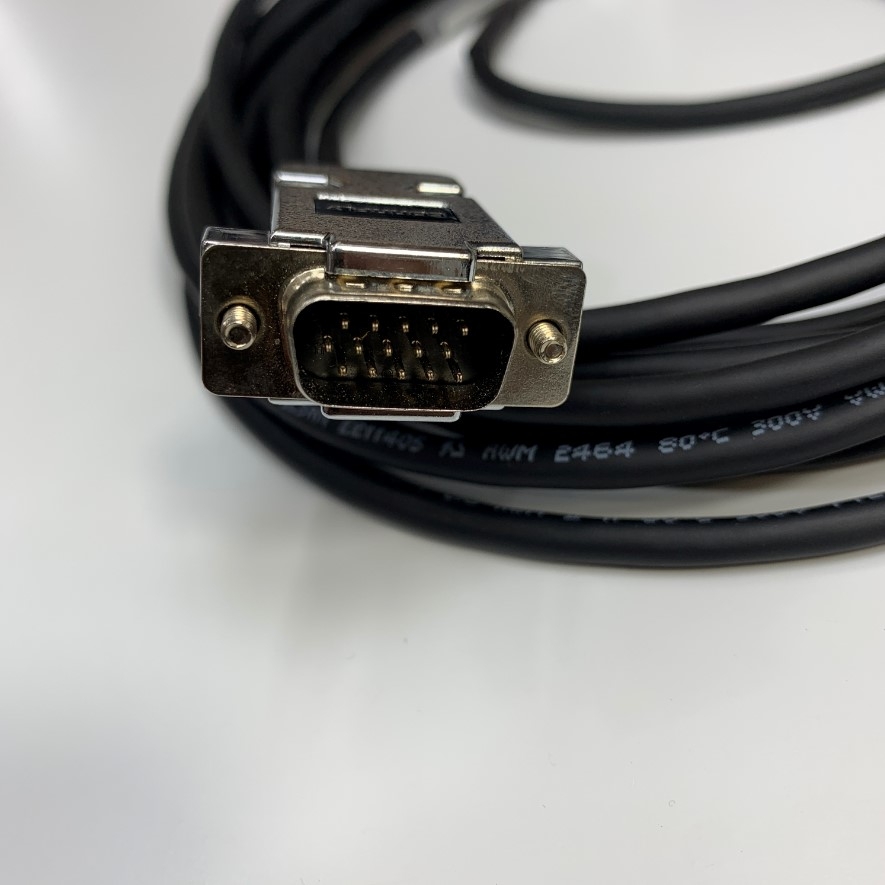

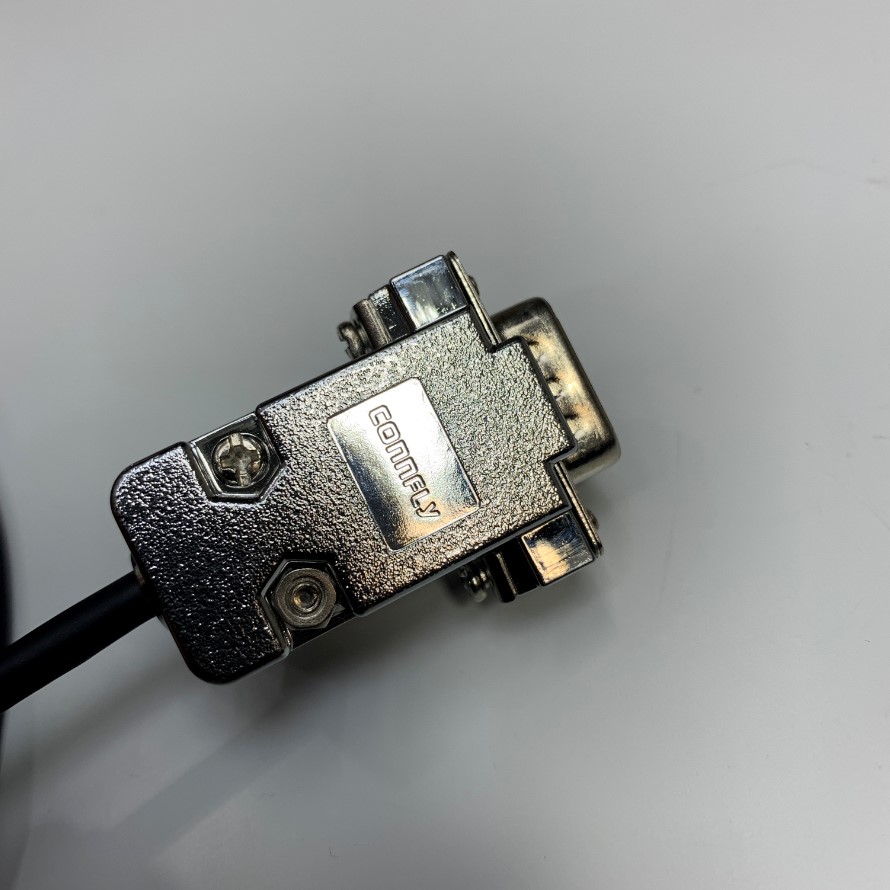

Connector 1: Connector DB15 VGA 3 Rows 15 Pin Male (Connfly Jack Metal)

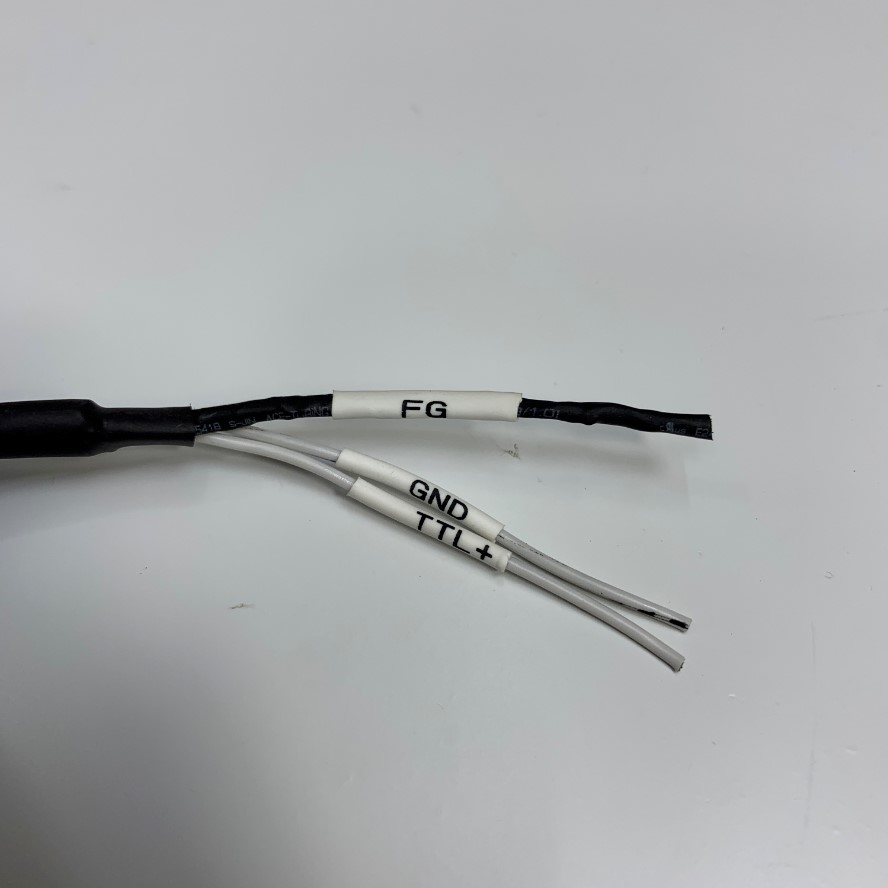

Connector 2: 2 Core Open End
Number of Conductors: 1-Pair
Connector Plating: Gold Plated
Cable Jacket Material: Low Smoke Zero Halogen
Cable Shield Material: Aluminum-Mylar Tape with Braid
Operating Temperature: -20°C to 80°C
Jacket Material: PVC (Polyvinyl Chloride)
Gender: DB15 VGA 3 Rows 15 Pin Male to 2 Core
Wire Gauge (AWG): 24 AWG
Jacket Material: PVC
Cable Style: Round

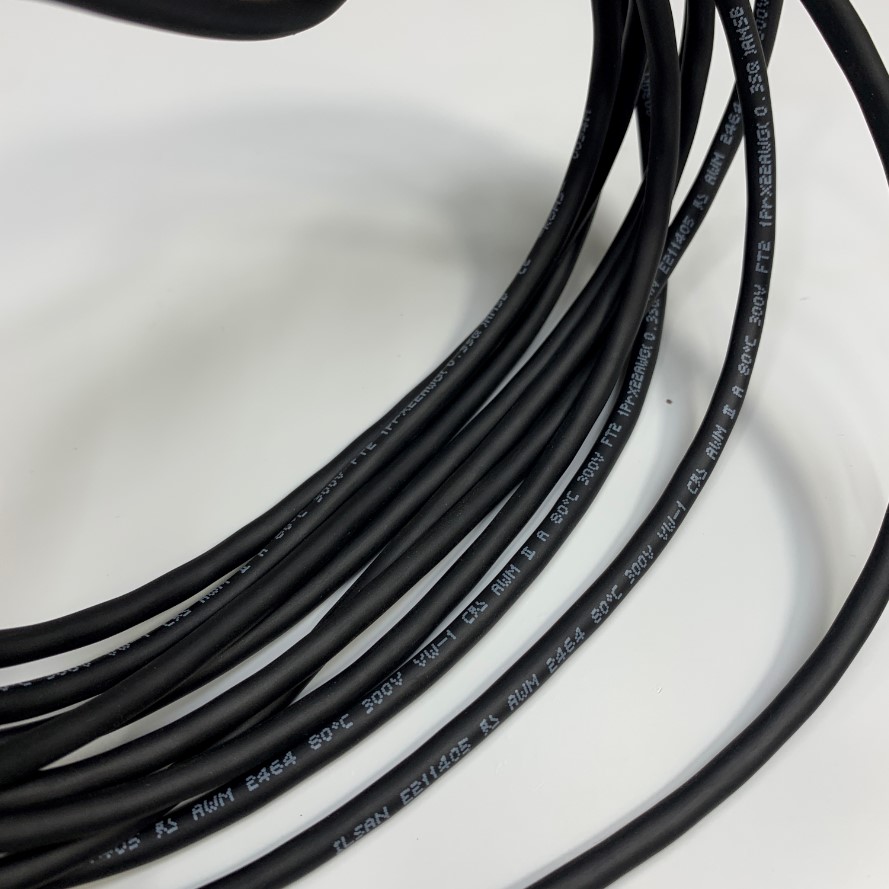

Cable ILSAN E211405 80C 300V 1Pr x 22AWG(0.3SQ)
Wire Diameter (mm): 5.0mm
Shielding: Yes
Color: Gray
Length : 5M ~ 17ft

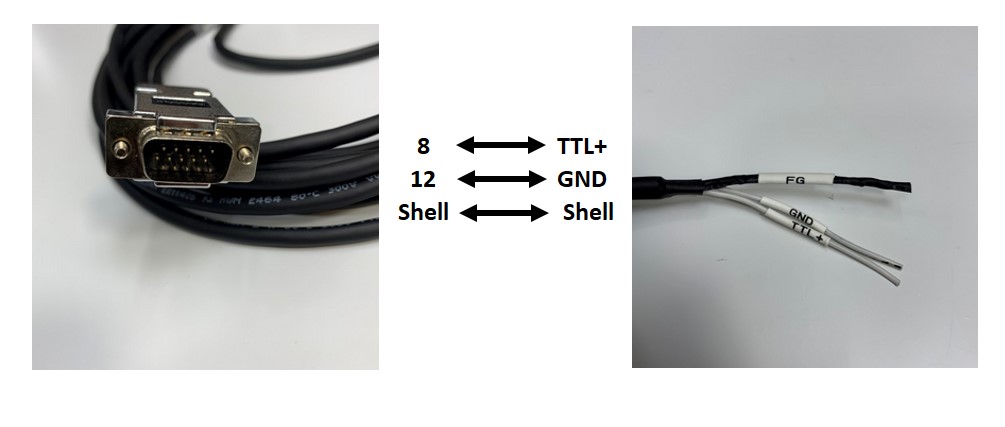

Pin-Out: Hirose HR10-7P-6P(73) Connection: 8-TTL+, 12-GND. Shell - Shell
Cáp 5M 17ft Connector DB15 VGA 3 Rows 15 Pin Male to 2 Core Open End Cable Shielded ILSAN E211405 80C 300V 1Pr x 22AWG(0.3SQ) For Industrial Communication
