Cáp 2M 6.5ft 62K01-62W200 5008-8267/00 Connector AISG 7 Pin Male to Female Cable HELUKABEL LiYCY 4 x 0.25QMM 300/500V OD 5.4mm
Mã SP: 11796
Thương hiệu: Original Cable
Loại sản phẩm: AISG 7 Pin M/F
Đánh giá
:Giá
:2.000.000₫
(Giá sản phẩm chưa bao gồm VAT)
Mô tả :
Xuất xứ/Nguồn hãng: Japan/Industrial Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng
Mua Hàng Online
Mr Khanh: 091.301.5851
Mr Lam: 085.514.0226
Mr Hiển: 094.816.2498
Mr Khôi: 037.308.1800
Mr Khoa: 098.131.9702

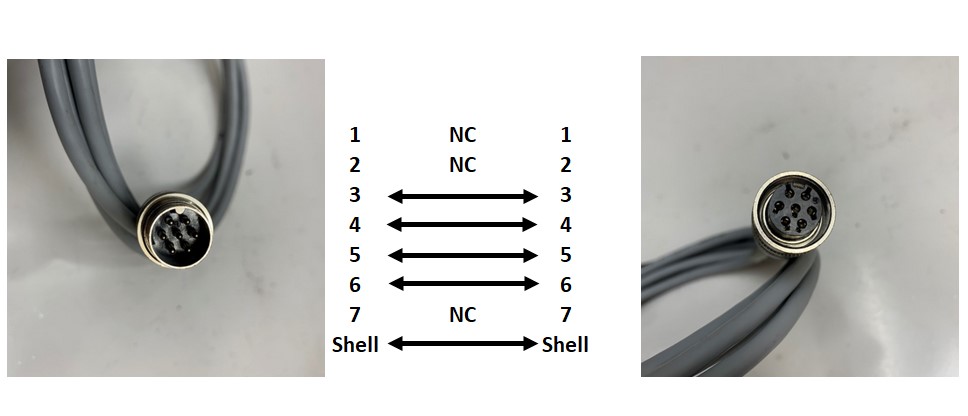

WIRING DIAGRAM
Specifications
Brand: Japan/Industrial Cable
PartNumbe: 62K01-62W200

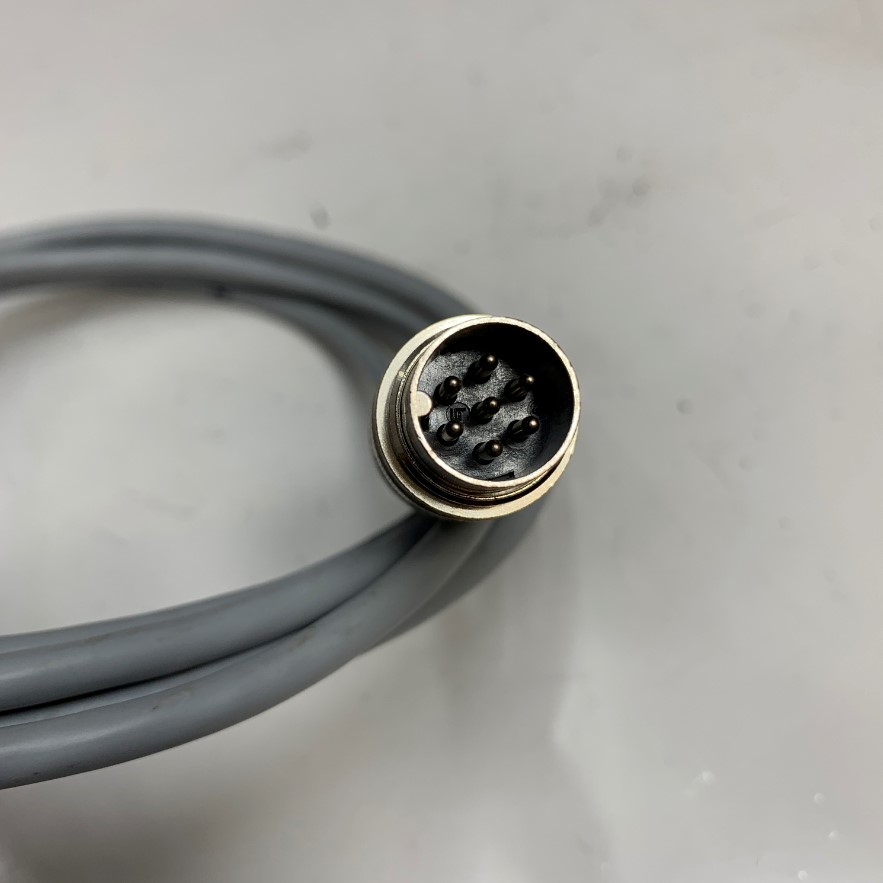

Connector 1: AISG DIN M16 7 Pin Male BINDER (X06)

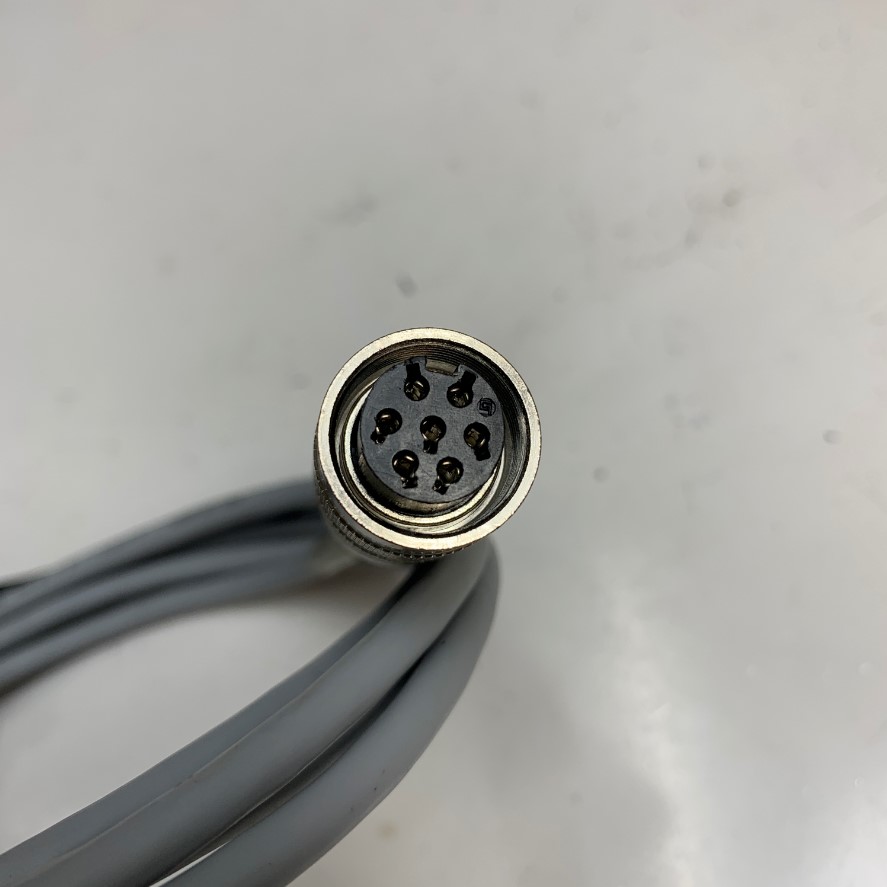

Connector 2: AISG DIN M16 7 Pin Female BINDER (X06)
Cable Type: AISG DIN M16 7 Pin Male to Female Cable
Number of Conductors: 4
Connector plating: Gold Plated

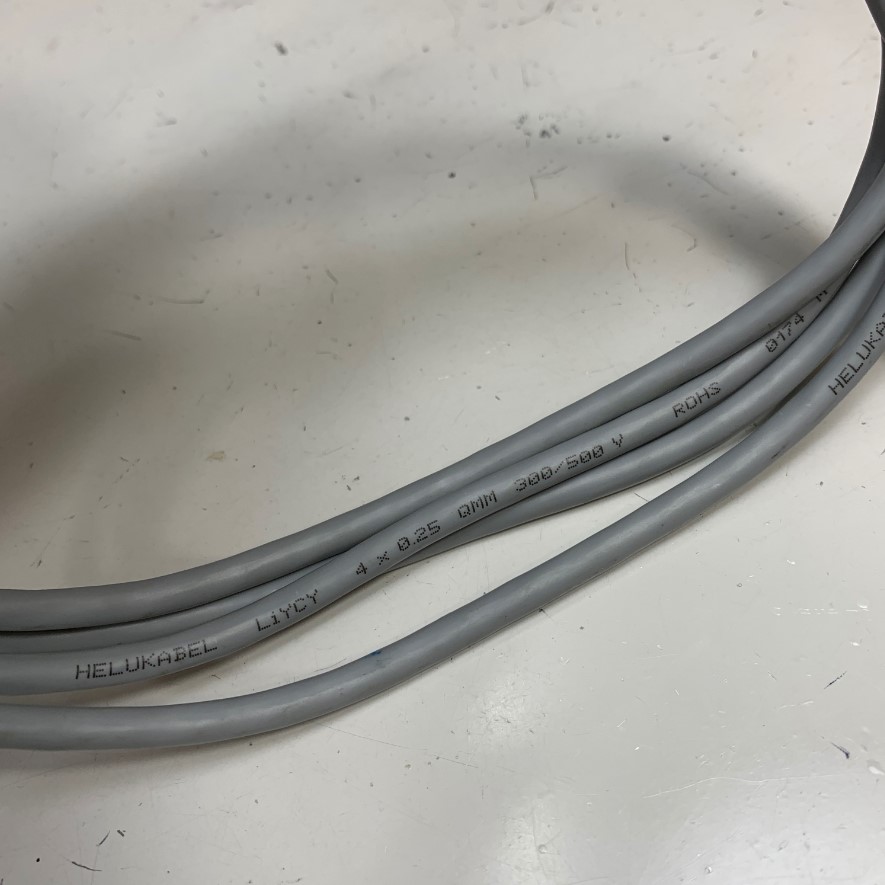

Shielded Cable HELUKABEL TRONIC-CY (LiY-CY) 4x0.25QMM 300/500V Grey OD 5.4mm
Wire Gauge (AWG): 22AWG
Jacket Material: PVC 105°C 300/500V
Voltage Rating: 500V
Cable Style: Round
Wire Diameter (mm): 5.4mm
Shield structure: Shielded
Operating Temperature: -20°C to 105°C
Material: Cu
Shielding: Yes
Color: Gray
Length : 2M ~ 6.5ft
