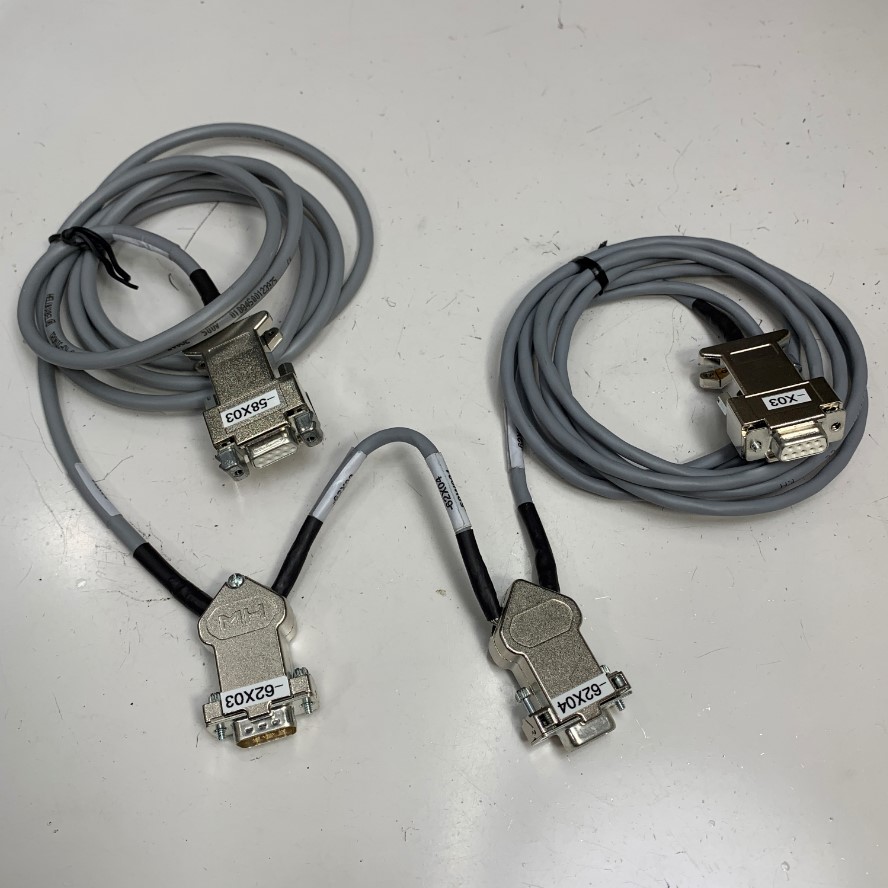

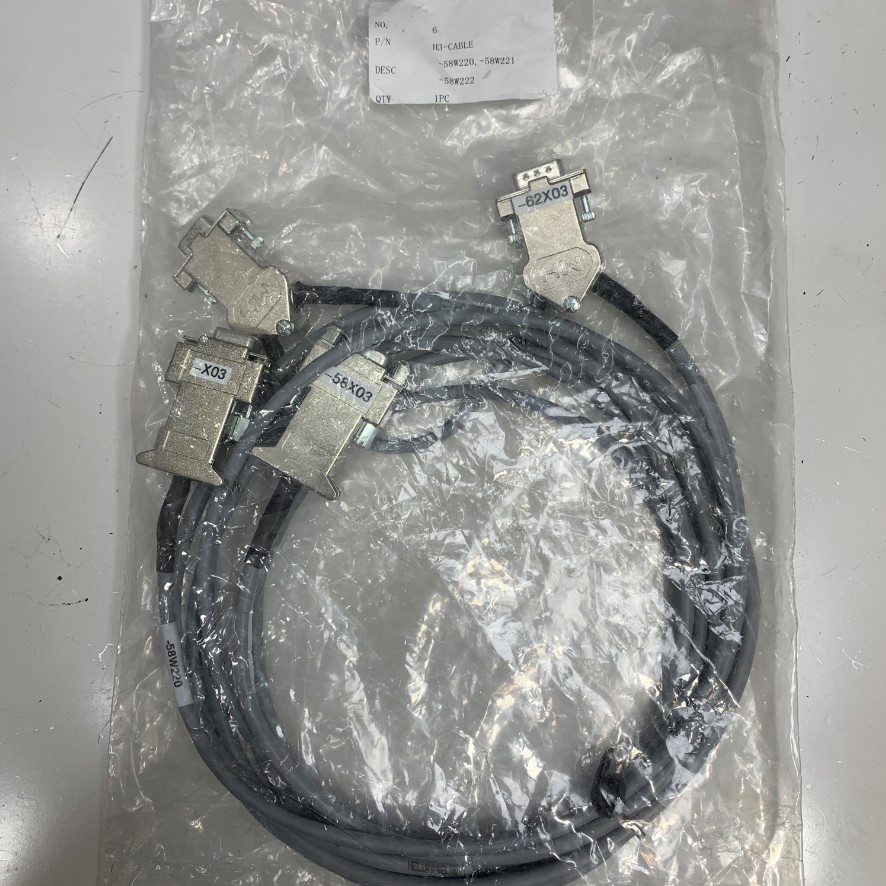

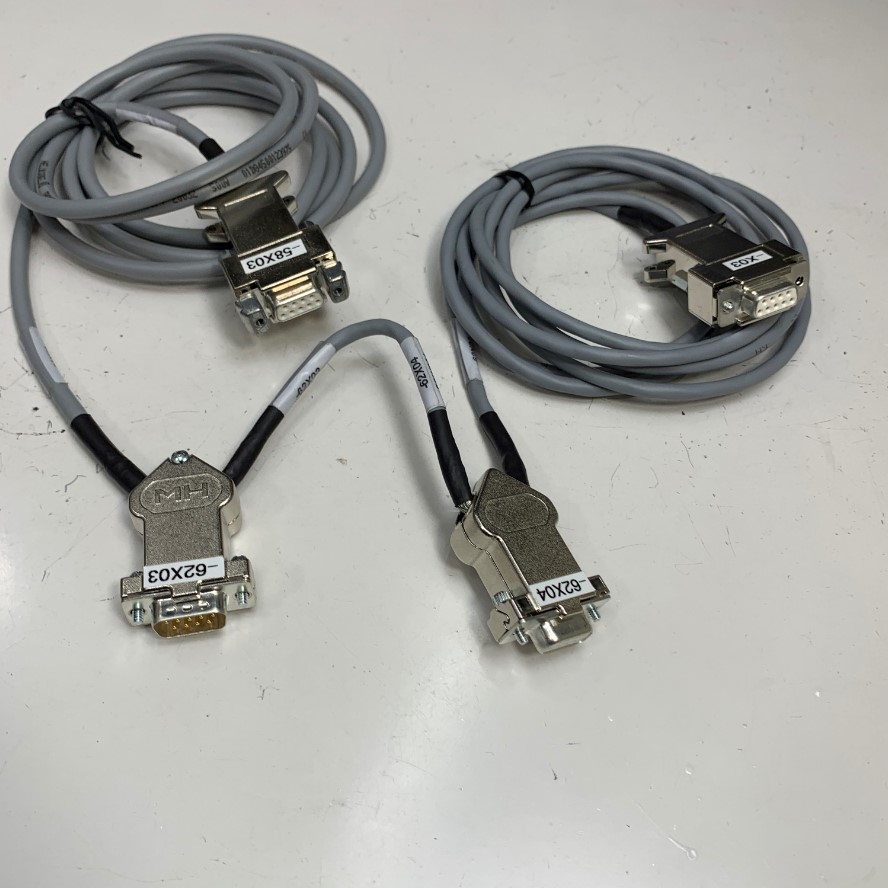

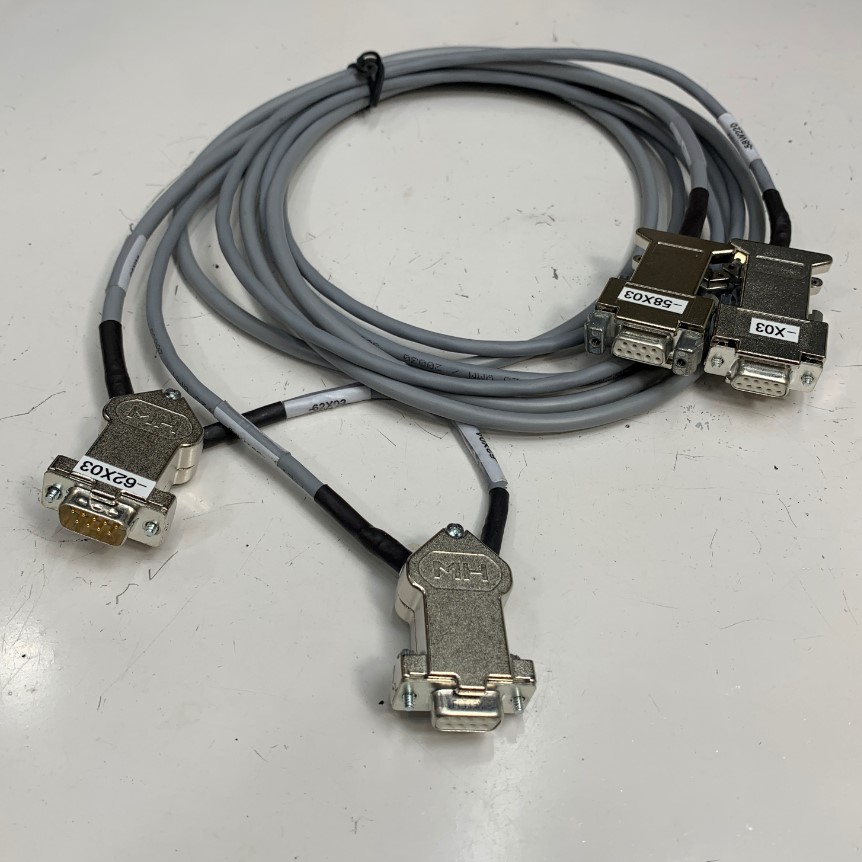

Cáp 2M 6.5ft H3-58W220-58W221-58W222 Cable Metal Shell Connector RS-232 Serial Splitter Y Cable DB9 Male And DB9 Female to 2 Port DB9 Male + Female

Mã SP: 11793

Thương hiệu: Original Cable

Loại sản phẩm: RS232 Serial Splitter Y Cable

Đánh giá

:

Giá

:

3.500.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Japan/Industrial Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Hiển: ‭094.816.2498‬

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Khoa: ‭‭‭098.131.9702

Shielded Cable HELUKABEL TRONIC-CY (LiY-CY) 5x0.25QMM / 20032 500V Grey OD 5.5mm
Shielded Cable HELUKABEL TRONIC-CY (LiY-CY) 3x0.25QMM / 20032 500V Grey OD 5.0mm

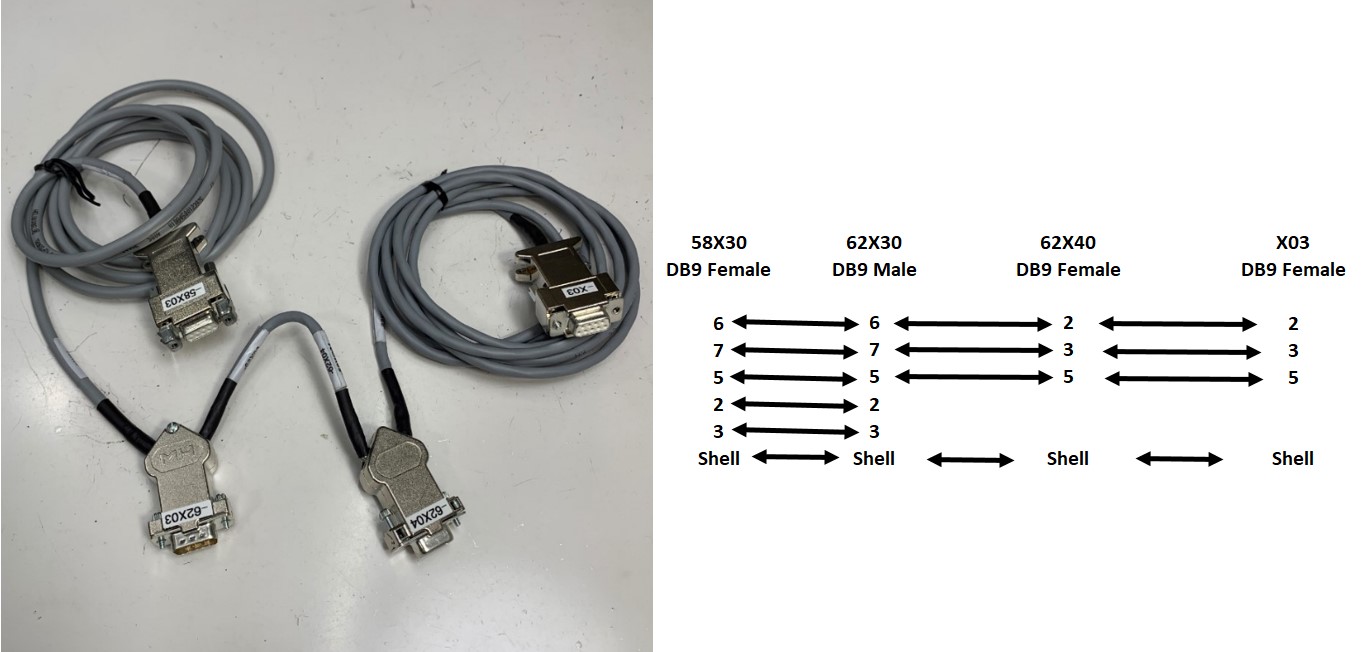

WIRING DIAGRAM

Specifications
Brand: Japan/Industrial Cable
PartNumbe: 62X03-58W221; 62X04-58W221; 62X04-58W220; 62X03-58W222 RS232 Serial Splitter Y Cable
Connector 1: RS232 DB9 Male (Metal Shell Fe MH - 62X03)
Connector 2: RS232 DB9 Female (Metal Shell Fe MH - 62X04)
Connector 1.1: RS232 DB9 Female (Metal Shell Fe - 58X03)
Connector 2.2: RS232 DB9 Female (Metal Shell Fe - X03)
Cable Type: RS-232 Serial Splitter Y Cable
Number of Conductors: 5
Connector plating: Gold Plated
Wire: Cable Shielded 22AWG 105°C 500V OD 5.8mm
Wire Gauge (AWG): 22 AWG
Jacket Material: PVC 105°C 500V
Voltage Rating: 500V
Cable Style: Round
Wire Diameter (mm): 5.8mm
Shield structure: Shielded
Operating Temperature: -20°C to 105°C
Material: Cu
Shielding: Yes
Length : 2M ~ 6.5ft
Cáp 2M 6.5ft H3-58W220-58W221-58W222 Cable Metal Shell Connector RS-232 Serial Splitter Y Cable DB9 Male And DB9 Female to 2 Port DB9 Male + Female
