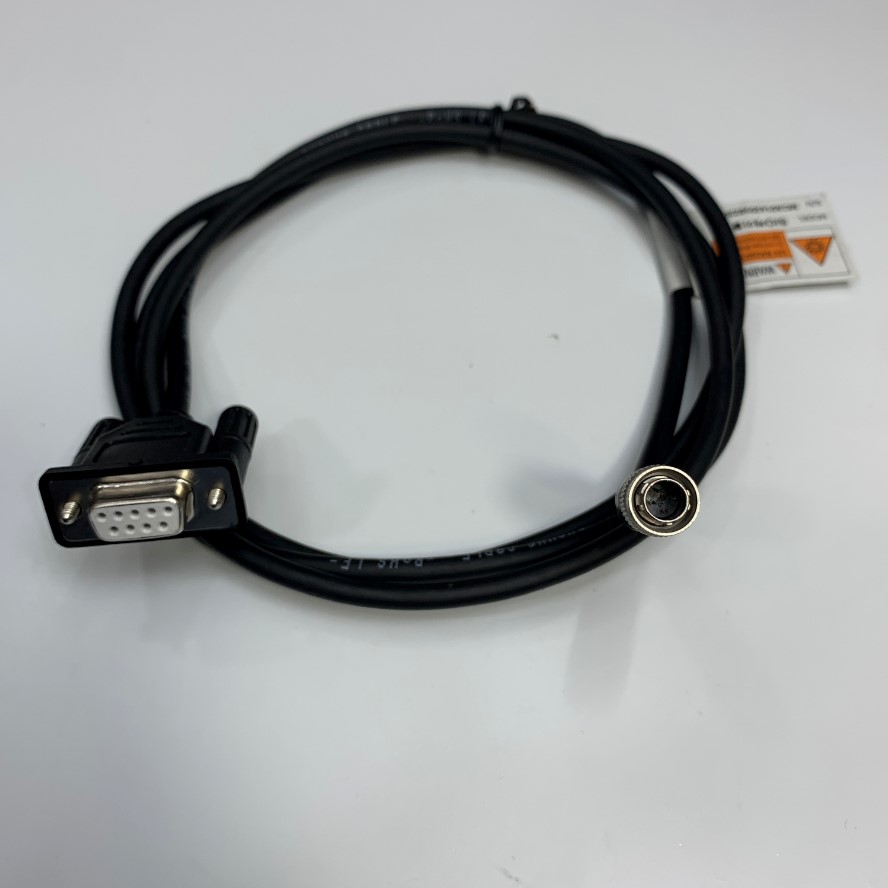

Cáp 1.6M 5.3ft SIO MCA014200522003 Cable Connector Hirose HR10A-7P-4P(73) 4 Pin Male to DB9 Female Cable E2036932464 80C 300V 24AWG x 3C DUSUNG OD 5.2mm

Mã SP: 11780

Thương hiệu: SIO

Loại sản phẩm: Connector HR10A-7P-4P(73) to DB9

Đánh giá

:

Giá

:

1.200.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Taiwan/SIO Industrial Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Mua Hàng Online

Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Hiển: ‭094.816.2498‬

Mr Khôi: ‭‭‭037.308.1800

‬ Mr Khoa: ‭‭‭098.131.9702

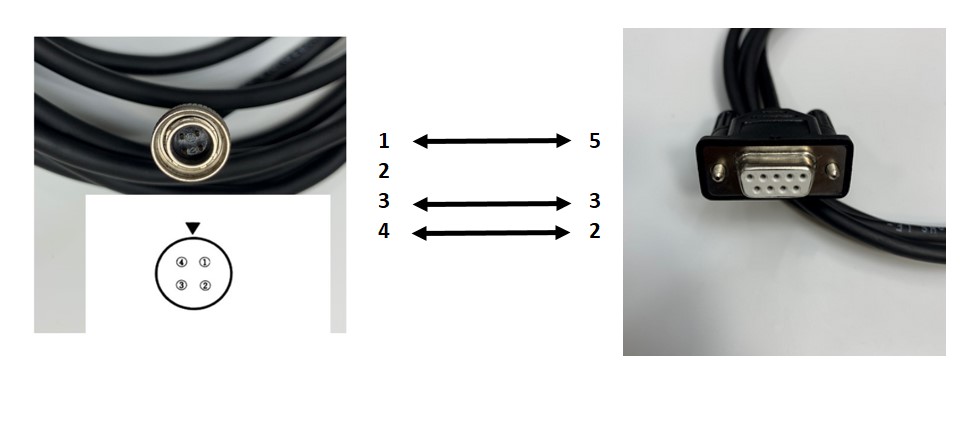

Wiring Diagram Cable

Specifications
Taiwan/SIO Industrial Cable
Cabel type: Hirose HR10A-7P-4P(73) 4 Pin Male to DB9 Female

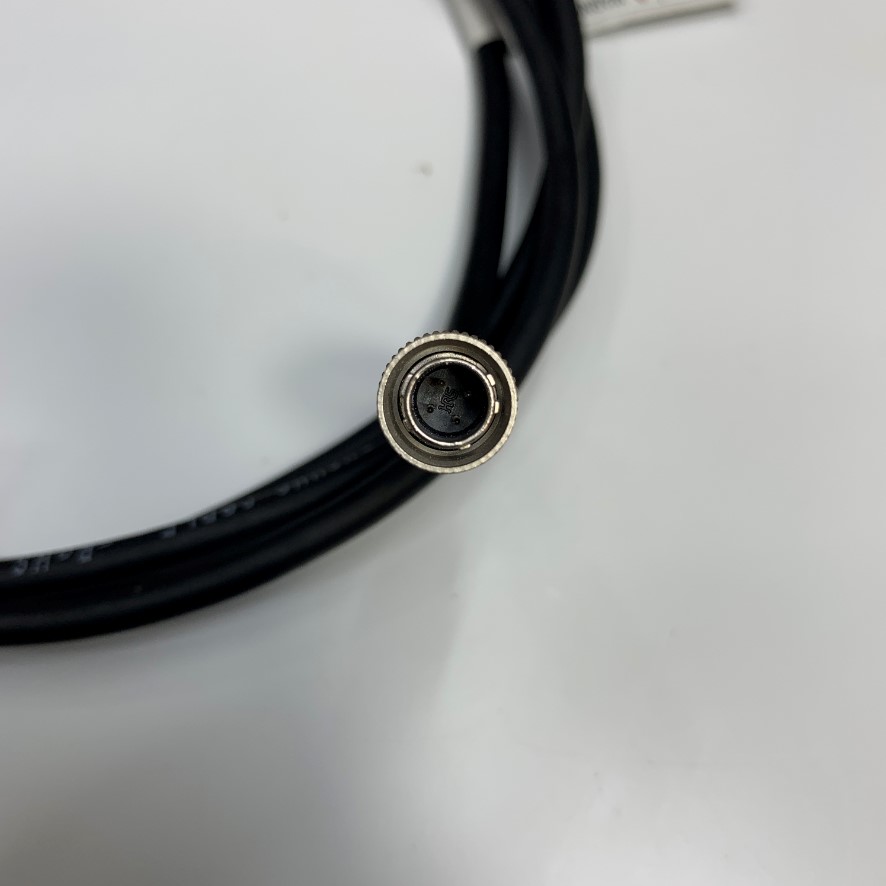

Connector A: Hirose HR10A-7P-4P(73) 4 Pin Male

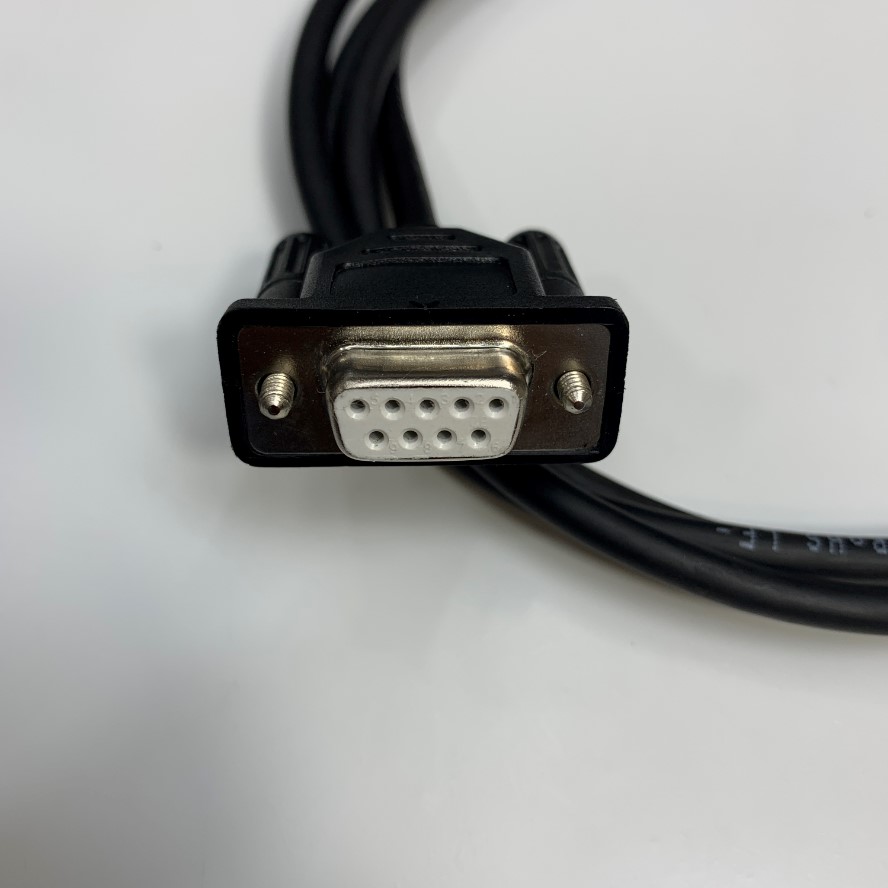

Connector B: DB9 Female
Gender: Hirose HR10A-7P-4P(73) 4 Pin Male to DB9 Female
Connector plating: Gold Plated, Nickel Plated
Number of Conductors: 3

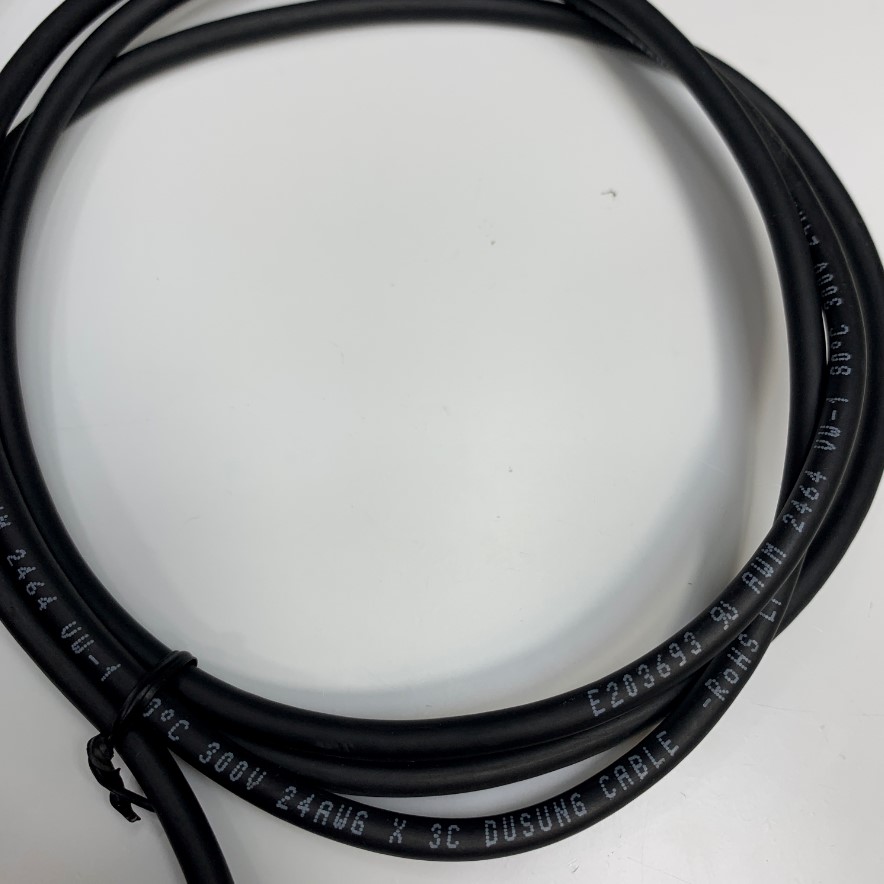

Cable structure: 3 x 24AWG
Cable diameter: 5.2mm
Material: Cu
Shield structure: Unshielded
Operating Temperature: -20°C to 85°C
Cable Jacket Color: Black
Cable length: 1.6M ~ 5.3ft
Cáp 1.6M 5.3ft SIO MCA014200522003 Cable Connector Hirose HR10A-7P-4P(73) 4 Pin Male to DB9 Female Cable E2036932464 80C 300V 24AWG x 3C DUSUNG OD 5.2mm
