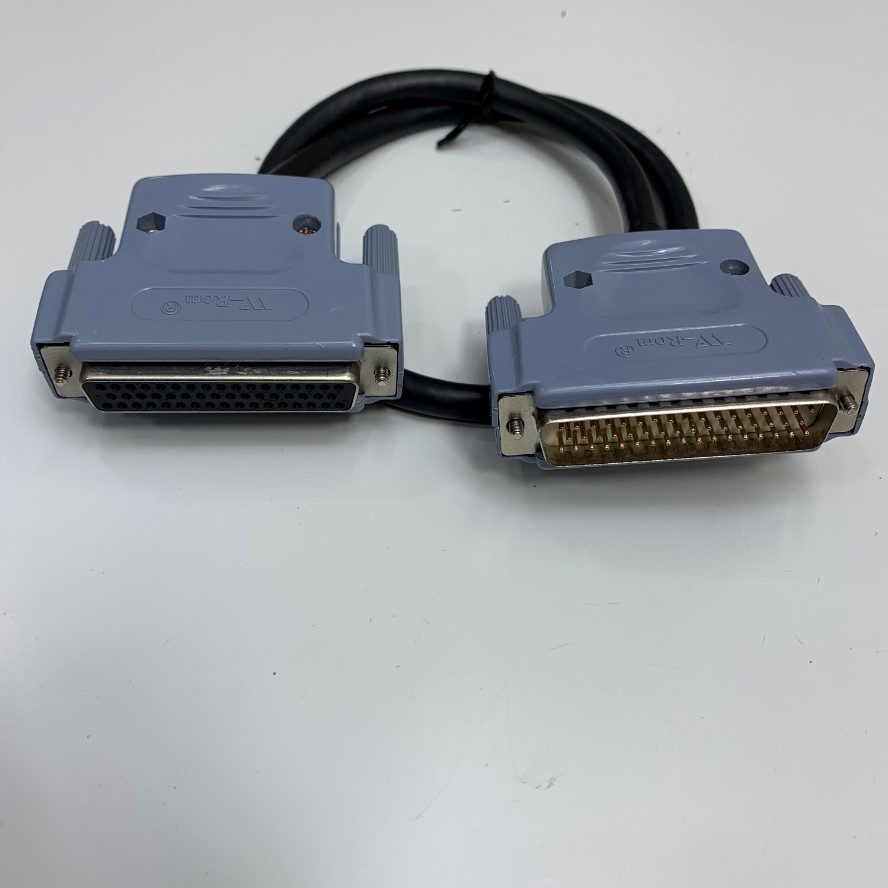

Cáp 1.5M 5ft D-Sub 50 Pin 3 Rows Connector Shielded DB50 Male to Female Extension Cable Black OD 9.0mm For Siemens Simatic S7-400 Interface Modules and Reduction CNC Machining Cable

Mã SP: 11162

Thương hiệu: KTT Industrial/PLC/CNC

Loại sản phẩm: DB50 Male to Female Cable

Đánh giá

:

Giá

:

2.000.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

Cable DB50 Male to Female Connector D-SUB 3 Rows 50 Pin

DB50 50 Position Male / Female D-Sub Cables Datasheets

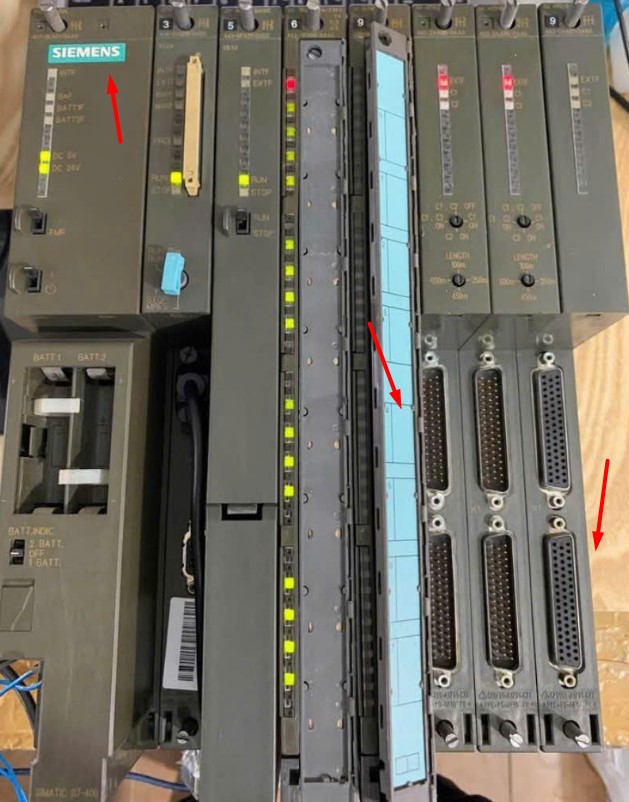

Siemens Simatic S7-400 Interface modules

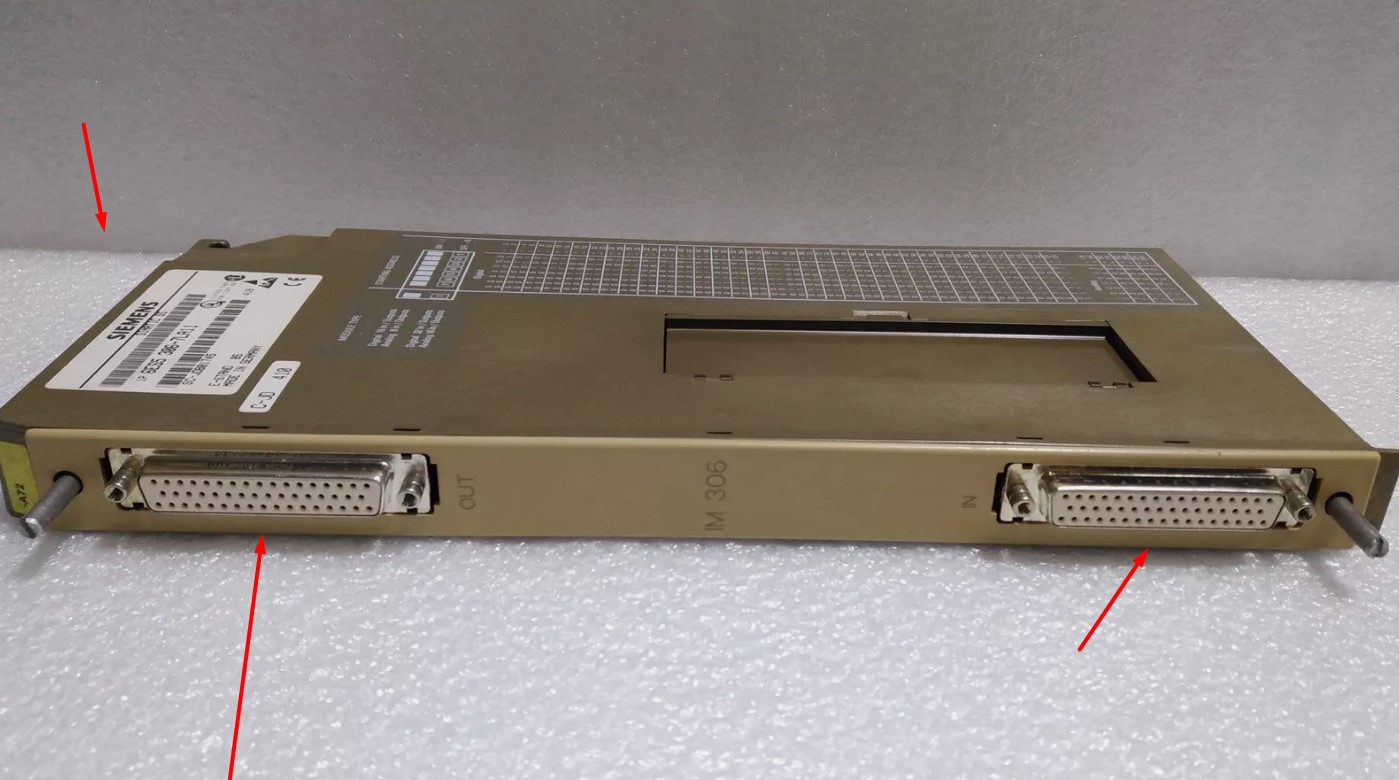

SIEMENS 6ES5 306-7LA11 SIMATIC S5, IM306

Specifications
PLC Siemens Simatic/CNC Machine Servo Motor Interface IO Control Cable
Brand: ViệtNam/Thientruongpc I/O Signal Data Cable
Cable Type: Communication IO Data Cable

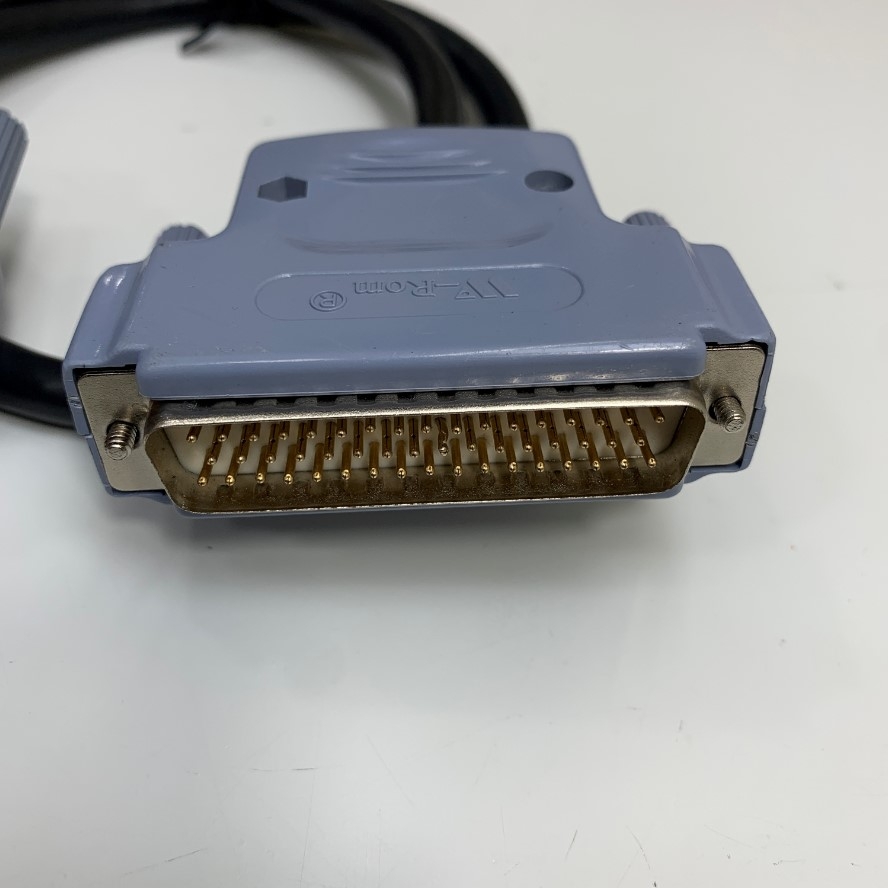

Connector 1: Jack DB50 3 Rows Male Solder Connector With Screw (DB-50H W-ROM Housing Shell)

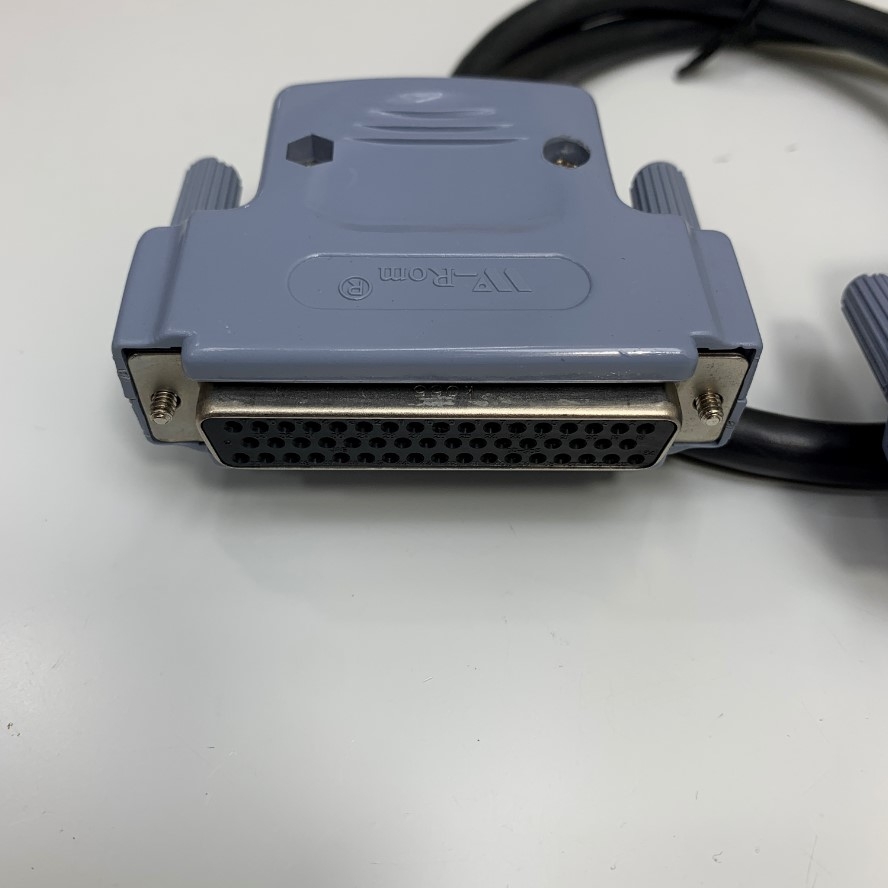

Connector 2: Jack DB50 3 Rows Famele Solder Connector With Screw (DB-50H W-ROM Housing Shell)
Connector plating: Connector Gold Plated
Gender: DB 50 Pin Male to DB 50 Pin Female
Wire: 28AWG - Cable OD=9.0mm
Cable: 80°C 300V VW-1
Max Operating Temperature: 85 °C
Min Operating Temperature: -25 °C

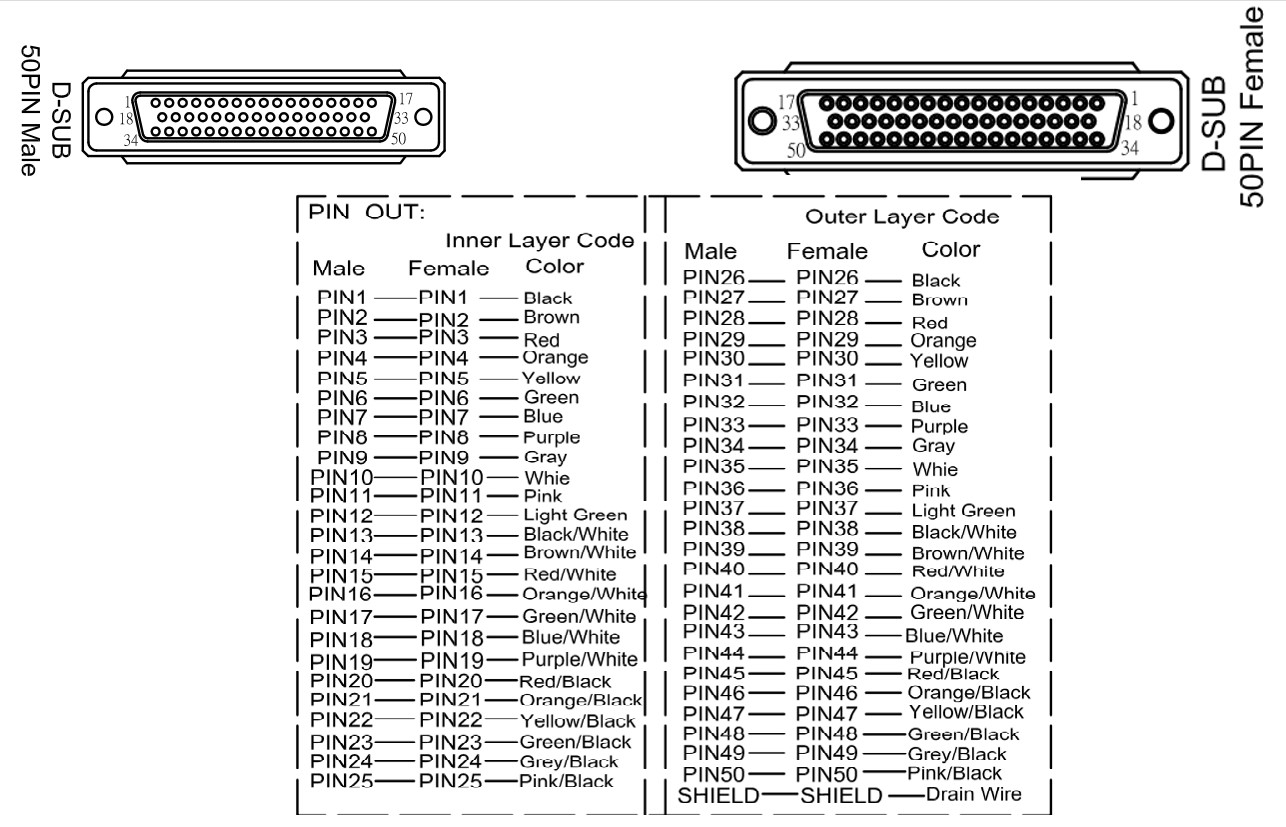

Pin-Out: Connection: 1-1 / 2-2 / 3-3 / .-. / .-. / 48-48 / 49-49 / 50-50 / Shield-Shield
Cable Length: 1.5M ~ 5ft
Color: Black
Cáp 1.5M 5ft D-Sub 50 Pin 3 Rows Connector Shielded DB50 Male to Female Extension Cable Black OD 9.0mm For Siemens Simatic S7-400 Interface Modules and Reduction CNC Machining Cable
