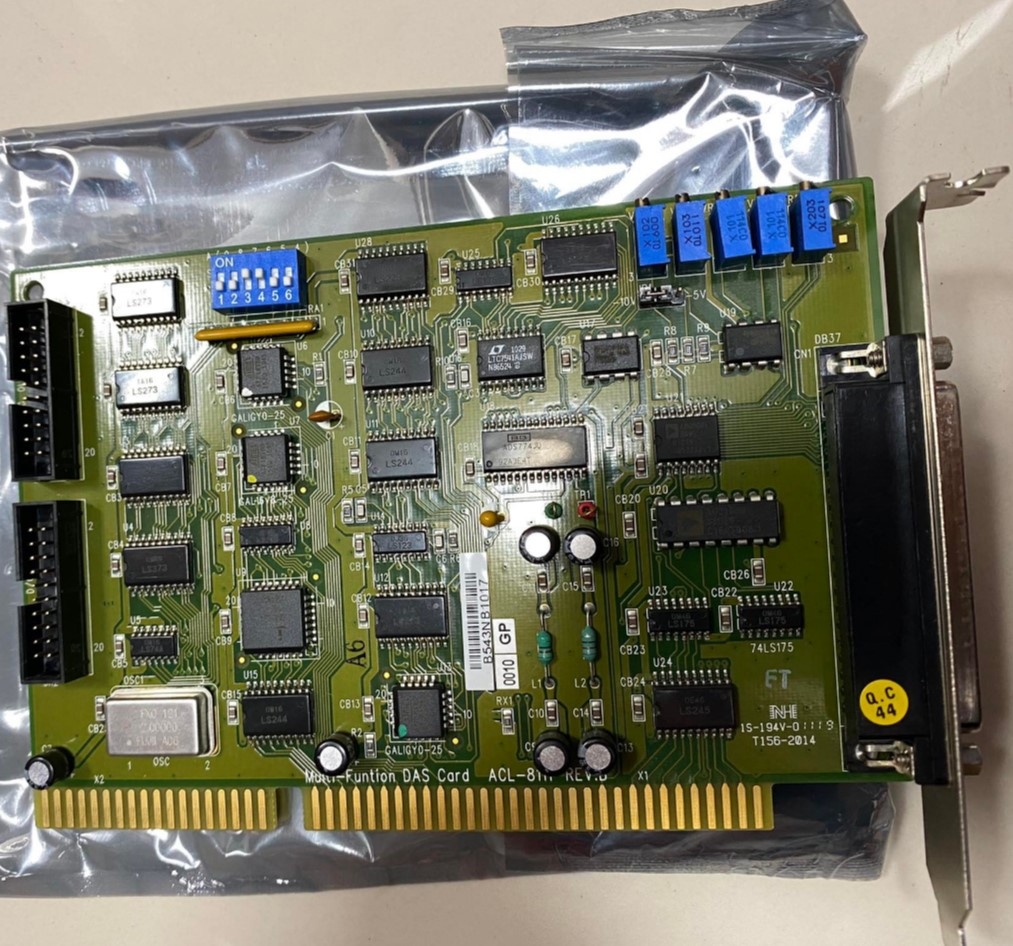

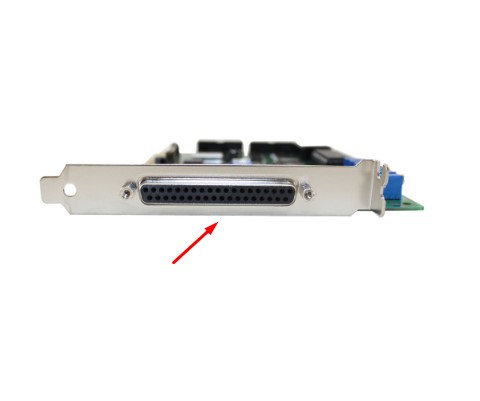

Card Công Nghiệp Adlink ACL-8111 Multi Function DAS ACL-8111 Card 37 Pin Connector Port

Mã SP: 8298

Thương hiệu: Adlink

Loại sản phẩm: ACL-8111 Card

Đánh giá

:

Giá

:

4.000.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: TAIWAN/Adlink
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Hiển: ‭094.816.2498‬
:hien.thientruong
‬
‬ Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Khanh: 091.301.5851
:khanh81b

Mr Khoa: ‭‭‭098.131.9702
‬
‬ Mr Lam: ‭085.514.0226

Mr Khôi: ‭‭‭037.308.1800

The Adlink ACL-8111 is a high resolution and high performance data acquisition card based on the 16-bit PC/ISA bus architecture. Both ACL-8111 share a common architecture and core features making each card are ideal for data logging and signal analysis applications. The ACL-8312 features continuous, high speed, gap-free data acquisition under Windows or DOS environments. An on-board FIFO buffer and 16-bit DMA data transfer allows the acquisition of large amounts of data without losing data. The channel auto-scanning enables a high-speed acquisition in a sequential order to select channel.
Features:
12-bit A/D resolution
Up to 100 kS/s sampling rate
16-CH single-ended or 8-CH differential inputs
On-board 1k-sample A/D FIFO
Bipolar analog inputs ranges
Programmable gains of x1, x2, x4, x8
Automatic analog input scanning
DMA transfer for analog inputs
2-CH 12-bit multiplying analog outputs
16-CH TTL digital inputs and 16-CH TTL digital outputs
1-CH 16-bit general purpose timer/counter
Compact, half-size PCB
Card Công Nghiệp Adlink ACL-8111 Multi Function DAS ACL-8111 Card 37 Pin Connector Port
