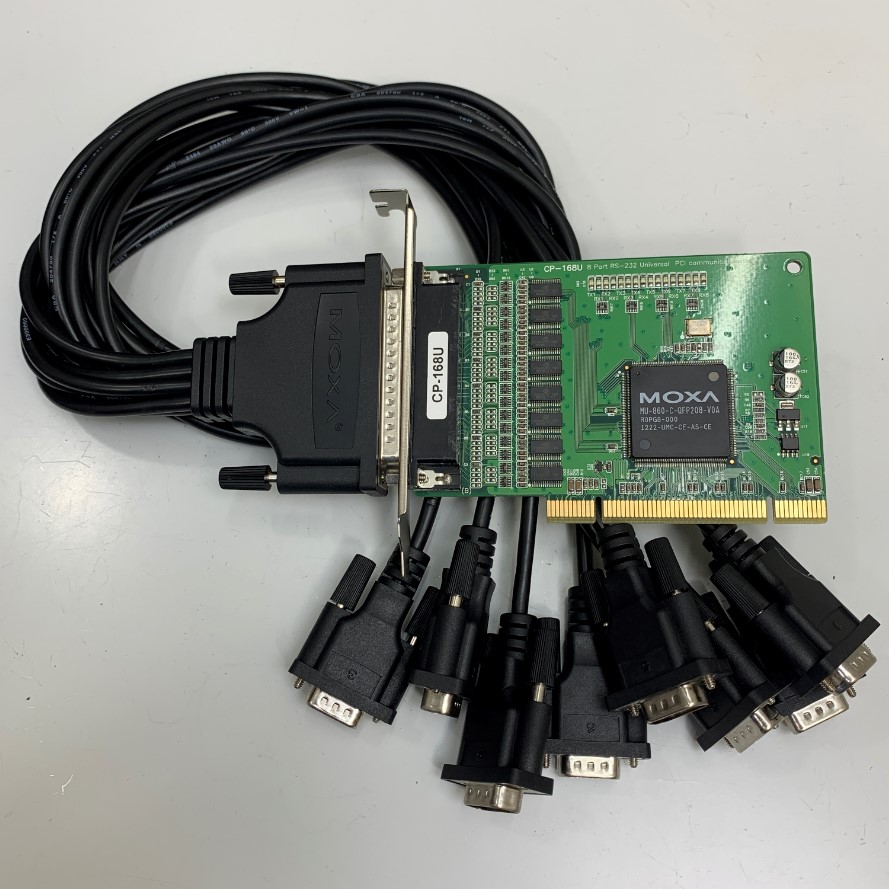

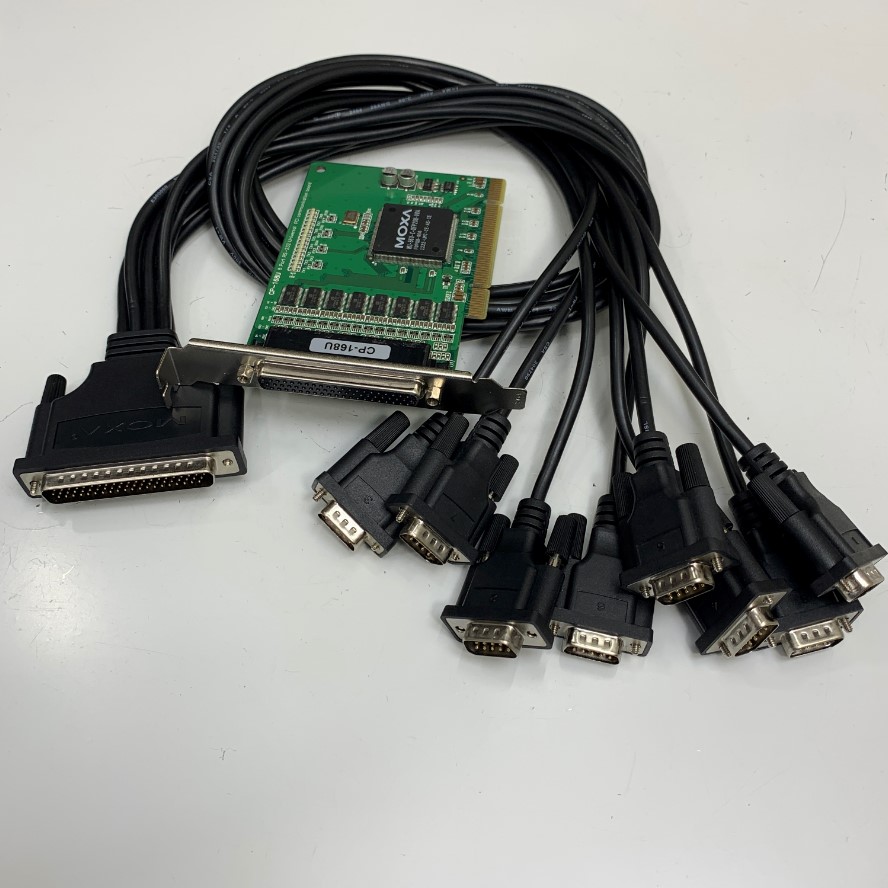

Card Moxa CP-168U PCI 4X to 8 Port RS232 DB9 Multiport Serial Adapter For Advantech Industrial Computer, Medica System, Industrial Control, Traffic System

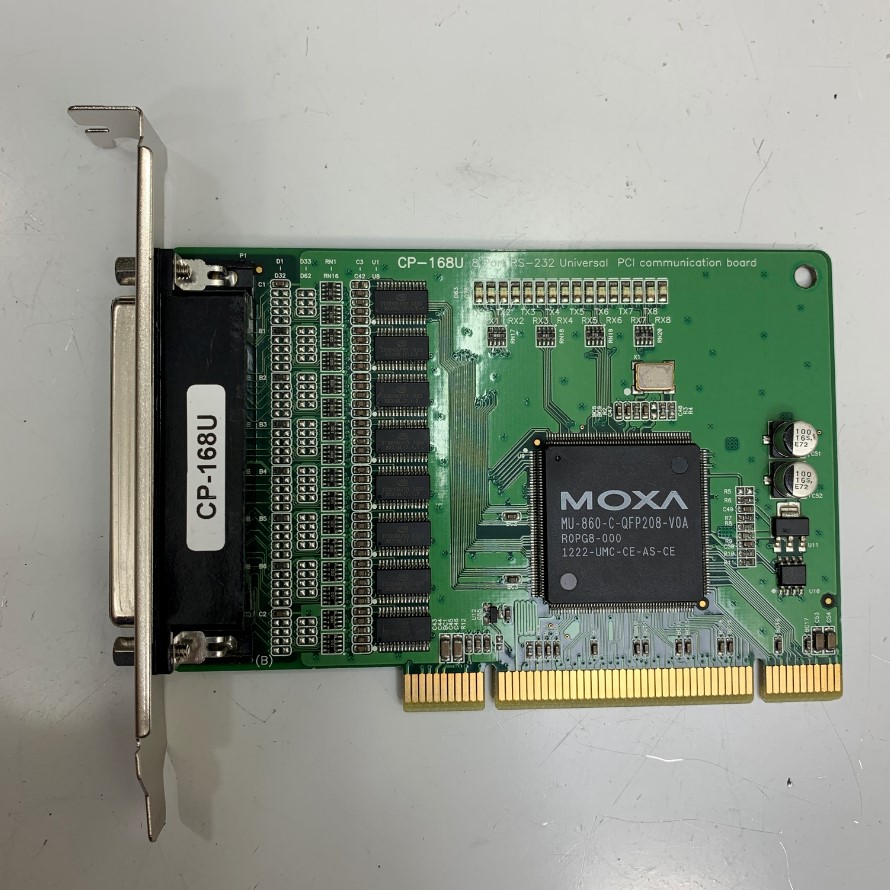

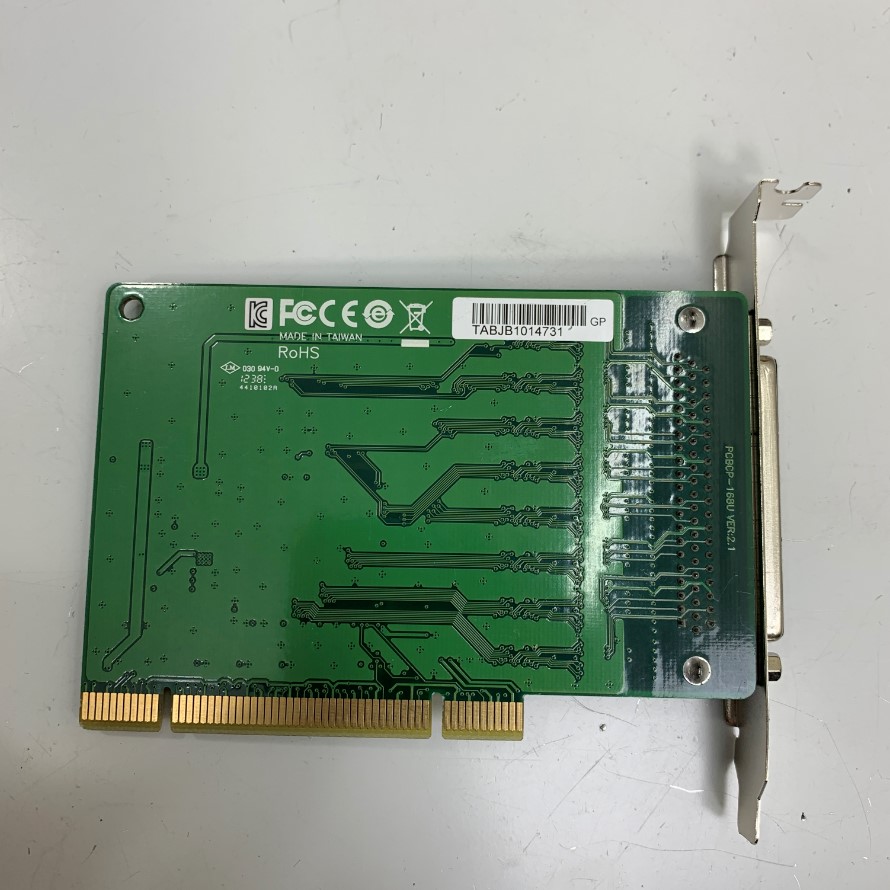

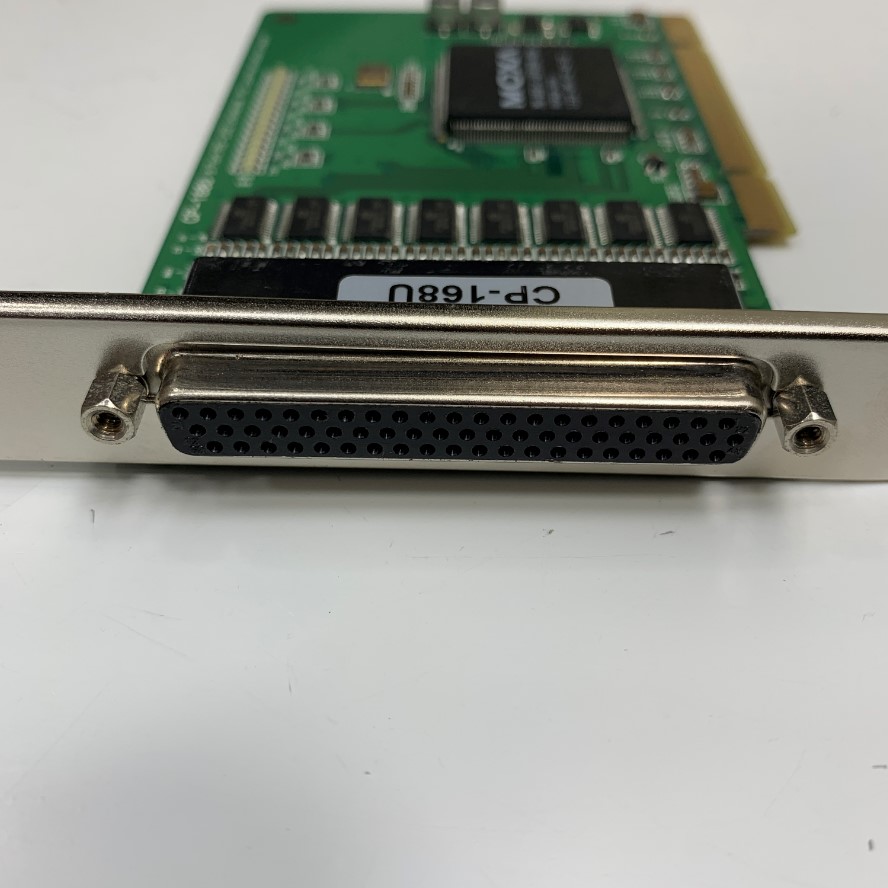

Specifications Moxa CP-168U 8-port RS-232 Universal PCI serial board

Moxa inc chipset MU-860-C-QFP208-V0A

MU-860-C-QFP208-VOA Moxa inc chipset

Máy Tính Công Nghiệp Advantech Industrial Computer PC

IPC- 610 Advantech Industrial PC

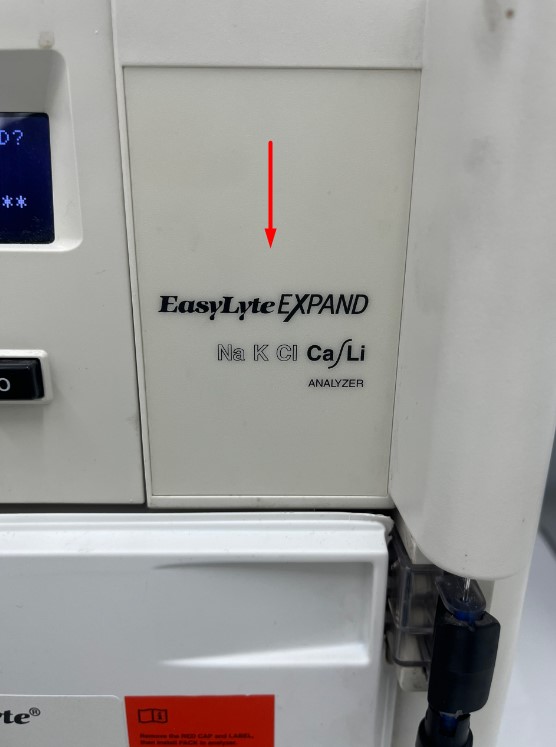

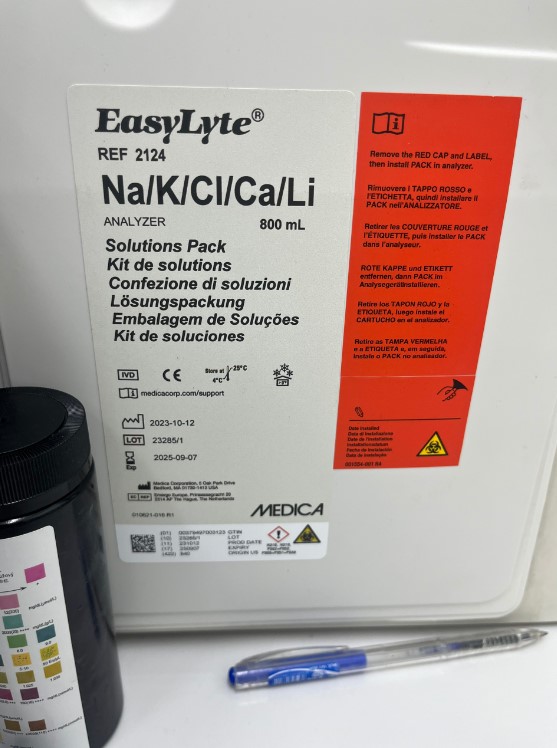

Electrolyte Medica EasyLyte Easy

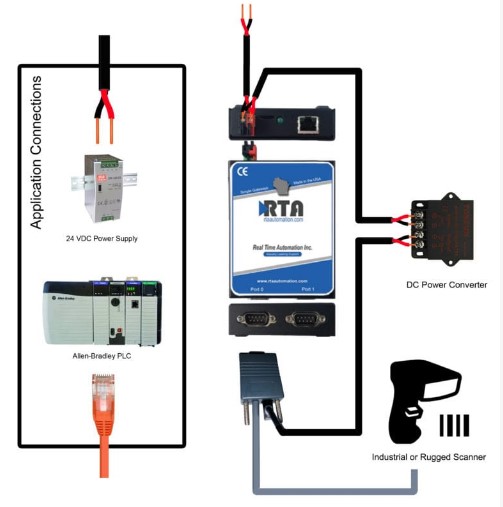

Barcode Reader industrial

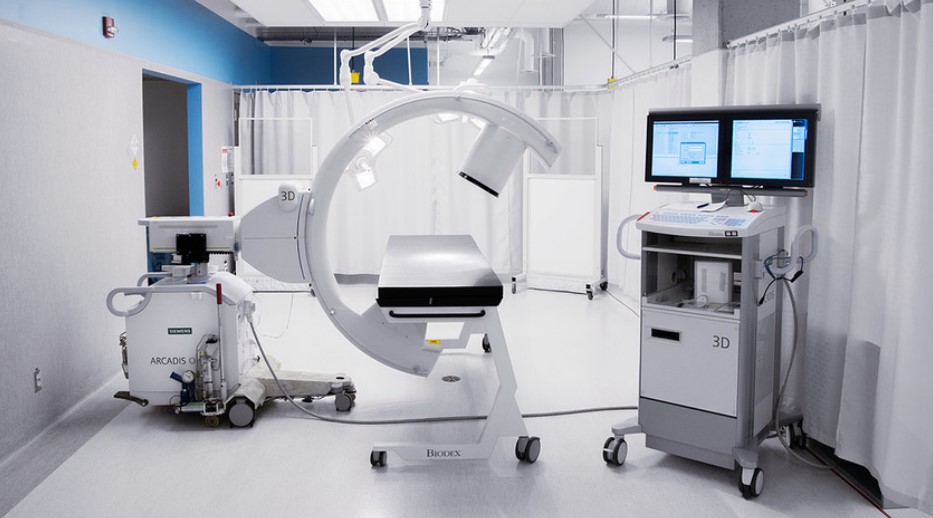

Medica System Data RS232 Hospital Instrument

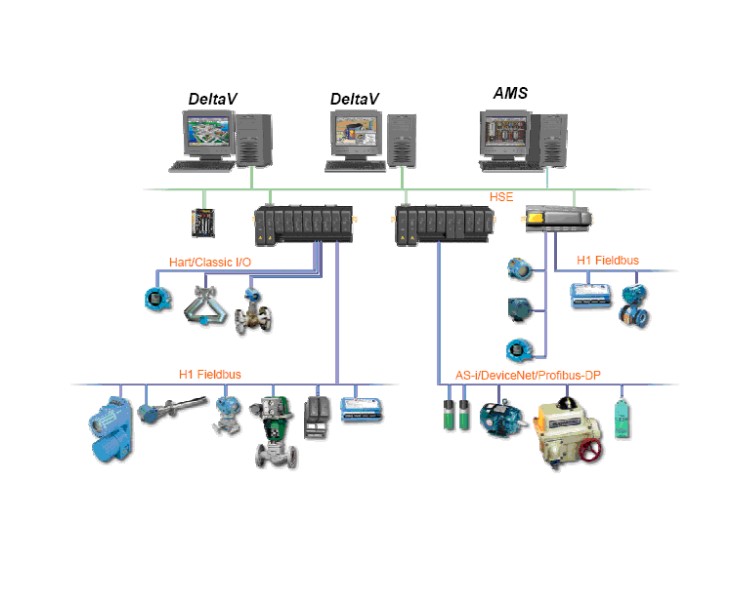

Industrial Control & Automation

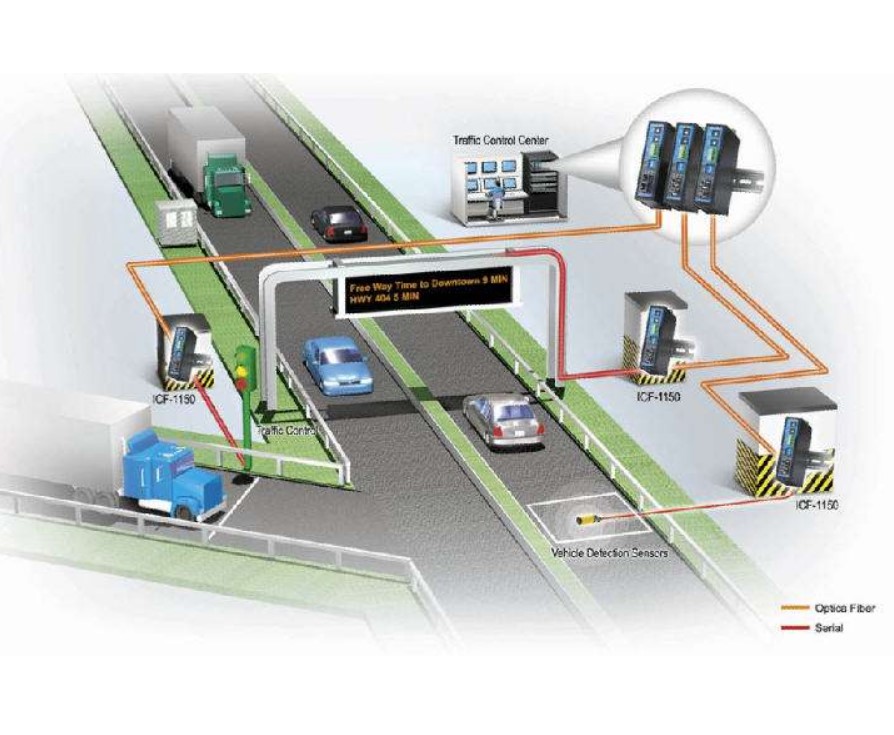

Intelligent Traffic Management System

Technical Specifications
Moxa Serial Card
Brand: Made in Taiwan/Original Industrial CP – 168U RS232 PCI Multi-Serial Port Card
Model: CP-168U 8 Port RS-232 Universal PCI 4X
Compatibility: Software
Windows® DOS, 95, 98SE, 2000, POS Ready 2009, Embedded System 2009, CE 5.0/6.0, XP Embedded, 2000, XP, Vista, 7, 8, 8.1, 10, 11
Windows Server® 2003, 2008 R2, 2012, 2016, 2019, 2022
Mac OS X® 10.4 to 10.9
Linux 3.5.x and up - LTS Versions only
Specifications:
Connector Type(s): PCI 4X

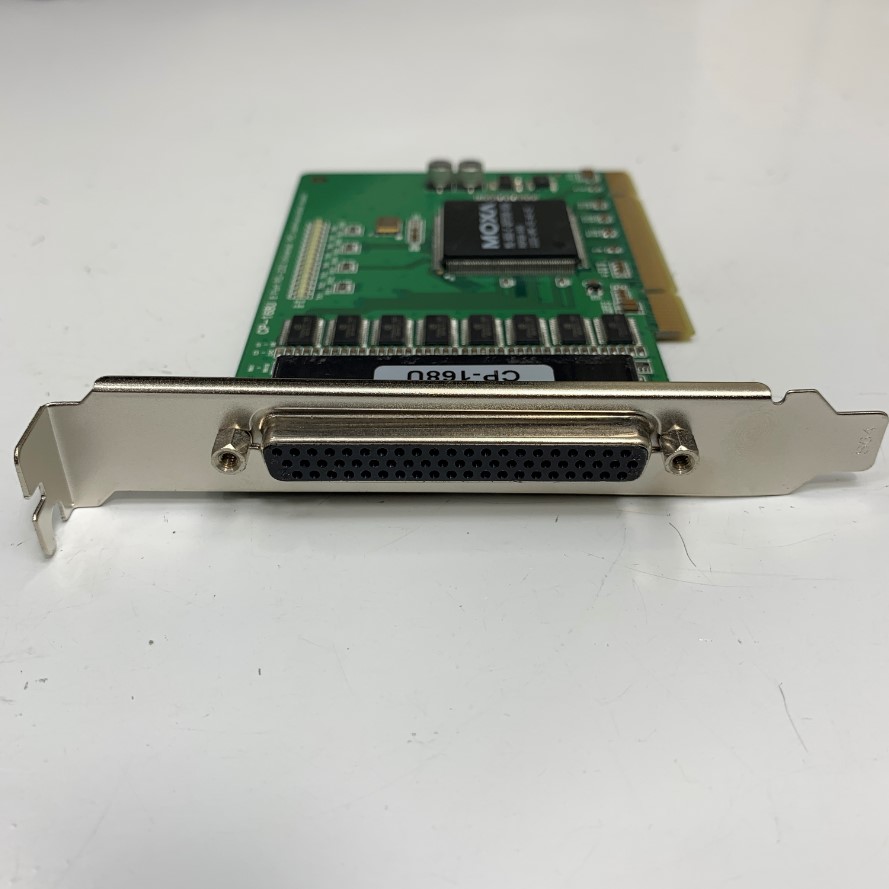

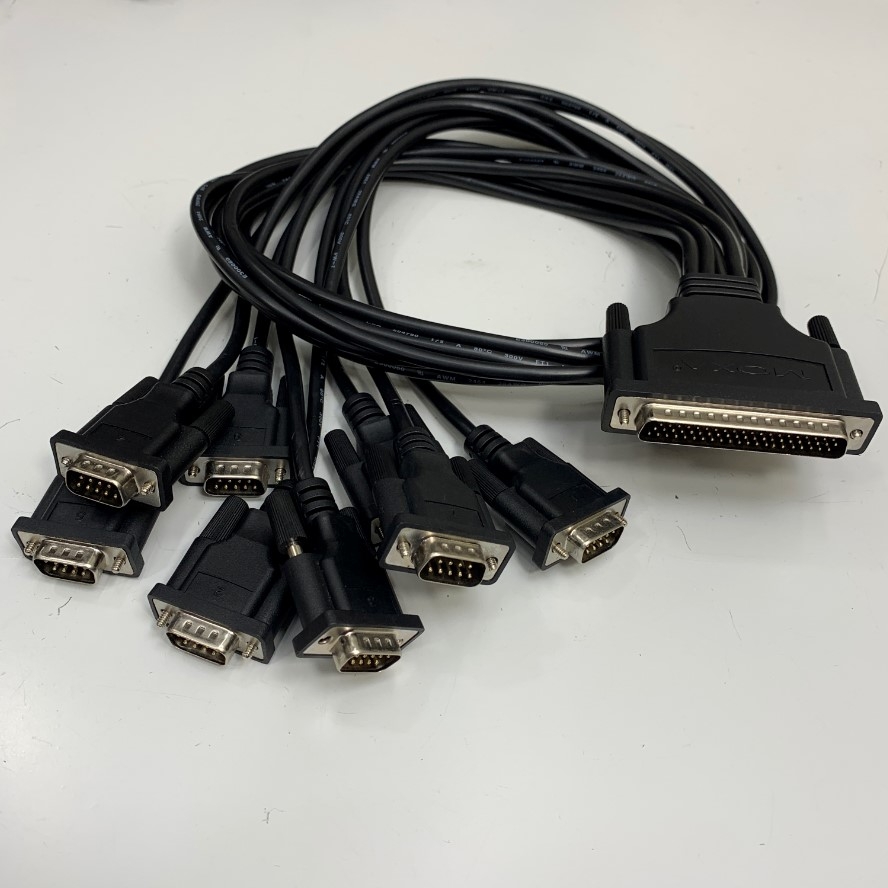

External Ports: 1 - DB-62 (62 pin, D-Sub) Male
Hardware
Ports Interface: 8 Port RS232
Chipset ID: MU-860-C-QFP208-VOA Moxa inc chipset
The CP-168U is a smart, 8-port universal PCI board designed for POS and ATM applications.
It is a top choice of industrial automation engineers and system integrators,
and supports many different operating systems, including Windows, Linux, and even Unix.
In addition, each of the board's 8 RS-232 serial ports supports a super fast 921.6 Kbps baudrate.
The CP-168U provides full modem control signals to ensure compatibility with a wide range of serial peripherals,
and works with both 3.3V and 5V PCI buses, allowing the board to be installed in virtually any available PC server.
Features
Over 700 Kbps data throughput for top performance
921.6 Kbps maximum baudrate for super fast data transmission
128-byte FIFO and on-chip H/W, S/W flow control
Choose from a wide range of connection cables and boxes
Compatible with 3.3/5V PCI and PCI-X
Drivers provided for Windows (Vista, 2003, XP, 2000, windows 7, 8, 8.1, 10/11), WinCE 5.0, Linux, and Unix
15 KV ESD protection on the board
