CONTEC DIO-1616RY-PE No.7428 Digital I/O Connector DB37 Pin PCI Express Board Card 16ch/16ch in Japan

Mã SP: 12047

Thương hiệu: CONTEC

Loại sản phẩm: DIO-1616RY-PE

Đánh giá

:

Giá

:

9.500.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Japan/CONTEC DIO-1616RY-PE
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

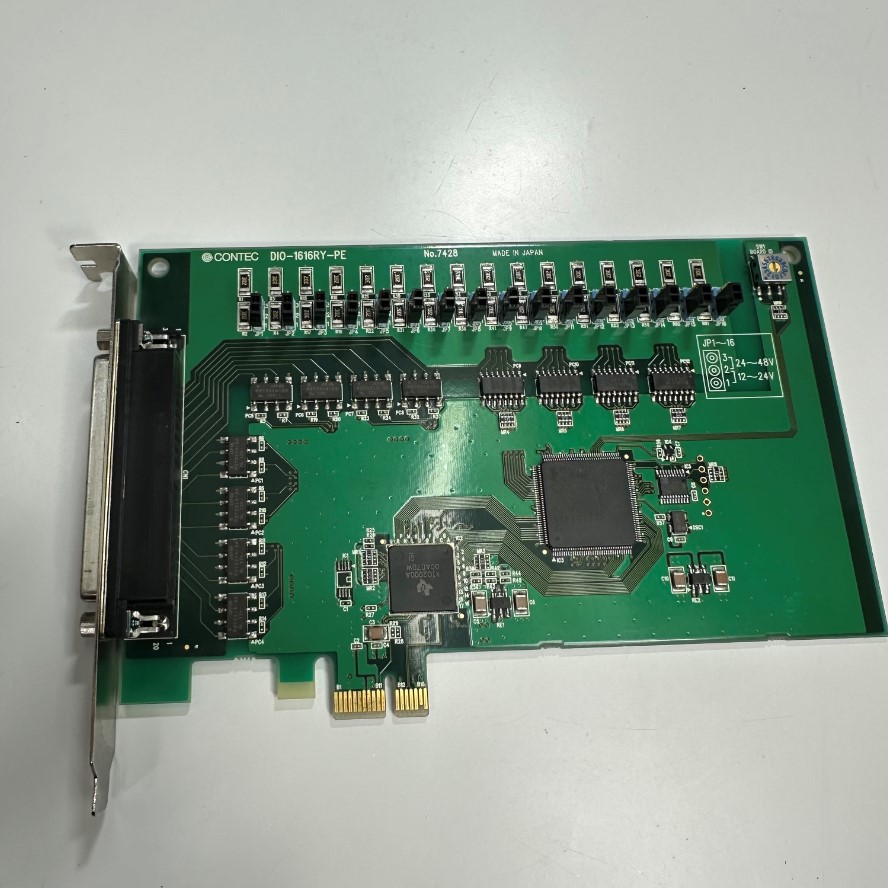

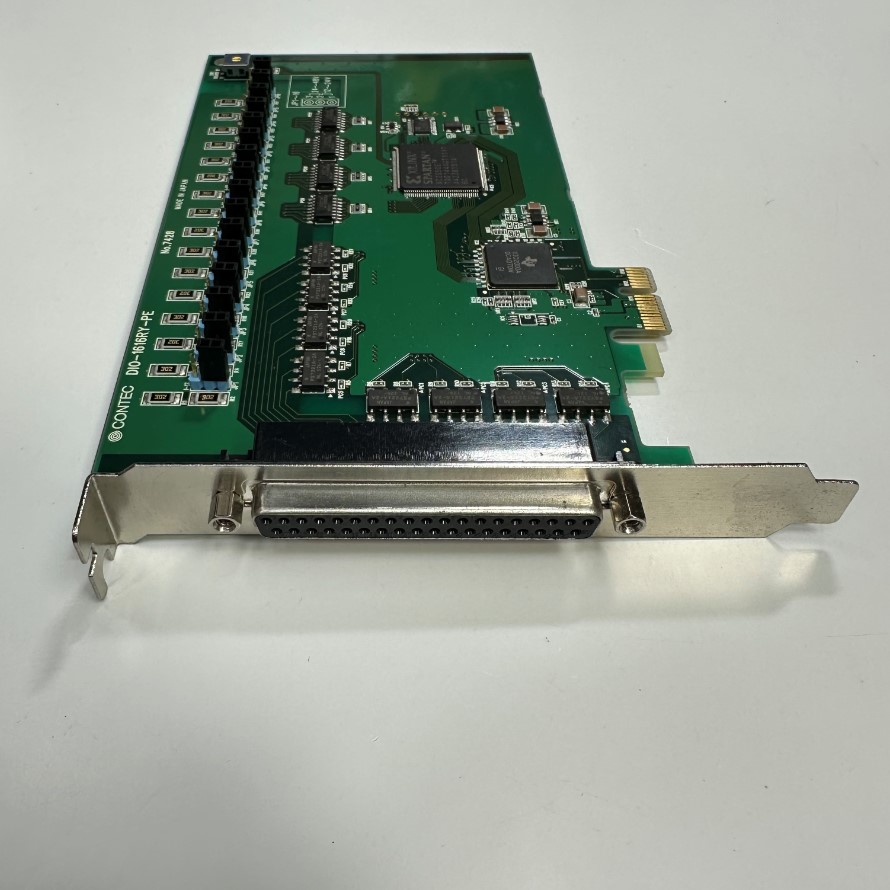

CONTEC DIO-1616RY-PE No.7428 Data

This product is a PCI Express bus-compliant interface board for input/output of digital signals.
This product is compatible with the digital signal I/O with high voltage (input 12 - 48VDC, output 120VAC/DC)
and features 16 opto-coupler isolated inputs (compatible with current sink output/current source output)
and 16 solid-state relay outputs. You can use all of input signals as interrupt inputs.
In addition, the digital filter function to prevent wrong recognition of input signals is provided.

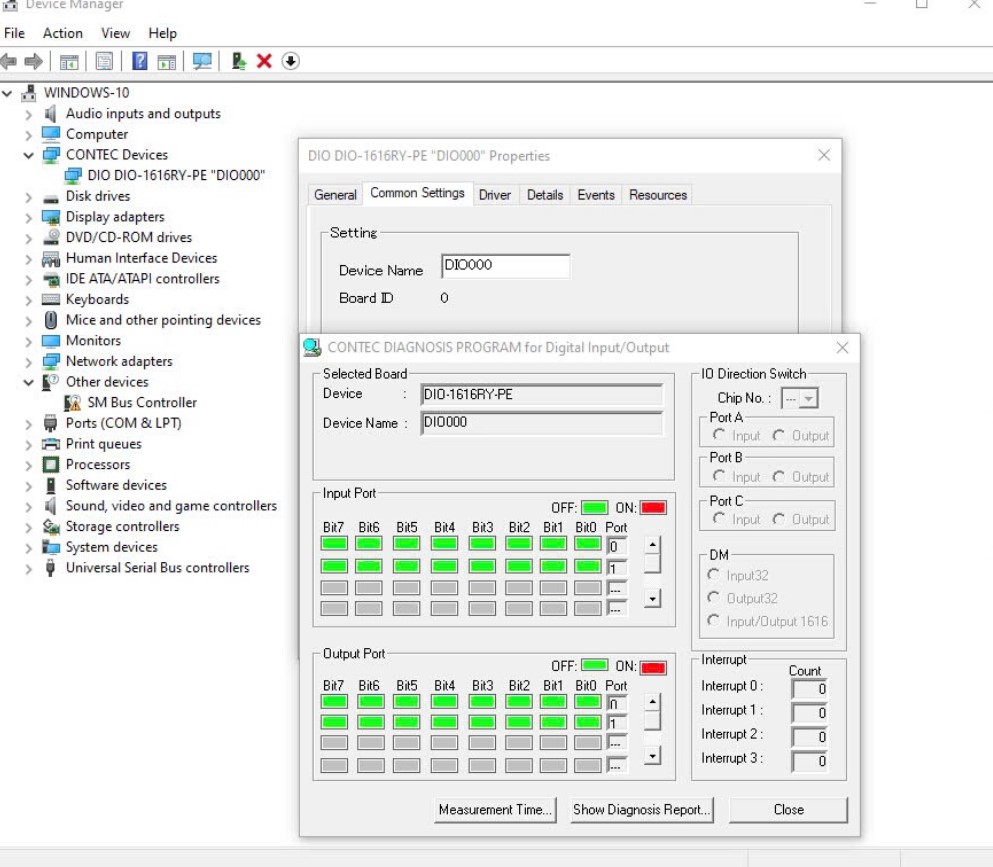

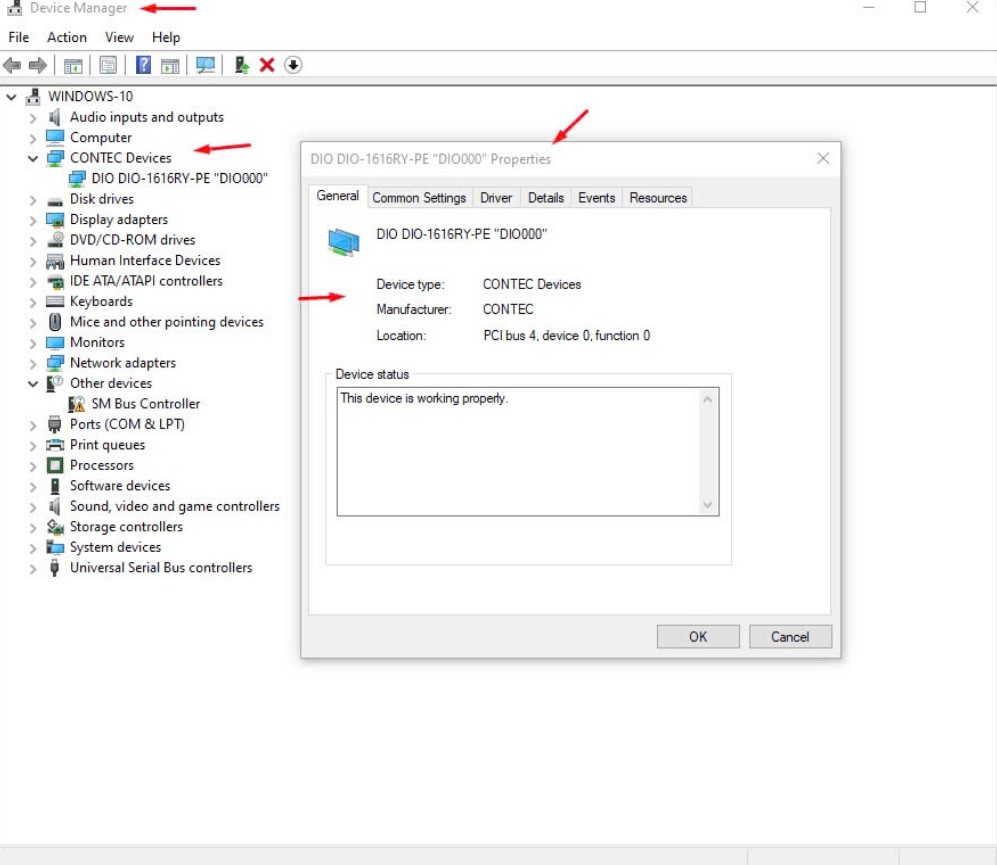

Windows/Linux device driver is supported with this product.
Specifications
Bus Specification: PCI Express
Size: Short Size
Used Connector: D-SUB 37-pin (Female)
Digital I/O
Input Channels: 16-ch
Output Channels: 16-ch
Bi-directional: I/O Channels    -
Response Time (Input): 200μsec (max.)
Response Time (Output): 1msec (max.)
Operating Voltage (Input): 12 to 24VDC
Operating Voltage (Output): to 120VAC / VDC
Input Circuit: Opto-isolated input (for both current sink and source output)
Output Circuit: Semiconductor relay output
CONTEC DIO-1616RY-PE No.7428 Digital I/O Connector DB37 Pin PCI Express Board Card 16ch/16ch in Japan
