Bộ Chuyển Đổi Giao Tiếp Hanyoung CV300 Convert RS232 signal to RS422/485 signal For RS422/485 Line Drive Auto Control Communication Maximum 1.5Km

HANYOUNG NUX Converter CV300 Communication signal converter RS232 and RS422/485

Chuyển đổi tín hiệu RS232 thành tín hiệu RS422/485
Điều khiển tự động RS422/485 Line Drive
Cách điện (2,5 KV) giữa phía RS232 và RS422/485

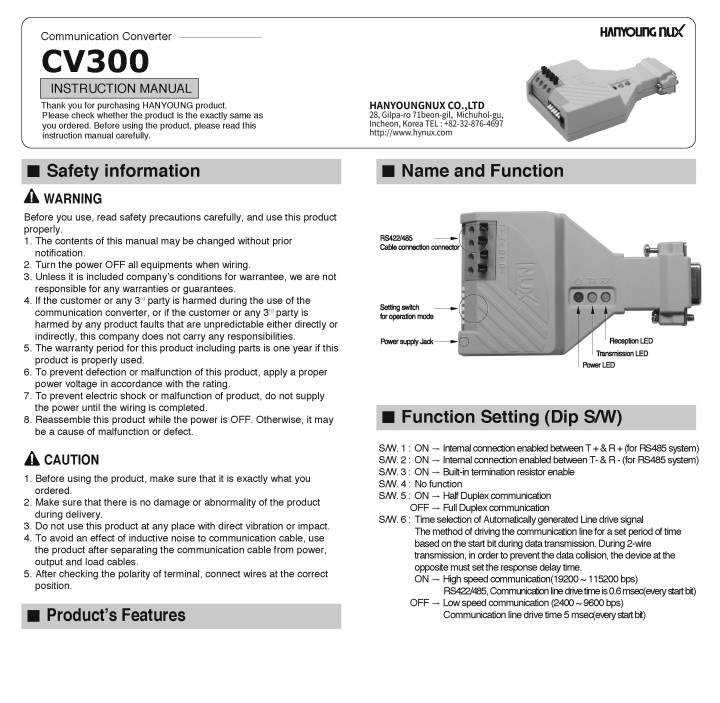

HANYOUNG NUX CV300 INSTRUCTION converter RS232 and RS422/485

CV300 Communication signal converter
- RS422/485 Line Drive auto control
- Convert RS232 signal to RS422/485 signal
- Built in electrical insulation/protection device
- between RS232 and RS422/485

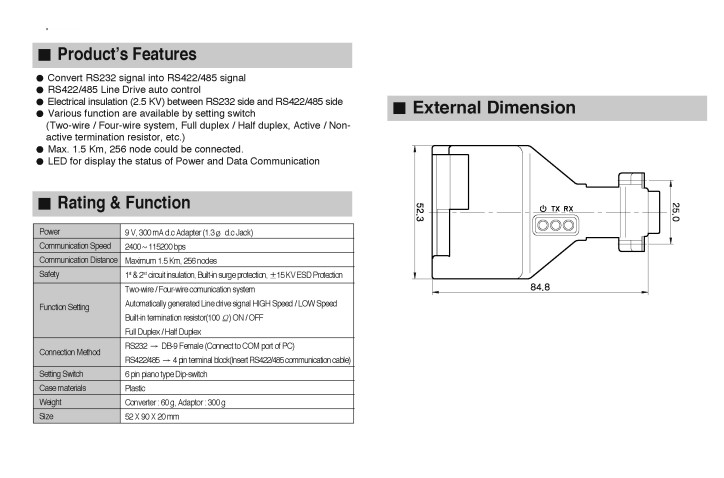

Specification
Model: CV300
Power: 9 V, 300 mA d.c. Adapter (1.3 Ø DC Jack)
Communication Speed: 2400 ~ 115200 bps
Communication Distance: Maximum 1.5 Km, 256 nodes
Safety: 1/2 circuit insulation,
Built-in surge protection,
±15 KV ESD Protection
Automatically generated Line drive signal HIGH Speed / LOW Speed

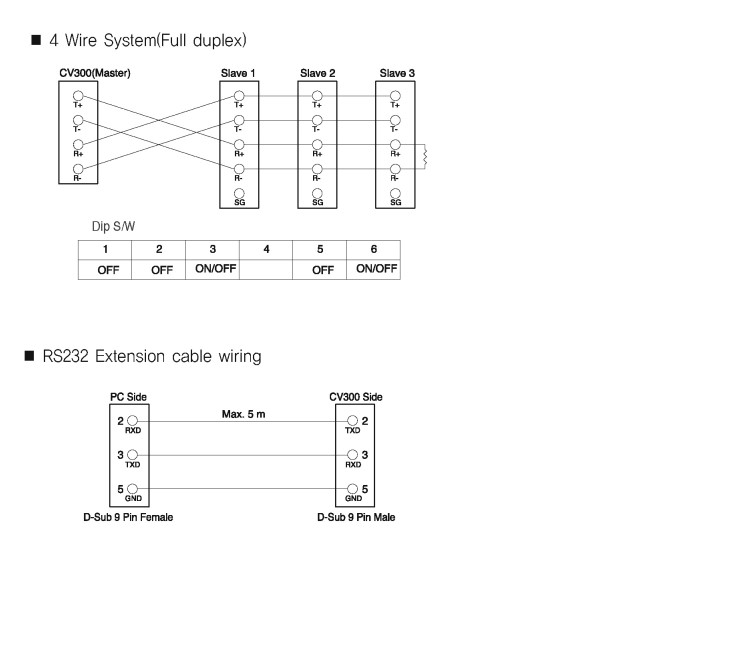

Function Setting: Two-wire / Four-wire communication system
Built-in termination resistor(100 Ω) ON/OFF
Full Duplex / Half Duplex
Connection Method
RS232 -> DB-9 Female (Connect to COM port of PC)
RS422/485 -> 4 pin terminal block (Insert RS422/485 communication cable)

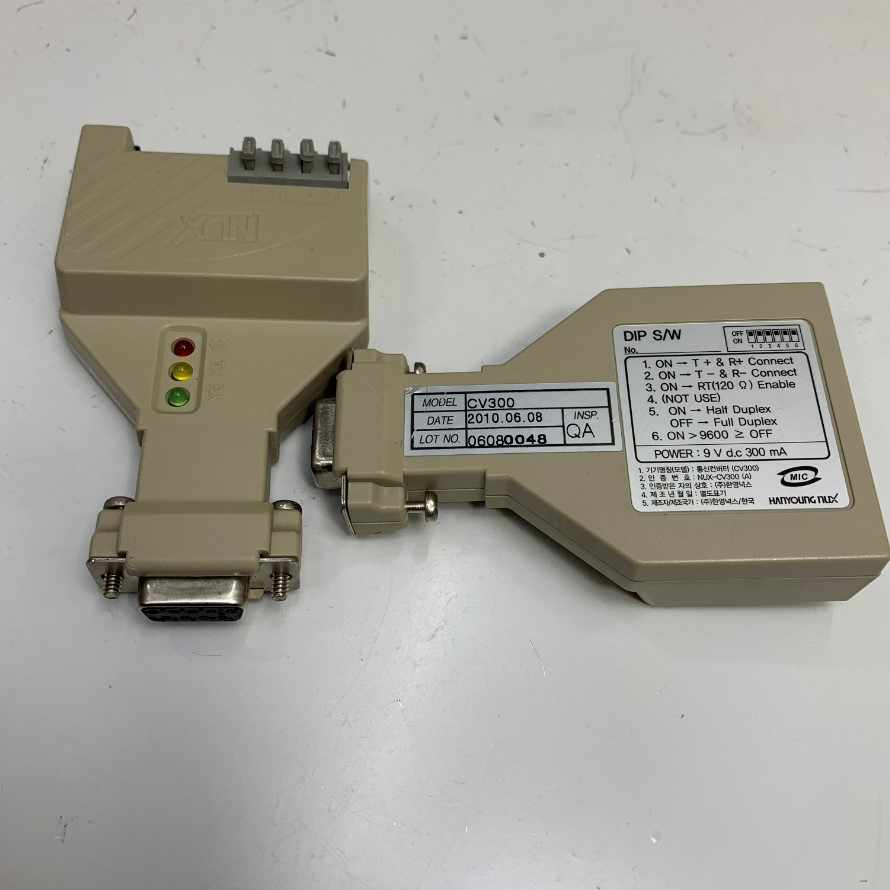

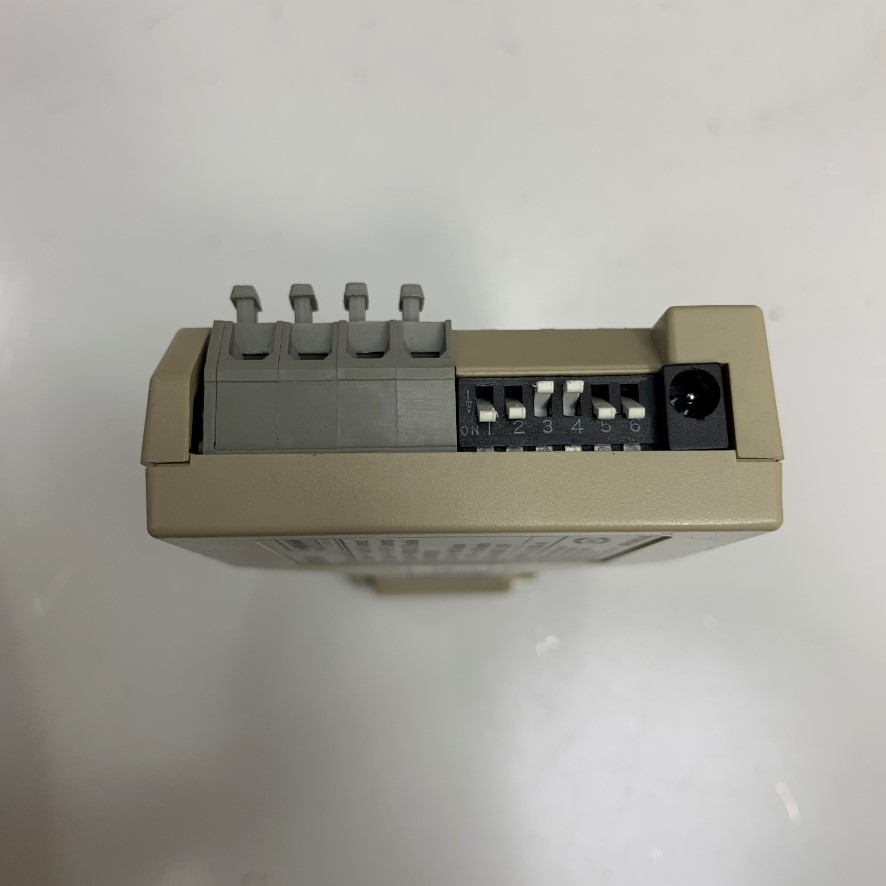

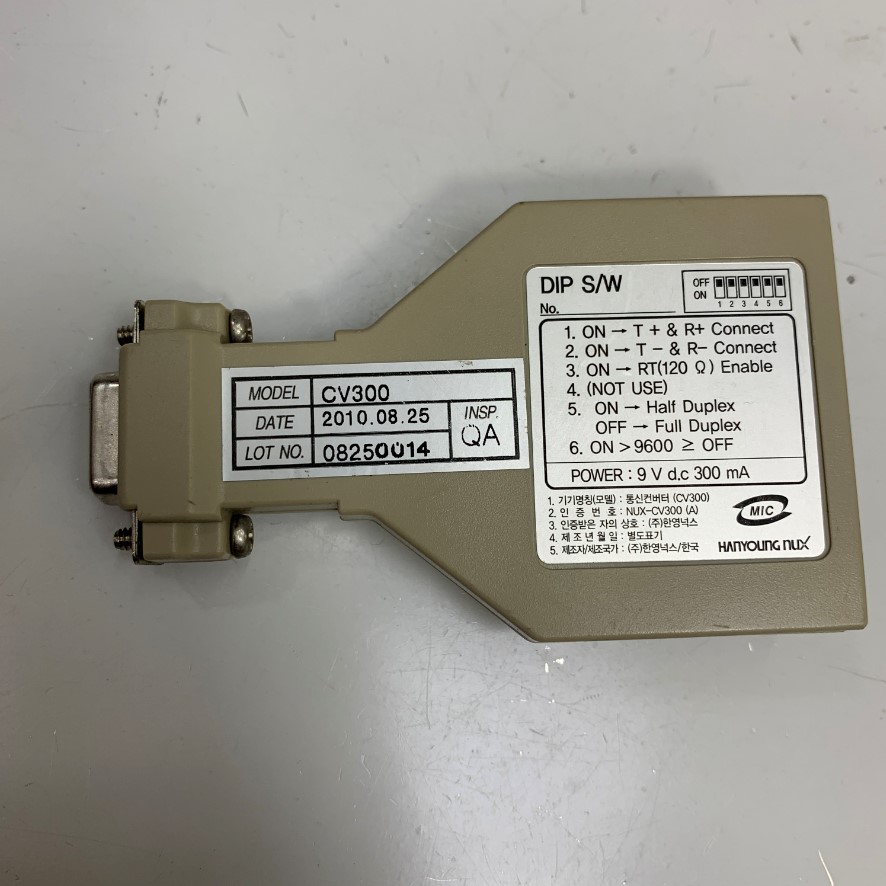

Setting Switch: 6 Pin Piano Type Dip-Switch
Case materials: Plastic
Weight: Converter : 60g, Adaptor : 300g
Size: 52 x 90 x 20 mm
