Bộ Chuyển Đổi Giao Tiếp REXTRON LCS-9485 RS232 to RS485 signal Converter For RS422/485 Line Drive Auto Control Communication Maximum 1.2Km

RS232 To RS485 Converter LCS-9485 of Rextron Serial Media Converters

REXTRON LCS-9485 RS232 To RS485 Converter

Rextron/LCS-9485/RS232/to/RS422/485

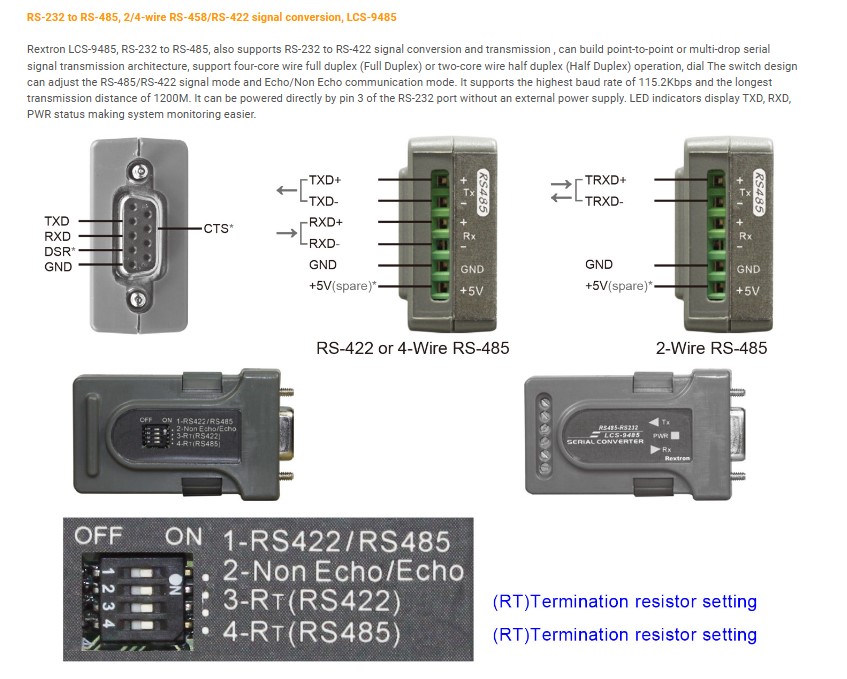

Rextron RS-232 to RS-485, 2/4 line RS-458/ RS-422 signal conversion LCS-9485

Port-powered, no external power required
300 to 115.2K Baud operation (auto-sensing & self-adjusting)
Extends RS485/RS422's distance to up to 4000ft (1.2km)
Plug and play
No software drivers or flow control is required
Specifications
Model Name: LCS-9485

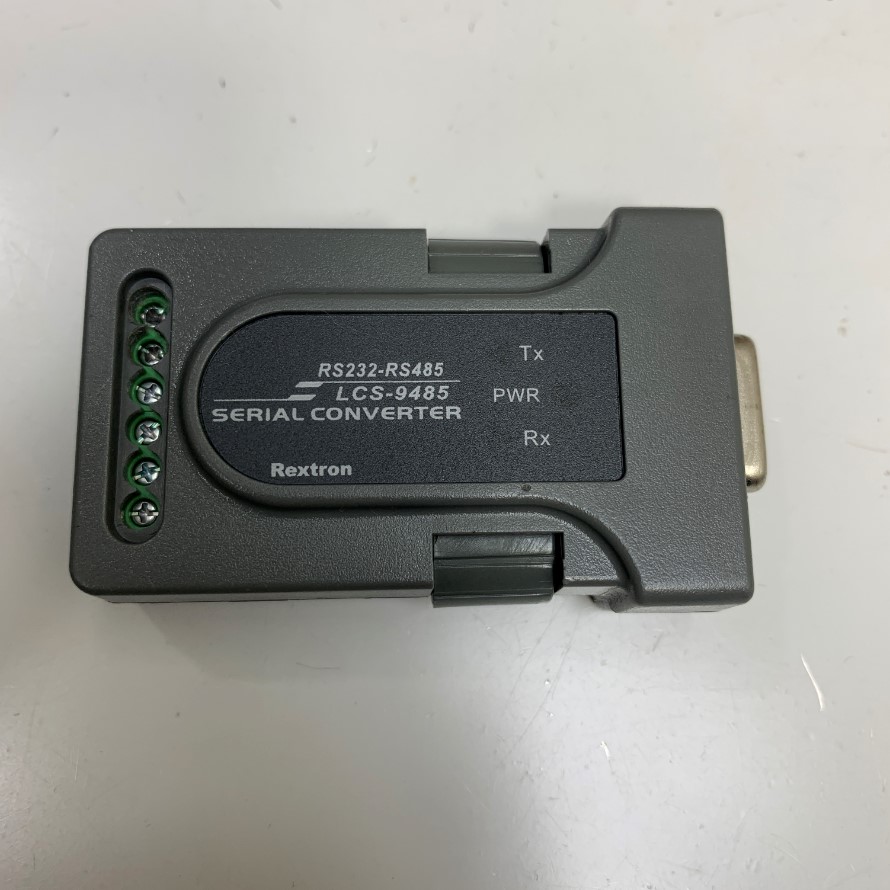

LEDs: TXD, RXD, PWR
Communication Type: Asynchronous serial comminication
Transmission Speed: 115.2Kbps (Max.)
Distance: 1.2 KM (Max.)
(Refer to the chart-Transmission Distansmission Speed)

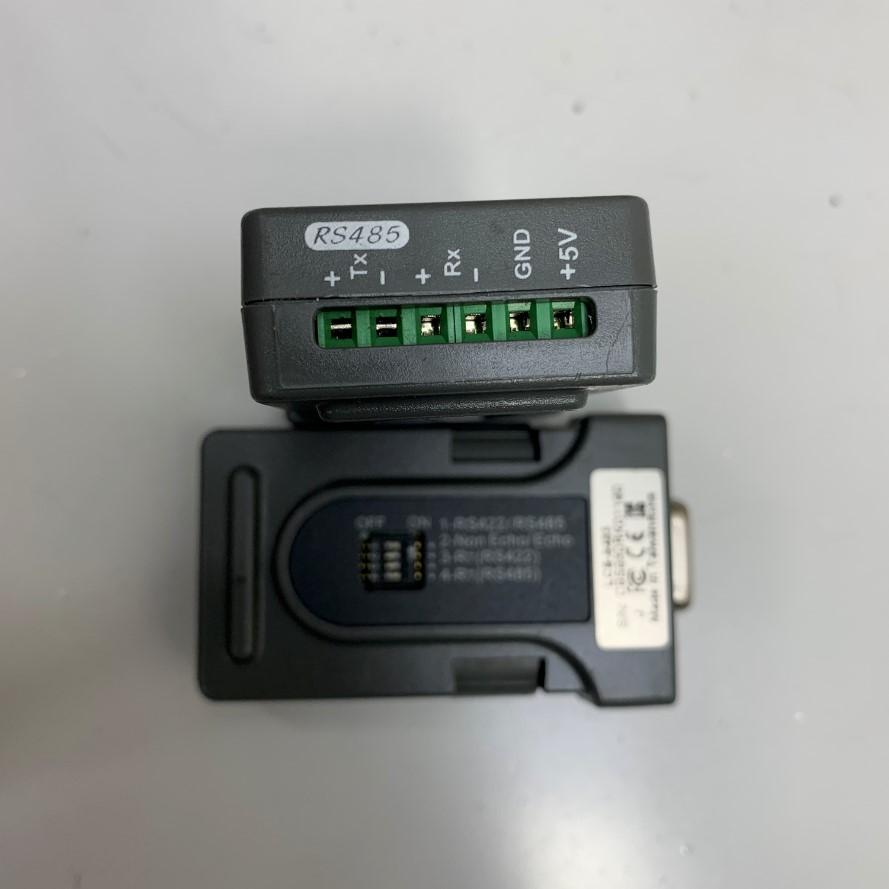

Connector: RS-232 side: DB9-F
RS-422/ RS-485 side: 6-Way Terminal Block

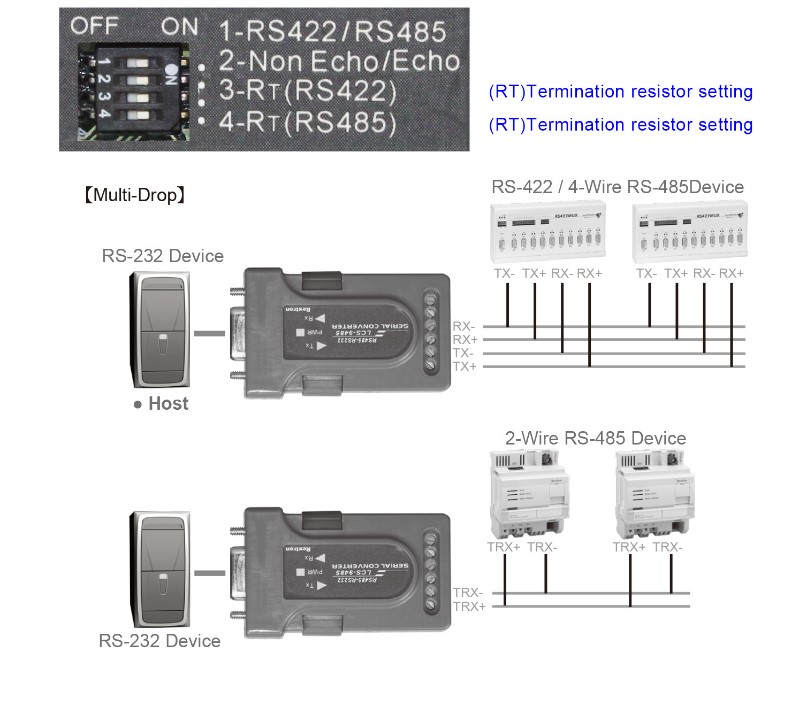

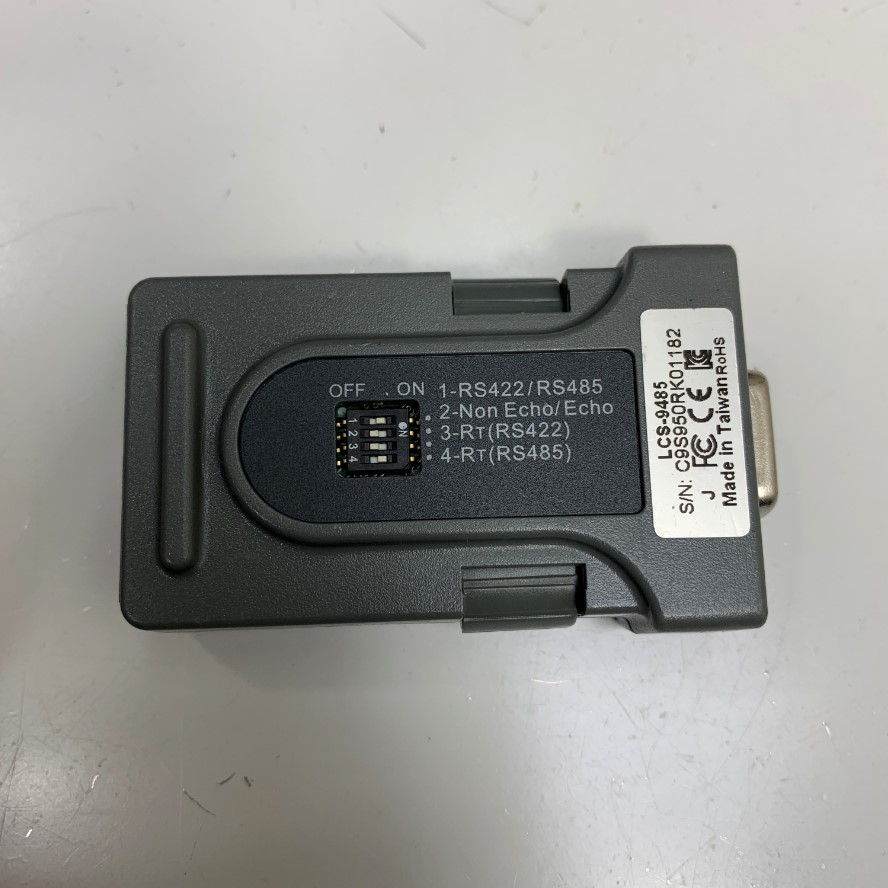

RS-422 / RS-485 Termination resister Rs-485 Echo-mode: Controlled by Dip Switch
Internal Connection: DCD, DSR, CTS pins are selectively connected to GND
Circuit Protection: 15,000 volt-surge protector included
Power Supply:
Without Power Adapter
S-232 TXD, RTS, DTR signal
With Power Adapter
Voltage: DC 5V
Operation Environment: 0~40°C, Humidity<80%
Storage Temperature: -20~60°C
Enclosure: Metal
Dimensions H x W x D (mm): 20 x 39 x 61
Weight (g): 33
