Card Công Nghiệp IOI Technology Corporation PCI Express FWBX2-PCIE1XE220 Rev 1.2.1 Dual Channel 4 Port IEEE1394-B FireWire 800 PCI Express X1 For Industrial PC Desktop Computer

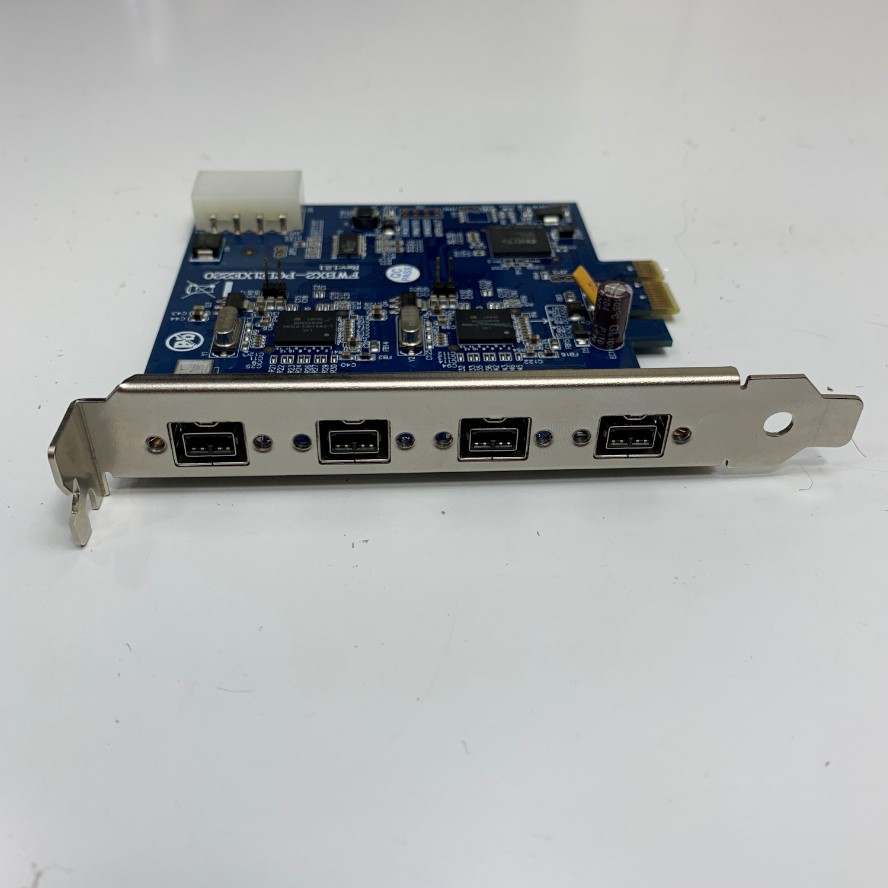

4 Port IEEE 1394b FireWire 800 PCI Express Card FWBX2-PCIE1XE220 IOI Technology Corporation

FWBX2-PCIE1XE220 Image 4-channel capture card 1394B card

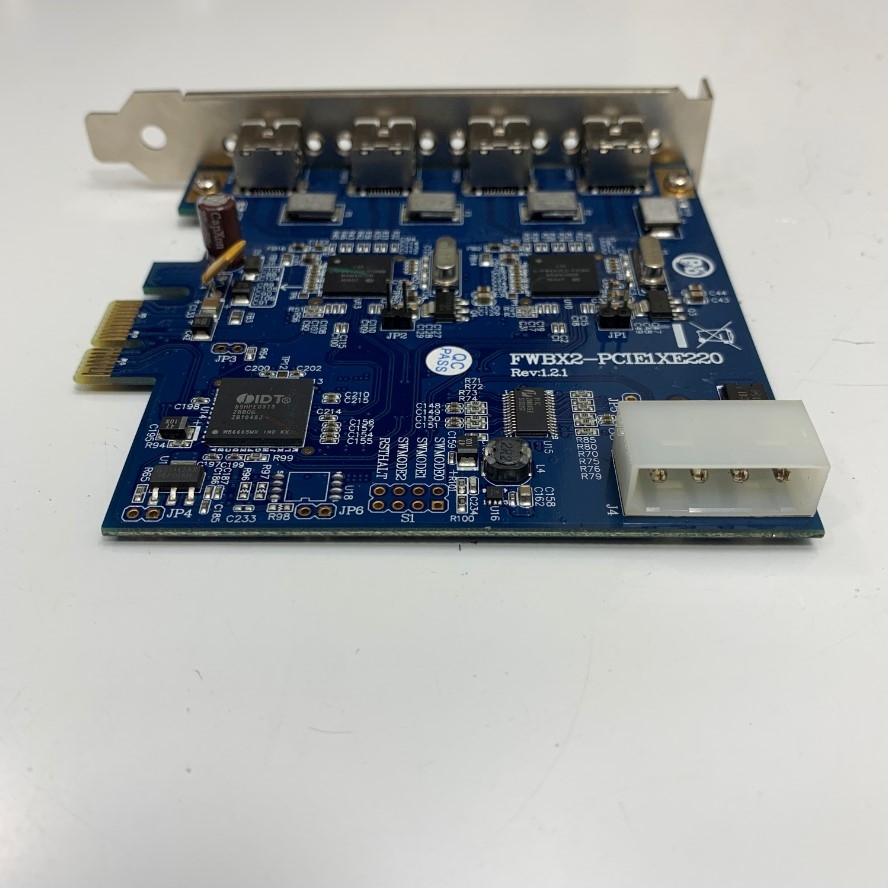

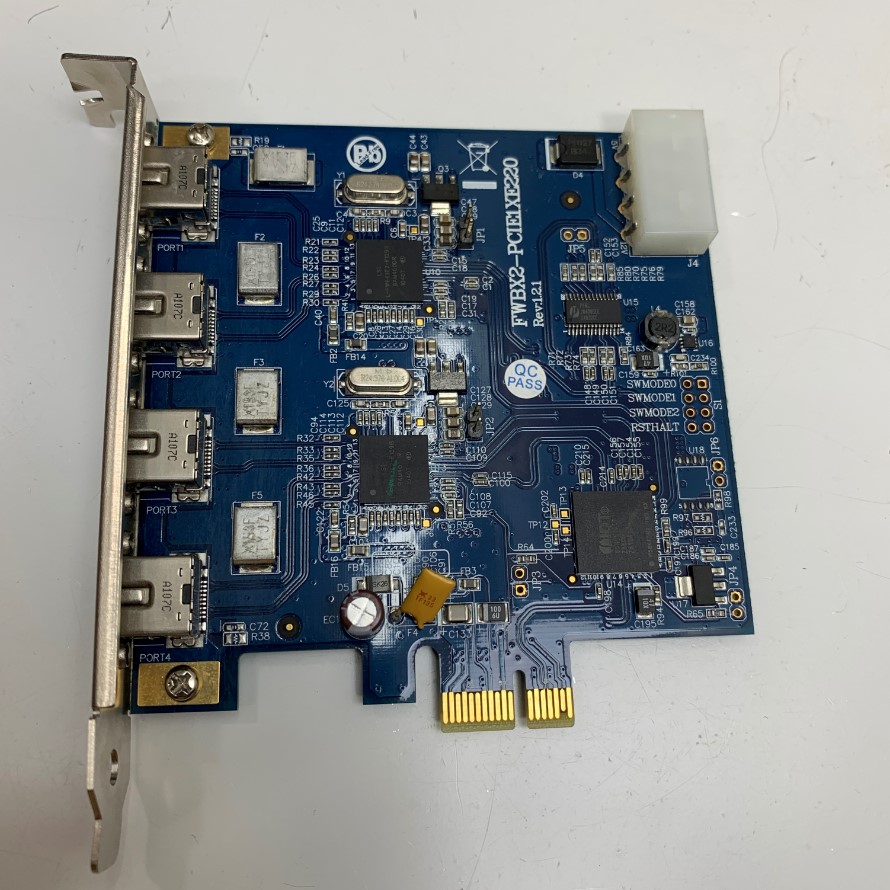

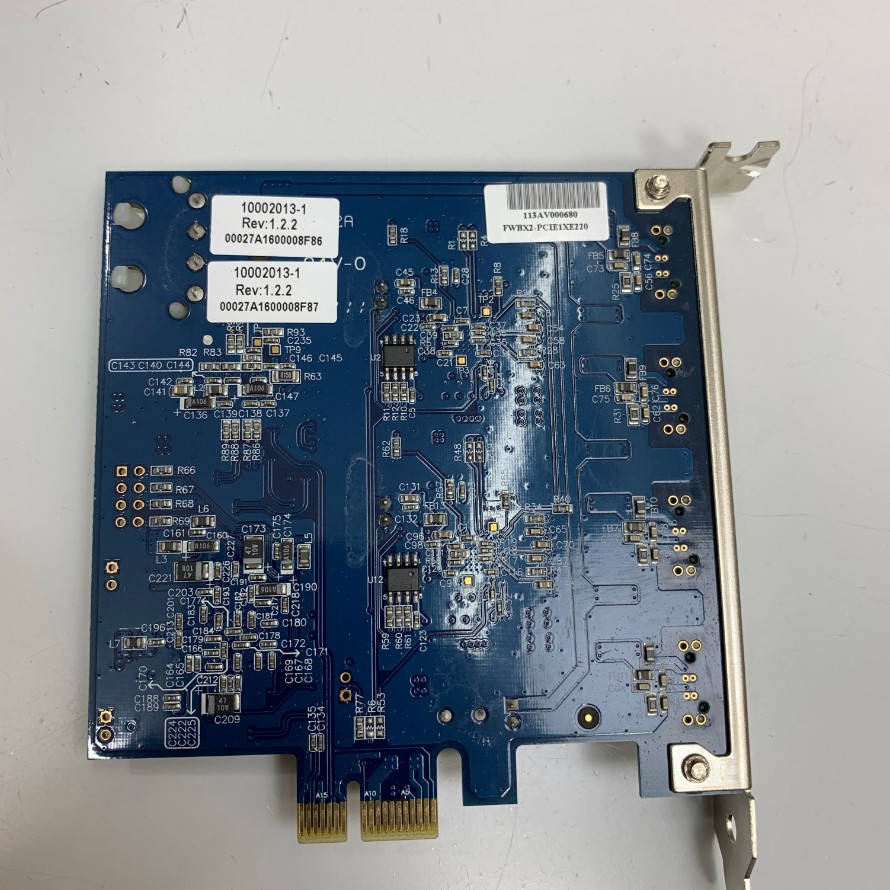

IOI FWBX2-PCIE1XE220 1394B Card

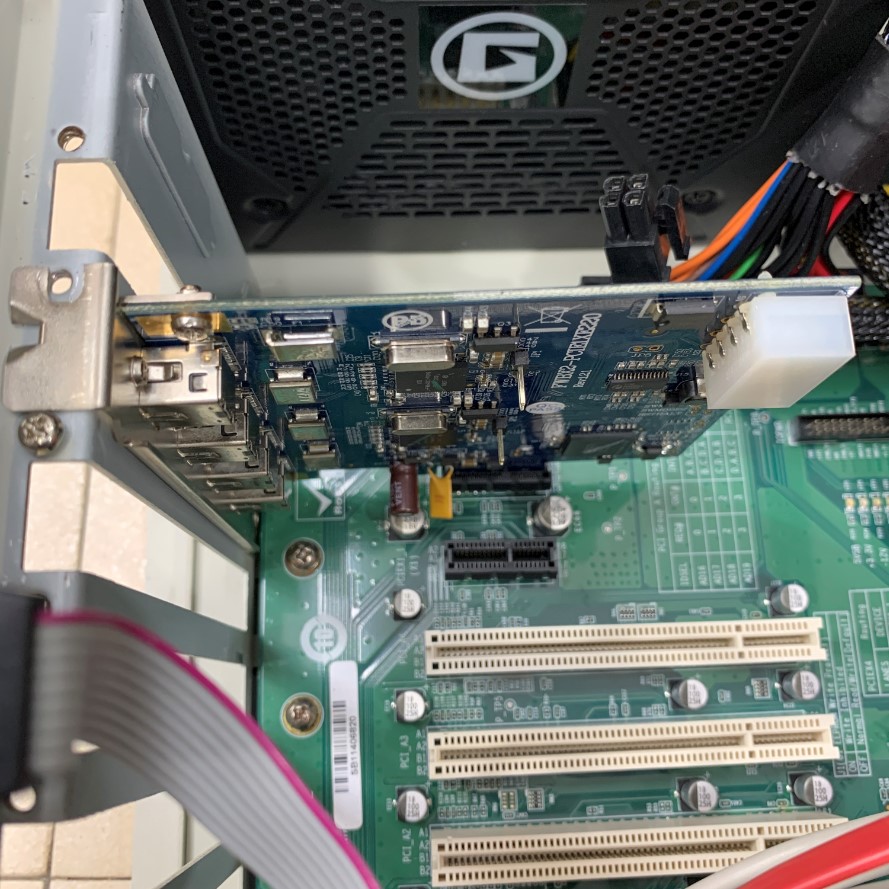

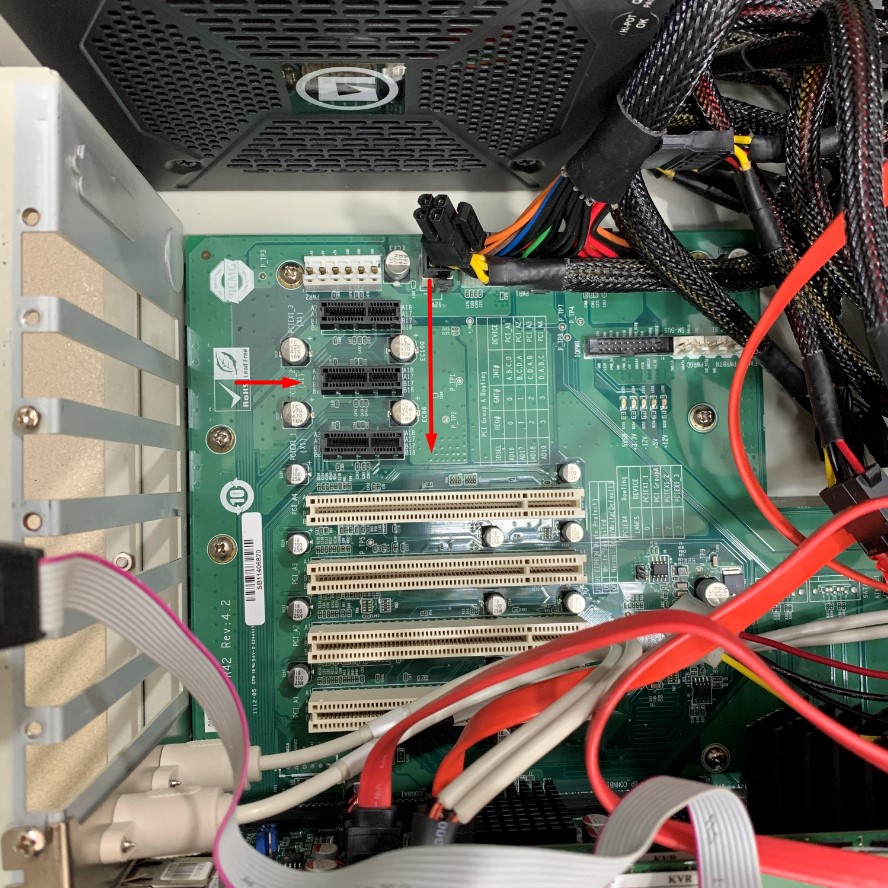

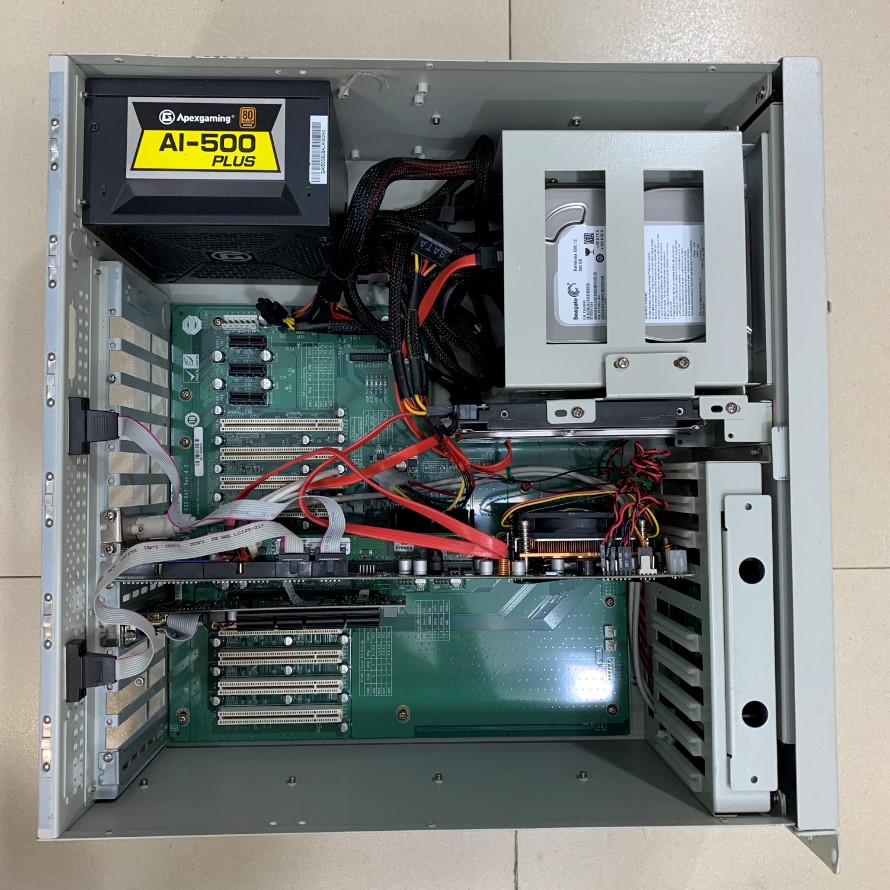

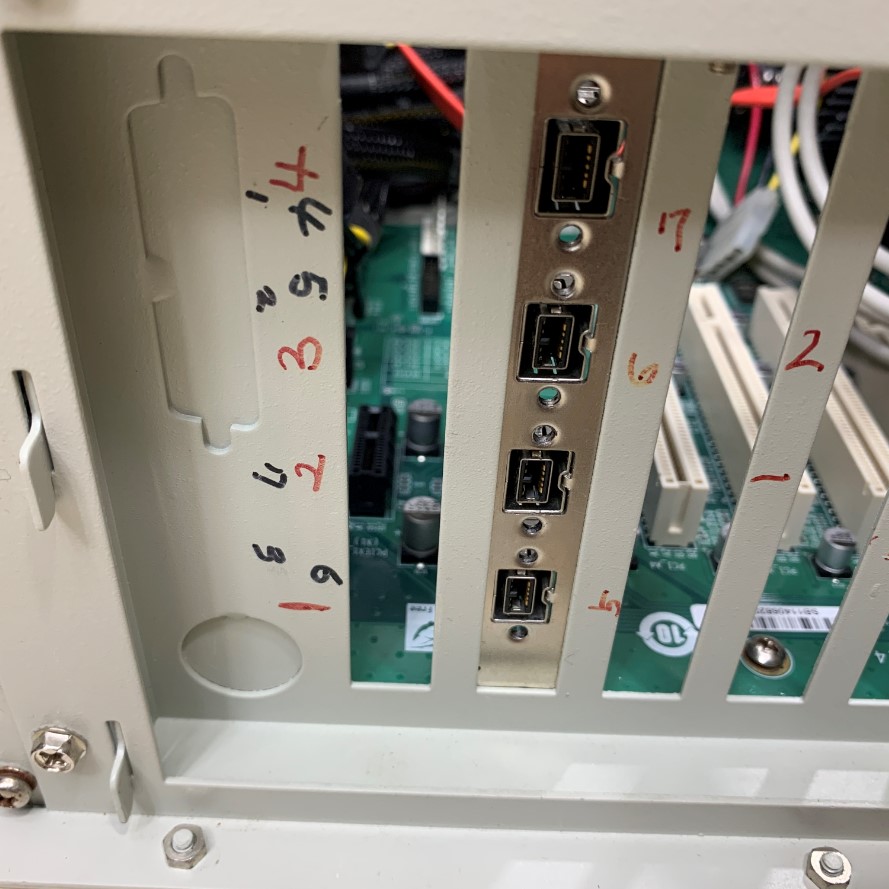

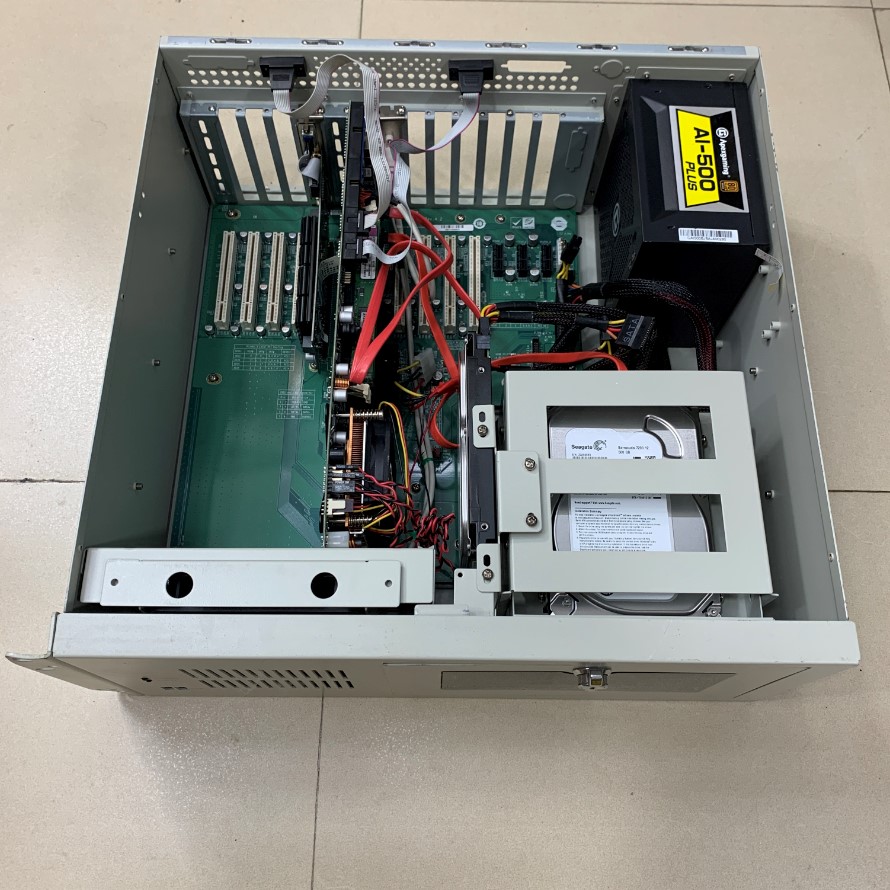

 4 Port IEEE 1394b FireWire 800 PCI Express Card For Industrial PC

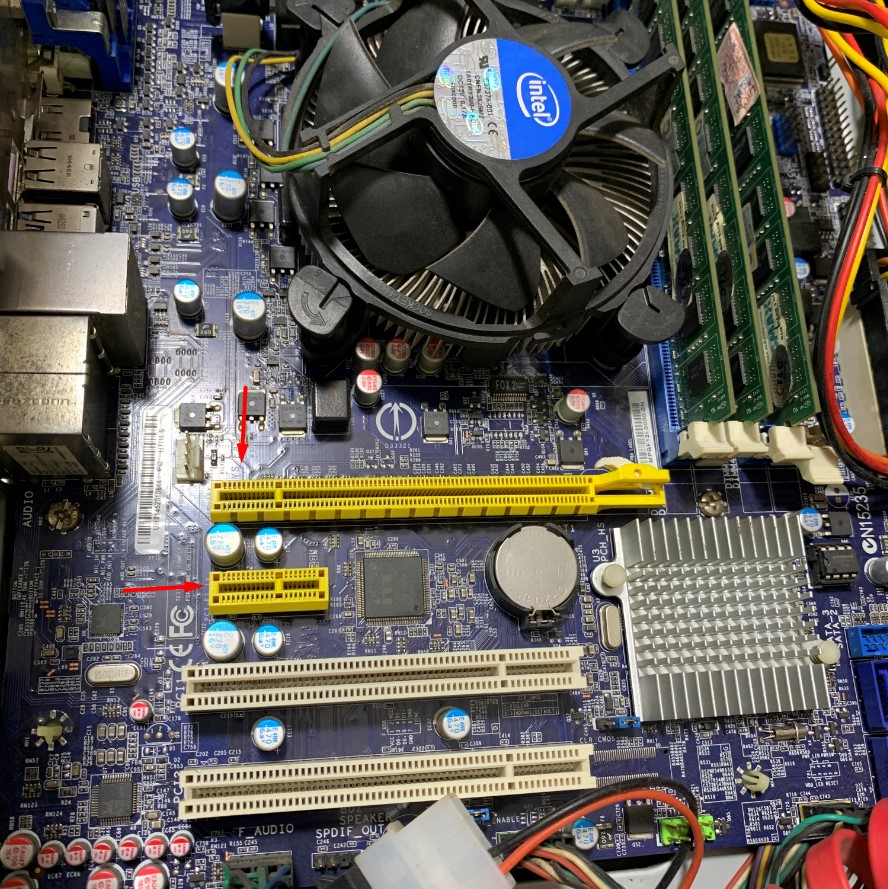

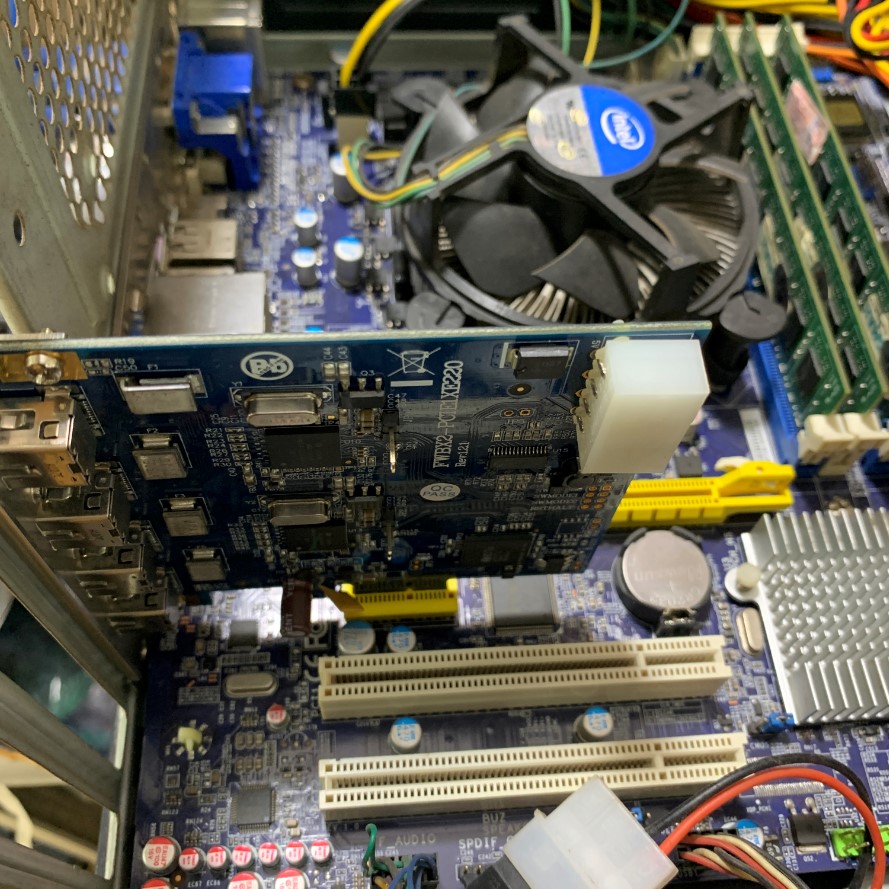

4 Port IEEE 1394b FireWire 800 PCI Express Card For Desktop Computer

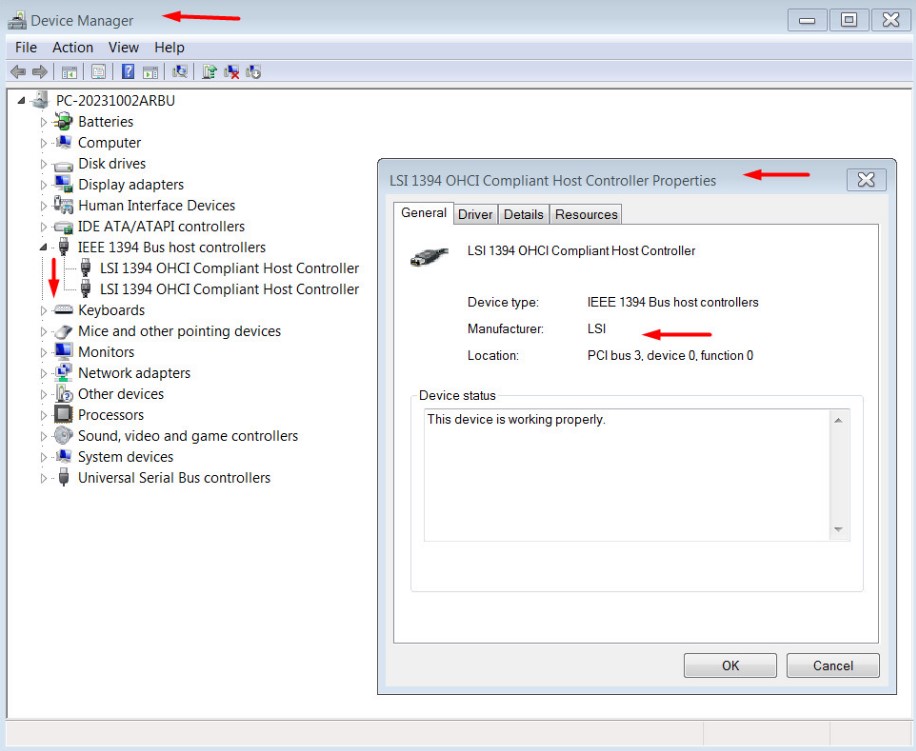

LSI 1394 OHCI Compliant Host Controller

Product Specifications
The FWBX2-PCIE1xE220 is a Dual OHCI 1.2 Compliant FireWire 800 (IEEE 1394b) to PCI Express Host Adapter.
FWBX2-PCIE1xE220 is designed with Two key components.
3-Lane, 3-Port PCI Express Switch.
OHCI 1.2 Compliant IEEE 1394b Single Chip Host Controller.
Utilizing the standard PCI Express Switch, the 3-Lane/3-Port
PCI Express Switch provides the most efficient fan-out solution for integrating two OHCI 1.2 Compliant IEEE 1394b Single Chip Host controllers
into a small board design. Each OHCI 1.2 Compliant IEEE 1394b
Single Chip Host controller takes advantages of 2.5 Gbps burst rate of 1-lane
PCI Express bus in both directions and is fully compliant with PCI Express Base specification 1.1.
This solution provides full PCI Express and 1394b functionality and performance
Technical Specifications
PCI Express:
Fully compliant with revision 1.1 base specification.
One virtual channel.
Eight traffic classes.
64-bit and 32-bit platform support.
PCI compatible Interrupts via legacy INTx emulation
OHCI (Open Host Controller Interface):
Enhanced with the OHCI 1.2 draft specification for 1394b-2002 PHY full
operational compliance.
OHCI 1.0 backwards compatible. Configurable via EEPROM to operate in either OHCI 1.0 or OHCI 1.1 mode.
8 Kbyte isochronous transmit FIFO.
4 Kbyte asynchronous transmit FIFO.
8 Kbyte isochronous receive FIFO.
8 Kbyte asynchronous receive FIFO.
Dedicated asynchronous and isochronous descriptorbased DMA engines.
Eight isochronous transmit contexts.
Eight isochronous receive contexts.
Supports parallel processing of incoming physical read and write requests.
1394b-2002 PHY:
Provides three IEEE 1394b-2002 compliant ports supporting 1394b-2002 speeds of 800 Mbits/s and 400 Mbits/s
while main- taining backward compatibility to IEEE 1394a-2000 speeds of 100 Mbits/s, 200 Mbits/s, and 400 Mbits/s over 4.5 m copper.
Fully supports provisions of IEEE 1394a- 2000 and 1394-1995 standards for high- performance serial bus.
Link is not required for hub operation.
Supports extended BIAS_HANDSHAKE time for enhanced interoperability with cam- corders.
Does not require external filter capacitor
for PLL.
Supports arbitrated short bus reset to improve utilization of the bus.
Supports ack-accelerated arbitration and fly-by concatenation.
Supports PHY pinging and remote PHY access packets.
Fully supports suspend/resume.
FireWire P1394b Cable Ports:

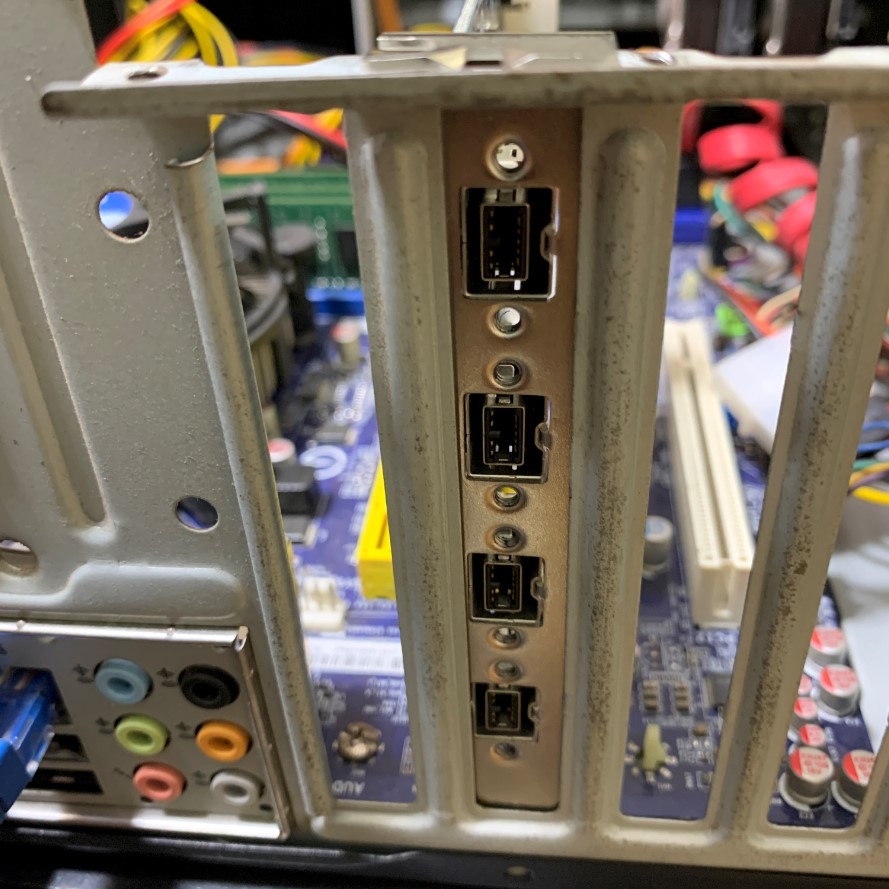

FWBX2-PCIE1xE220: Four FireWire P1394b Cable Ports
OHCI 1: Two 1394b Bilingual Ports
OHCI 2: Two 1394b Bilingual Ports
Bus Power Connector:
with IDE big 4-pin DC +12V power connector
