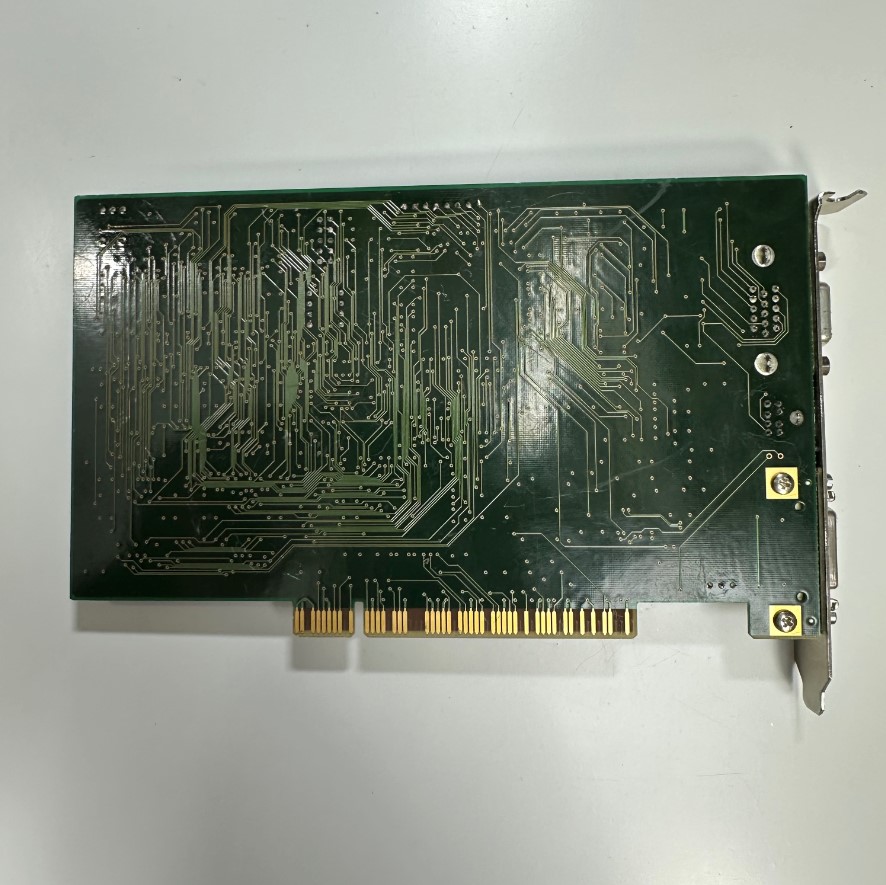

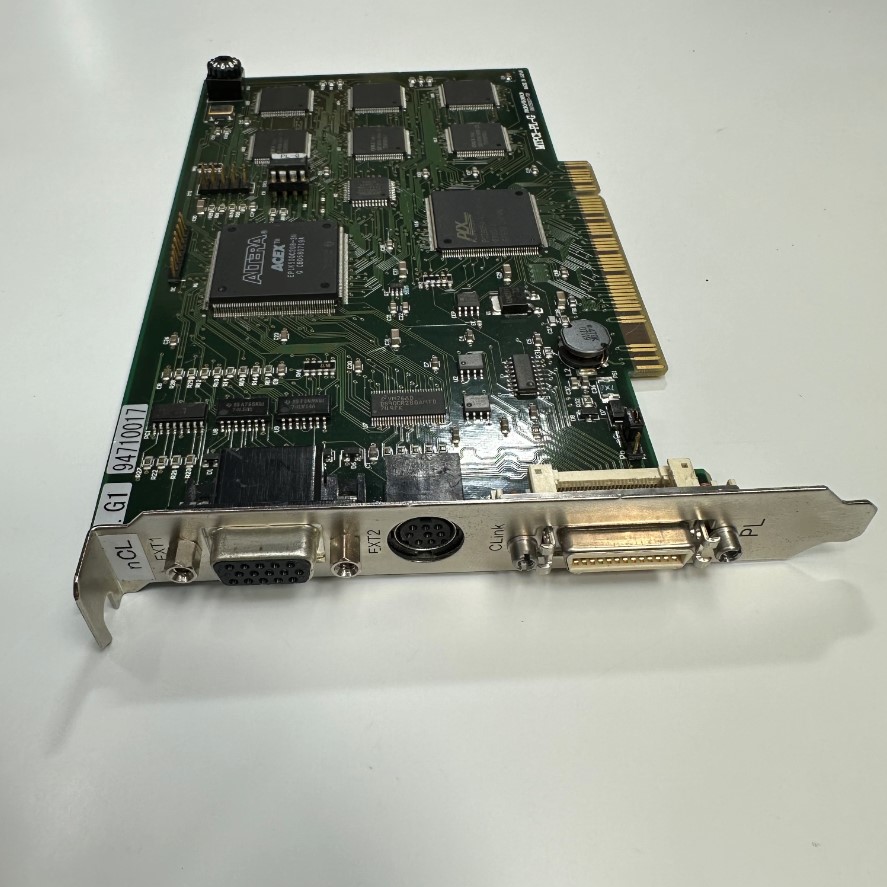

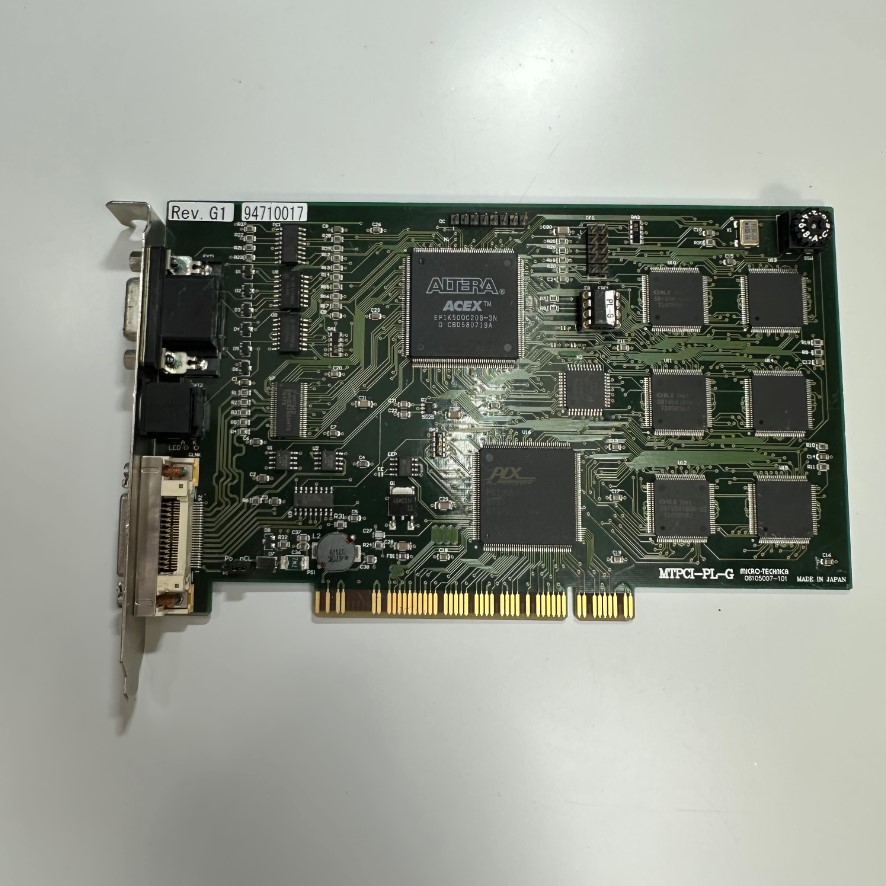

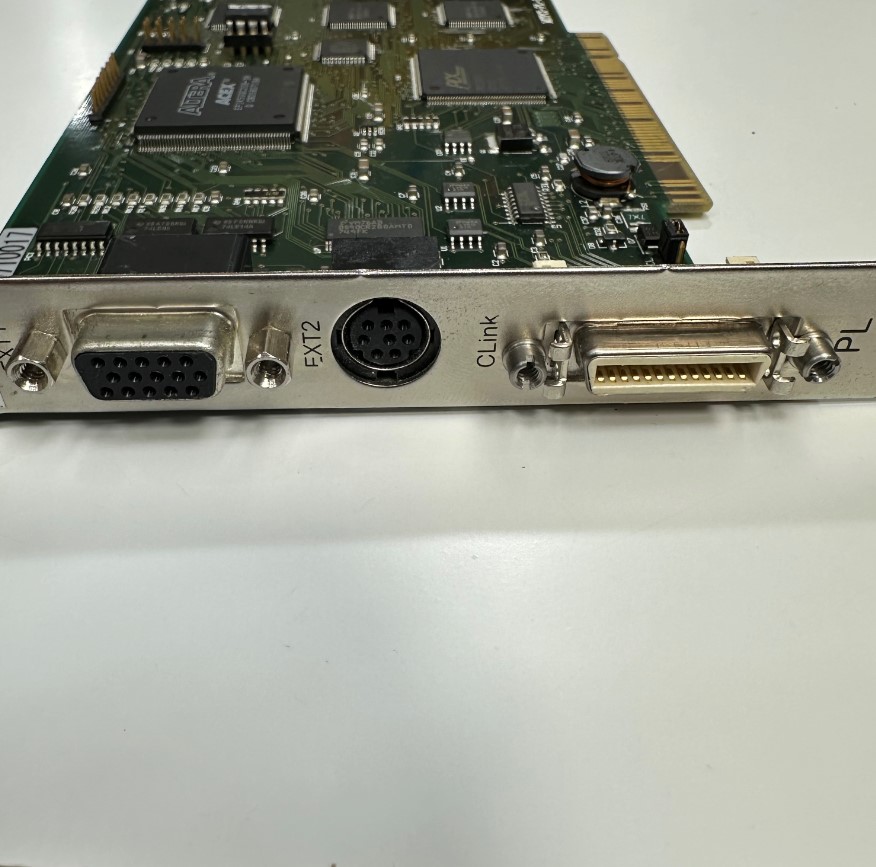

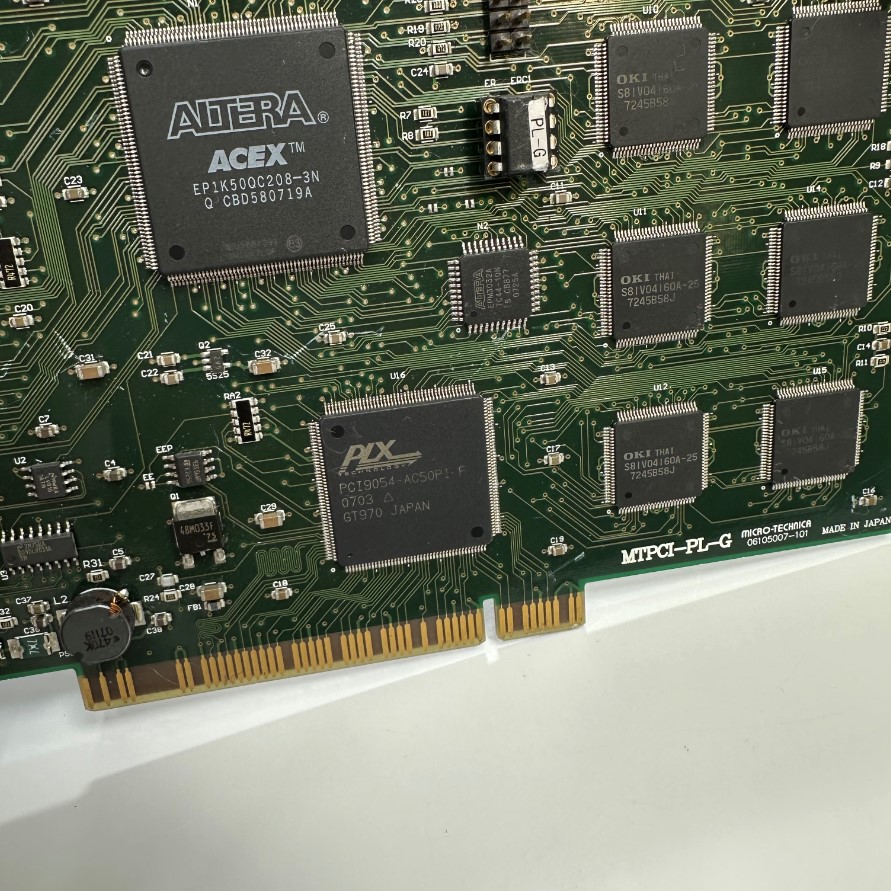

Card MICRO-TECHNICA MTPCI-PL-G REV.G1 06105007-101 Motherboard Camera Link Frame Grabbers PCI 4X to MDR 26 Pin + VGA HD 15 Pin + Mini Din 8 Pin Port

Product name: PoCL compatible image input board "MTPCI-PL-G"
Manufacturer: Micro Technica Co., Ltd.
Features: This is an input board for PoCL cameras that supports PCI bus standard DMA transfer.
It is compatible with CameraLink Base configuration and area sensor/line sensor cameras. It supports external
capture trigger signals (GTRG), shutter trigger signals (STRG[CC1]), and strobe trigger signals (SSRB).
Input signal: Base Configuration
Supported image sizes: Horizontal: Settable up to 65535 dots
Vertical: Settable up to 65535 lines
Data Bit Width: R, G, B (8 bits each), monochrome (8, 10, 12, 14, 16 bits)
Camera Control: High-speed shutter Long exposure (Note 1)
Control Signal: External capture trigger signal input, strobe trigger signal output
Memory Access: DMA transfer method
Compatible buses: PCI bus (32-bit/33MHz) 1 slot
External dimensions: 175×106×16mm
Support Software: Microsoft Windows 2000 (SP4) / XP (32-bit) / 7 (32-bit)
MTPCI-WIN (3)-V4.10 [List price: 19,800 yen (20,790 yen including tax)]
Vine Linux 3.2CR kernel 2.4.31-Ov11.10
Red Hat Enterprise Linux kernel 2.6.9-5.EL
MTPCI-LIN (3)-V4.00 [List price: 19,800 yen (20,790 yen including tax)]
