Card Camera Link PCIe x4 Matrox Solios EV-CL Y7367-00 REV.B SOL2MEVCLB For Camera Link Frame Grabber Card Industrial Camera

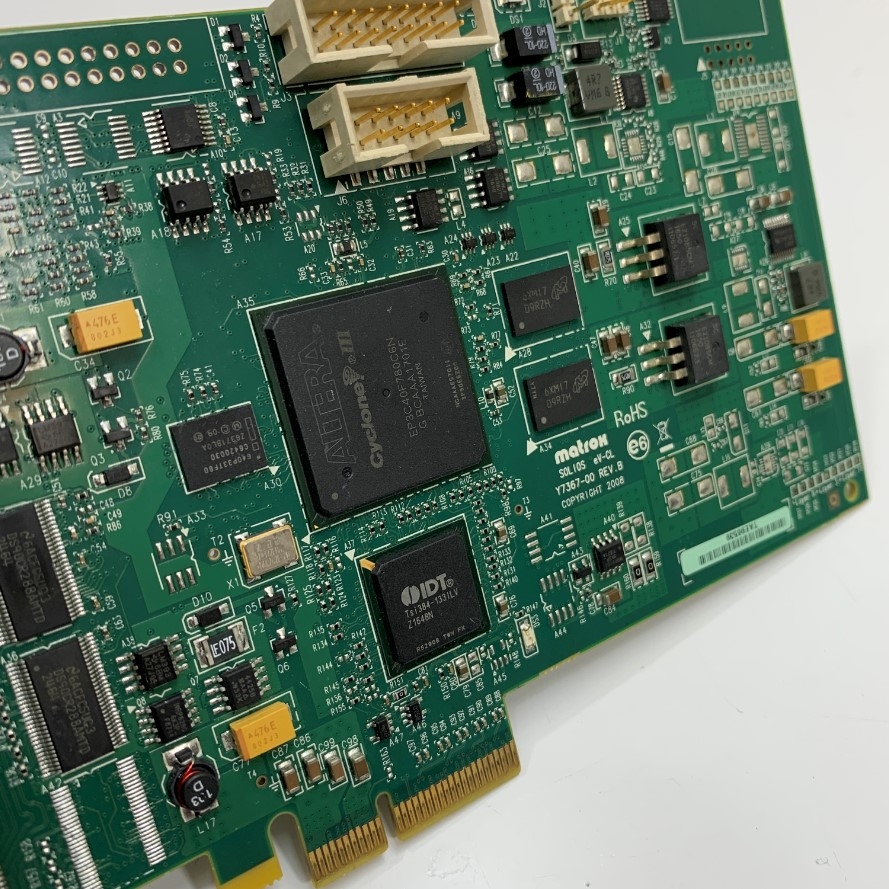

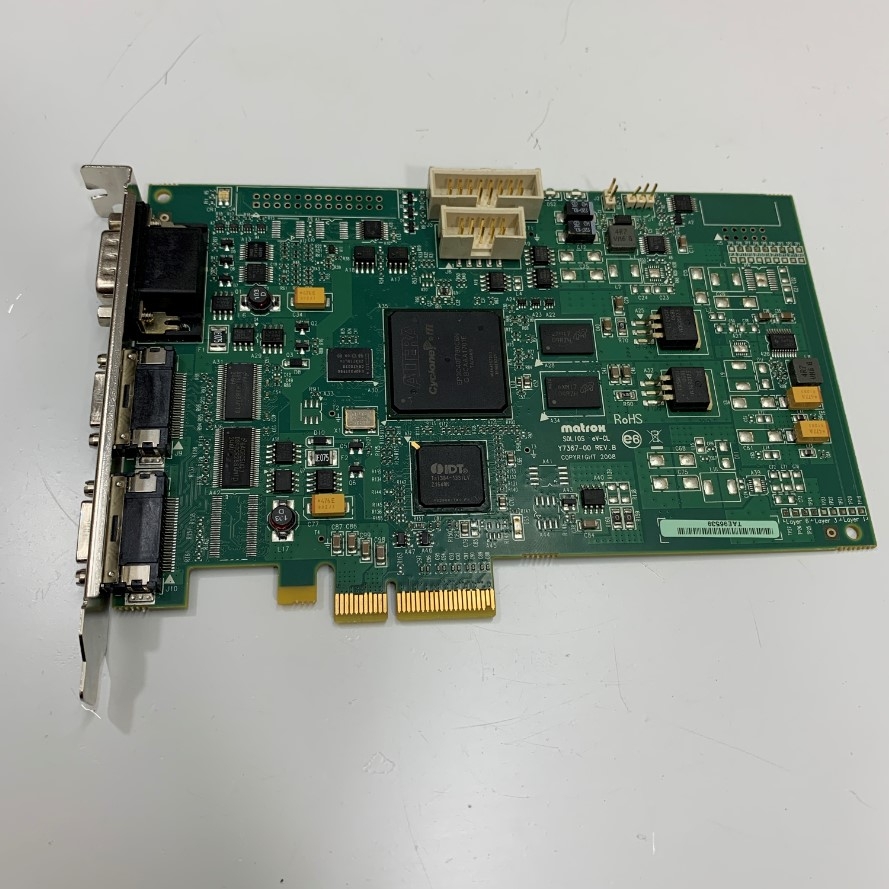

Matrox Solios eV-CL Value-packed Camera Link frame grabber

Matrox Solios eV-CLB block diagram

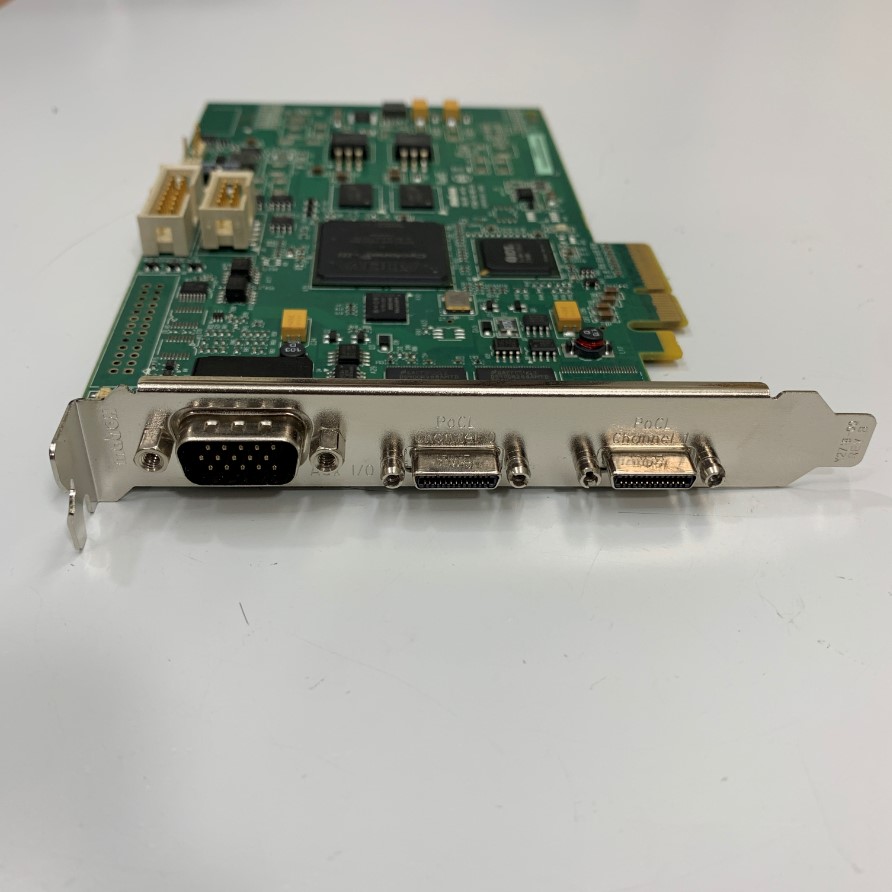

Connectivity (eV-CLB/CLF models)
Two (2) mini Camera Link (HDR) connectors
One (1) DBHD-15 male connector

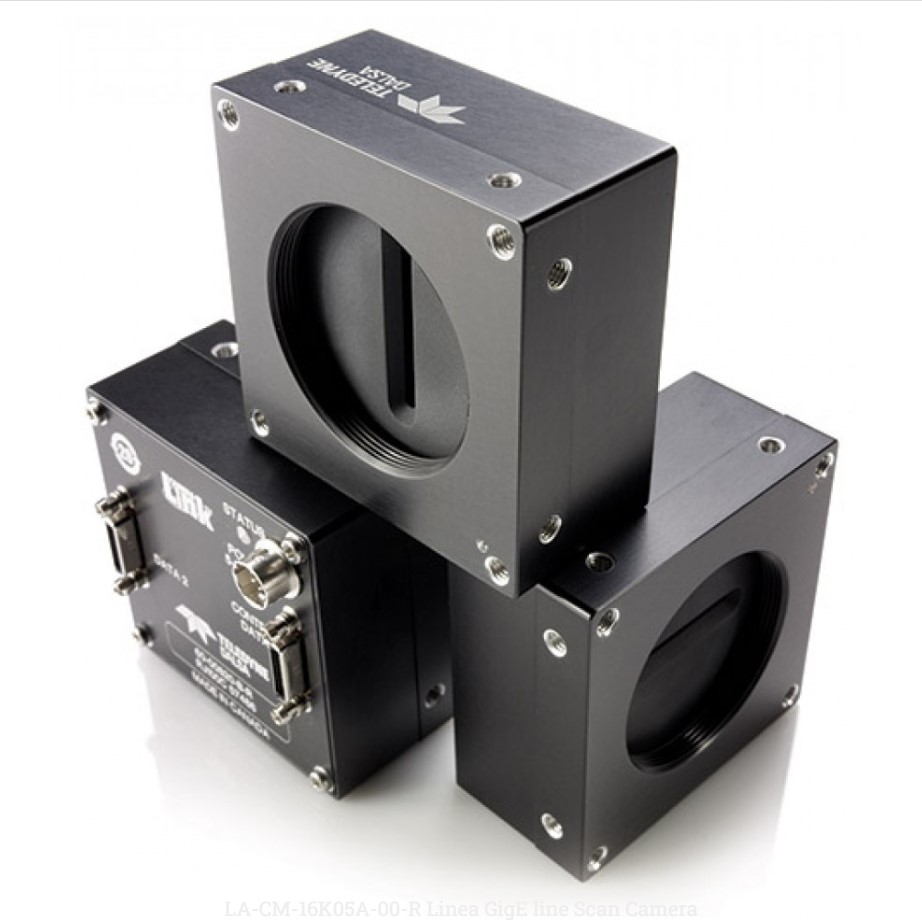

LA-CM-16K05A-00-R Linea GigE line Scan Camera

Specifications
Matrox Solios eV
Hardware
PCIe x4 host interface
128, 256, or 512 MB of DDR SDRAM
Up to 1.7 GB/s
Camera Link 2.0 acquisition
Two (2) independent Base Camera Link ports (eV-CLB/CLBL models)
PoCL with SafePower
One (1) Medium Camera Link port
One (1) Full Camera Link port (eV-CLF/CLFL models)
10-tap support
20 MHz to 85 MHz Camera Link clock

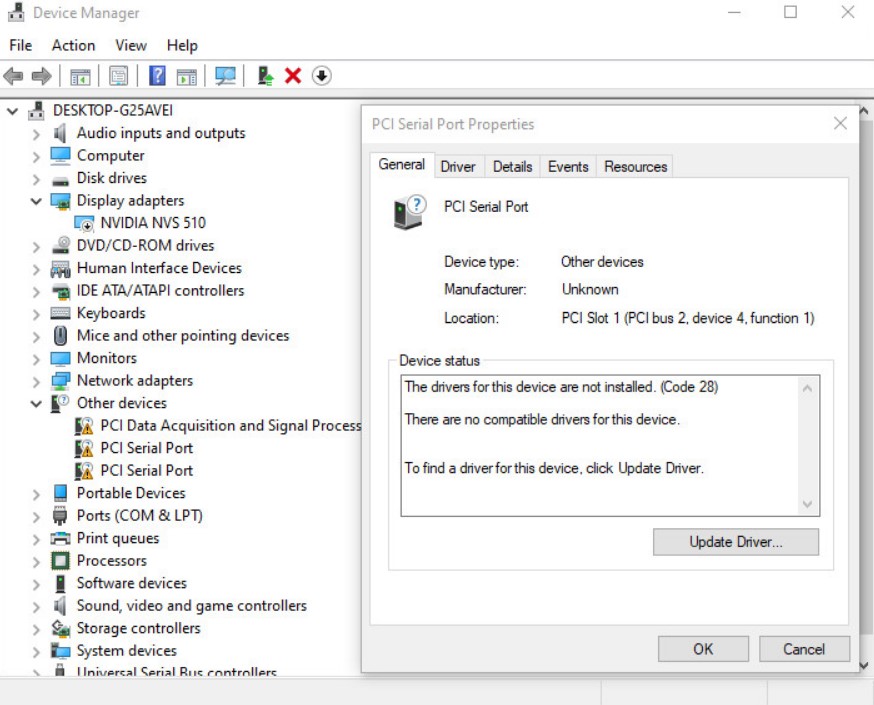

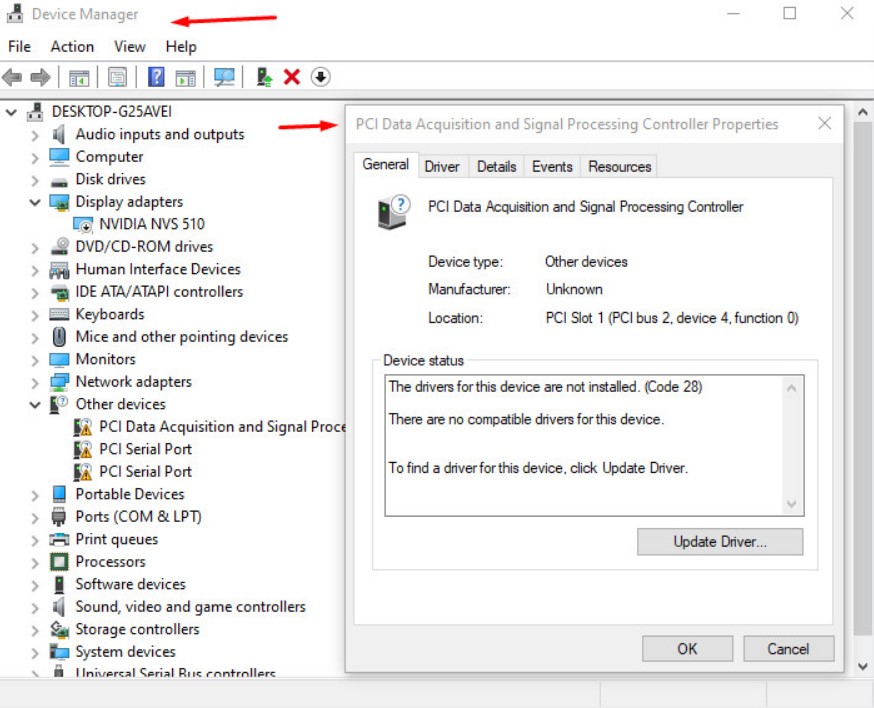

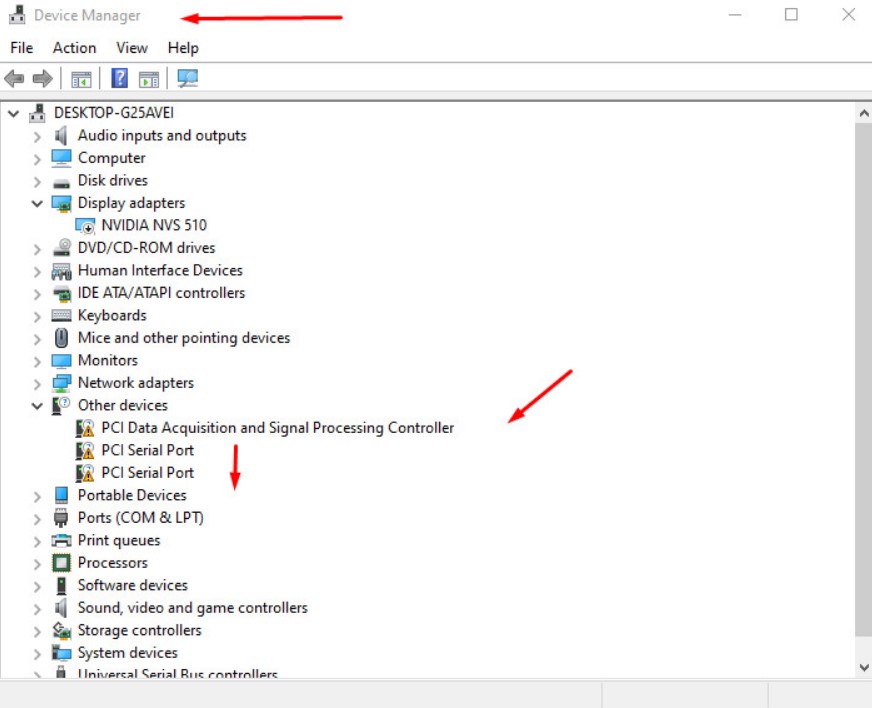

Serial port(s) mapped as PC COM port(s)
Supports frame- and line-scan sources
On-board image reconstruction
On-board image sub-sampling
On-board color space conversion
Input formats
8-/16-bit mono
8-/16-bit color
Output formats
8-/16-bit mono
8-/16-bit planar RGB
32-bit packed BGRa
On-board Bayer conversion (eV-CLB/CLBL models)
GB, BG, GR, and RG pattern support
On-board LUTs per port
Two (2) 256 x 8-bit LUTs
Two (2) 4K x 12-bit LUTs
Support for one (1) quadrature rotary encoder per port
Connectivity (eV-CLB/CLF models)
Two (2) mini Camera Link (HDR) connectors
One (1) DBHD-15 male connector
Three (3) TTL configurable auxiliary I/Os
Two (2) LVDS auxiliary inputs
One (1) LVDS auxiliary output
Two (2) opto-isolated auxiliary inputs
Optional add on DBHD-15 male connector
Three (3) TTL configurable auxiliary I/Os
Two (2) LVDS auxiliary inputs
One (1) LVDS auxiliary output
Two (2) opto-isolated auxiliary inputs

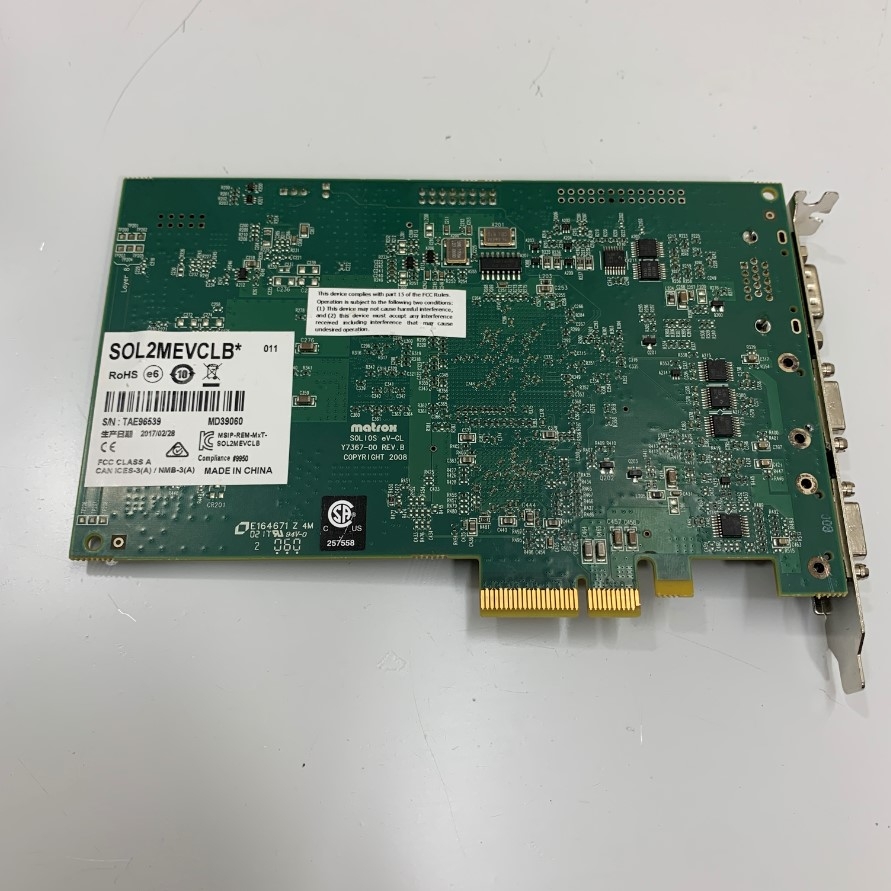

SOL 2M EV CLB
Matrox Solios eV-CLB Single Medium / Dual-Base, up to 85 MHz, Camera Link PCIe x4 frame grabber with 256 MB DDR SDRAM
and HDR26 (mini Camera Link) connectors. Includes cable adaptor (auxiliary I/O).
Card Camera Link PCIe x4 Matrox Solios EV-CL Y7367-00 REV.B SOL2MEVCLB For Camera Link Frame Grabber Card Industrial Camera
