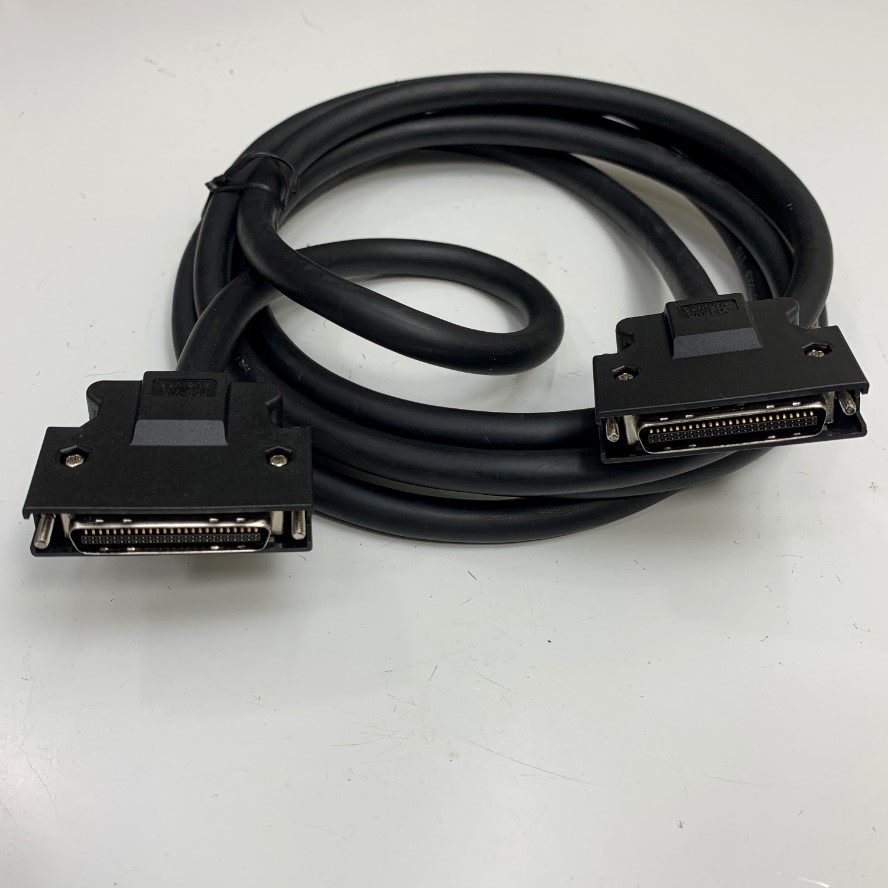

Cáp SCSI MDR 50 Pin Male to Male Suntone With Screw Pitch 1.27mm Gold Plated Shielded Cable 3M 10ft For Panasonic Servo Motor Driver A4 Series CN X4 50P Terminal with Control Cable

Panasonic A6/A5 series servo drive CN X5 /X4 50Pin terminal (control cable 3M)

Suntone SM-50J Connector 50 Core Pitch 1.27mm Gold Plated SCSI MDR 50 Pin Male With Screw

Specifications
Servo Motor Interface IO Control Cable
Brand: Thientruongpc - ViệtNam/Thientruongpc
Cable Type: Communication IO Data Cable

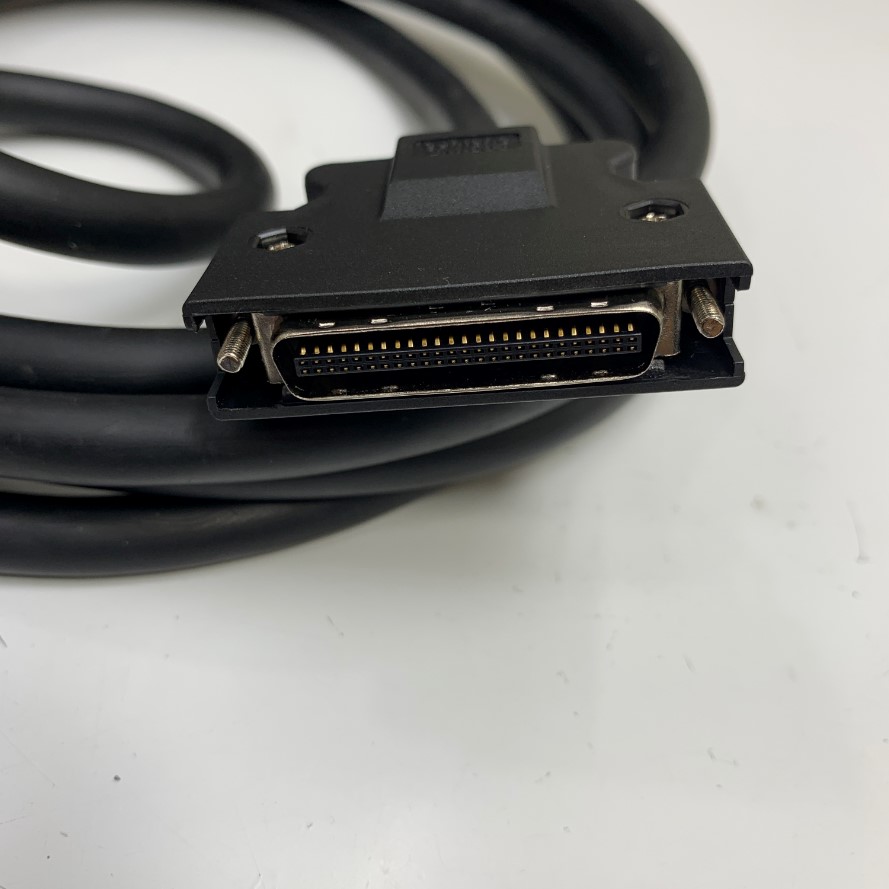

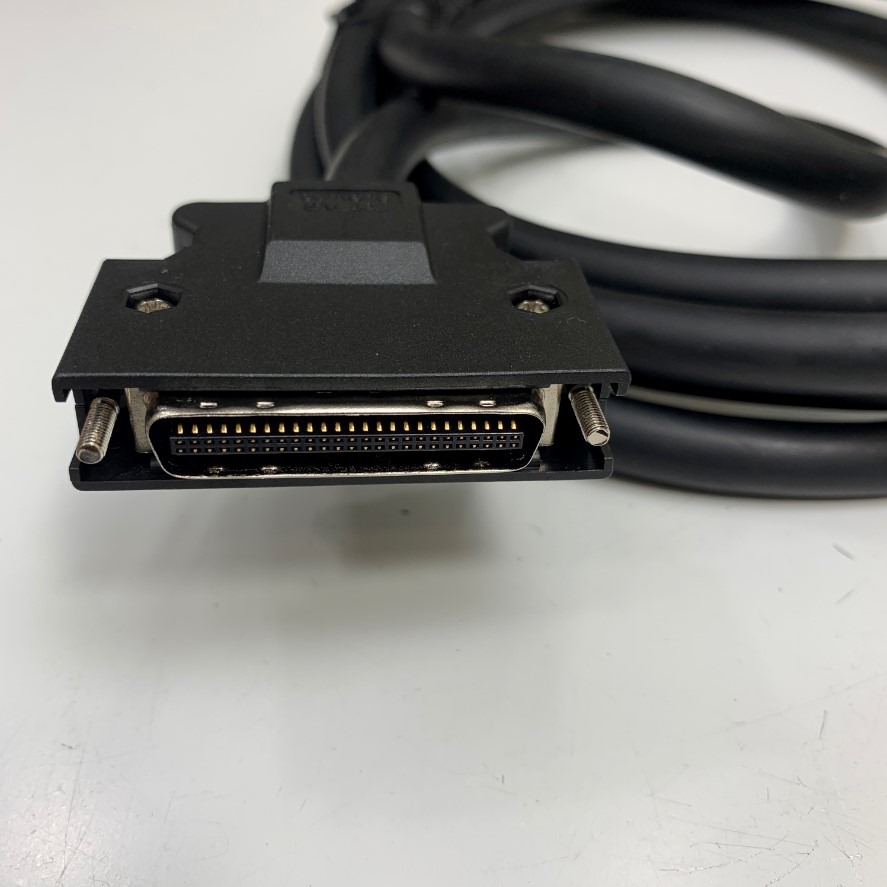

Connector 1: Jack Suntone SM-50J Connector MDR 50 Pin Male With Screw
Connector 2: Jack Suntone SM-50J Connector MDR 50 Pin Male With Screw
Connector plating: Connector Gold Plated
Gender: SCSI MDR 50 Pin Male to MDR 50 Pin Male
Wire: UL 28AWG - Shielded Cable OD=10mm
Max Operating Temperature: 85 °C
Min Operating Temperature: -25 °C

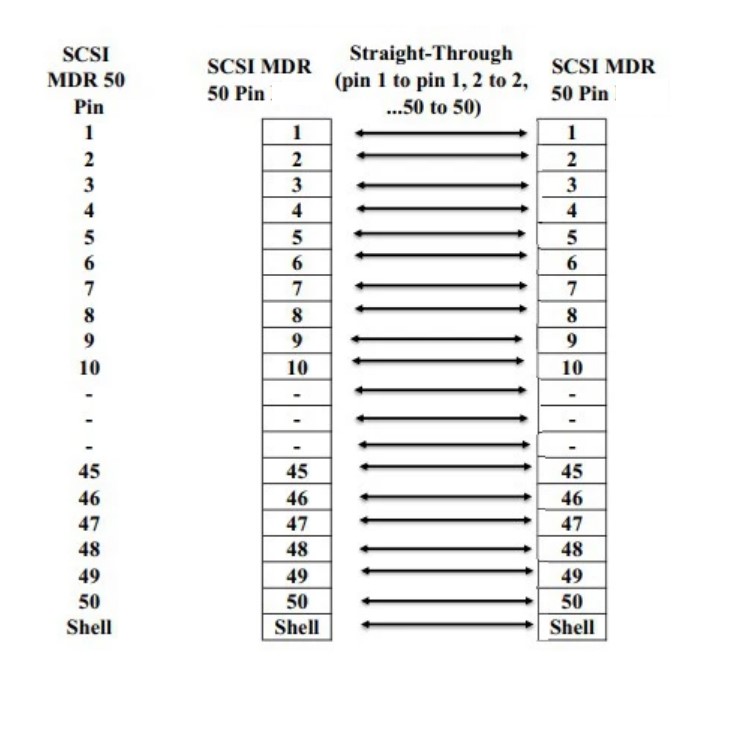

Pin-Out: Connection: 1-1 / 2-2 / 3-3 / .-. / .-. / 48-48 / 49-49 / 50-50 / Shield-Shield
Cable Length: 3M 10ft
Color: Black
Cáp SCSI MDR 50 Pin Male to Male Suntone With Screw Pitch 1.27mm Gold Plated Shielded Cable 3M 10ft For Panasonic Servo Motor Driver A4 Series CN X4 50P Terminal with Control Cable
