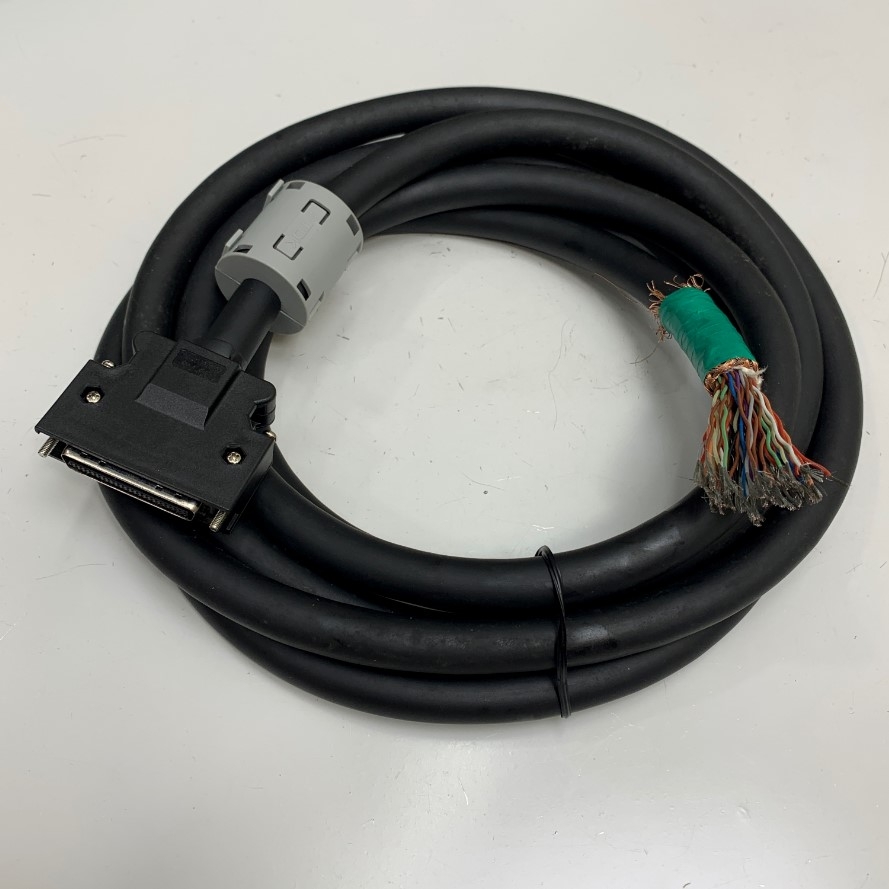

Cáp 10M 33ft Servo Driver X4 PLC Control Cable I/O DV0P4360 Connector MDR 50 Pin Male to 50 Core (50 x 0.2mm² OD 14mm) For Panasonic A5 A6 Series Servo Driver Terminal with Control Cable

DV0P4360 Panasonic Servo Drive X4 I/O Communication Cable 50-Pin

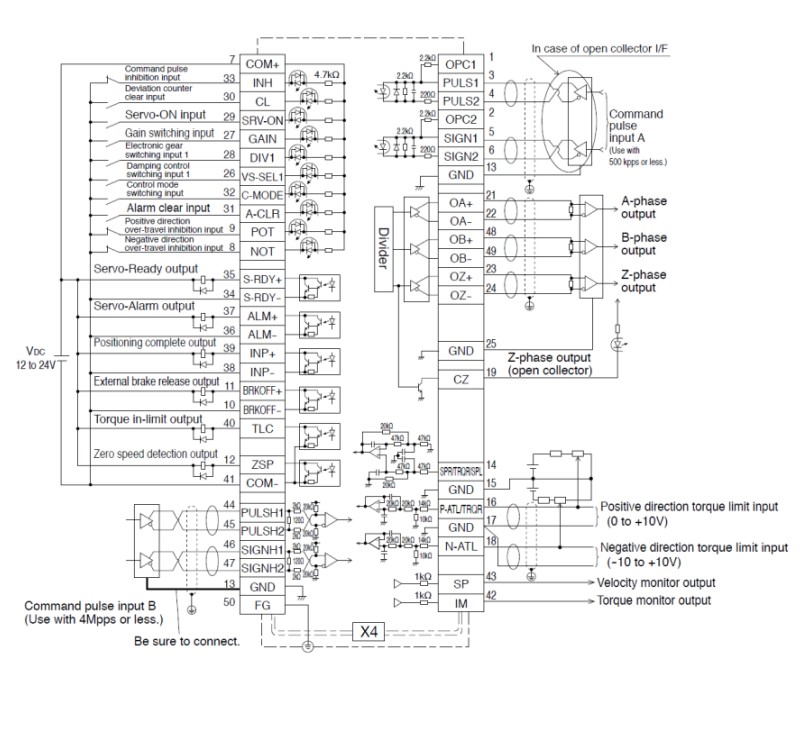

Cable Drawing

Servo Motor Interface IO Control Cable
Brand: Thientruongpc - ViệtNam/Thientruongpc
Cable Type: Communication IO Data Cable

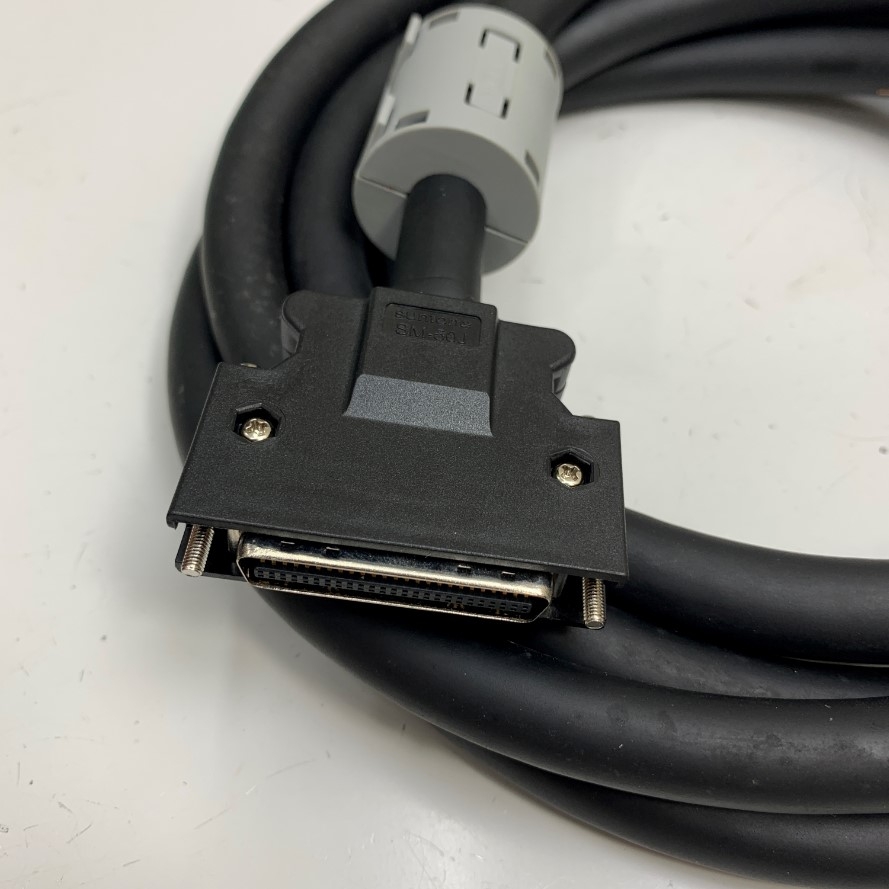

Connector 1: Jack Suntone SM-50J Connector MDR 50 Pin Male Screw

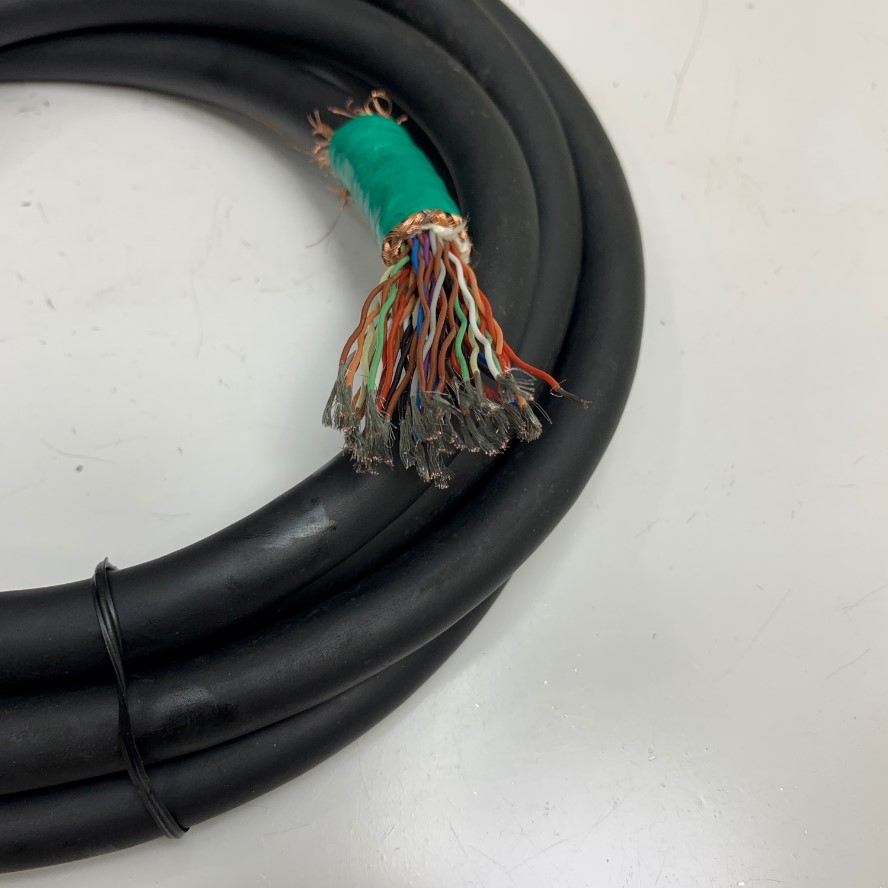

Connector 2: HITACHI 50 Core x 0.2mm² OD 14mm (Core Bare Wire Open End)
Bộ Lọc Khử Từ Kẹp Dây Tín Hiệu Chống Nhiễu TDK ZCAT3035-1330 Ferrite Core Cable Max OD 13mm Noise Suppressor EMI RFI Clip Choke
Connector plating: Connector Gold Plated
Gender: SCSI MDR 50 Pin Male to 50 Cores
Wire: UL 28AWG - Shielded Cable OD=14mm

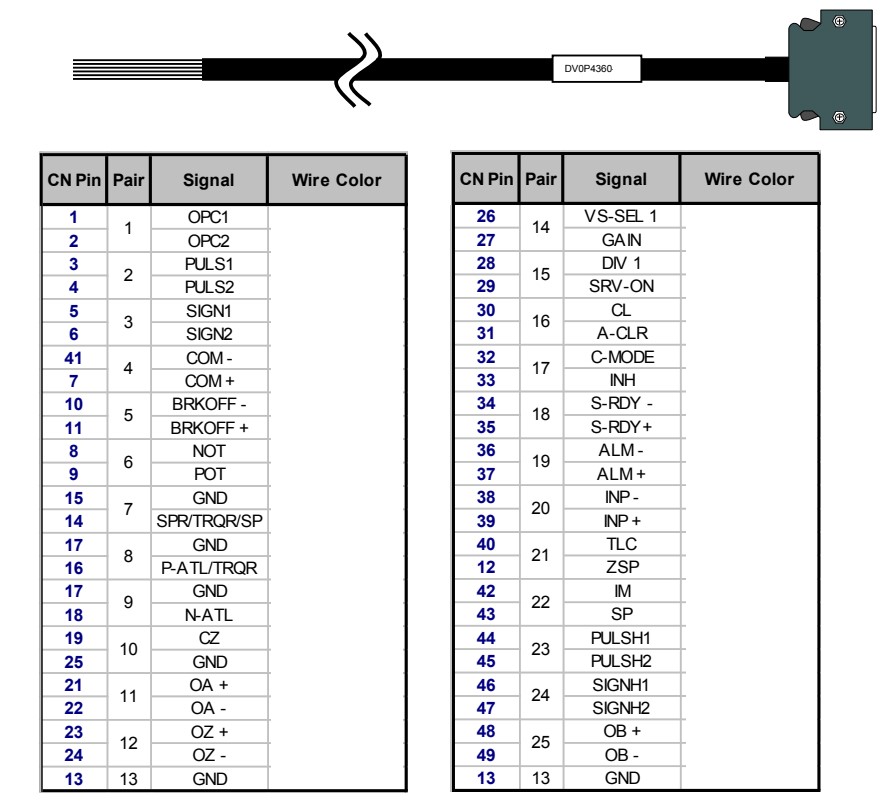

Pin-Out: Connection: 1-Wire color code / 2-Wire color code / .-. / .-. / 8-Wire color code / 50-Wire color code / Shield-Shield
Cable HITACHI 25PR 50 Core x 0.2mm² Cable OD 14mm
Cable Length: 10M ~ 33ft
Color: Black
Cáp 10M 33ft Servo Driver X4 PLC Control Cable I/O DV0P4360 Connector MDR 50 Pin Male to 50 Core (50 x 0.2mm² OD 14mm) For Panasonic A5 A6 Series Servo Driver Terminal with Control Cable
