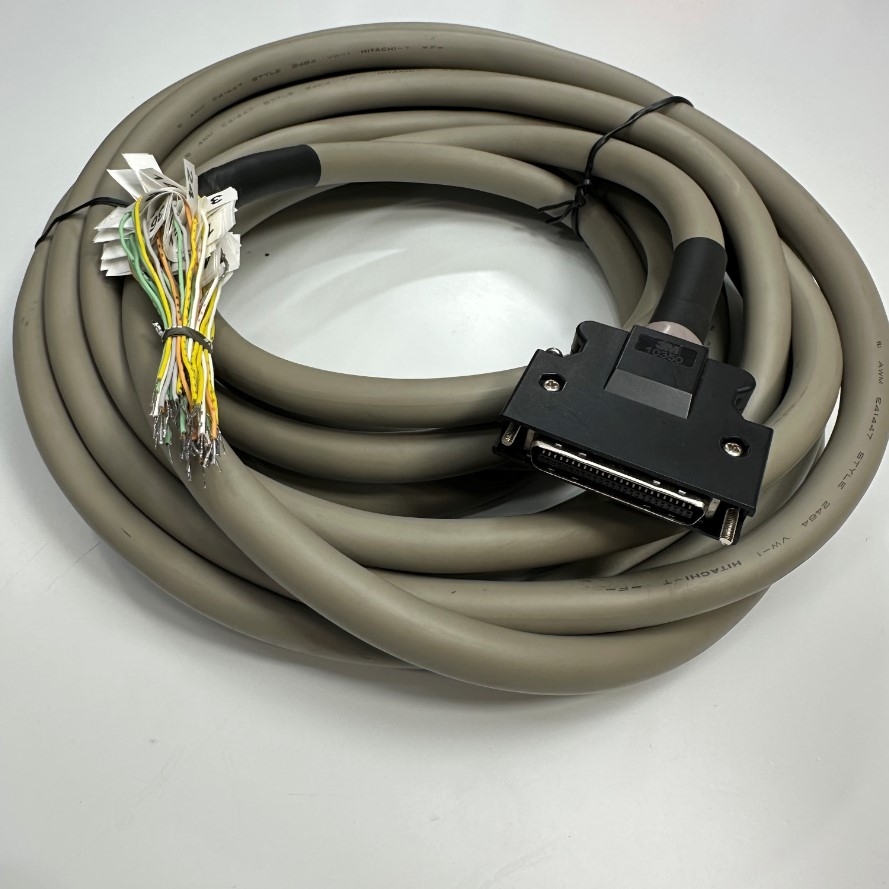

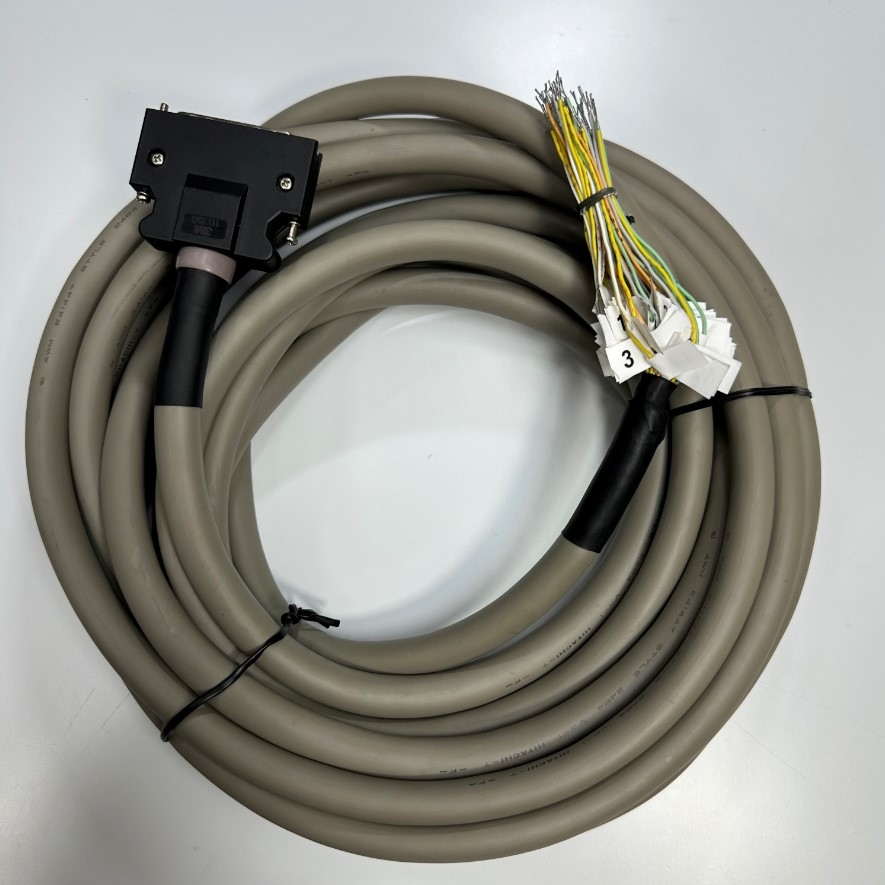

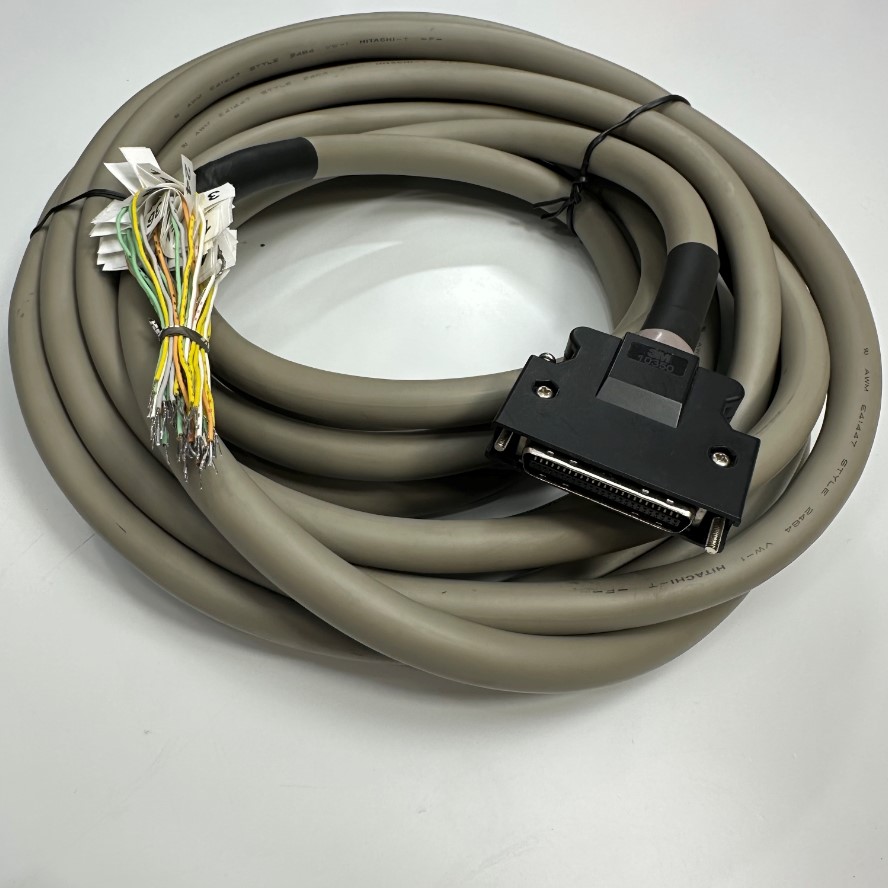

Cáp 6.5M 21.7ft Panasonic DV0P4360 CN1 A5 A6 Series X4 Servo Driver I/O Control Line MR-J3CN1 Signal Cable Hitachi E41447 Shielded Connector MDR 50 Pin Male to 50 Core Ends OD Ø 13.5mm Gray

Control Cable I/O Servo Driver Panasinic A5 Series CN1 X4 MR-J3CN1 Signal Cable 6.5M

3M 10150 Connector 50 Core Pitch 1.27mm Gold Plated SCSI MDR 50 Pin Male With Screw

Cable Hitachi E41447 STYLE 2464 VW-1 Shielded Cable 24AWG 80°C 300V OD 13.5mm Gray

Cable Drawing

Specifications
Brand: ViệtNam/Thientruongpc I/O Control Cable Signals Data And Power Cable
Model number: DV0P4360-6.5M I/O Cable Servo Motor

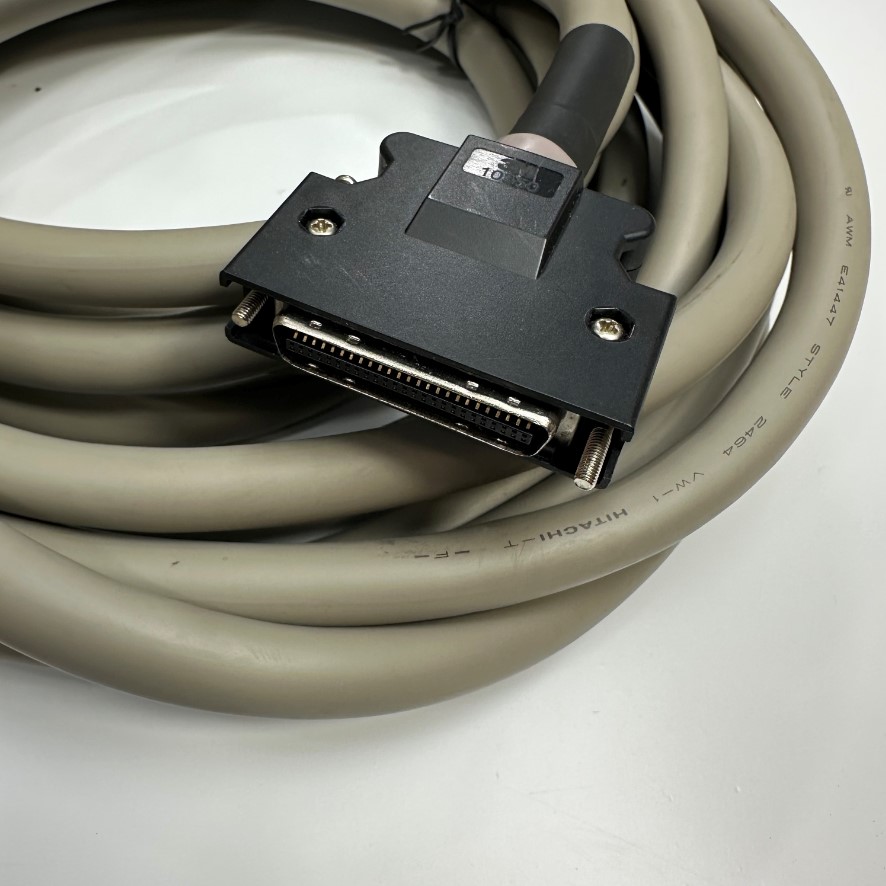

Connector Type 1: MDR 50 Pin Male (3M 10150 Connector 50 Core Pitch 1.27mm Gold Plated SCSI MDR 50 Pin Male With Screw)

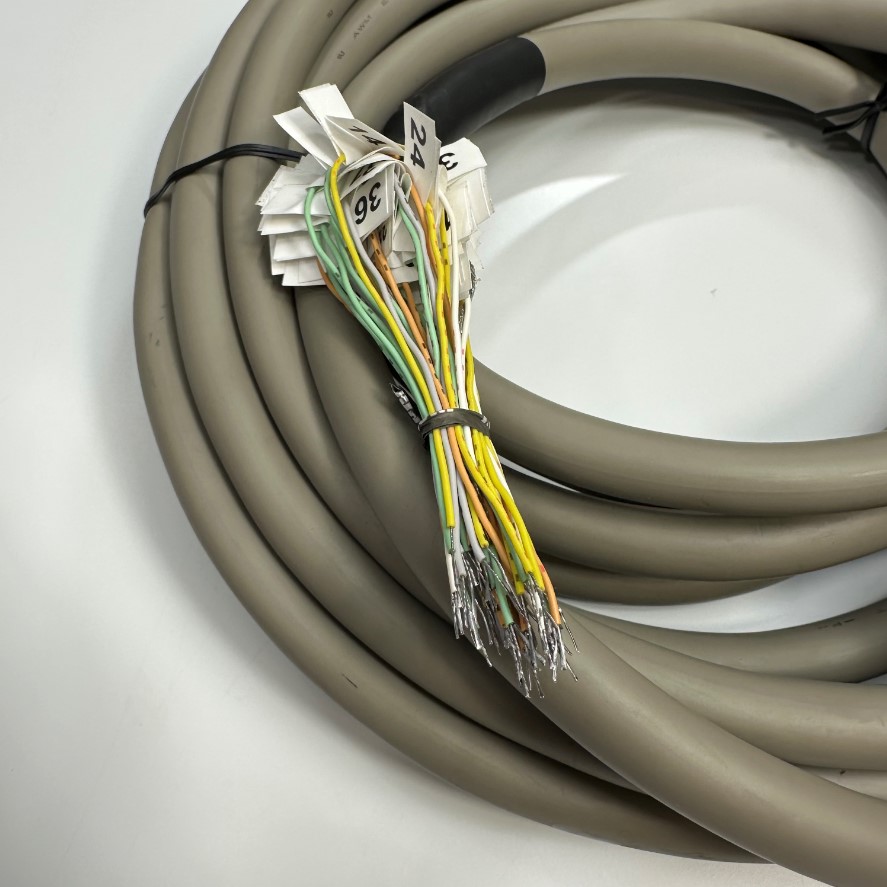

Connector Type 2: 50 Core Bare Wire Open
Number of Conductors: 50 x 0.2mm²
Conductor Size AWG: 24AWG
Voltage Rating: 300V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Cable Hitachi E41447 STYLE 2464 VW-1 Shielded Cable 24AWG 80°C 300V
Outer diameter: 13.5mm
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Gray
Cable Length: 3.5M ~ 11.7ft
Cáp 6.5M 21.7ft Panasonic DV0P4360 CN1 A5 A6 Series X4 Servo Driver I/O Control Line MR-J3CN1 Signal Cable Hitachi E41447 Shielded Connector MDR 50 Pin Male to 50 Core Ends OD Ø 13.5mm Gray
