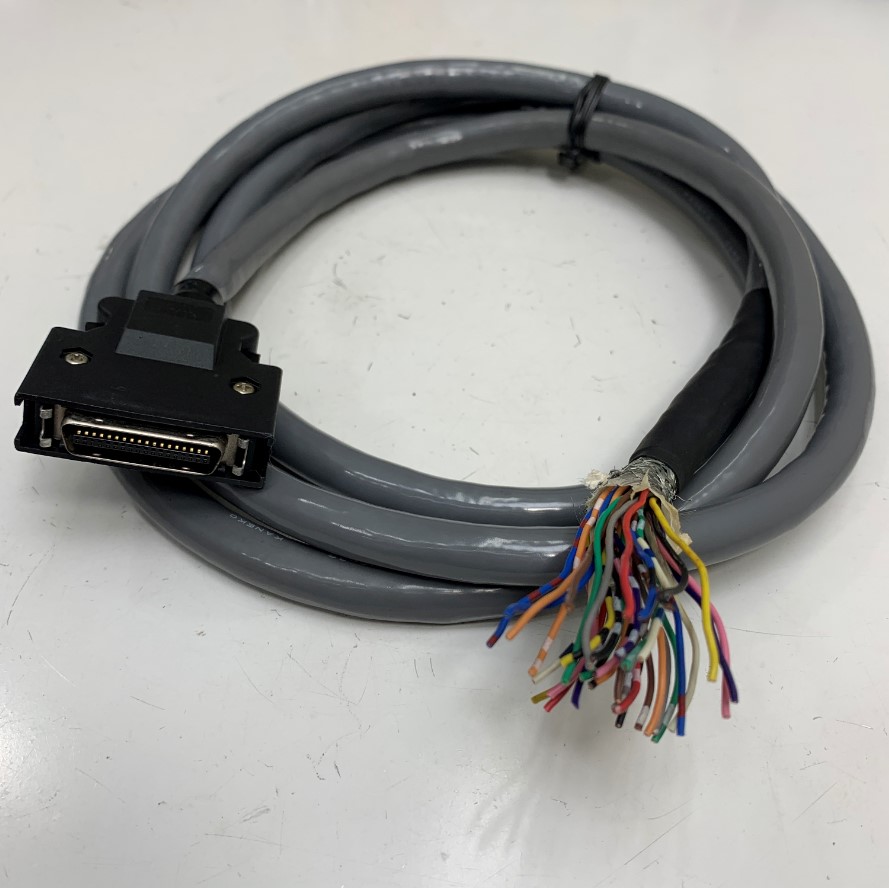

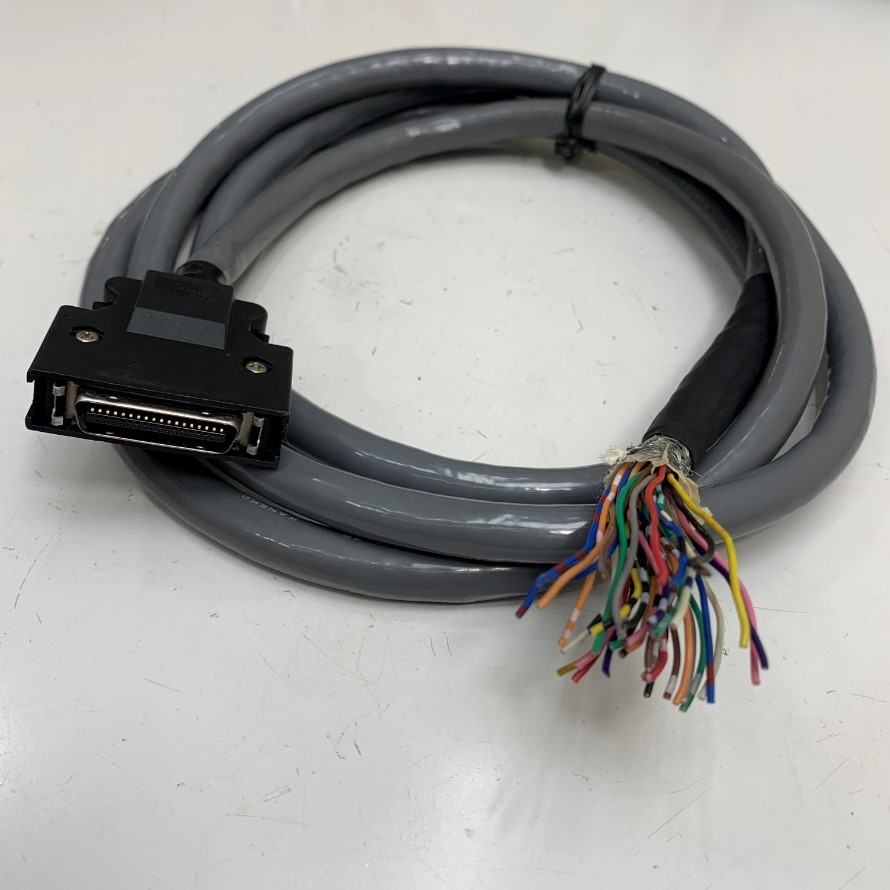

Cáp 2M 6.5ft DV0P4510 Panasonic MINAS A4P Series Connector CN X5 Servo Driver Interface MDR 36 Pin I/O Control Shielded Cable SPMC-36 KANEKO CORD 36 Core x 0.15mm² OD Ø 11mm Gray

Interface Conn Cable DV0P4510 2M

Panasonic MINAS A4P Series AC Servo Motors Drivers DV0P4510 Cable Interface 36-pin I/O Control

Connector CN X5 Interface MDR 36 Pin

Specifications
Brand: Japan/Original Panasoni Encoder Plug Servo and Drives Cable
Product Series: Panasonic MINAS A4P Series Connector CN X5 witch Controller Cable
Model: DV0P4510 Cable
Cable Type: Connector MDR 36 Pin Male to 36 Core Ends

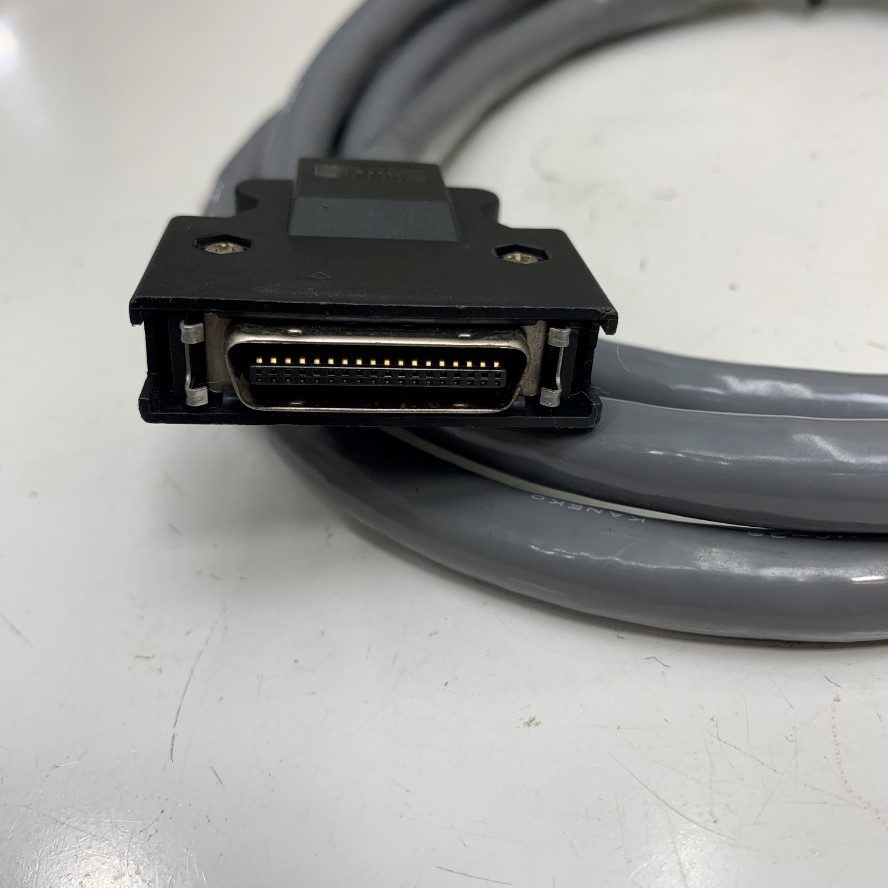

Connector 1: MDR 36 Pin Male Pitch 1.27mm Gold Plated (Connector 3M 10336 With Latch Clip) Connector x1

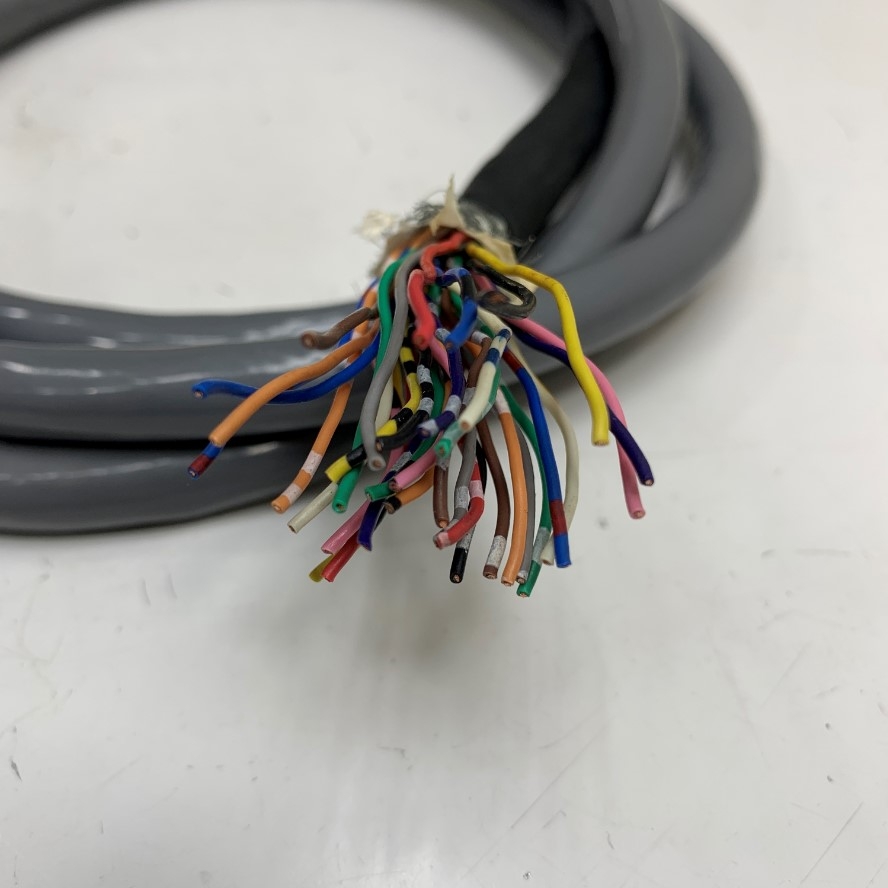

Connector 2: 36 Core Ends Connector x1
Connectors: MDR 36 Pin Male to 36 Core
Connector plating: Gold Plated/Nickle Plated
Wire: UL 26AWG - Cable OD=11mm
Shielded Cable SPMC-36 KANEKO CORD 36 Core x 0.15mm² 26AWG OD Ø 11mm Gray
Jacket: PVC
Shield structure: Shielded
Voltage Rating: 100V
Cable Style: Round
Operating Temperature: -25°C to +85°C
Cable Color: Glossy dark gray
Length: 2M ~ 6.5ft
Cáp 2M 6.5ft DV0P4510 Panasonic MINAS A4P Series Connector CN X5 Servo Driver Interface MDR 36 Pin I/O Control Shielded Cable SPMC-36 KANEKO CORD 36 Core x 0.15mm² OD Ø 11mm Gray
