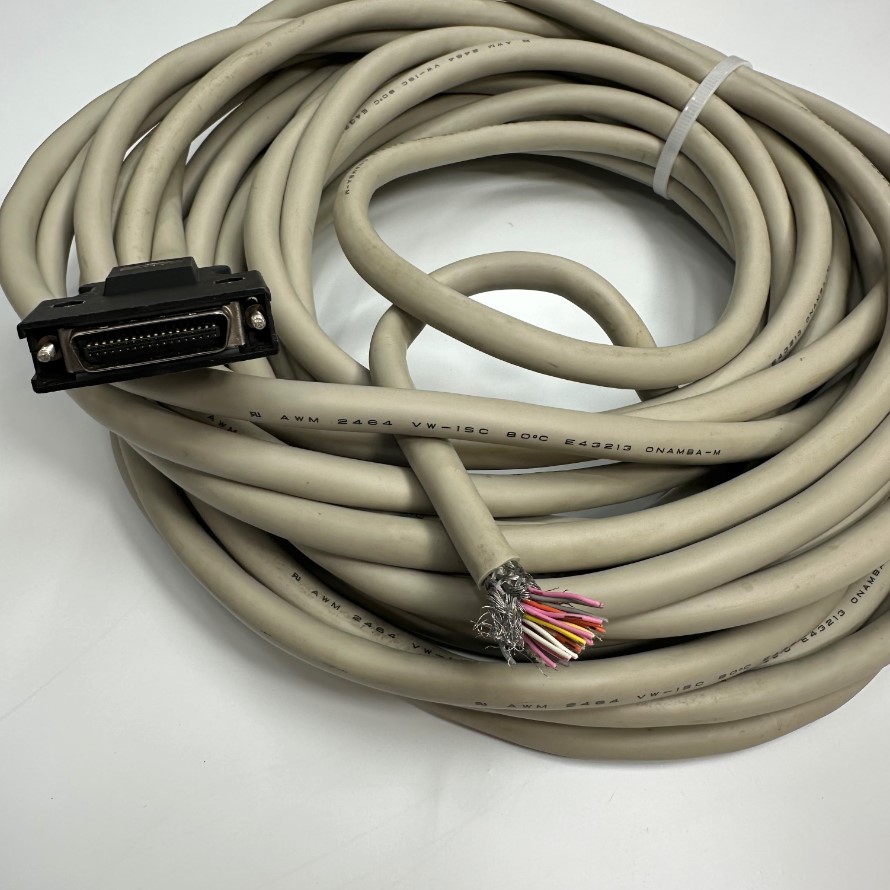

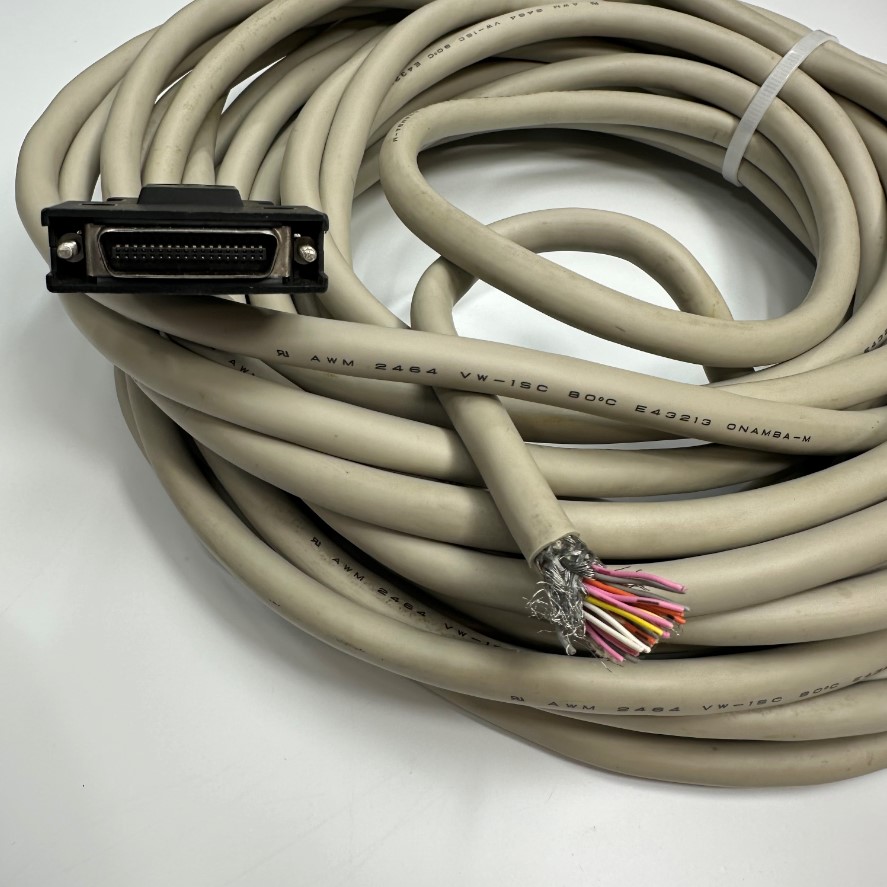

Cáp 14M 47ft DV0P4510 Interface Cable Panasonic MINAS A4P Series CN X5 Servo Driver I/O Control Line Signal Cable ONAMBA-M E43213 Connector MDR 36 Pin Male to 36 Core OD Ø 10.5mm Gray

ONAMBA-M E43213 Shielded Cable Grey

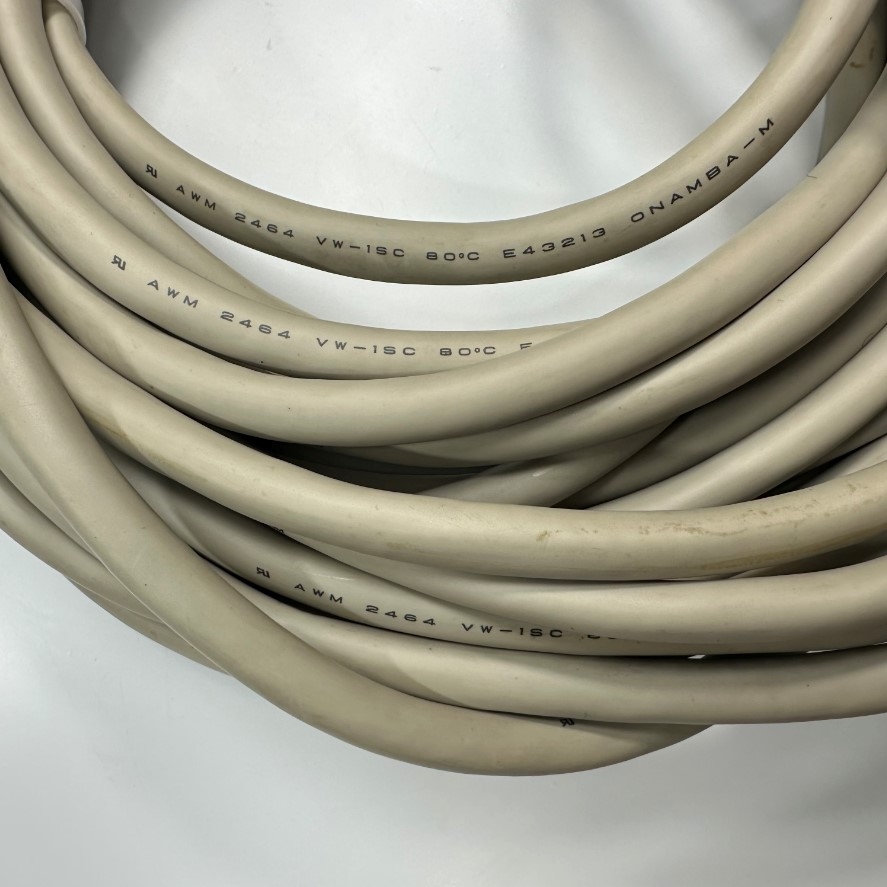

Cable ONAMBA-M E43213 AWM 2464 VW-1SC 80°C 300V OD 10.5mm Gray

Panasonic MINAS A4P Series AC Servo Motors Drivers DV0P4510 Cable Interface 36-pin I/O Control

Connector CN X5 Interface MDR 36 Pin

Part Number: DV0P4510
Product details: 36 pin
Applicable Family / Series: AC Servo Motors
MINAS A4P Series
Specifications
Brand: Taiwan/Original I/O Signals Data And Power Cable
Model number: DV0P4510 Interface Cable Panasonic Servo Driver I/O Control Line

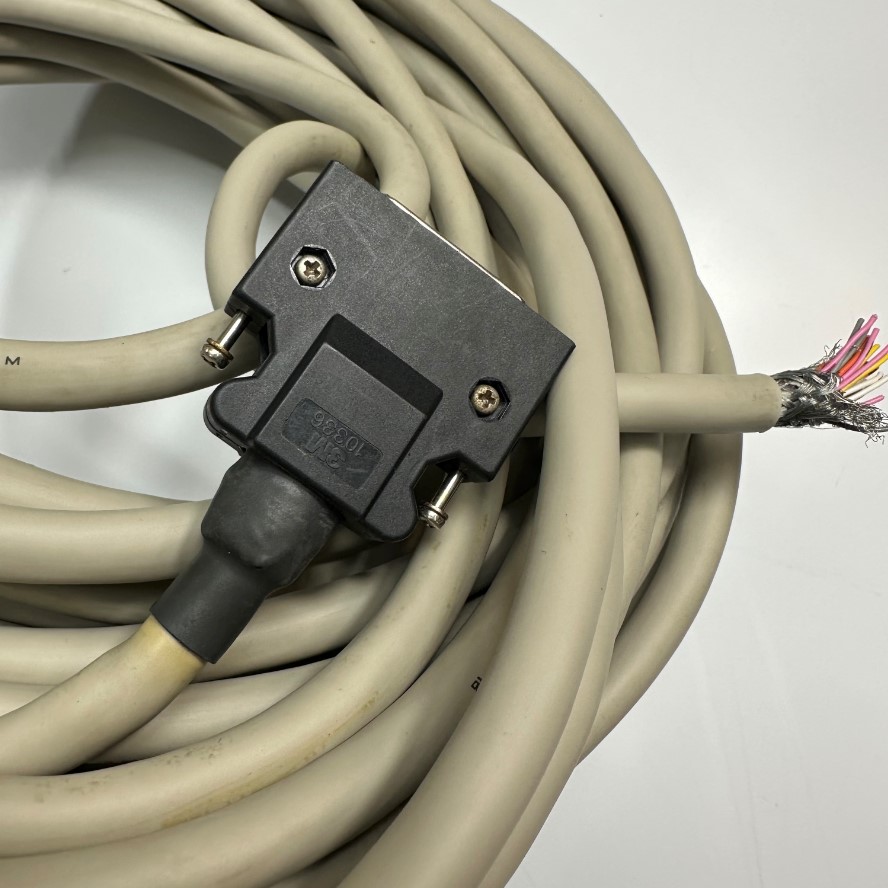

Connector Type 1: MDR 36 Pin Male (3M 10136 Pitch 1.27mm Gold Plated SCSI MDR 36 Pin Male With Screw)

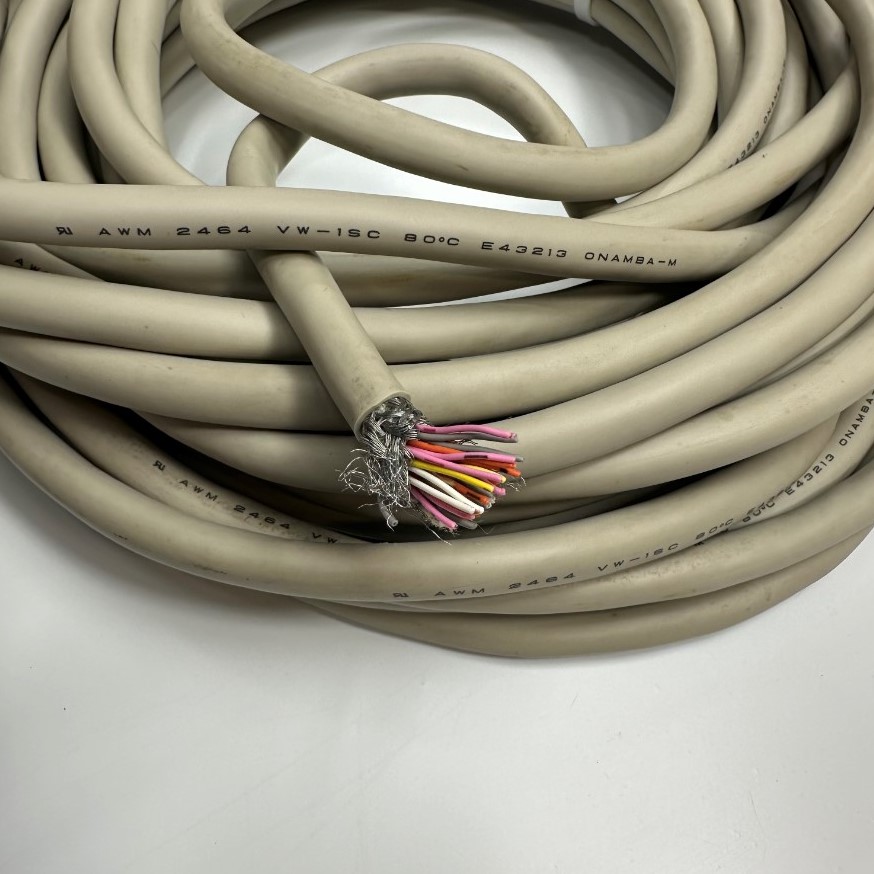

Connector Type 2: 36 Core Bare Wire Open
Number of Conductors: 36 x 0.17mm²
Conductor Size AWG: 26AWG
Voltage Rating: 300V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Cable ONAMBA-M E43213 AWM 2464 VW-1SC 80°C 300V OD 10.5mm Gray
Outer diameter: 10.5mm
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Color: Grey
Cable Length: 14M ~ 47ft
Pin-Out: Straight Through Connection: 1 - Bare Wire Open; 2 - Bare Wire Open;--------; 36 - Bare Wire Open; Shell - Shell
Cáp 14M 47ft DV0P4510 Interface Cable Panasonic MINAS A4P Series CN X5 Servo Driver I/O Control Line Signal Cable ONAMBA-M E43213 Connector MDR 36 Pin Male to 36 Core OD Ø 10.5mm Gray
