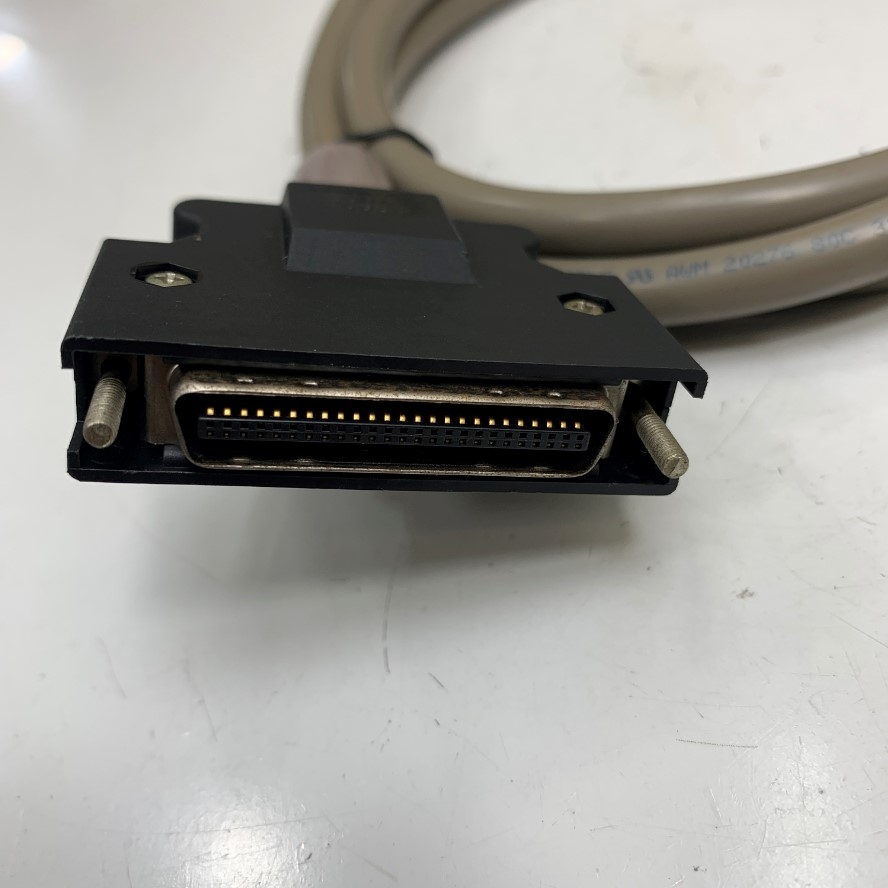

Cáp 1.6M 5.3ft Panasonic DV0P4350 A4 A5 A6 Servo CN X4 Control Line 50 Pin I/O Cable Connector 3M MDR 50 Pin Male With Screw to 50 Core Ends OD Ø 8.5mm Gray

Interface Conn Cable DV0P4350 Panasonic 1.6M

Panasonic MINAS A4 A5 A6 Servo CN X4

Color designation of the cable

[Remarks]
Color designation of the cable
e.g.) Pin-1
Cable color : Orange
(Red1) : One red dot on thecable
[Caution]
Cable pin No. 50 is not connected to the connector shell (housing) or shielded wire (net wire). Pin No. 50 of the Driver is connected to the shell (housing)
of the connector.The shielded wire (net wire) of the cable is connected to the shell (housing) of the connector of the cable, and by connecting the connector
of the optional cable to the Driver, pin No. 50 of the cable and the shielded wire (net wire) of the cable gets connected via the Driver.

Dimensions

Specifications
Brand: Japan/Original Panasoni Encoder Plug Servo and Drives Cable
Product Series: Panasonic MINAS A4 A5 A6 Servo Series Connector CN X4 witch Controller Cable
Model: DV0P4350 Cable
Cable Type: Connector MDR 50 Pin Male to 50 Core Ends
Connector 1: MDR 50 Pin Male Pitch 1.27mm Gold Plated (3M 10350 MDR 50 Pin Male With Screw) Connector x1
Connector 2: 50 Core Ends Connector x1
Connectors: MDR 50 Pin Male to 50 Core
Connector plating: Gold Plated/Nickle Plated
Wire: UL 28AWG - Cable OD=8.5mm
Shielded Cable OKI ELECTRIC CABLE AWM 20276 80°C 30V VW-1 SC 50 Core x 0.08mm²
Jacket: PVC
Shield structure: Shielded
Voltage Rating: 30V
Cable Style: Round
Operating Temperature: -25°C to +85°C
Cable Color: Gray
Length: 1.6M ~ 5.3ft
