Cáp 943 301-001 Hirschmann Managed Switch V.24 Dài 5M 17ft Shielded Cable RS232 Serial RJ11 6 Pin 6P6C to DB9 Female For Hirschmann Industrial Ethernet Switch and Computer Console Software
Mã SP: 9430
Thương hiệu: KTT Hirschmann/Schneider/Computer
Loại sản phẩm: RJ11 6 Pin to DB9F
Đánh giá
:Giá
:900.000₫
(Giá sản phẩm chưa bao gồm VAT)
Mô tả :
Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc
Bảo hành: 12 tháng
Tình trạng: Còn hàng
Mua Hàng Online
Mr Hiển: 094.816.2498
:hien.thientruong
Mr Đức: 034.694.3558
: vuvietduc8586
Mr Khanh: 091.301.5851
:khanh81b
Mr Khoa: 098.131.9702
Mr Lam: 085.514.0226
Mr Khôi: 037.308.1800
Shielded RJ11 6 Pin 6P6C Connector For Hirschmann Industrial Ethernet Switch and Schneider Electric V.24 Port RS232 Serial
RS232 Serial DB9 Female Connector For Computer/HMI

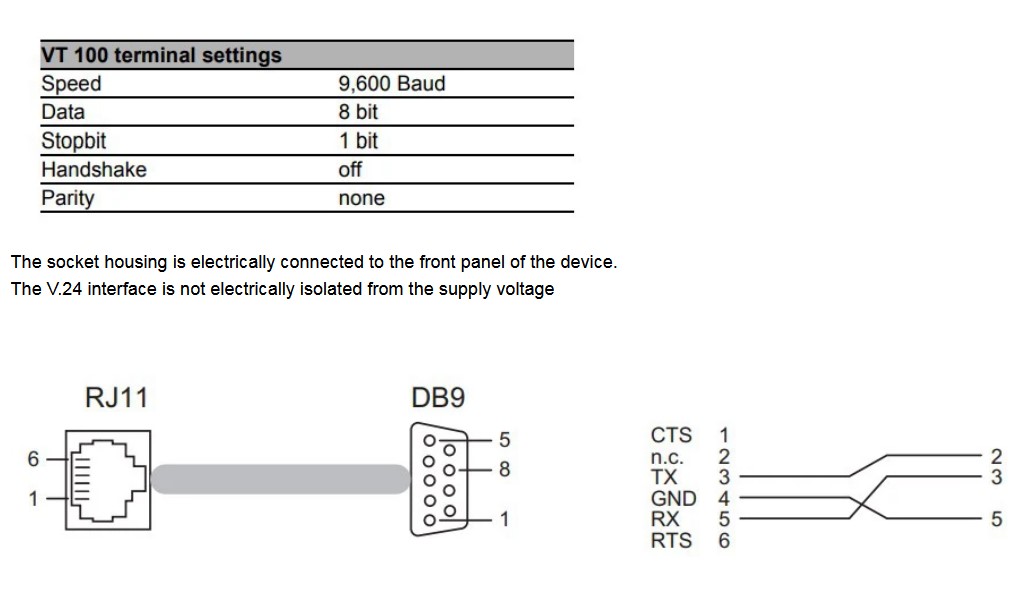

Wiring Diagram 943 301-001 Hirschmann Managed Switch V.24
Terminal cable: RJ11 on Sub-D9 943 301-001
PIN assignment of the V.24 interface (RJ11) and wiring to the DB9 connector
Hirschmann MICE and MACH switches
Hirschmann Hirschmann pt # RS20-1700VVM2TDAEHH04.2.02
pinout to the RJ11 v.24 external management serial cable 490NTRJ11
Schneider Ethernet switch TCSESM083F2CUO
Cable RS232 Serial to RJ11 Communication shielding serial Cable
Brand: Thientruongpc - ViệtNam/Thientruongpc
Part Number: RJ11 on Sub-D9 943 301-001 / RJ11 v.24 external management serial cable 490NTRJ11

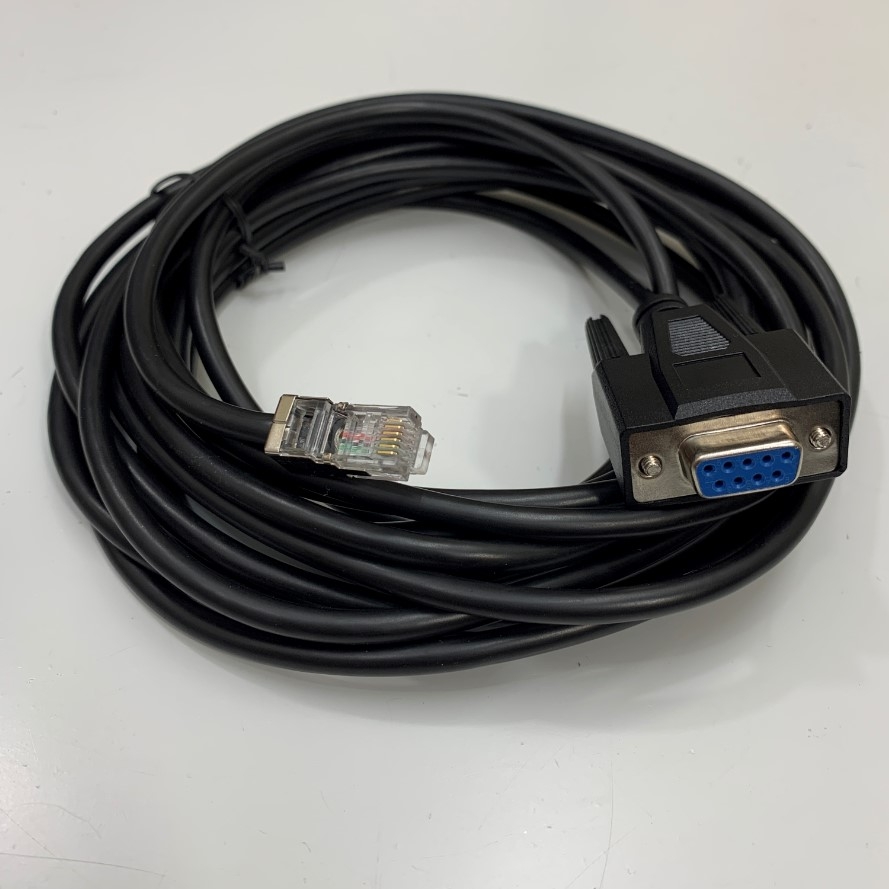

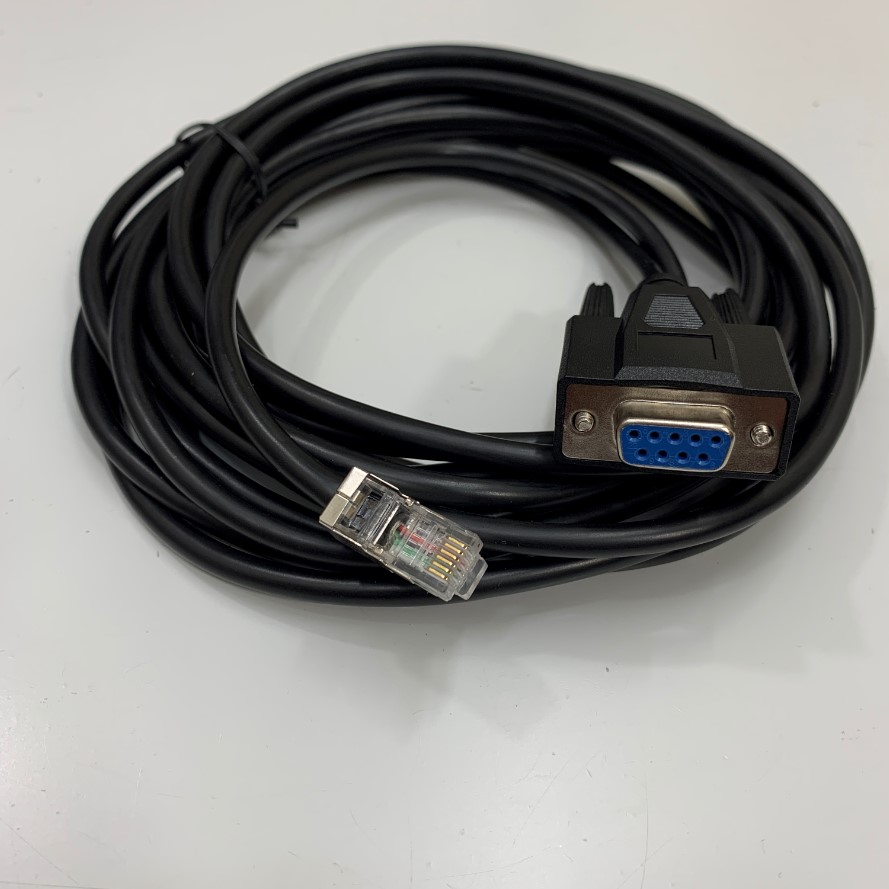

Cable Type: RS232 Serial RJ11 6 Pin 6P6C to DB9 Female

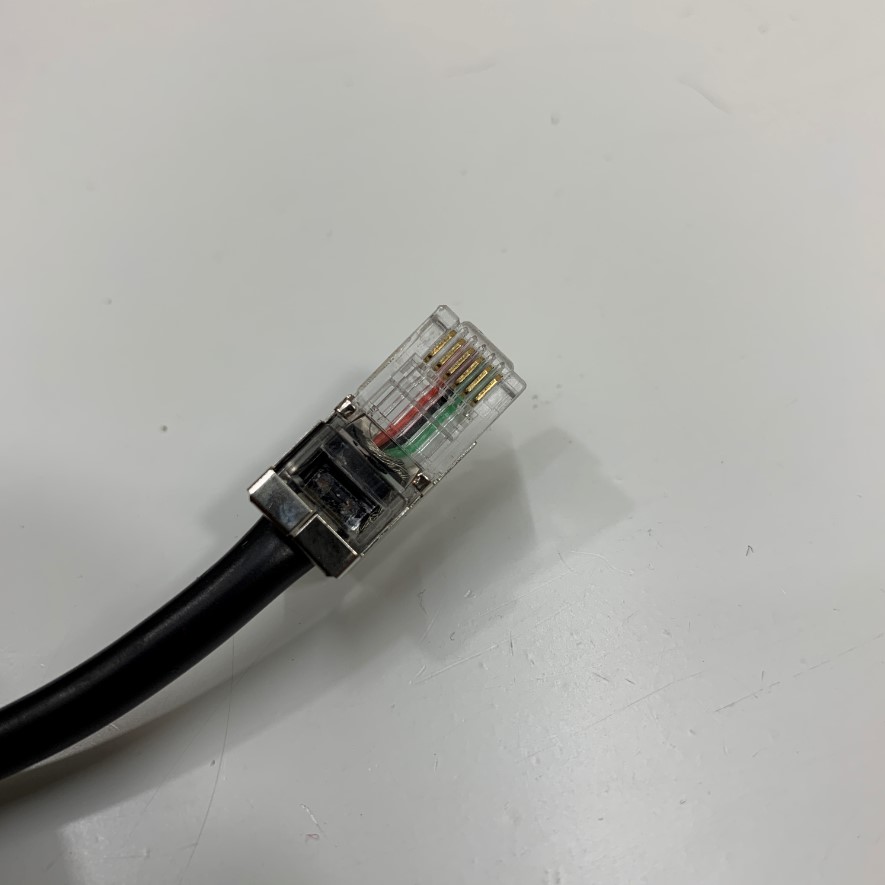

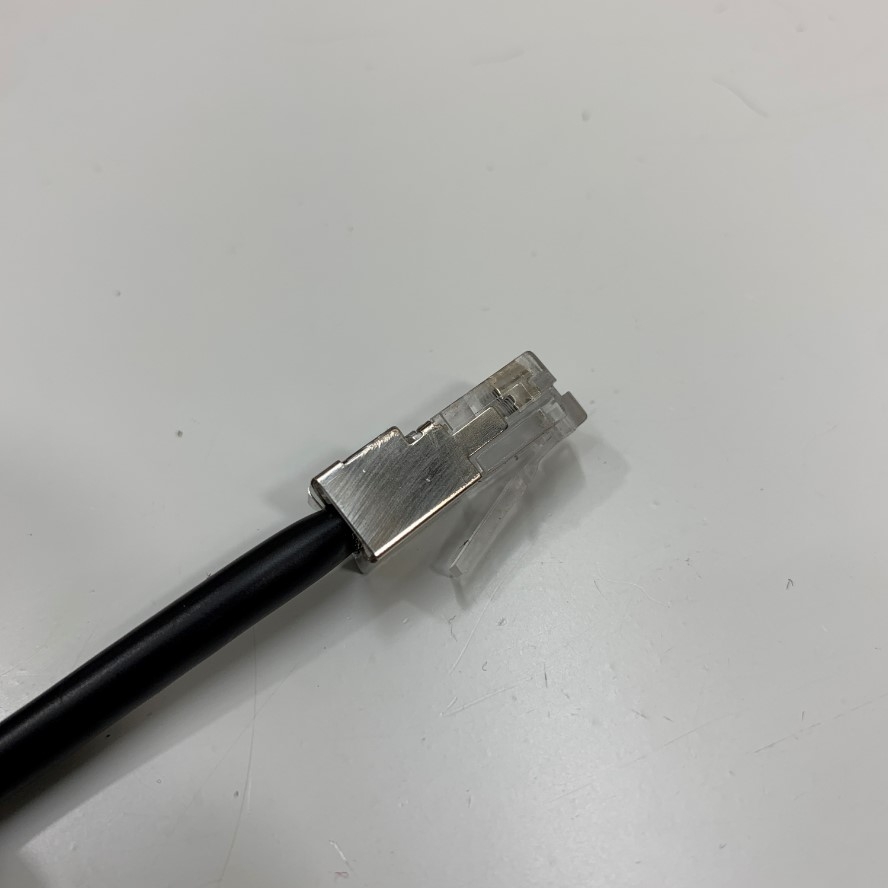

Connector 1: RJ11 6 Pin 6P6C Male Connector x1 (Shielded)

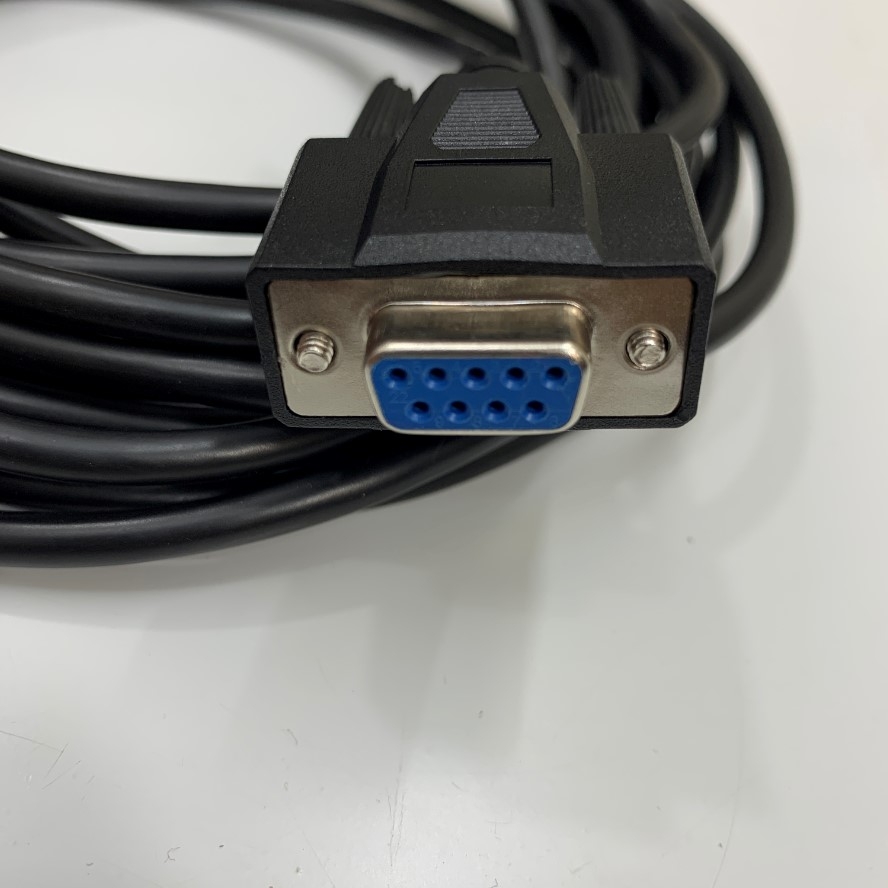

Connector 2: DB9 Pin Female Connector x1
Connector plating: Nickle Plated
Gender: RJ11 6 Pin to DB9 Female
Wire: UL 28AWG - Shielded Cable OD=5.5mm
Pin-Out: Connection: 3-2 / 4-5 / 5-3 / Shield-Shield
Cable Length: 17 ft [5 m]
Color: Black
Cáp 943 301-001 Hirschmann Managed Switch V.24 Dài 5M 17ft Shielded Cable RS232 Serial RJ11 6 Pin 6P6C to DB9 Female For Hirschmann Industrial Ethernet Switch and Computer Console Software
