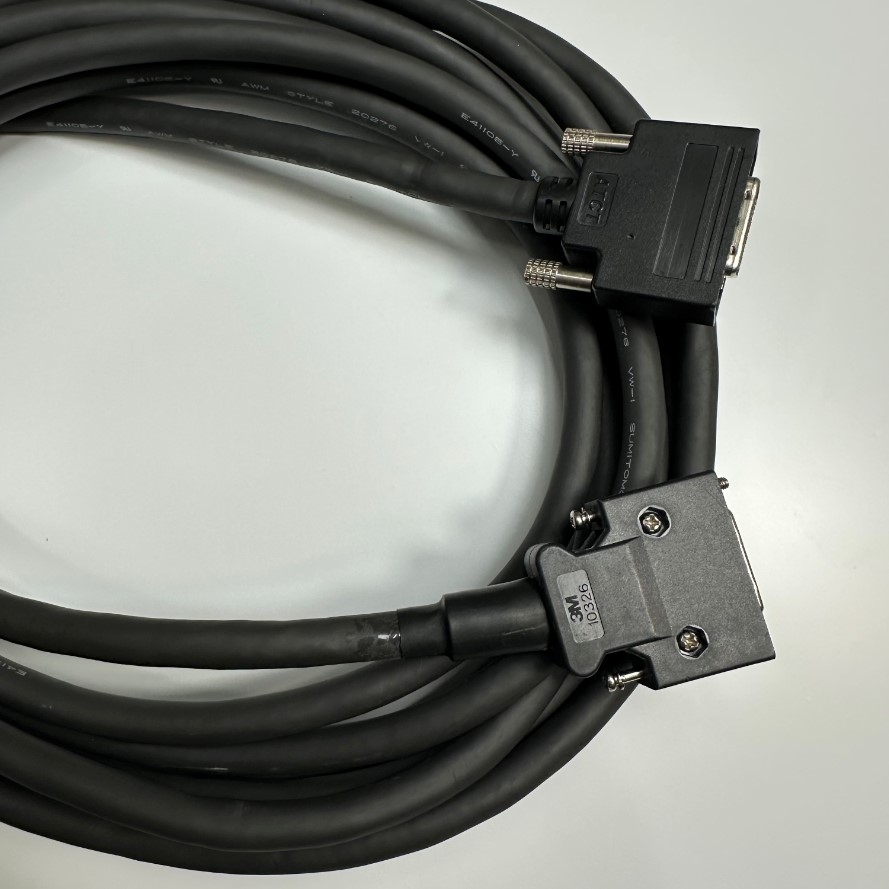

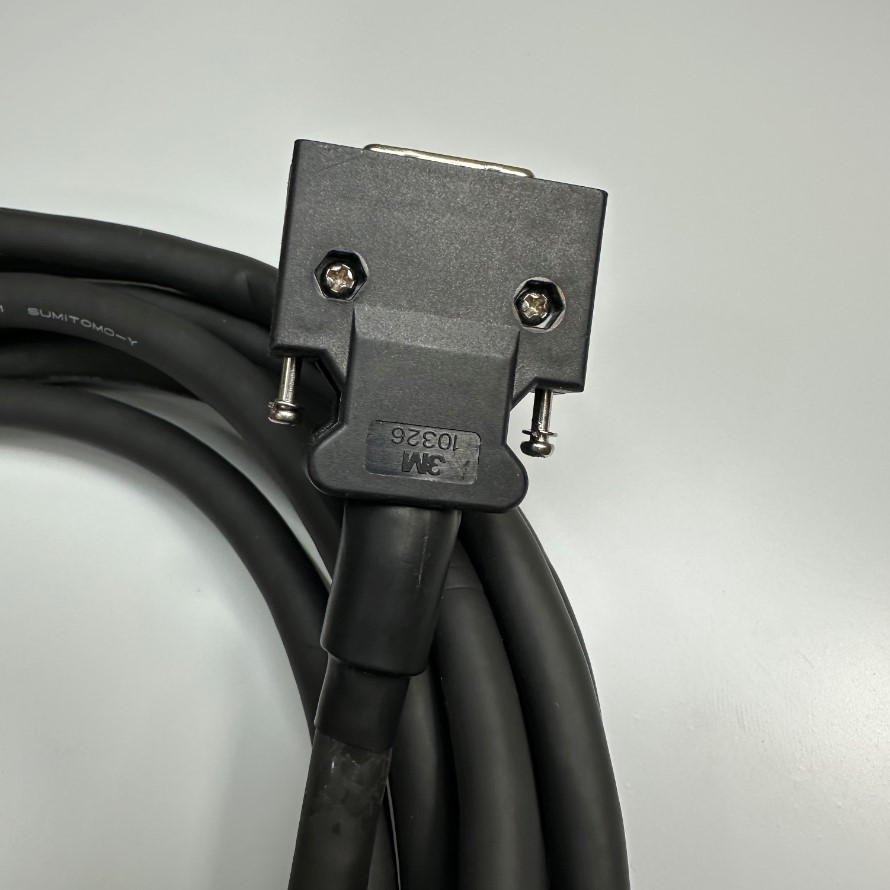

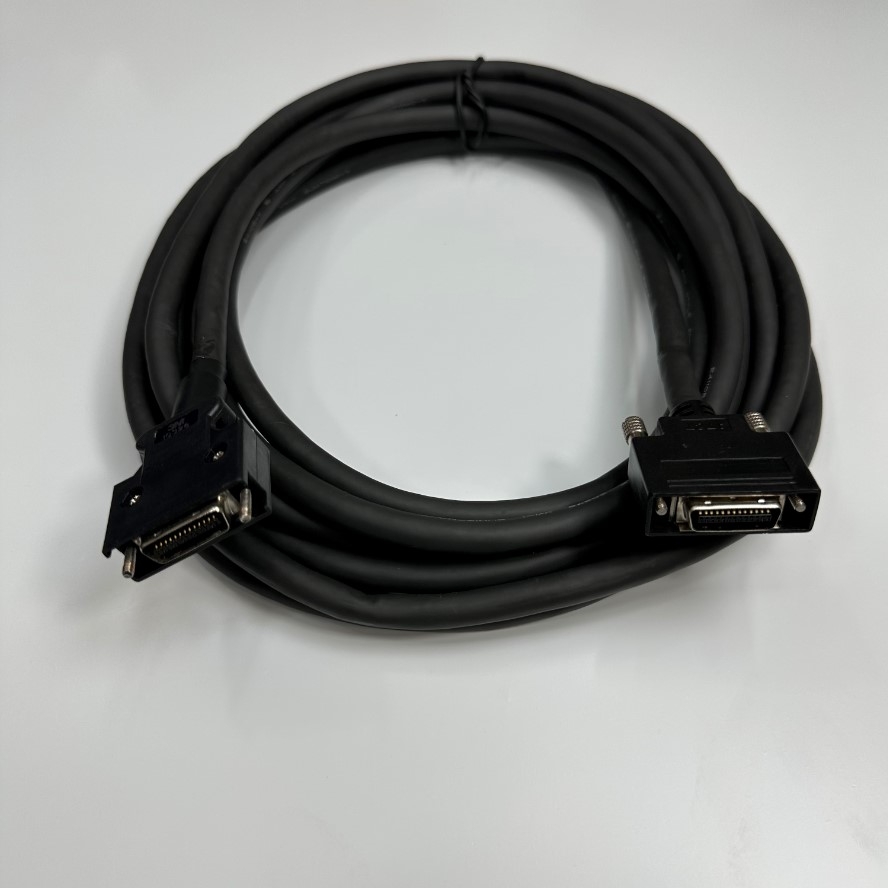

Cáp 5M 17ft Camera Link Cable MDR 26 Pin Male to Male For ELiiXA Teledyne E2V Scan ndustrial Camera

Mã SP: 11918

Thương hiệu: Original Camera Industrial

Loại sản phẩm: Camera Link PoCL MDR/MDR

Đánh giá

:

Giá

:

4.800.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Taiwan/Original Camera Link Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Hiển: ‭094.816.2498‬

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Khoa: ‭‭‭098.131.9702

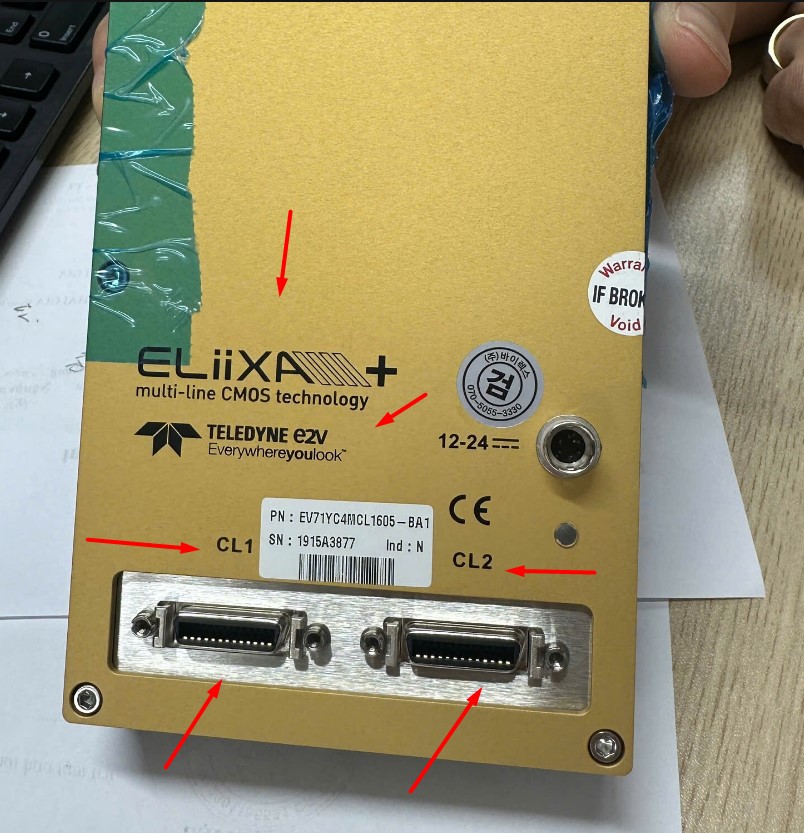

TELEDYNE E2V ELIIXA CAMERA

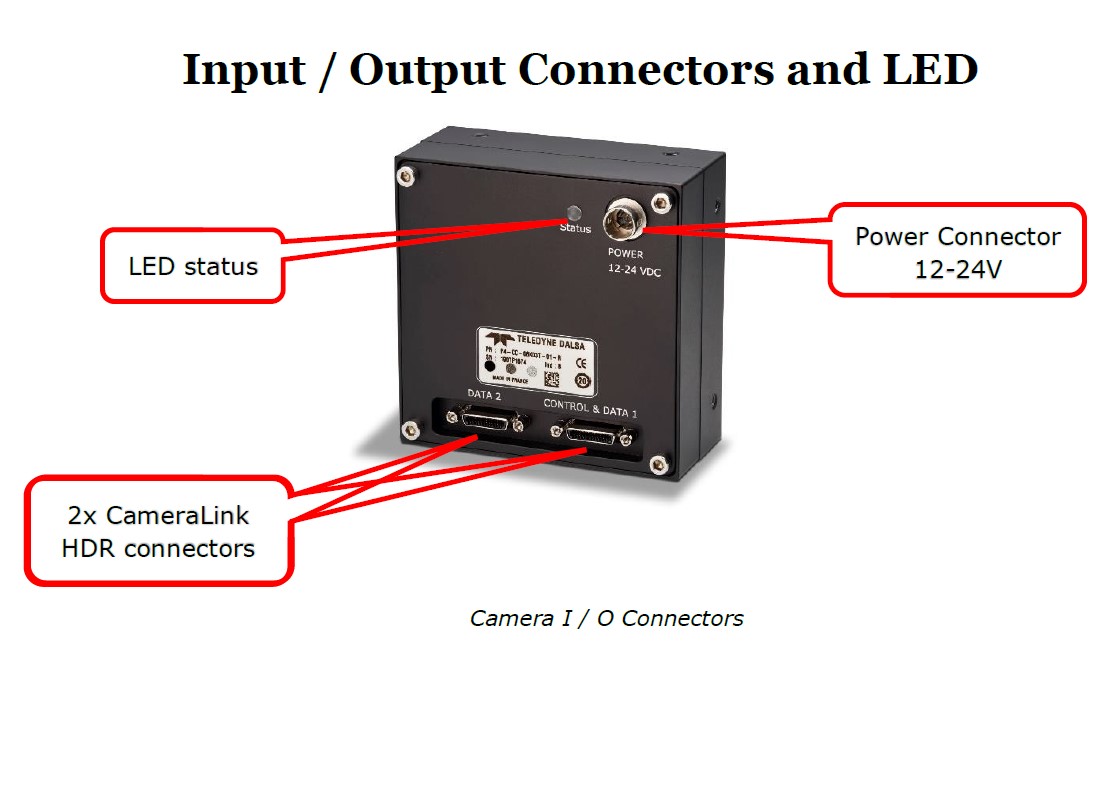

Input / Output Connectors

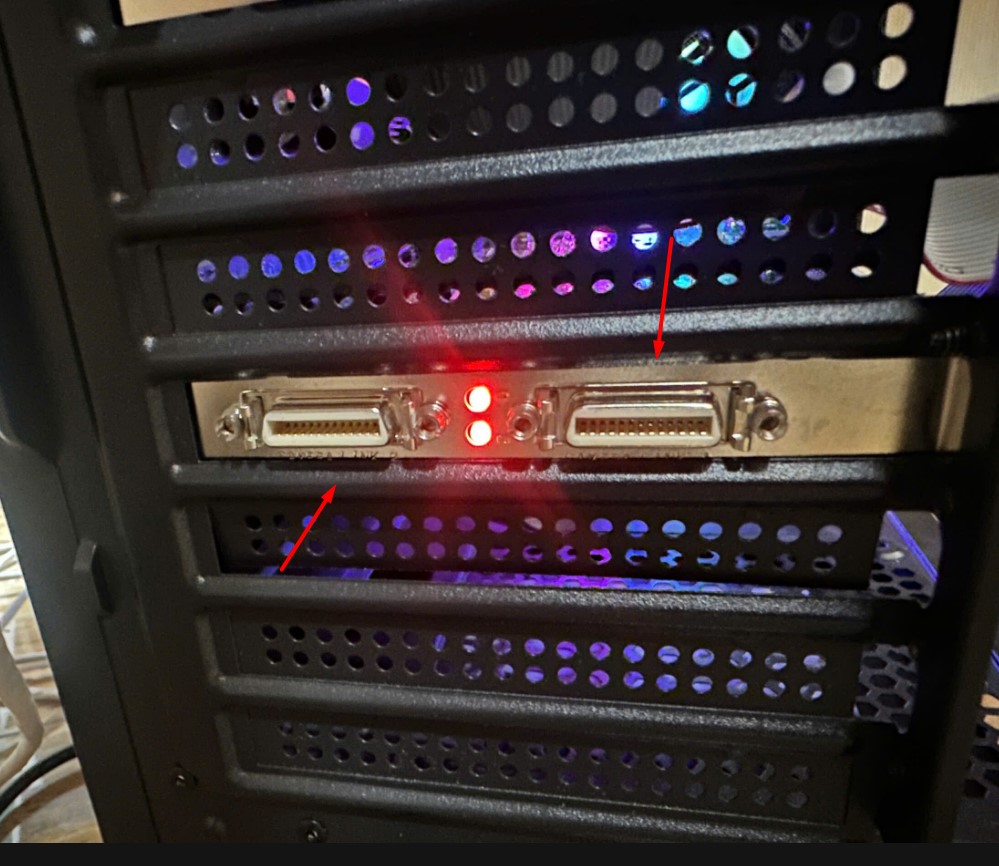

DALSA AQUARIUS CL PCIe X4 PN:OR-X4C0-XPD00 FRAME GRABBER

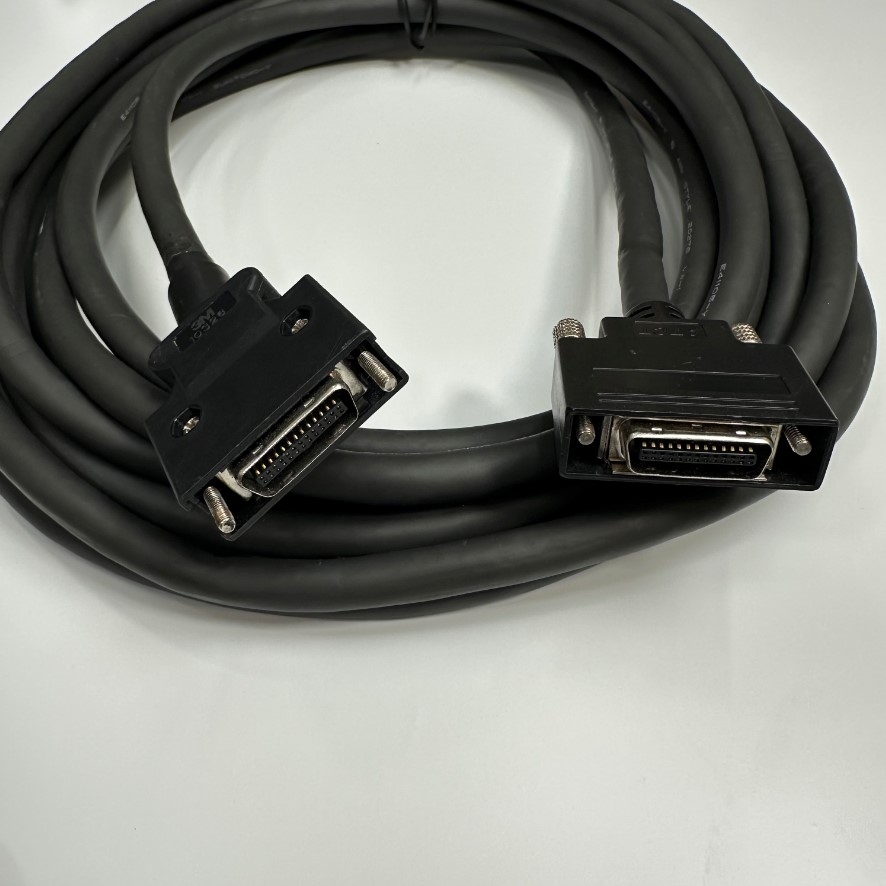

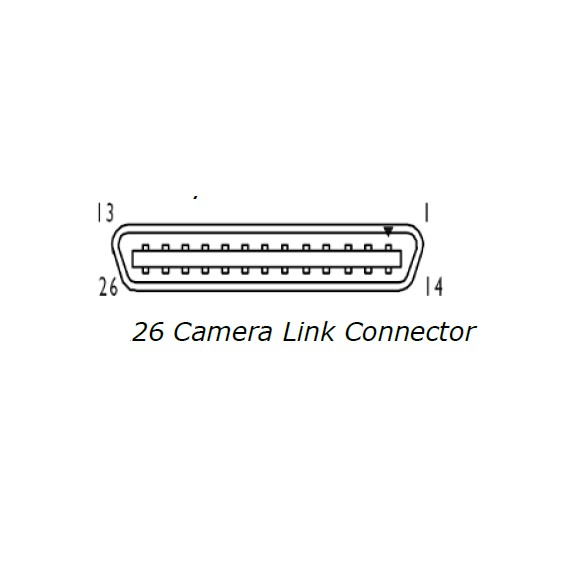

MDR26 Camera Link Connector

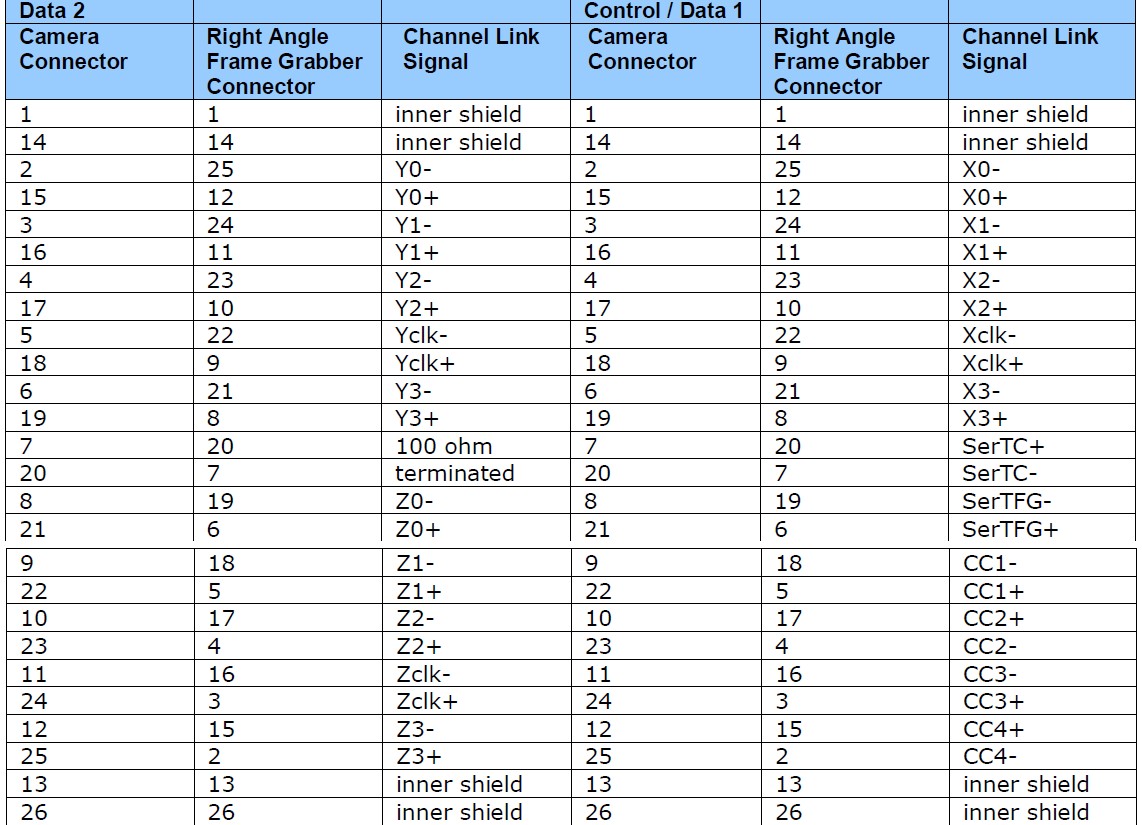

Camera Link Connector Pin Out

Specifications
Brand: Taiwan/Original Camera Link Cable
PartNumber: Camera Link Cable MDR Cable
Connector 1: MDR 26 Pin Male Connector (thumbscrews)
Connector 2: MDR 26 Pin Male Connector (thumbscrews)
Cable Type: MDR 26 Pin Male to MDR 26 Pin Male
Number of Conductors: 26
Connector plating: Gold Plated

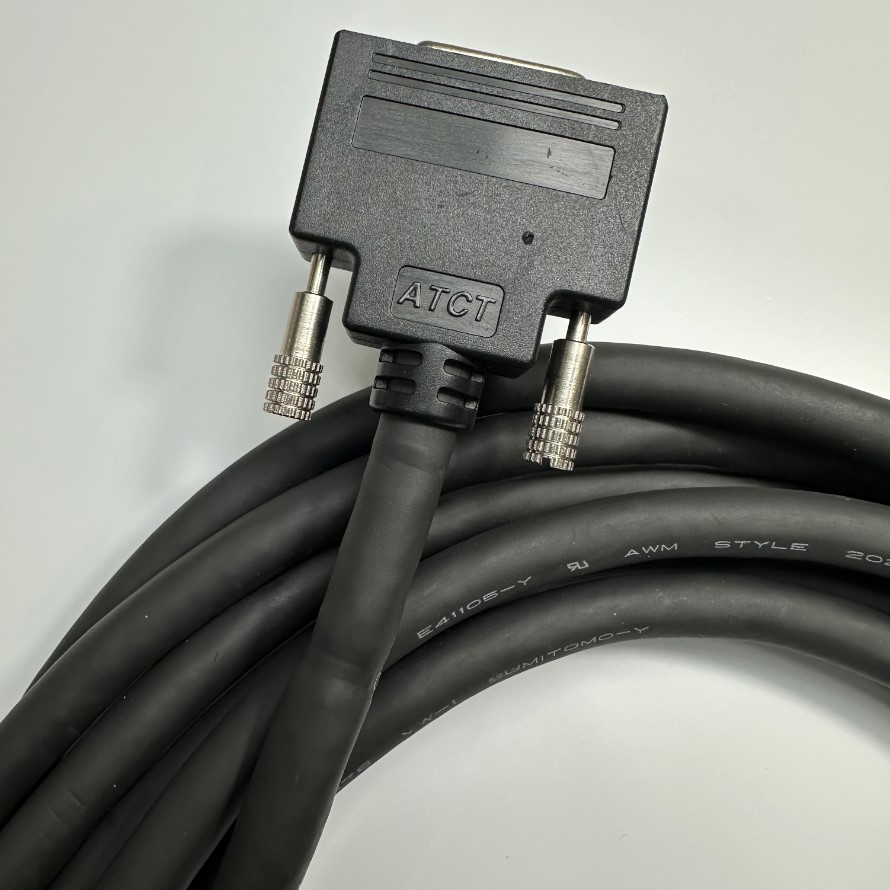

Cable: Shielded SUMITOMO-Y E41105-Y AWM STYLE 20276 VW-1 28AWG OD 9.0mm
Data Conductor Type: 28AWG twisted pair
Maximum Operating Voltage: 30V
Jacket Material: PVC
Cable Style: Round
Wire Diameter (mm): 9.0mm
Operating Temperature: -20°C to 75°C
Material: Cu
Shielding: Yes
Colour: Black
Length : 5M ~ 17ft
Cáp 5M 17ft Camera Link Cable MDR 26 Pin Male to Male For ELiiXA Teledyne E2V Scan ndustrial Camera
