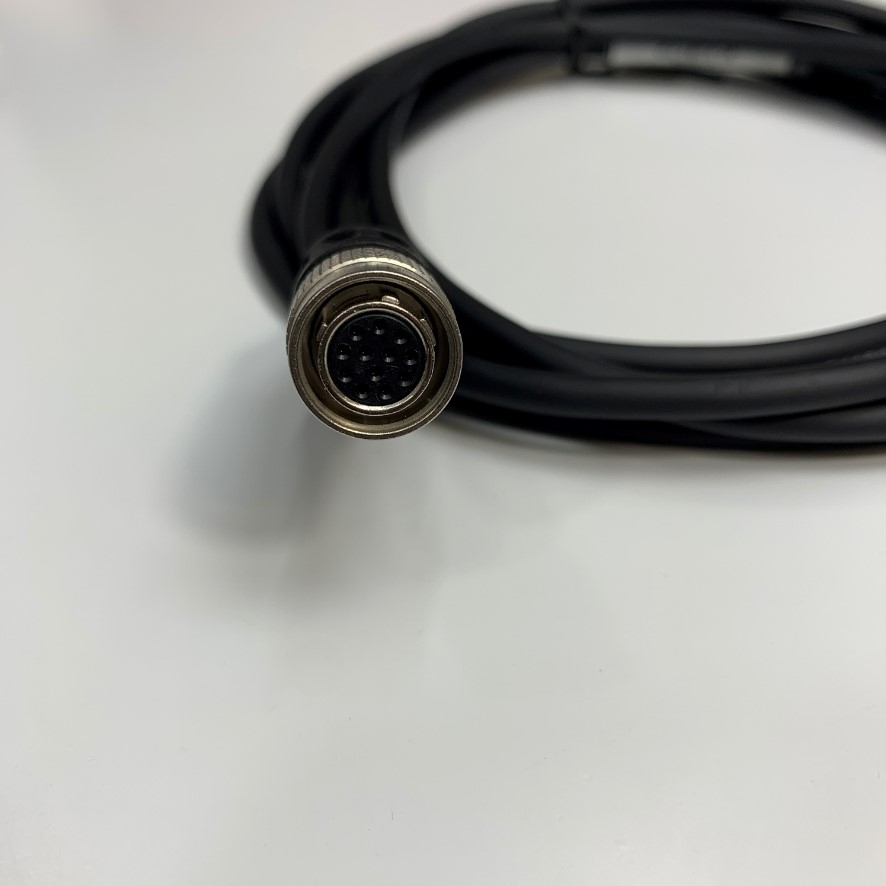

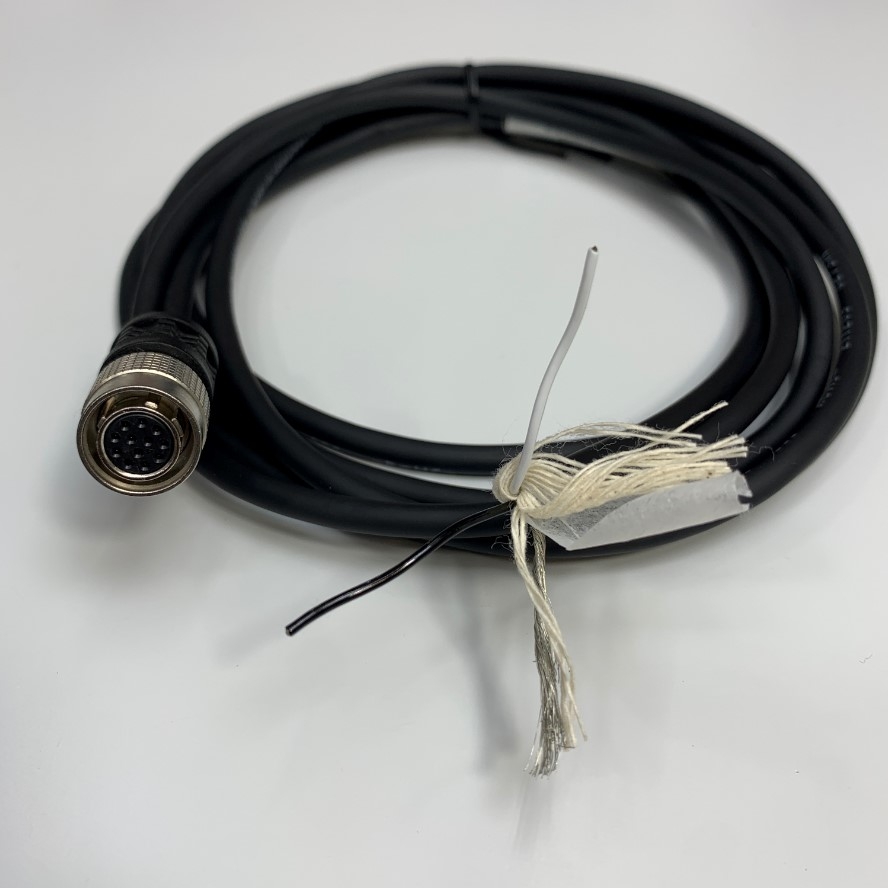

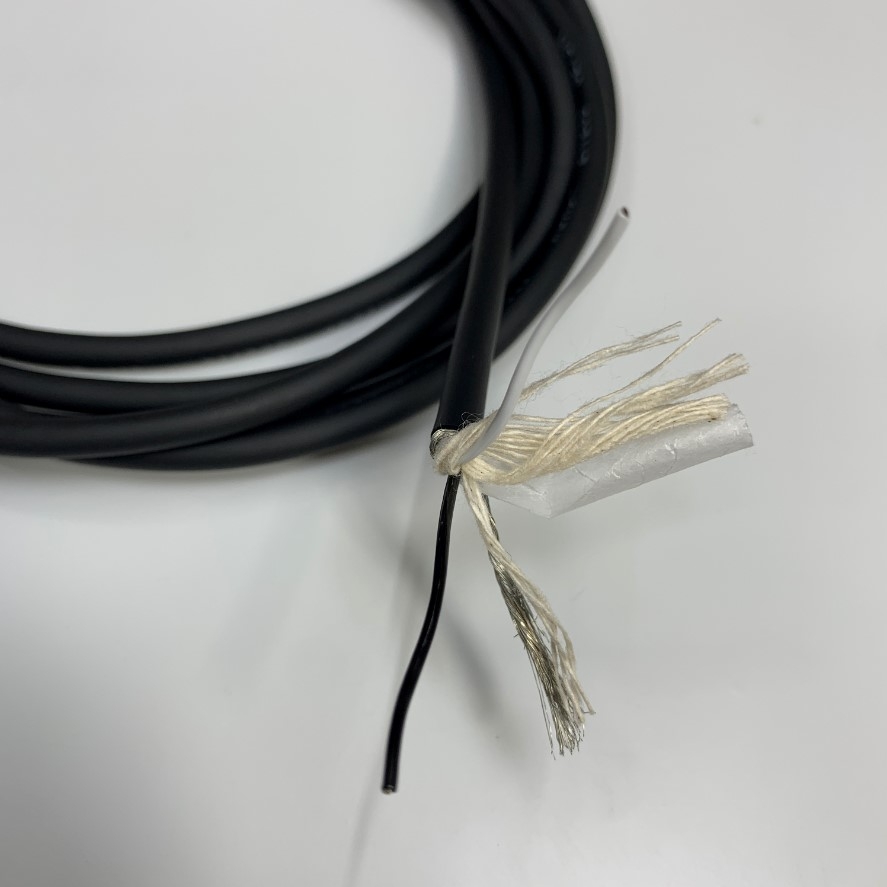

Cáp 1.2M 4ft MV-ACP-H12P-Open-ST-1M Power Supply Cable Connector Hirose HR10A-10P-12P(73) 12 Pin Female to 2 Core Open End For Industrial Camera Power Cable

Mã SP: 11699

Thương hiệu: Original Industrial Camera

Loại sản phẩm: Connector HR10A-10P-12P(73) to Open

Đánh giá

:

Giá

:

1.250.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: China/Original Power Supply Industrial Camera
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Hiển: ‭094.816.2498‬

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Khoa: ‭‭‭098.131.9702

Wiring Diagram Cable

Cáp Industrial Camera Power Cable
Brand: China/Power Hirose Camera Cable
Specifications
Connector 1: Hirose 12 Pin Female HR10A-10P-12P(73)
Connector 2: 2 Core Open End
Number of Conductors: 1-Pair
Connector Plating: Gold - Hirose HR10A-10P-12P(73)
Cable Jacket Material: Low Smoke Zero Halogen
Cable Shield Material: Aluminum-Mylar Tape with Braid
Operating Temperature: -20°C to 80°C
Jacket Material: PVC (Polyvinyl Chloride)
Gender: Hirose HR10A-10P-12P(73) 12 Pin Female to 2 Core
Wire Gauge (AWG): 22 AWG
Jacket Material: PVC
Cable IMOTPEV-S SB 2C x 22AWG(0.3SQ) E211405 AWM 2517 105°C 300V VW-1
Cable Style: Round
Wire Diameter (mm): 5.0mm
Shielding: Yes
Color: Black
Length : 1.2M ~ 4ft
Pin-Out: Hirose HR10A-10P-12P(73) Connection: 1- Đen; 2 - Trắng
Cáp 1.2M 4ft MV-ACP-H12P-Open-ST-1M Power Supply Cable Connector Hirose HR10A-10P-12P(73) 12 Pin Female to 2 Core Open End For Industrial Camera Power Cable
