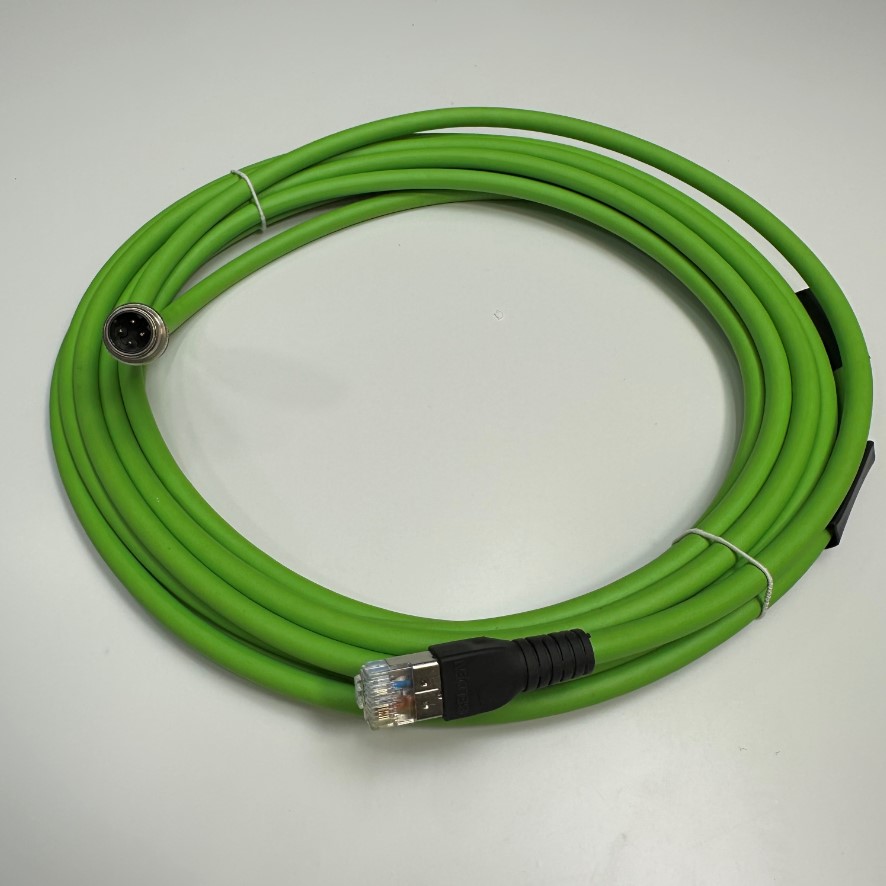

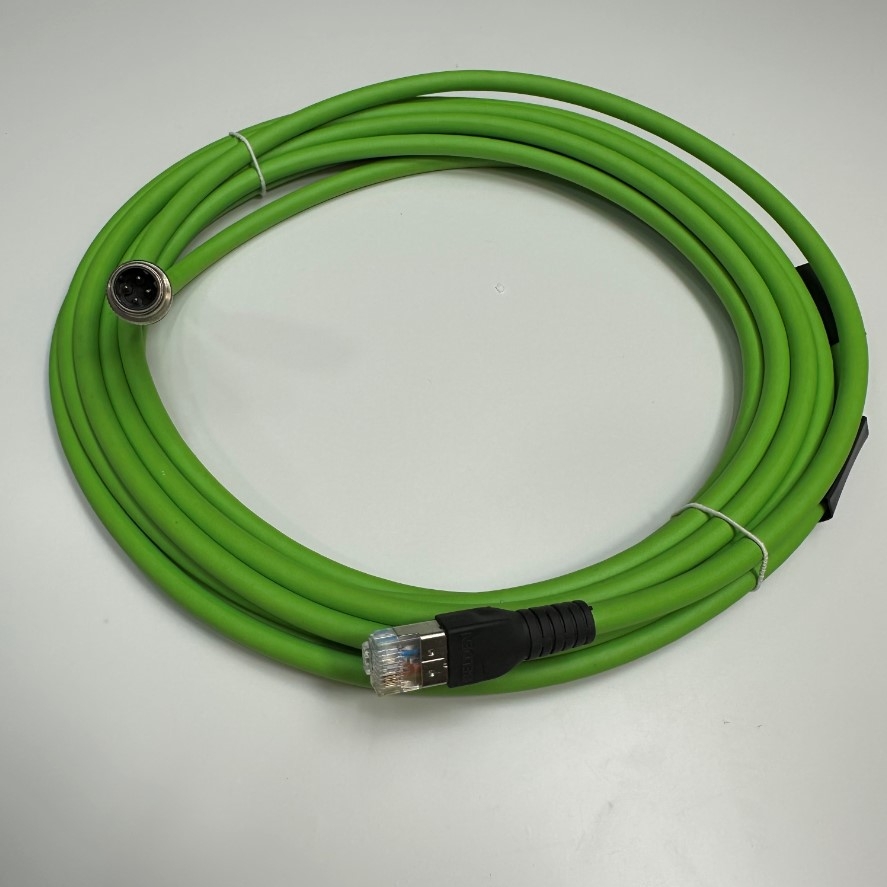

Cáp 5M 17ft Datalogic CAB-ETH-M05 M12-IP67 Cable M12 4 Pin D-Code Male to RJ45 Cable Ethernet Industrial

Mã SP: 11908

Thương hiệu: Datalogic

Loại sản phẩm: M12 4 Pin D-Code Male to RJ45

Đánh giá

:

Giá

:

2.800.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Czech Republic/Original Leuze M12 Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Hiển: ‭094.816.2498‬

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Khoa: ‭‭‭098.131.9702

Cable A 342/929 PUR E12683-H AWM STYLE 20549 AWM I/II A/B 80C 300V FT2 + SUITABLE FOR USE WITHIN EQUIPMENT ONLY

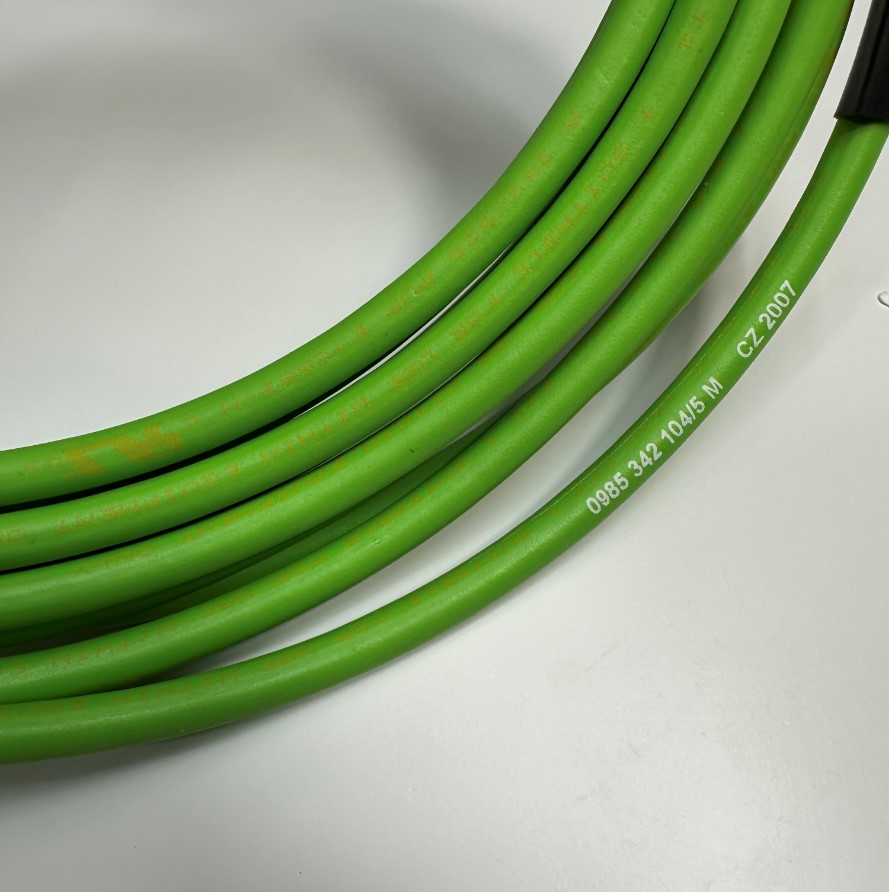

Cable 0985 342 104/5M  CZ

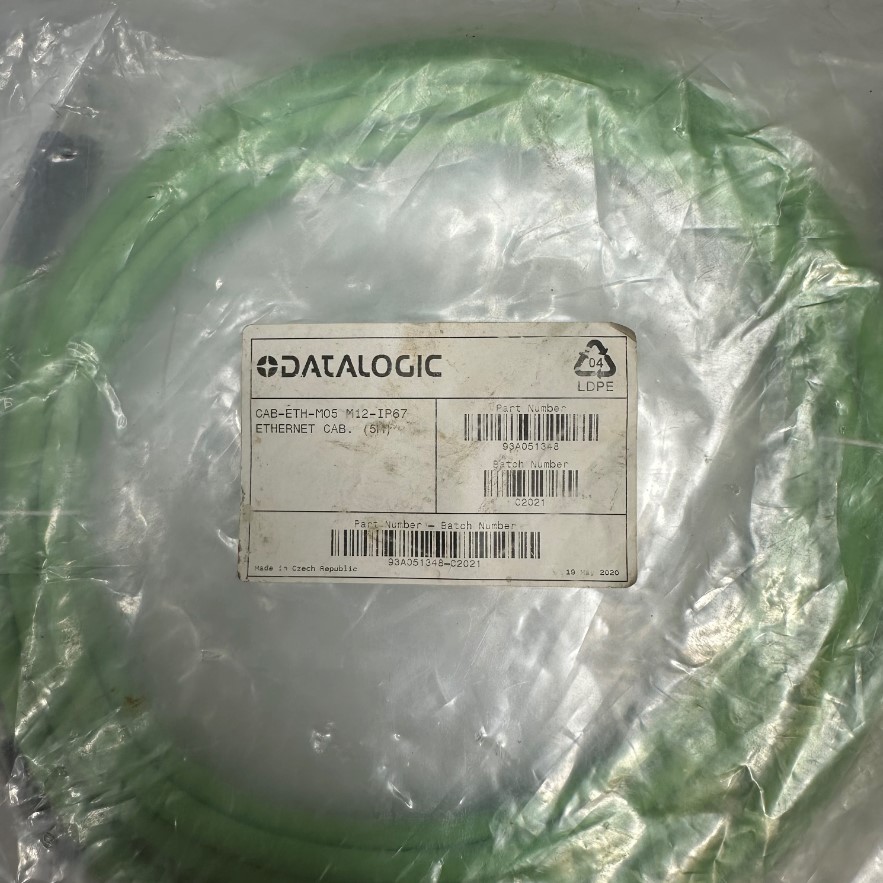

Datalogic CAB-ETH-M05 M12-IP67 Industrial Ethernet Cable  –   Extension Cable

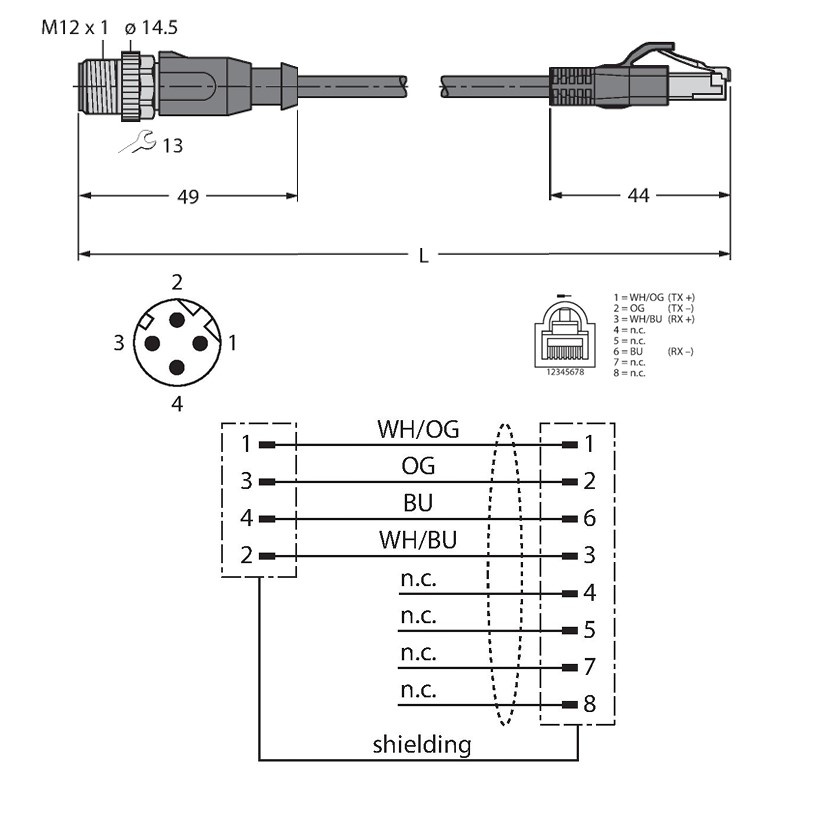

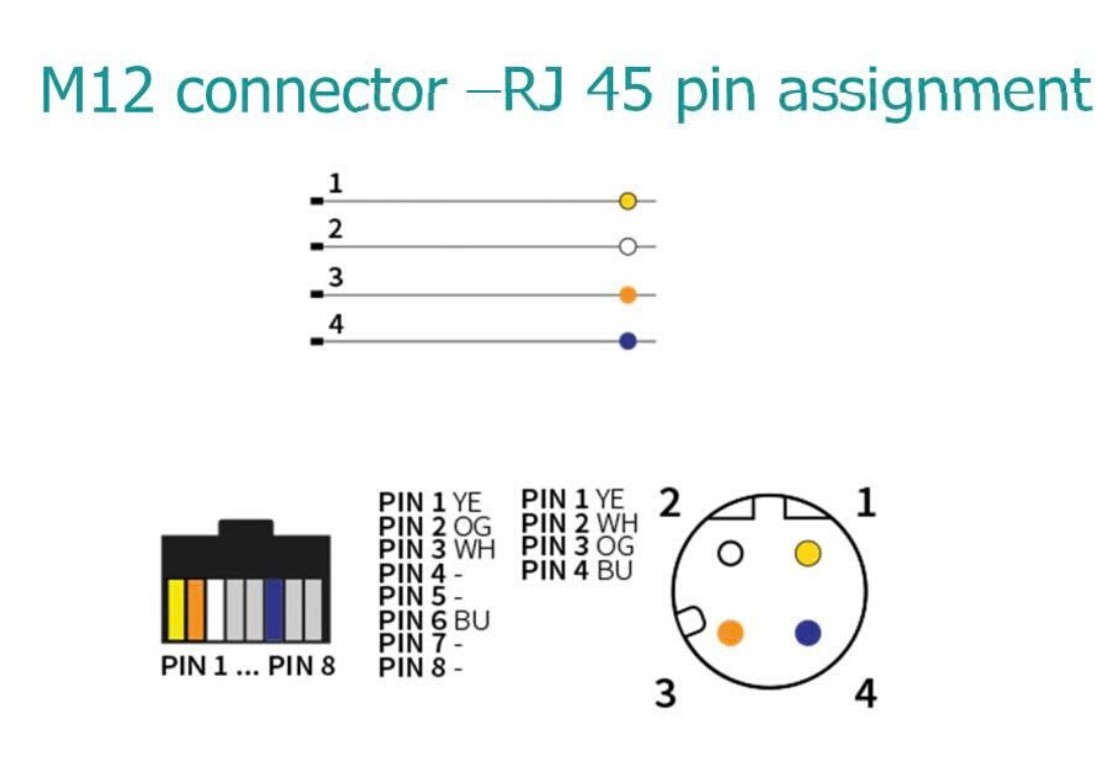

Circuit Diagram

Specifications
Brand: Czech Republic/Ethernet M12 D-Code Sensor Cable

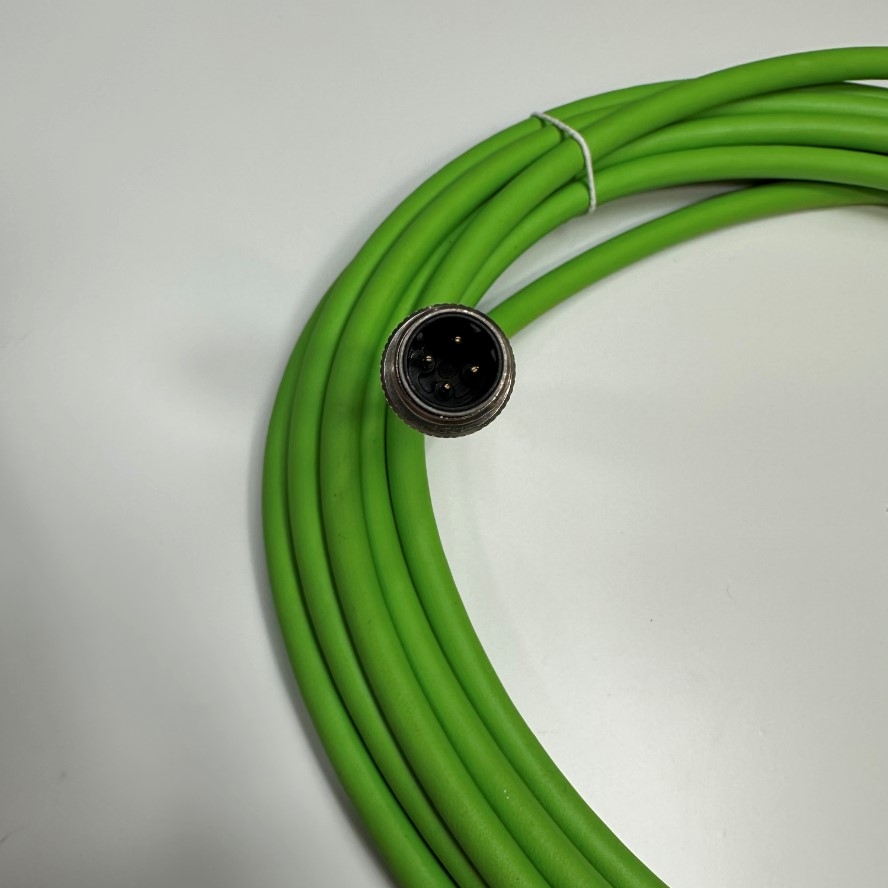

Connector 1: M12 D-Code 4 Pin Male Straight

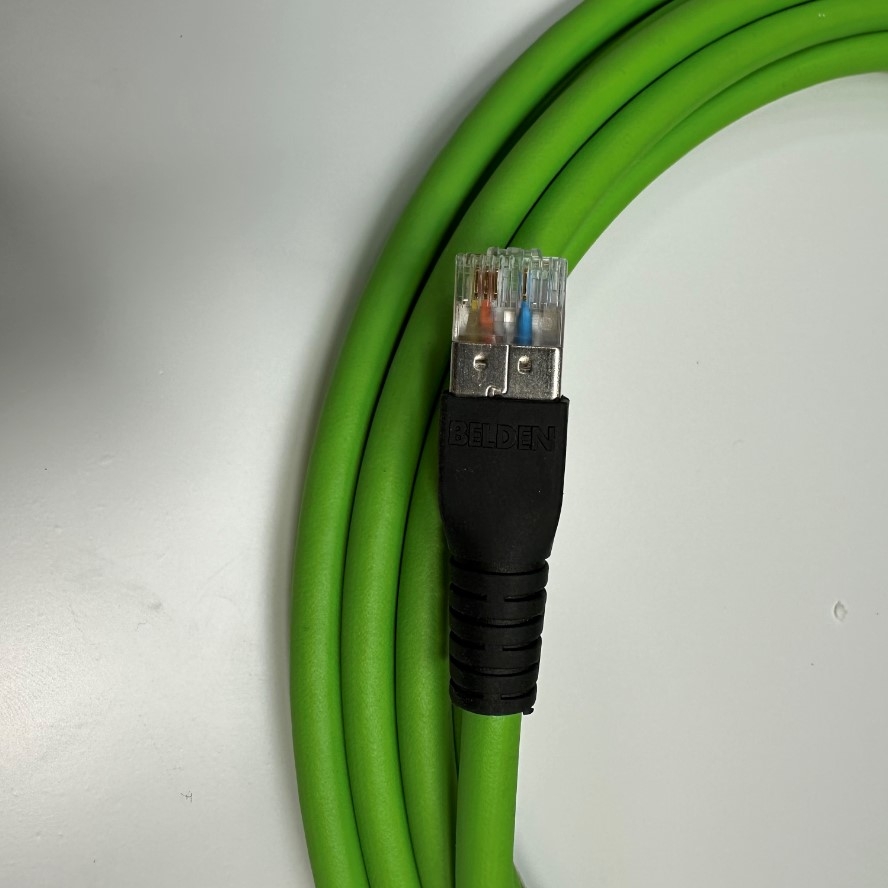

Connector 2: RJ45 4 Pin Male Straight
Cable Type: Ethernet Cable M12 D-Code 4 Pin Male to RJ45
Connector plating: Metal, CuZn, Gold-plated
Number of Conductors: 4 (Cable A 342/929 PUR E12683-H AWM STYLE 20549 AWM I/II A/B 80C 300V FT2 + SUITABLE FOR USE WITHIN EQUIPMENT ONLY)
Data Conductor Type: 26AWG twisted pair
Maximum Operating Voltage: 300V
Jacket Material: PVC
Cable Style: Round
Wire Diameter (mm): 6.7mm
Operating Temperature: -20°C to 80°C
Material: Cu
Shielding: Yes
Protection class: IP20
Colour: Green
Length : 5M ~ 17ft
Cáp 5M 17ft Datalogic CAB-ETH-M05 M12-IP67 Cable M12 4 Pin D-Code Male to RJ45 Cable Ethernet Industrial
