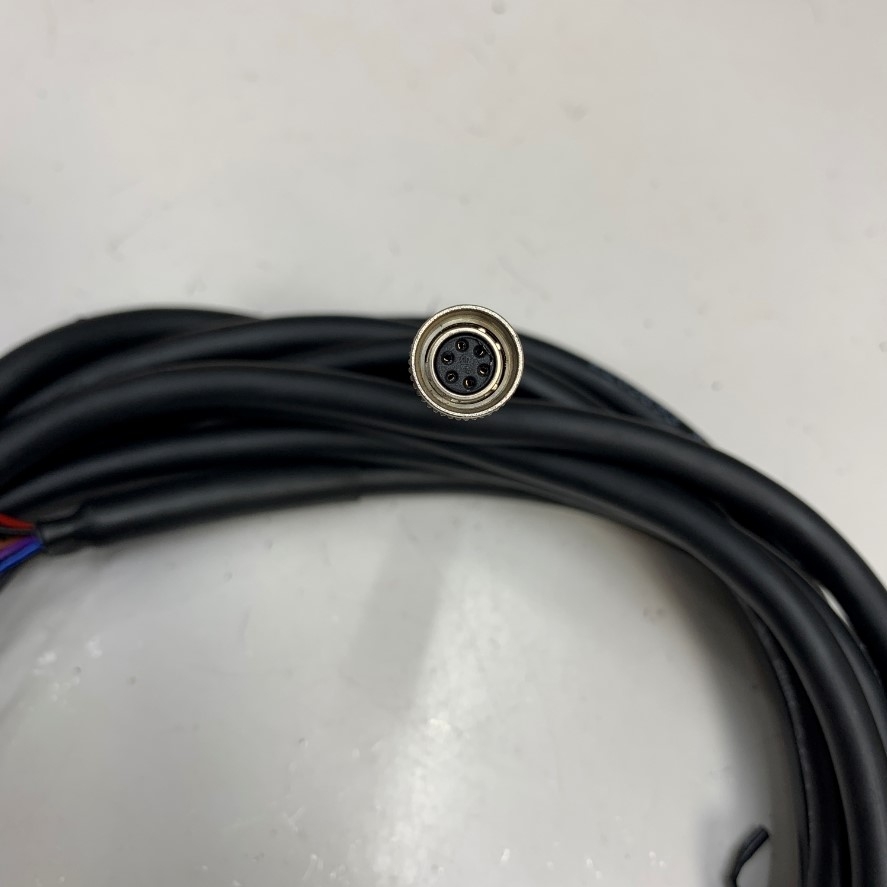

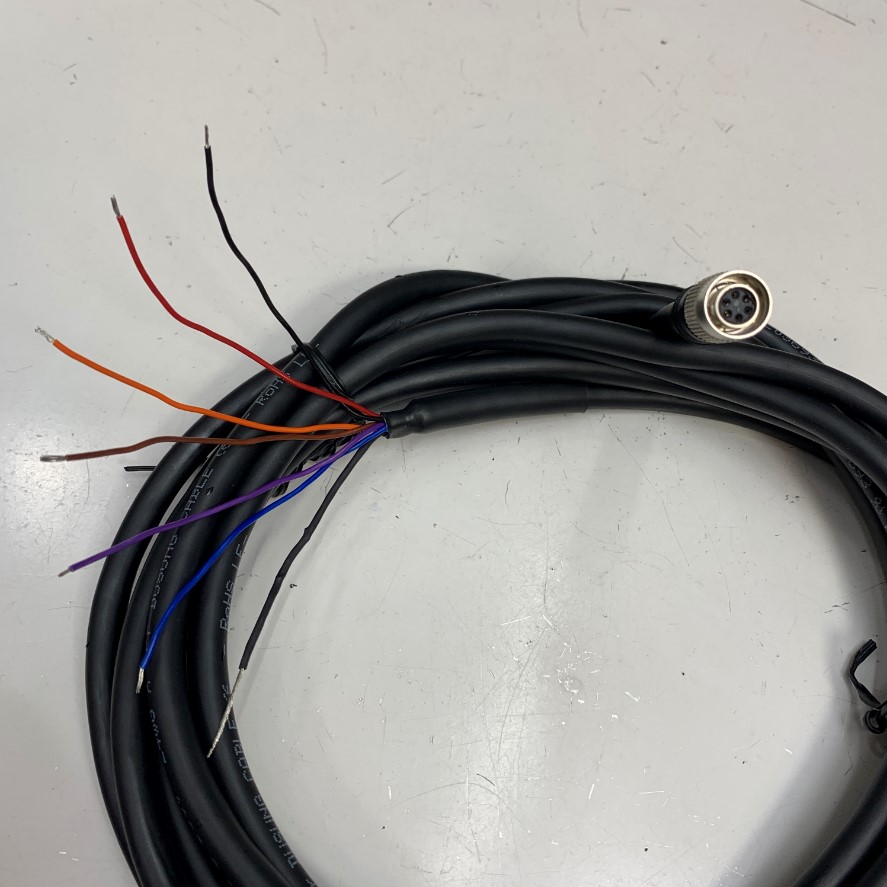

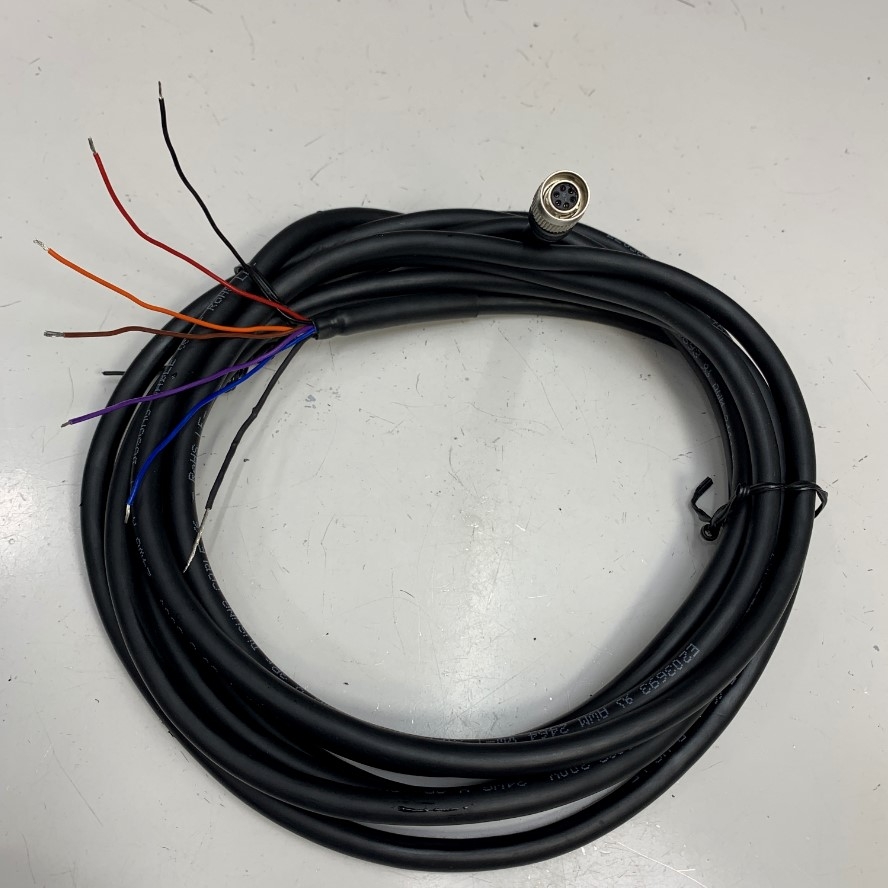

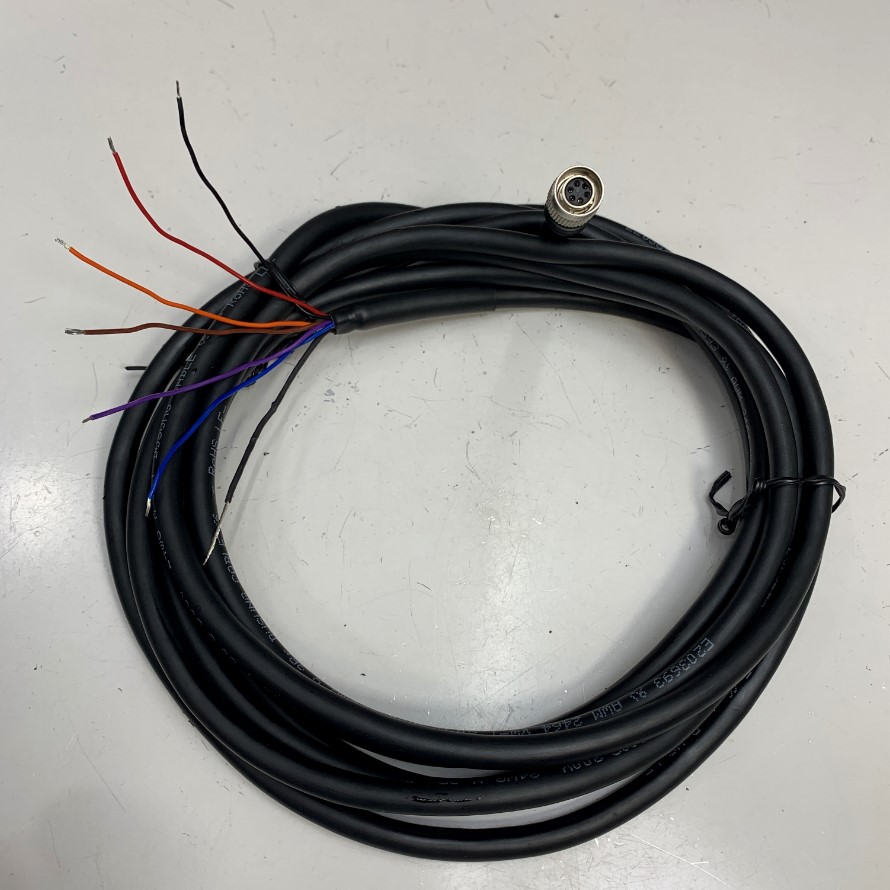

Cáp 3M 10ft 6P-300R-6LINE-HIK I/O & Power Cable Connector Hirose HR10A-7P-6S(73) 6 Pin Female to 6 Core Open End For Industrial Camera Basler Hikrobot

Mã SP: 11646

Thương hiệu: China Power/IO Cable

Loại sản phẩm: Connector HR10A-7P-6S to Open

Đánh giá

:

Giá

:

1.200.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: China/Power/IO Hirose Camera Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Hiển: ‭094.816.2498‬

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Khoa: ‭‭‭098.131.9702

Industrial Camera Power Line Trigger Line Basler Hikrobot Hole 6-Core Shielded Cable Connector Power Line

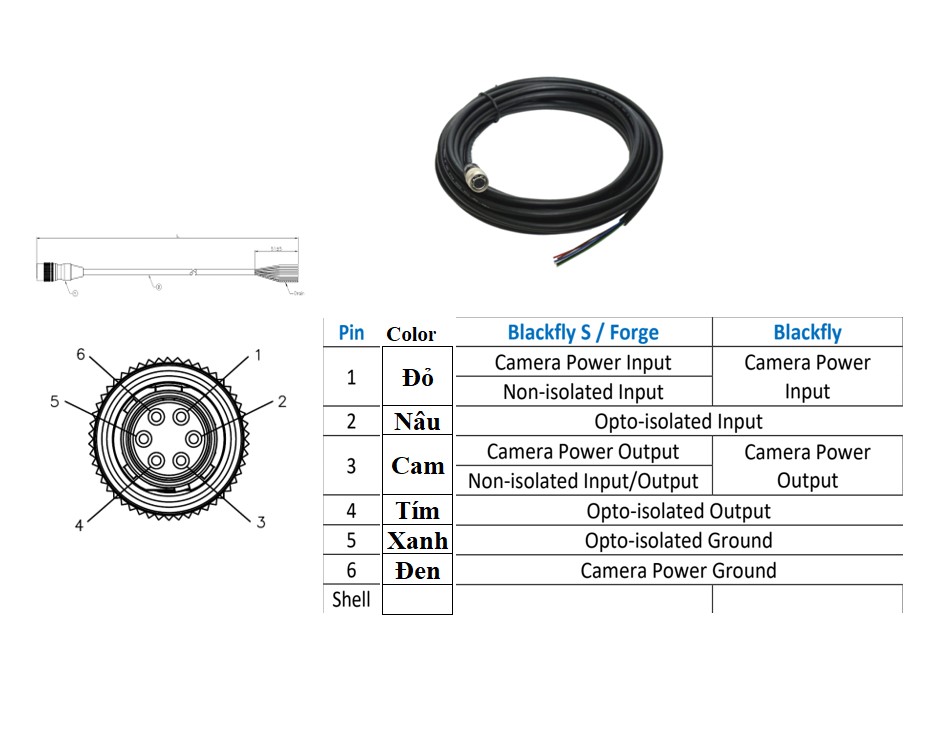

Wiring Diagram 6P-300R-6LINE-HIK Cable Power Trigger I/O Signal Control Connector Hirose HR10A-7P-6S(73) 6 Pin Female to 6 Core Open End

Cáp Industrial Camera Power Trigger IO Signal Cable
Brand: China/Power/I/O Hirose Camera Cable
Specifications
Connector 1: Industrial Camera Hirose HR10A-7P-6S73 6 Pin Female
Connector 2: 6 Core Open End
Number of Conductors: 3-Pair
Connector Plating: Gold - Hirose HR10A-7P-6S(73)
Cable Jacket Material: Low Smoke Zero Halogen
Cable Shield Material: Aluminum-Mylar Tape with Braid
Operating Temperature: -20°C to 80°C
Jacket Material: PVC (Polyvinyl Chloride)
Gender: Hirose HR10A-7P-6S73 6 Pin to 6 Core Open End
Wire Gauge (AWG): 28 AWG
Jacket Material: PVC
Cable Style: Round
Wire Diameter (mm): 6.5mm
Cable E203693 AWM 2464 VW-1 24AWG*6C+FAE 7/0.30 80°C 300V OD: 6.5 mm PVC Jacket, black
Shielding: Yes
Color: Black
Length : 3M ~ 10ft

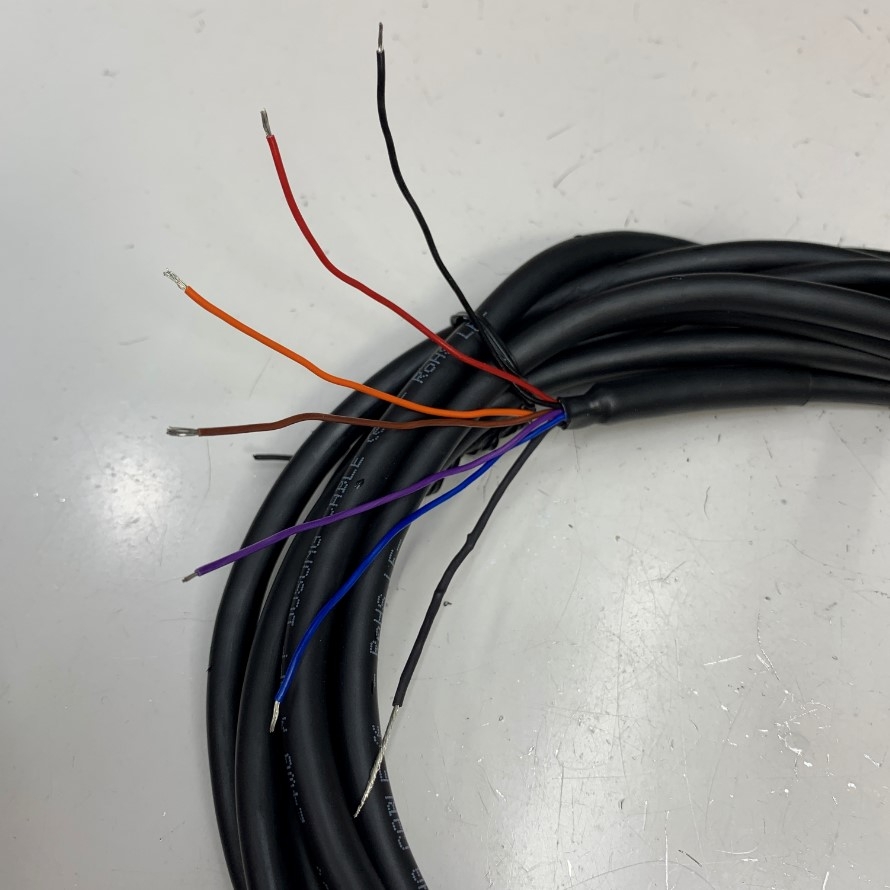

Pin-Out: Hirose HR10A-7P-6S(73) 6 Pin Female: 1 - (Đỏ) / 2 - (Nâu) / 3 - (Cam) / 4- (Tím) / 5 - (Xanh) / 6 - (Đen) / Shell - (Heat Shrink Tubing Black) Connection
Cáp 3M 10ft  6P-300R-6LINE-HIK I/O & Power Cable Connector Hirose HR10A-7P-6S(73) 6 Pin Female to 6 Core Open End For Industrial Camera Basler Hikrobot
