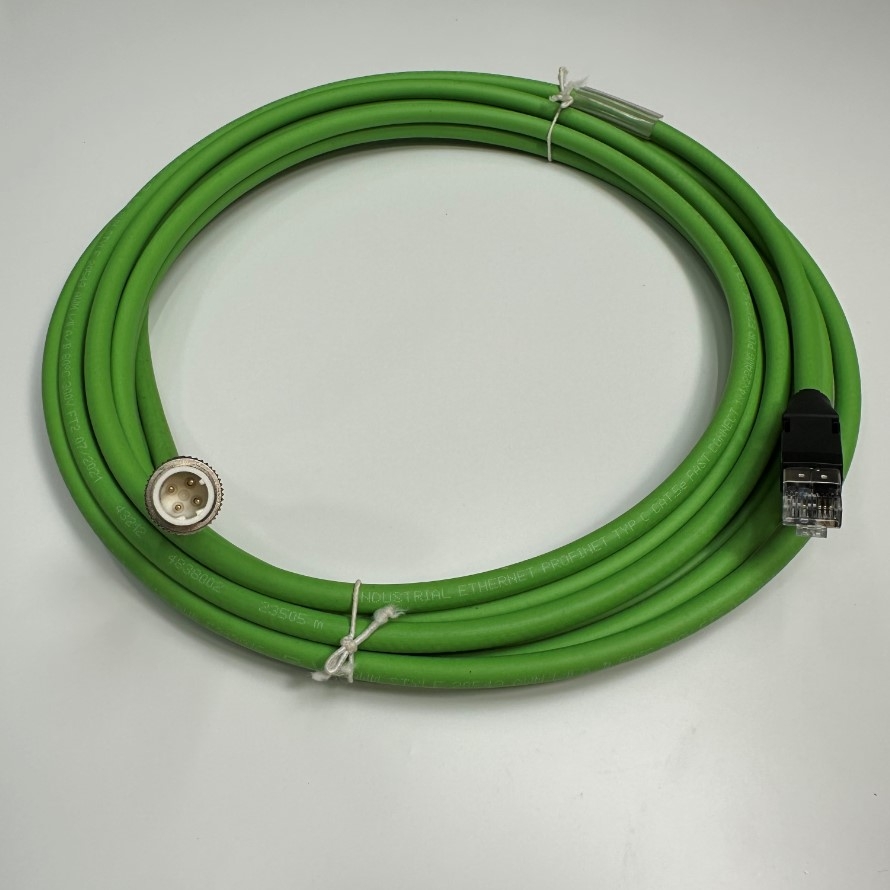

Cáp 5M 17ft LEUZE 50135081 M12 4 Pin D-Code Male to RJ45 Cable Ethernet Industrial

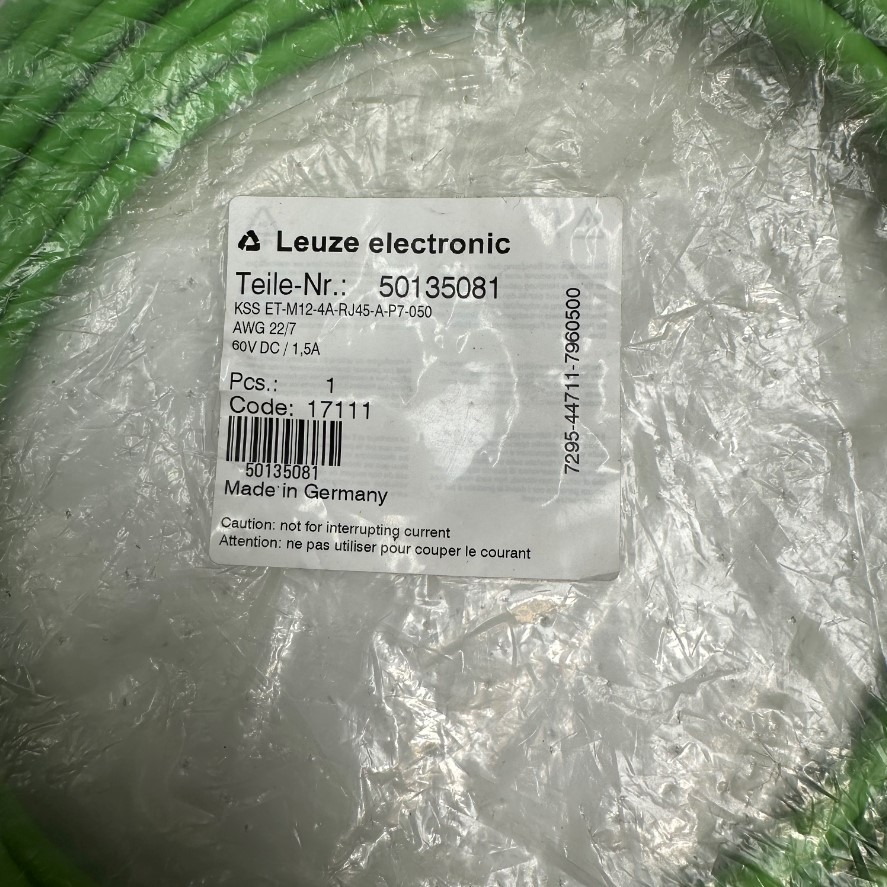

Leuze 50135081; KSS ET-M12-4A-RJ45-A-P7-050; Interconnection cable

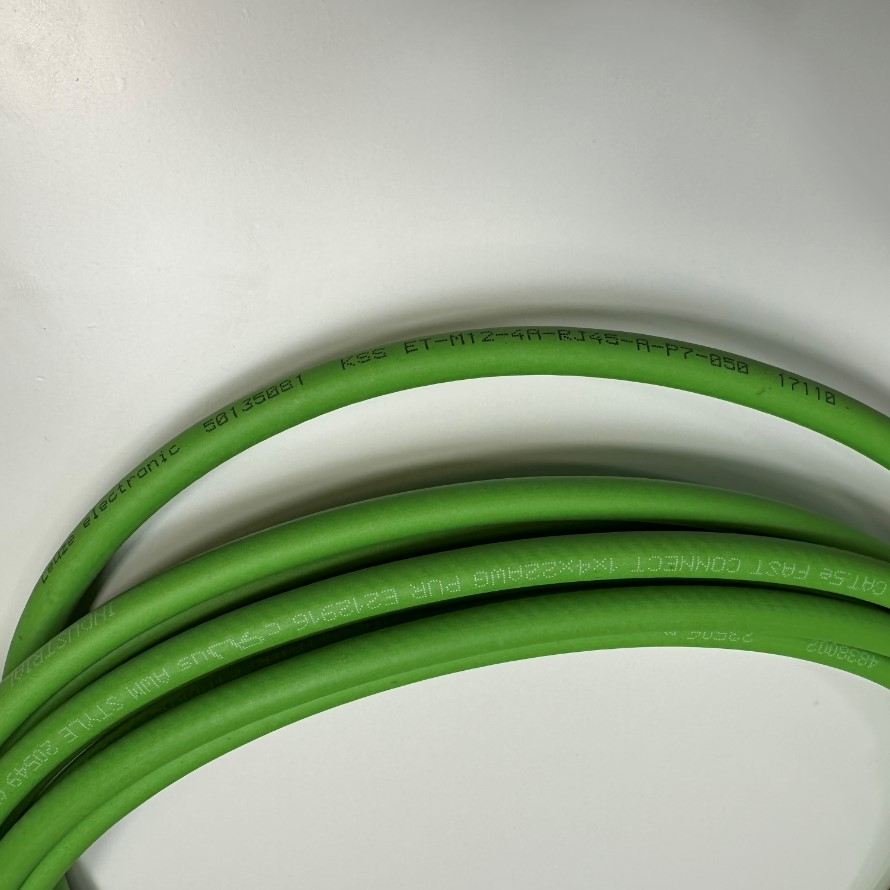

Leuze electronic 50135081 KSS ET-M12-4A-RJ45-A-P7-050 07218

E212916 AWM STYLE 20233 80C 300V INDUSTRIAL ETHERNET PROFINET CAT.5E 2x2x22AWG

Industrial Ethernet Cable  –   Extension Cable
Circuit Diagram

Model: 50135081
Type: KSSETM124ARJ45AP7050
Technical Data:
60V DC
General:
Leuze network connection cable KSS ET-M12-4A-RJ45-A-P7-050
Connection 1:

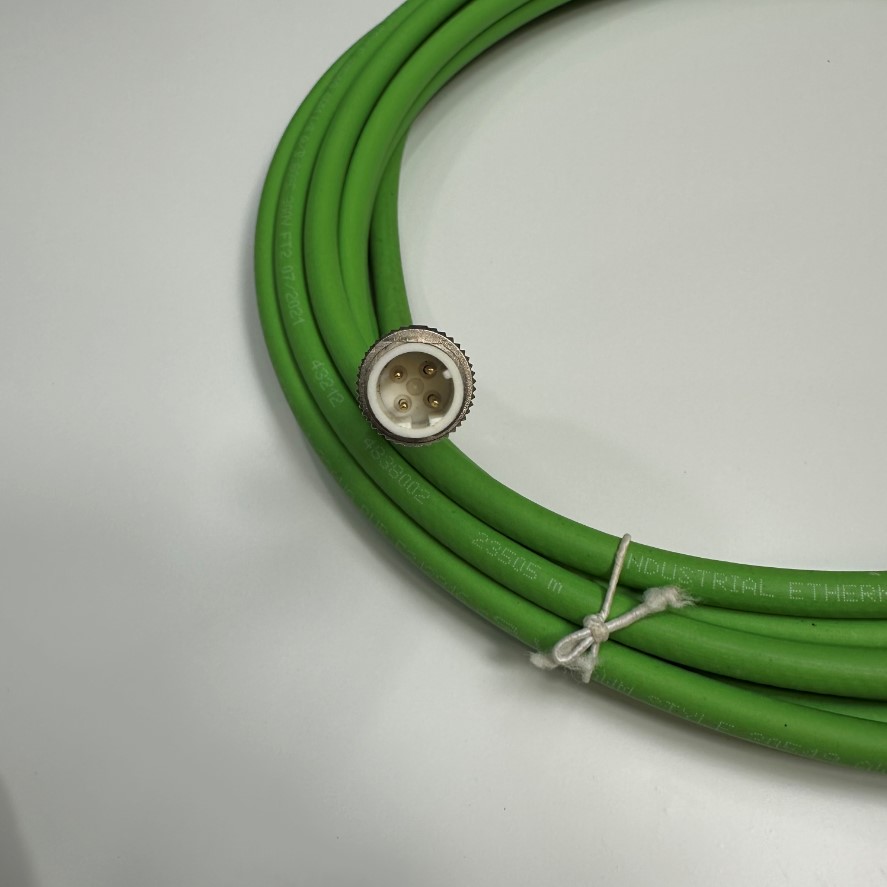

M12/male, round plug, 4-pin, D-coded, axial, self-locking
Connection 2:

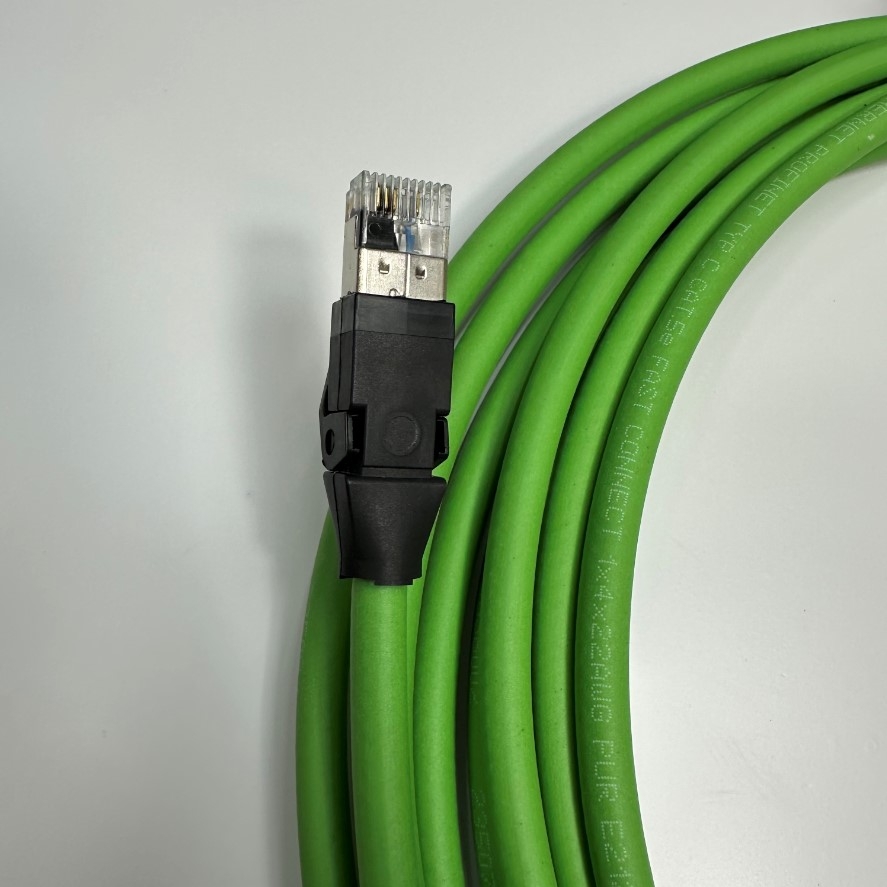

RJ45/male, 4-pin, axial
Cable properties:
Sheath color: green
Shielded: Yes
Cable length: 5,000 mm
Sheath material: PUR
Core insulation: PP
Suitability for drag chains: Yes
Travel speed: max. 3.3 m/s at 5m horiz. Travel length and max. acceleration of 2m/s²
Resistance of the outer sheath: resistant to hydrolysis and microbes, good resistance to oil, petrol and chemicals in accordance with VDE 0472 Part 803 Test B, flame-retardant in accordance with UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2
Width across flats: 13 mm
Bending cycles: 2,000,000 cycles
Bending radius (flexible/stationary): once min. 5 x cable diameter
Protection class: IP 65, IP 20 for RJ45, IP 67
