Cáp 5M 17ft Connector AISG DIN Right Angle 12 Pin Female to 12 Pin Male Shielded Cable Grey 12 Core x 0.12mm² OD 6.8mm For Signal and Power Cable Industrial

Mã SP: 12377

Thương hiệu: Original I/O Cable

Loại sản phẩm: AISG DIN 12 Pin Male to Female

Đánh giá

:

Giá

:

4.500.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Taiwan/Original Signal and Power Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

DIN Cable Connector Screw Locking 12 Pin Male to Female

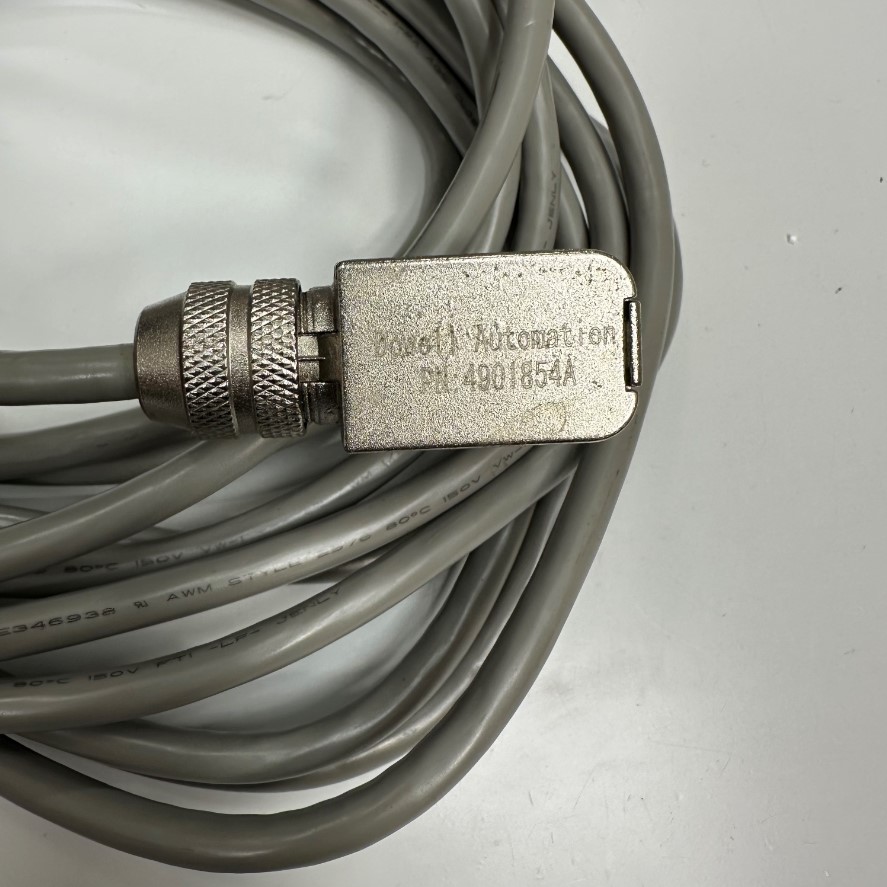

Connector AISG DIN Right Angle 12 Pin Female Dowell Automation PN: 4901854A

Binder Connector AISG DIN M16 12 Pin Male

Specifications
Brand: Taiwan/Original Signal and Power Cable
Model number: Signal and Power Industrial Communication
Connector Type 1: AISG DIN Right Angle 12 Pin Female (Connector AISG DIN Right Angle 12 Pin Female Dowell Automation PN: 4901854A)
Connector Type 2: AISG DIN M16 12 Pin Male Circular (Binder Connector AISG DIN M16 12 Pin Male)
Contact Plating: Gold-Plated
Number of Conductors: 12 x 0.12mm²
Cable E346938 AWM STYLE 2576 80°C 150V VW-1 LF JENLY
Conductor Size AWG: 28AWG
Voltage Rating: 150V/300V
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Outer diameter: 6.5mm
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Operating Temperature: -20°C to 80°C ~105°C
Material: Cu
Shielding: Yes
Color: Grey
Cable Length: 5M ~ 17ft
Cáp 5M 17ft Connector AISG DIN Right Angle 12 Pin Female to 12 Pin Male Shielded Cable Grey 12 Core x 0.12mm² OD 6.8mm For Signal and Power Cable Industrial
