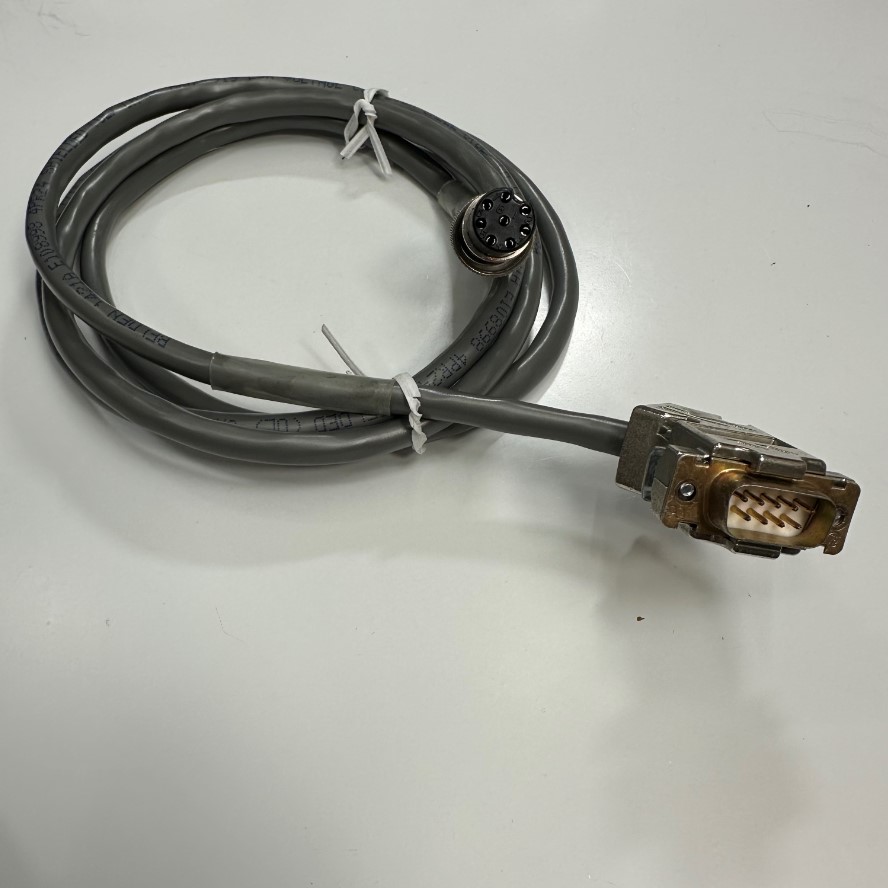

Cáp 1.5M 5ft Shielded Cable Connector APEX PLT-168-P-R 8 Pin Female Circular to DB9 Male Connector 3M 45 Degree Cable BELDEN E108998 4PR 24AWG For Signals Data And Power Industrial

Cable APEX PLT Series Circular Connector PLT-168-P-R 8 Pin Female to DB9 Male

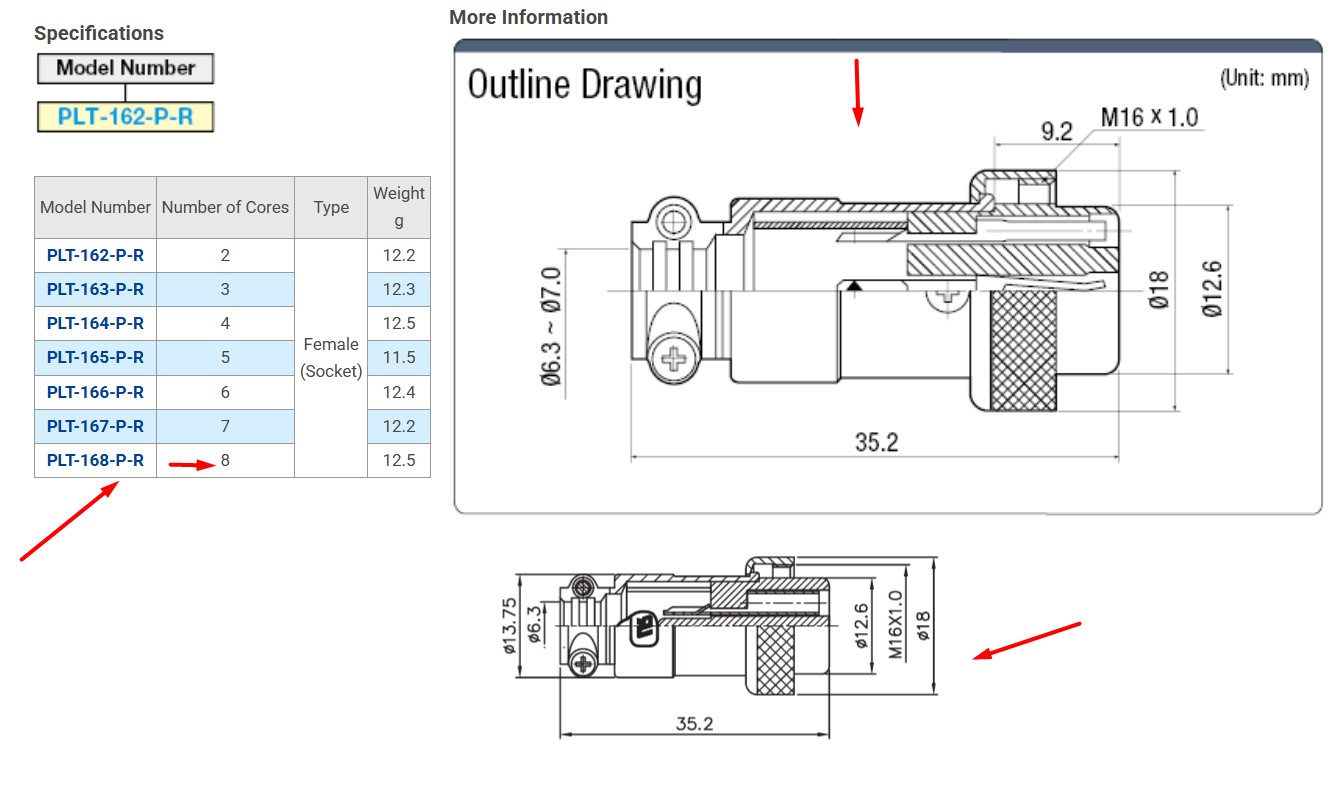

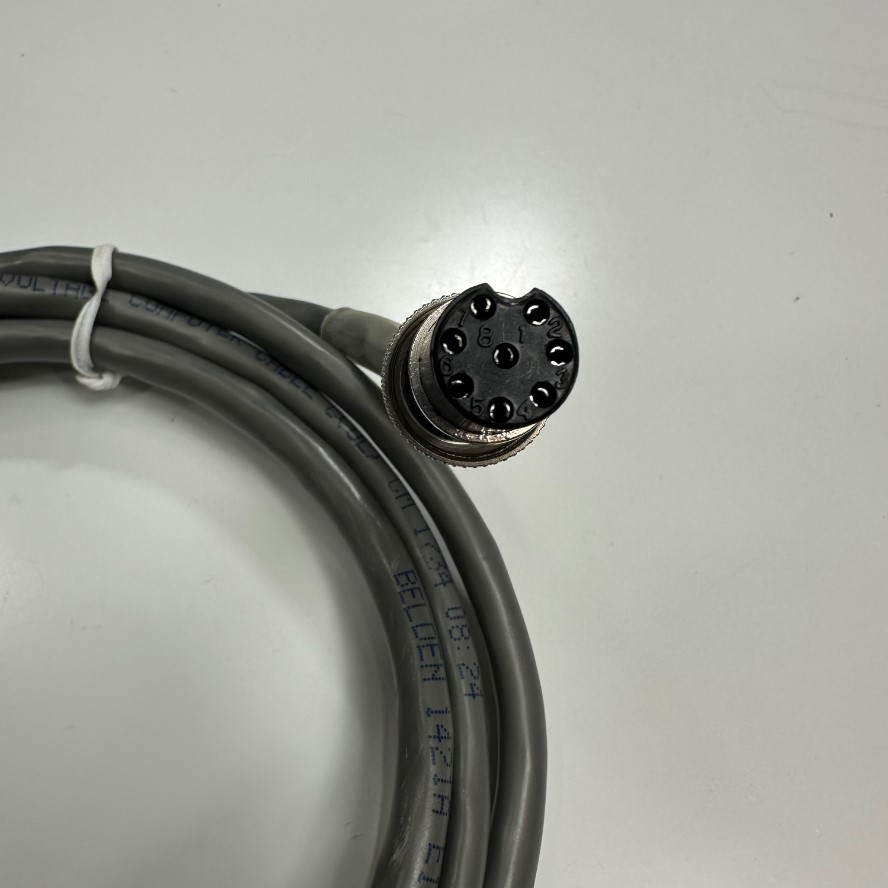

APEX PLT Series Circular Connector PLT-168-P-R 8 Pin Female

CINCH DE9PII Cinch Connector 5A-125V/250V

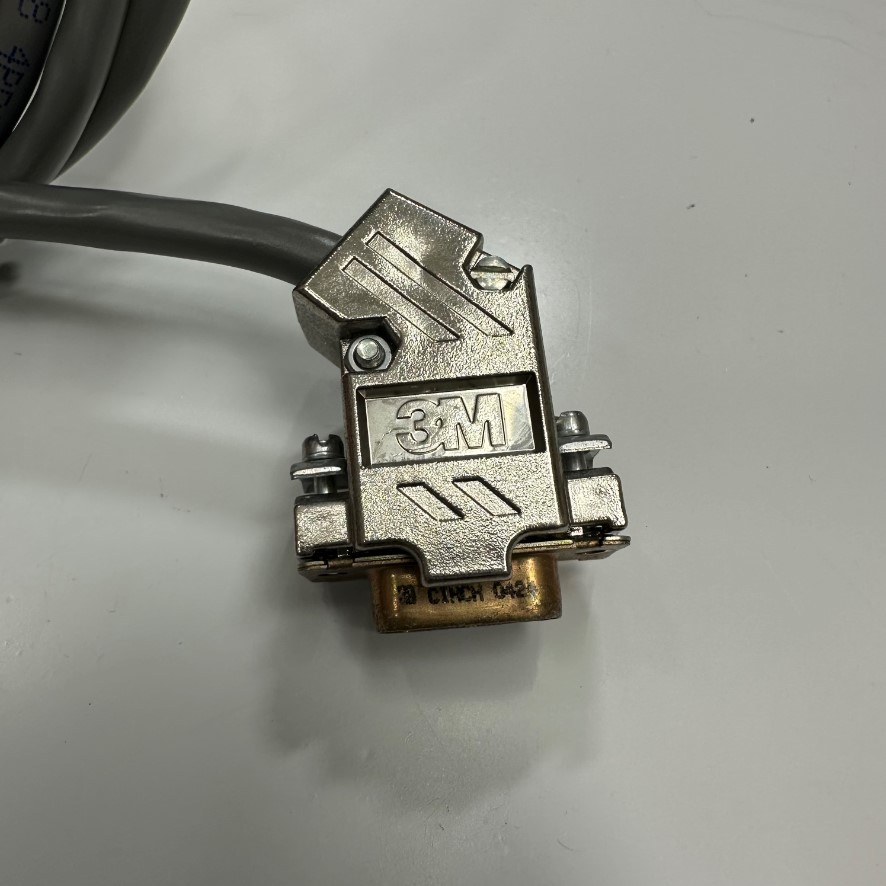

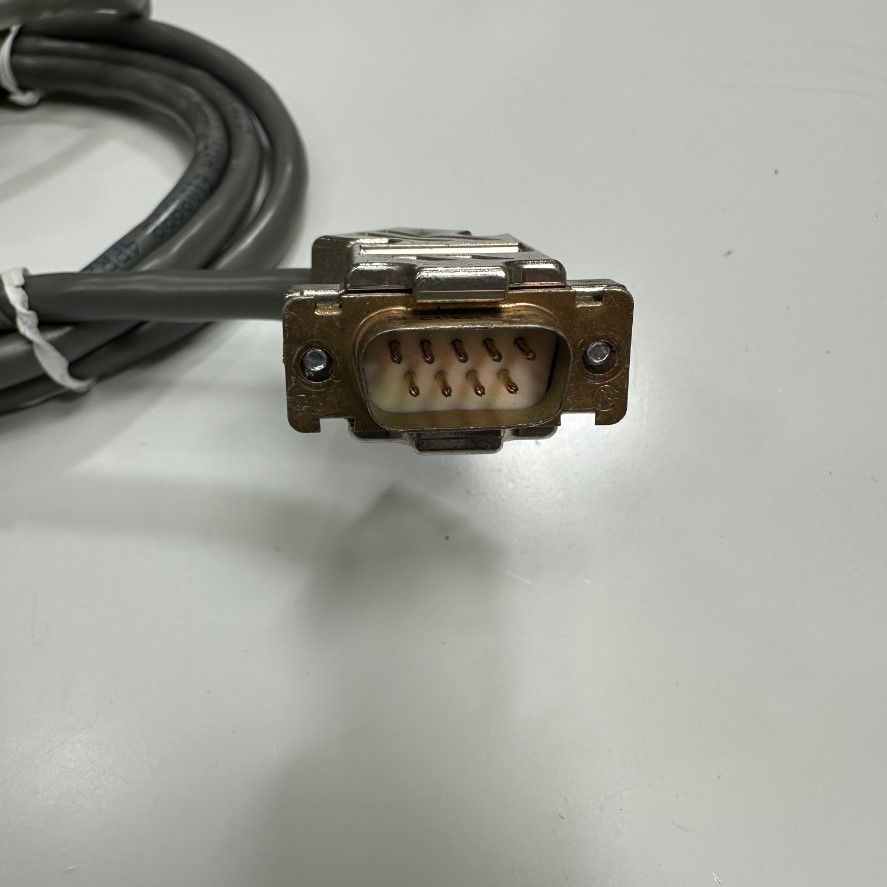

DB9 Male Connector 3M 3357-6509-1C 45 Degree

Specifications
Brand: Taiwan/Original Signals Data And Power Cable
Model number: MI Z ENC - SEV#3 ENC_A1 WTX ENC
Connector Type 1: APEX PLT-168-P-R 8 Pin Female Circular
Connector Type 2: DB9 Male Connector 3M 45 Degree Metal Shell (3M With Screw)
Contact Plating: Gold-Plated
Number of Conductors: 8 x 0.15mm²
Conductor Size AWG: 24AWG
Voltage Rating: 300V
Cable BELDEN 1421A E108998 4PR24 SHIELDED (UL) OR AWM 2919 LOW VOLTAGE COMPUTER CABLE C(UL) CM
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Outer diameter: 8.0mm
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Operating Temperature: -20°C to 105°C
Material: Cu
Shielding: Yes
Color: Gray
Cable Length: 1.5M ~ 5ft
Cáp 1.5M 5ft Shielded Cable Connector APEX PLT-168-P-R 8 Pin Female Circular to DB9 Male Connector 3M 45 Degree Cable BELDEN E108998 4PR 24AWG For Signals Data And Power Industrial
