Cáp 1.1M 3.7ft Cable Connector Hirose RM15TP-8PH(71) 8 Pin Male Circular to Apex PLT-165-P-R 5 Pin Female Circular For Signal and Power Cable Industrial

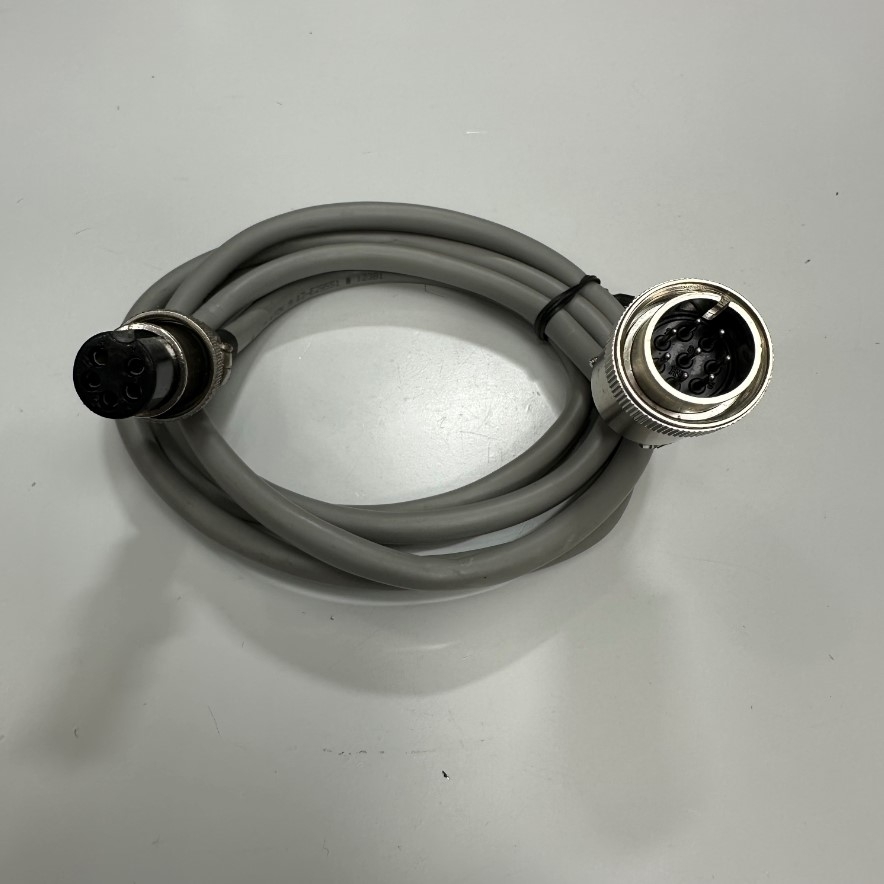

Cable Connector Hirose RM15TP-8PH(71) 8 Pin Male Circular to Apex PLT-165-P-R 5 Pin Female Circular

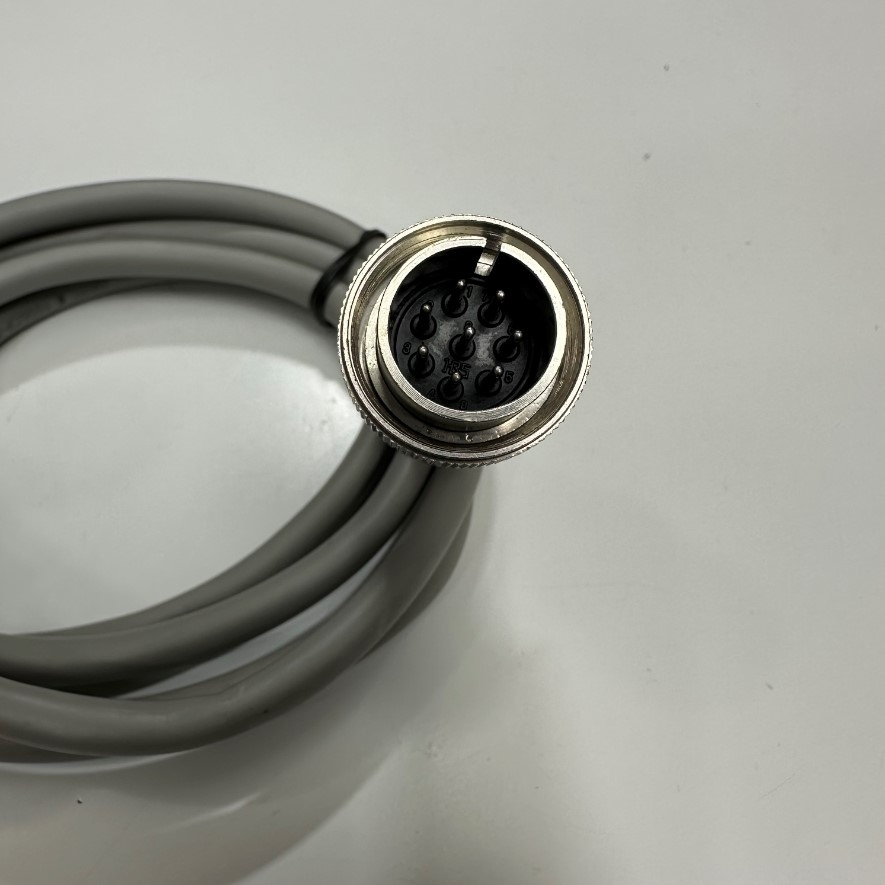

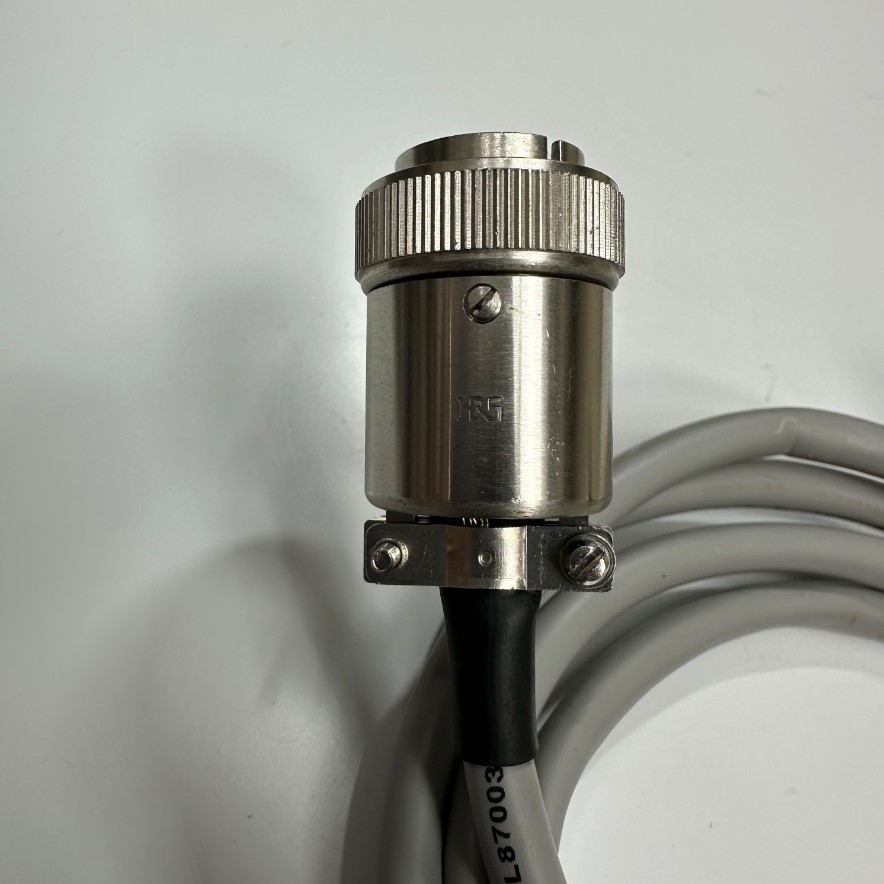

Hirose RM15TP-8PH(71) 8 Pin Male Circular Connector

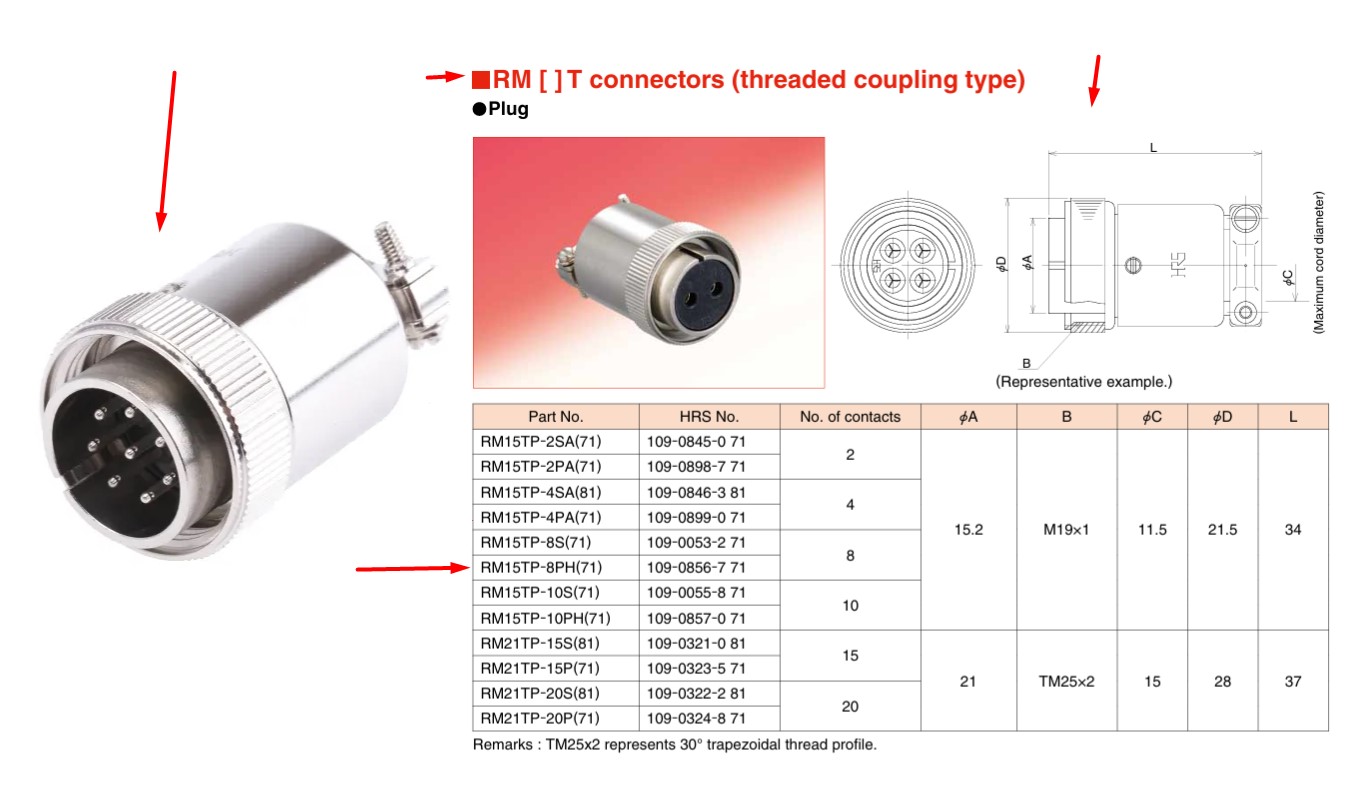

Specifications Diagram Hirose RM15TP-8PH(71) 8 Pin Male Circular Connector

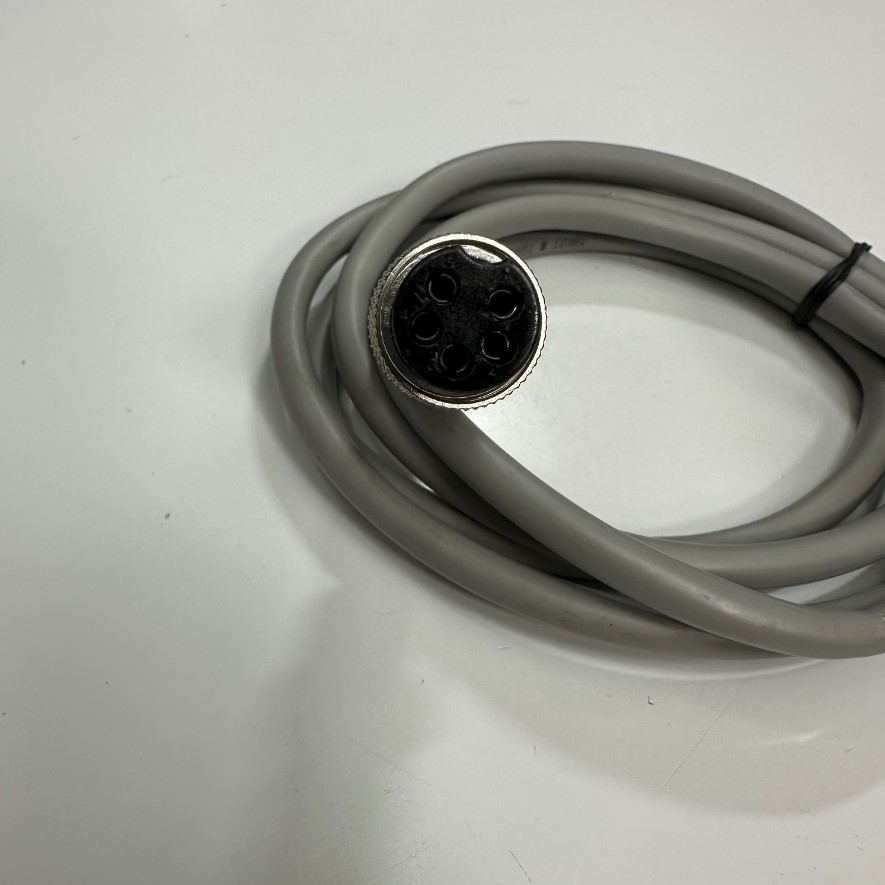

Apex PLT-165-P-R 5 Pin Female Circular Connector

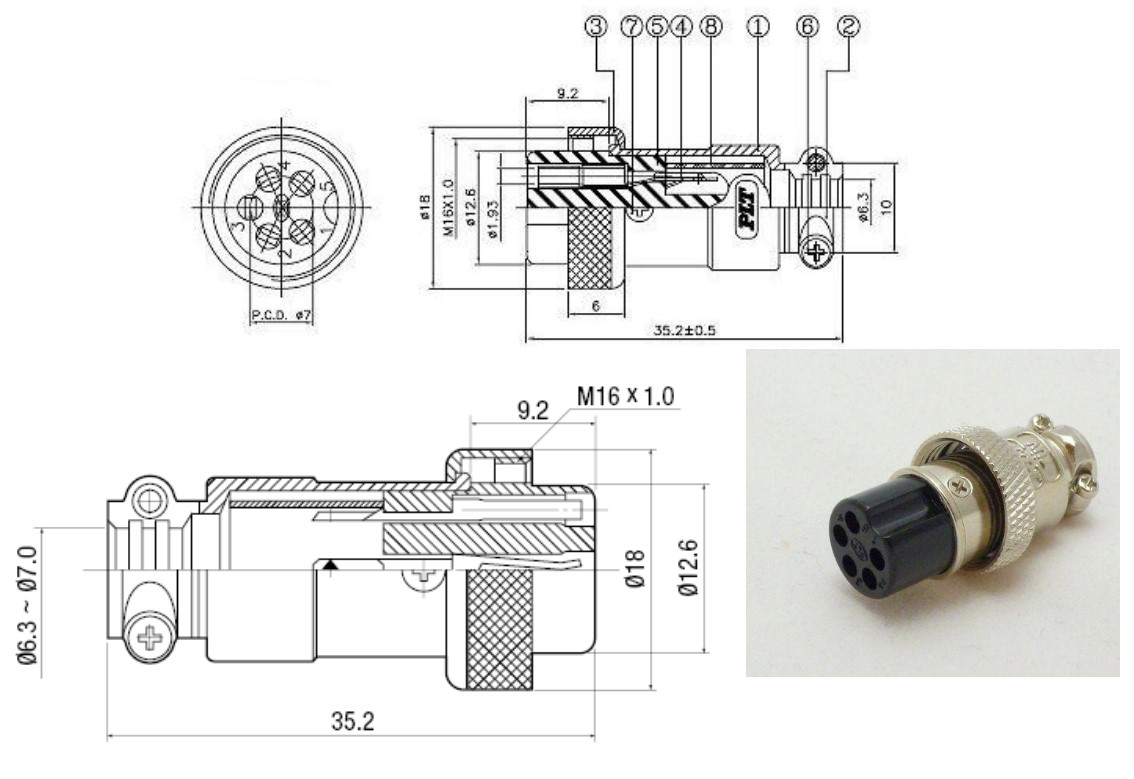

Specifications Diagram Apex PLT-165-P-R 5 Pin Female Circular Connector

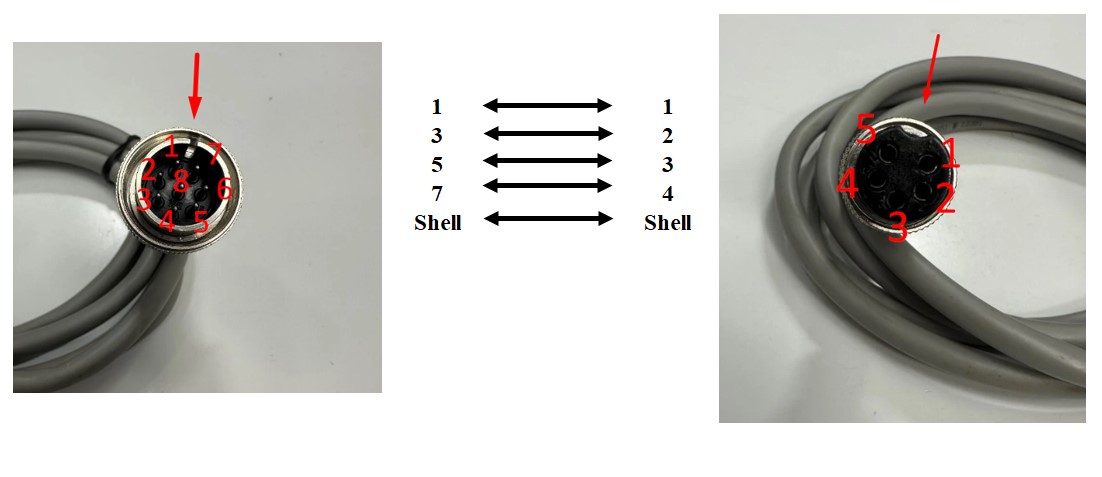

Connector Pins Diagram

Specifications
Brand: Taiwan/Original Signal and Power Cable
Model number: Signal and Power Industrial Communication
Connector Type 1: Hirose RM15TP-8PH(71) 8 Pin Male Circular
Connector Type 2: Apex PLT-165-P-R 5 Pin Female Circular
Contact Plating: Gold-Plated
Number of Conductors: 4 x 0.35mm²
Conductor Size AWG: 22AWG
Voltage Rating: 300V
Cable E74020-C AWM STYLE 2464 80°C 300V VW-1 CSA LL87003 AWM I/II A/B FT1 DER AN
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Outer diameter: 5.5mm
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Operating Temperature: -20°C to 80°C ~105°C
Material: Cu
Shielding: Yes
Color: Grey
Cable Length: 1.1M ~ 3.7ft
