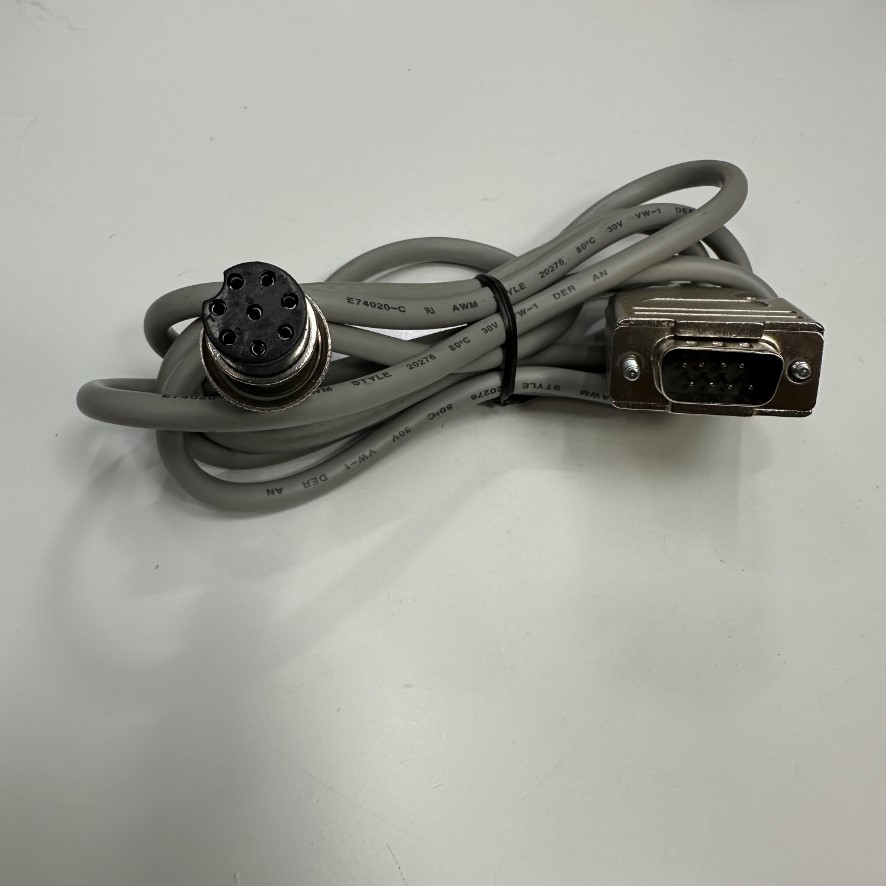

Cáp 1.5M 5ft Connector APEX PLT-168-P-R 8 Pin Female Circular to DB9 Male Shielded Cable Grey For Signal Data Industrial Communication Cable

Specifications
Brand: Taiwan/Original Signals Data Cable
Model number: Signal Data Industrial Communication

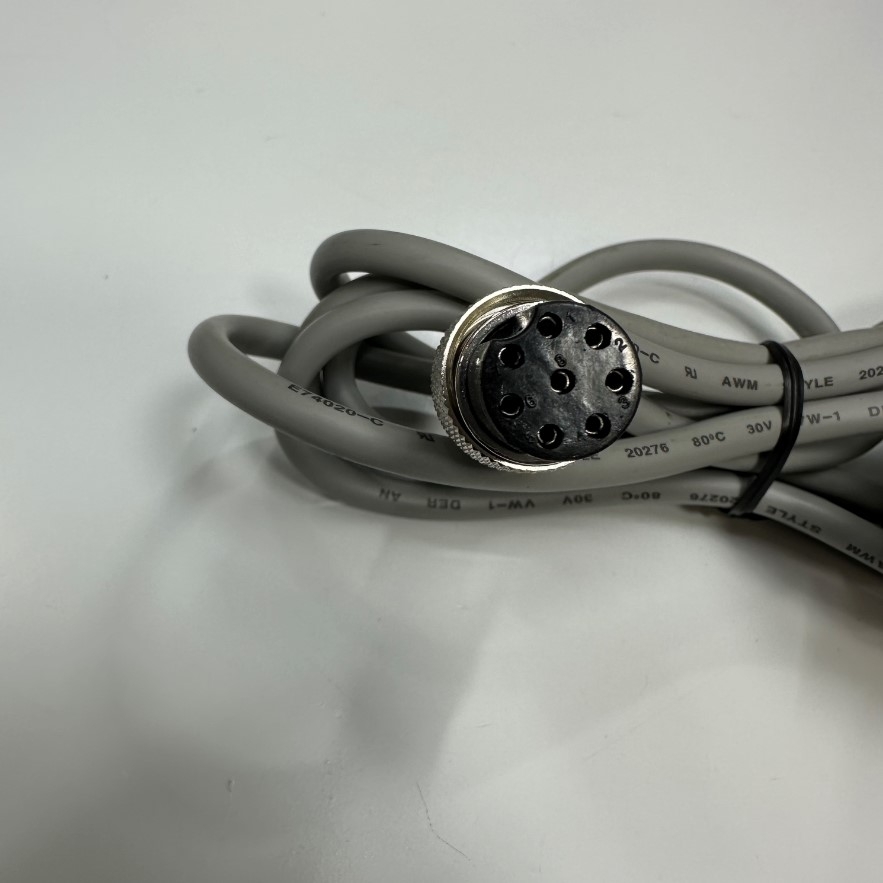

Connector Type 1: APEX PLT-168-P-R 8 Pin Female Circular

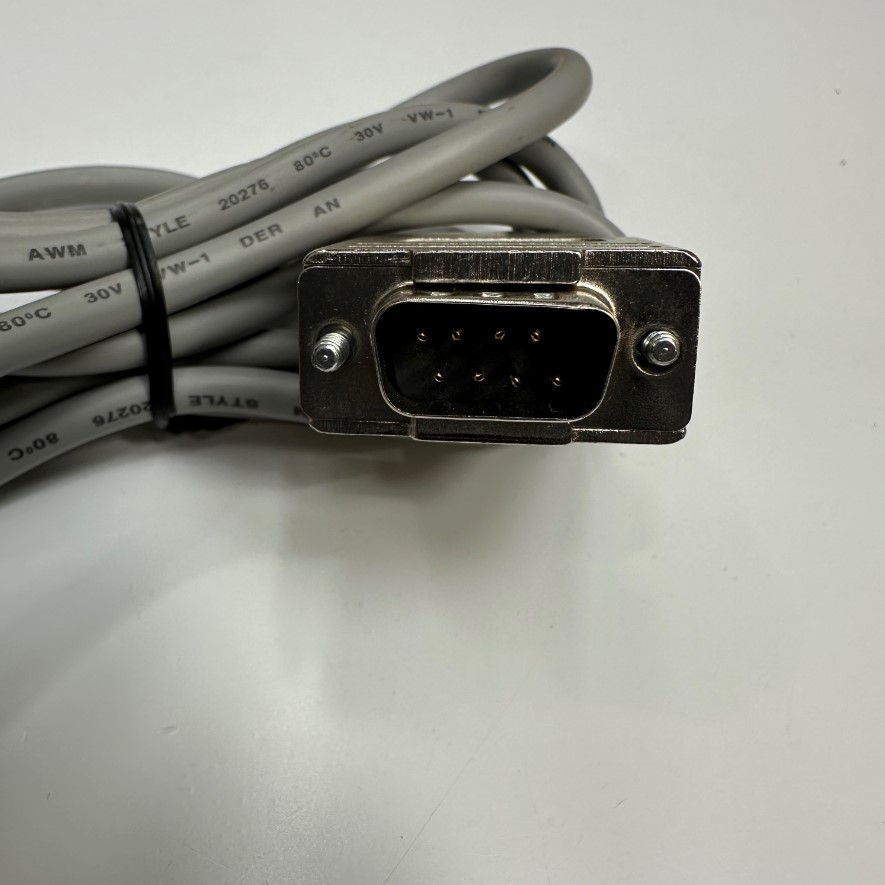

Connector Type 2: DB9 Male 8 Way MH Connectors Termination Crimp Type Metal Shell Fe With Screw)
Contact Plating: Gold-Plated
Number of Conductors: 8 x 0.12mm²
Conductor Size AWG: 28AWG
Voltage Rating: 30V
Cable E74020-C AWM STYLE 20276 80°C 30V VW-1 DER AN
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Outer diameter: 5.4mm
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Operating Temperature: -20°C to 80°C ~105°C
Material: Cu
Shielding: Yes
Color: Grey
Cable Length: 1.5M ~ 5ft
