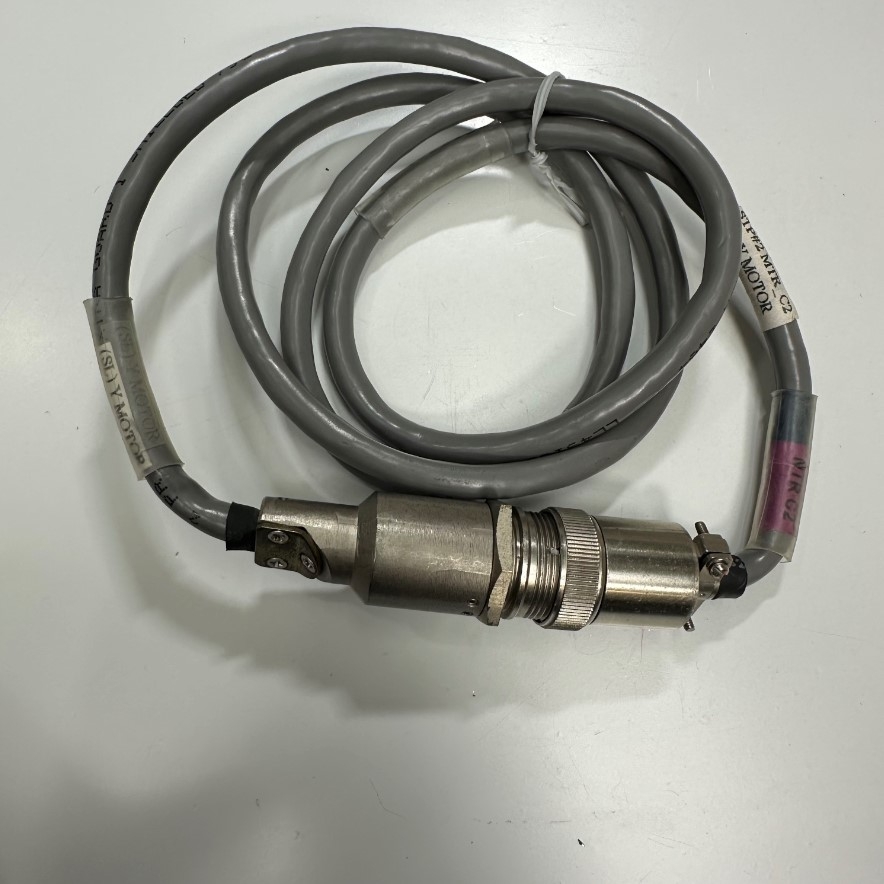

Cáp 1M 3.3ft Cable Connector Hirose RM15TP-8PH(71) 8 Pin Male Circular to Hirose RM15TRH-8S(71) 8 Pin Female Circular For Signal and Power Cable Industrial

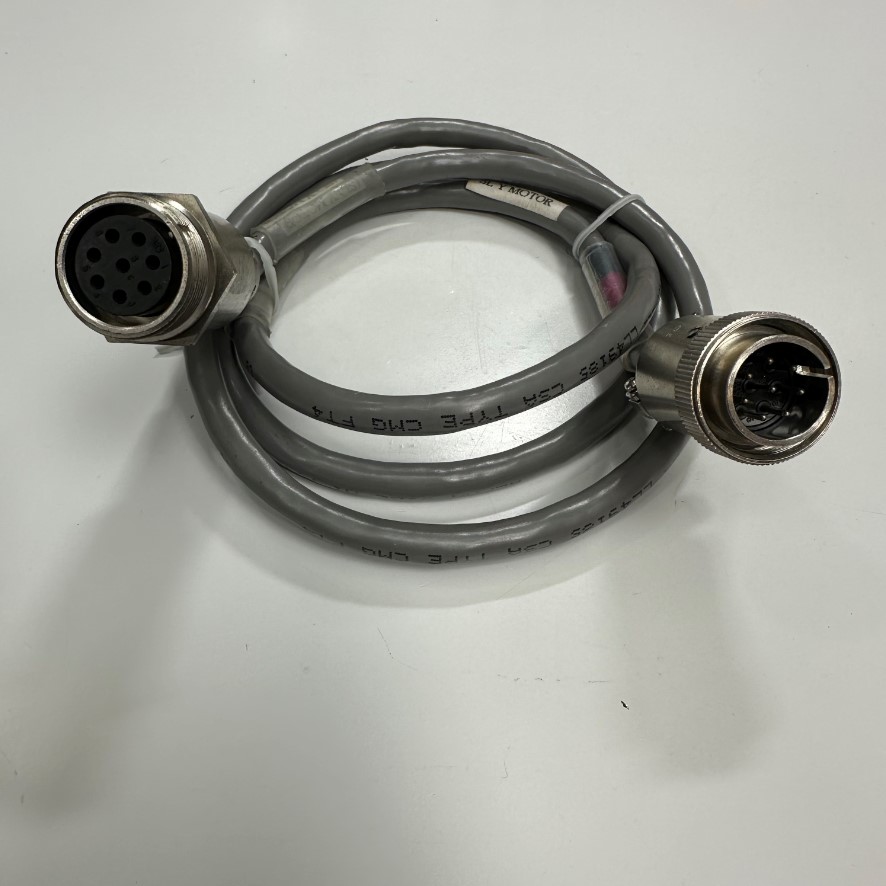

Cable Connector Hirose RM15TP-8PH(71) 8 Pin Male Circular to Hirose RM15TRH-8S(71) 8 Pin Female Circular

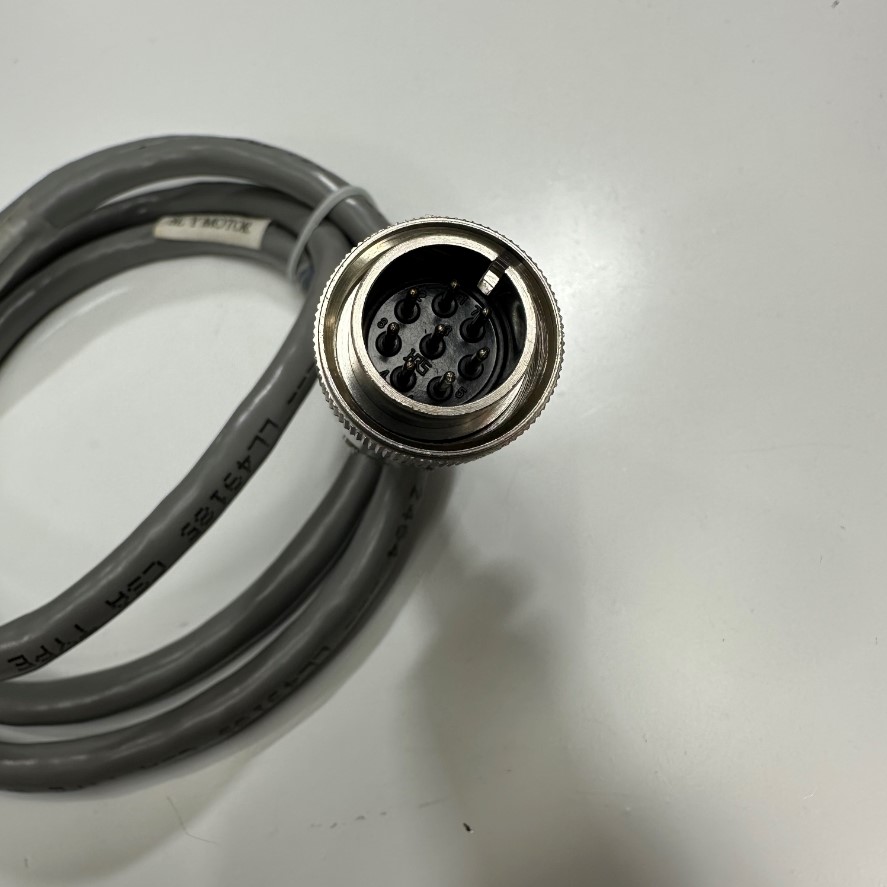

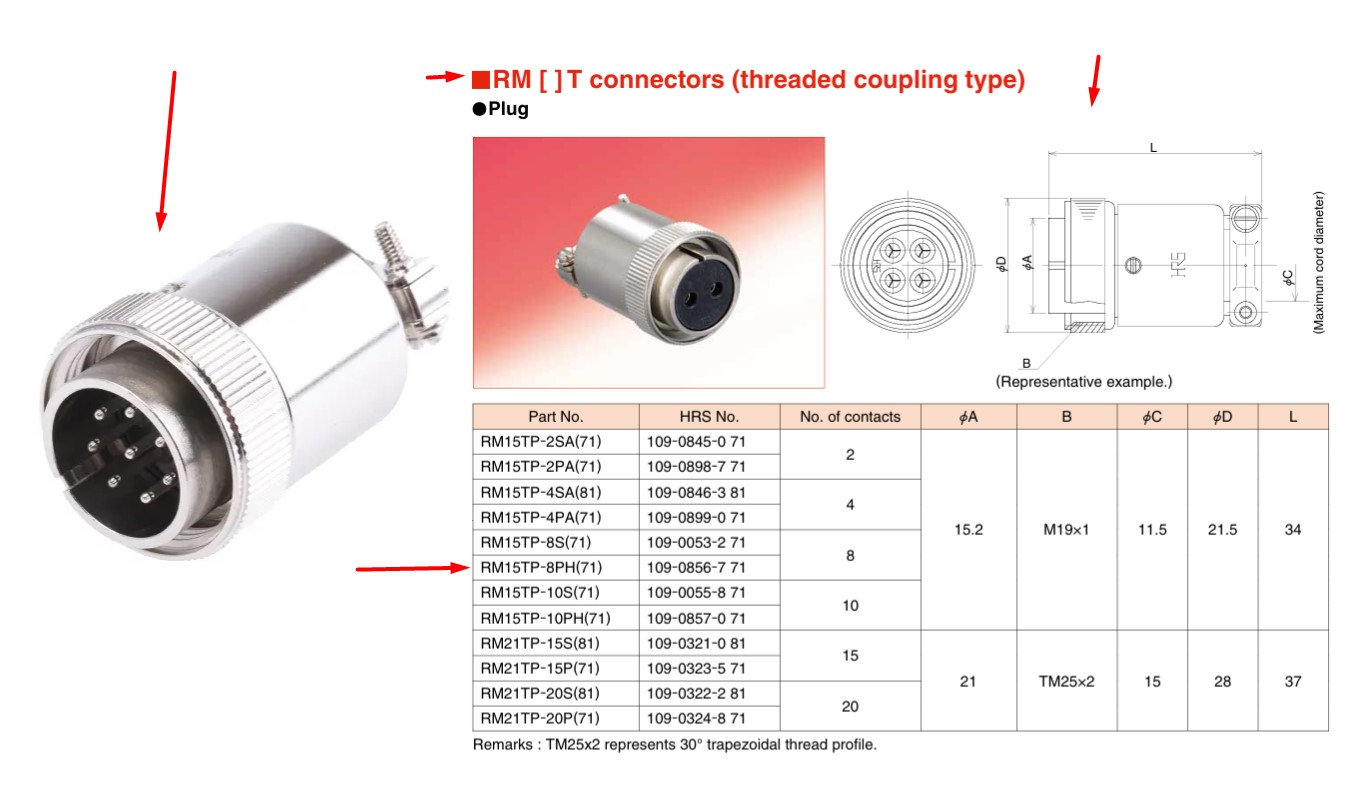

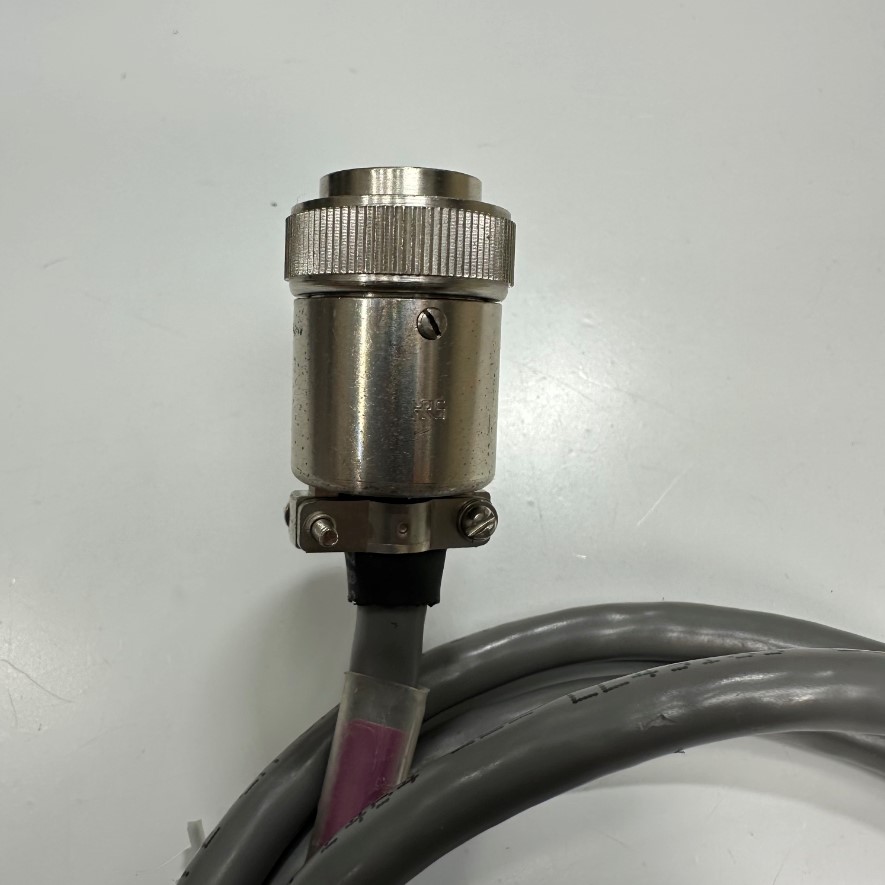

Hirose RM15TP-8PH(71) 8 Pin Male Circular Connector

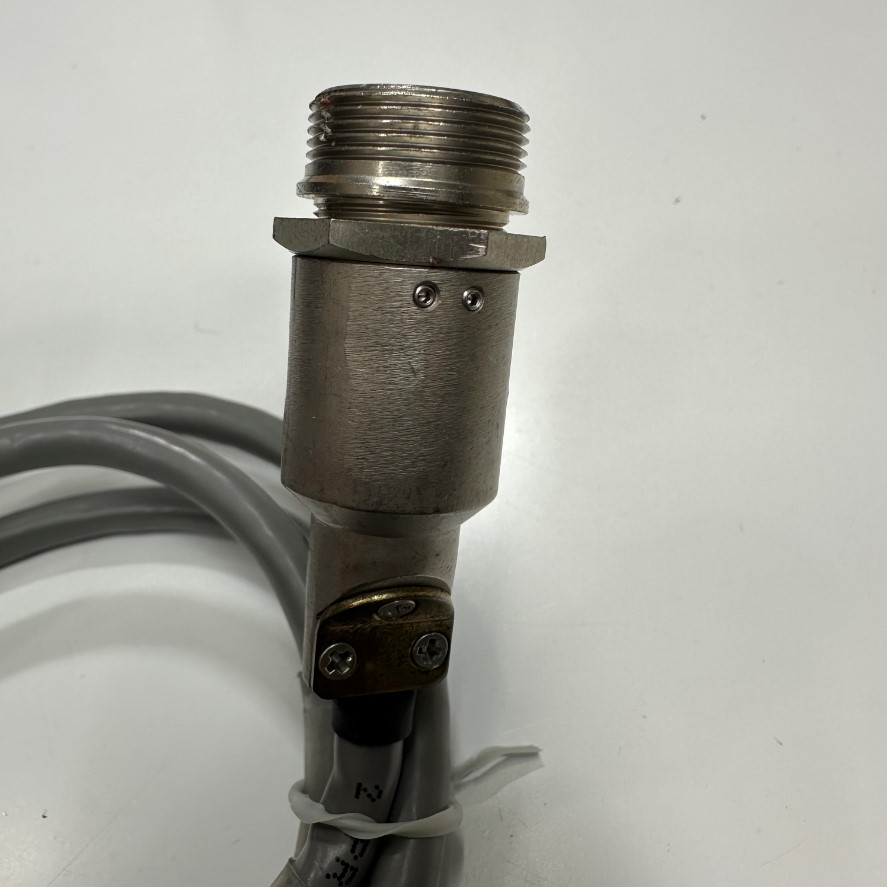

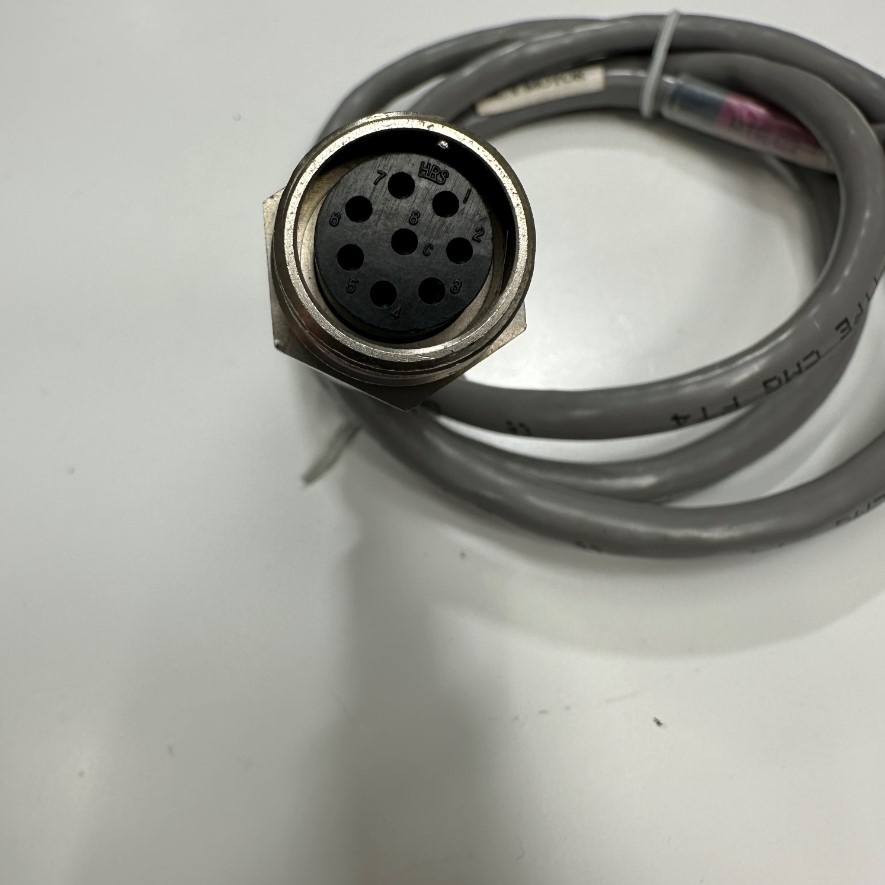

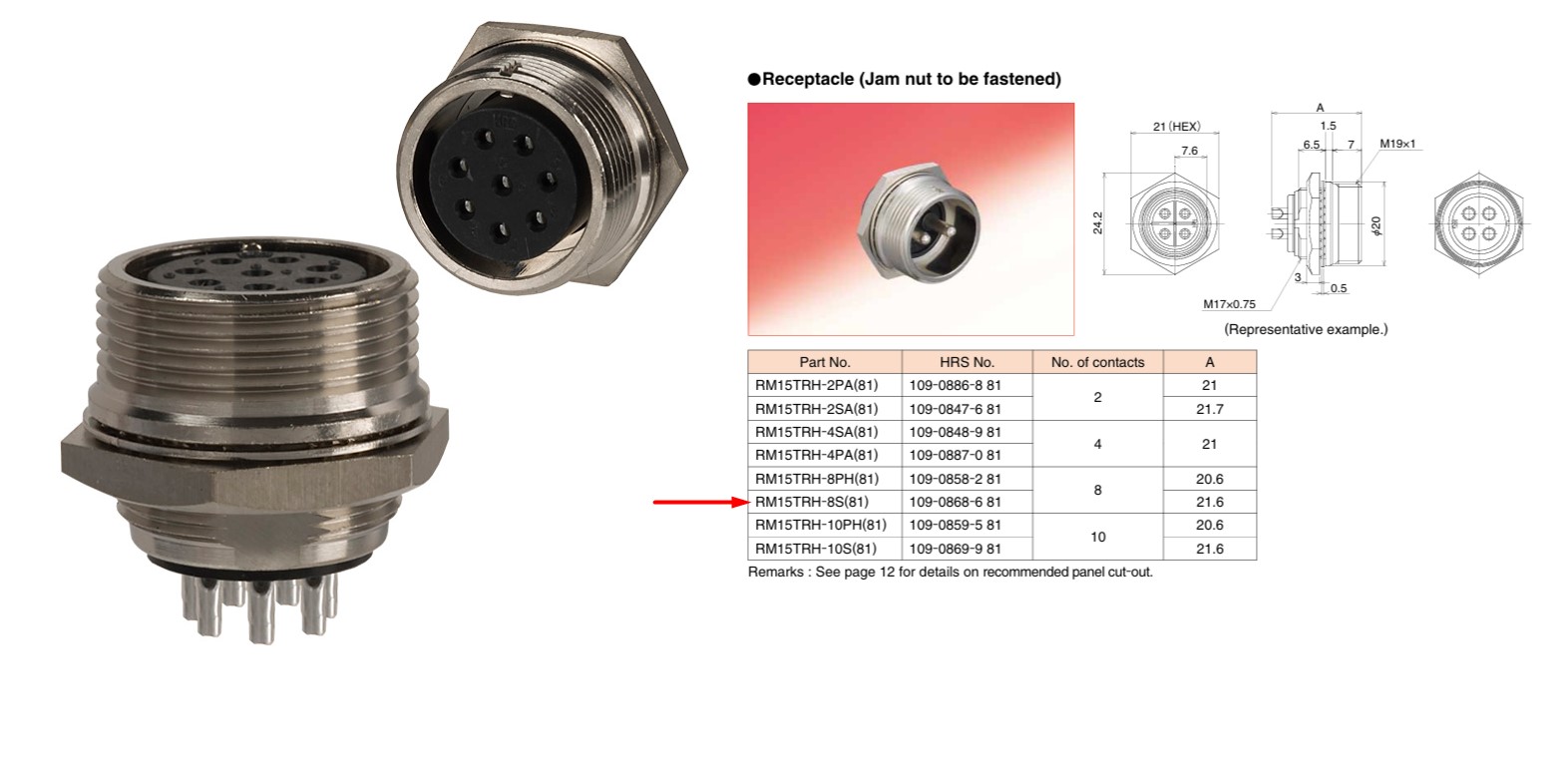

Hirose RM15TRH-8S(71) 8 Pin Female Circular Connector

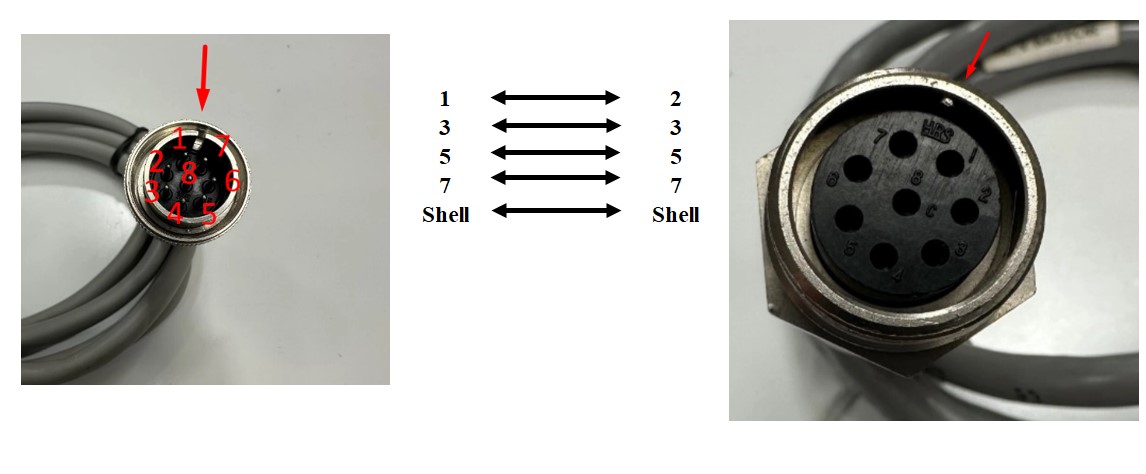

Connector Pins Diagram

Specifications
Brand: Taiwan/Original Signal and Power Cable
Model number: Signal and Power Industrial Communication
Connector Type 1: Hirose RM15TP-8PH(71) 8 Pin Male Circular
Connector Type 2: Hirose RM15TRH-8S(71) 8 Pin Female Circular
Contact Plating: Gold-Plated
Number of Conductors: 4 x 0.35mm²
Conductor Size AWG: 22AWG
Voltage Rating: 300V
Cable ALPHA WIRE H1 P/N 5122C 2PR / 22 AWG x TRA GUARD 1 SHIELDED 15C (UL) TYPE CM OR AWM 2464 LL49185 CSA TYPE CMG FT4
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Outer diameter: 6.8mm
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Operating Temperature: -20°C to 80°C ~105°C
Material: Cu
Shielding: Yes
Color: Grey
Cable Length: 1M ~ 3.3ft
