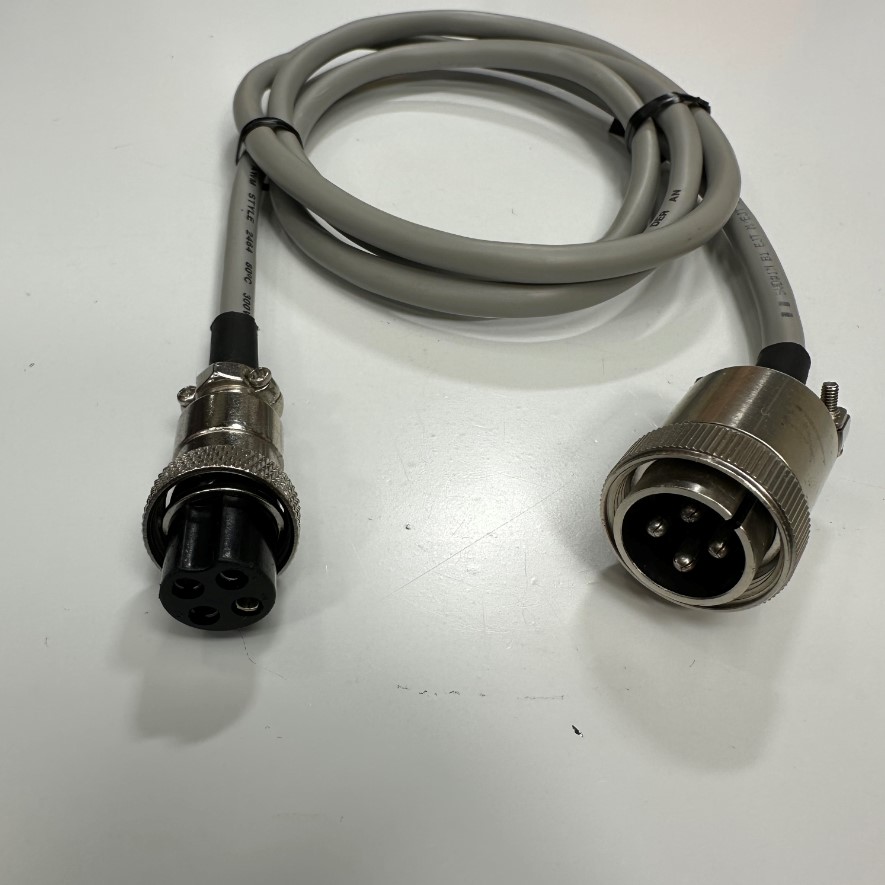

Cáp 1.2M 4ft Cable Connector Hirose RM15TP-4PA(71) 4 Pin Male Circular to Apex PLT-164-P-R 4 Pin Female Circular For Signal and Power Cable Industrial

Cable Connector Hirose RM15TP-4PA(71) 4 Pin Male Circular to Apex PLT-164-PR 4 Pin Female Circular

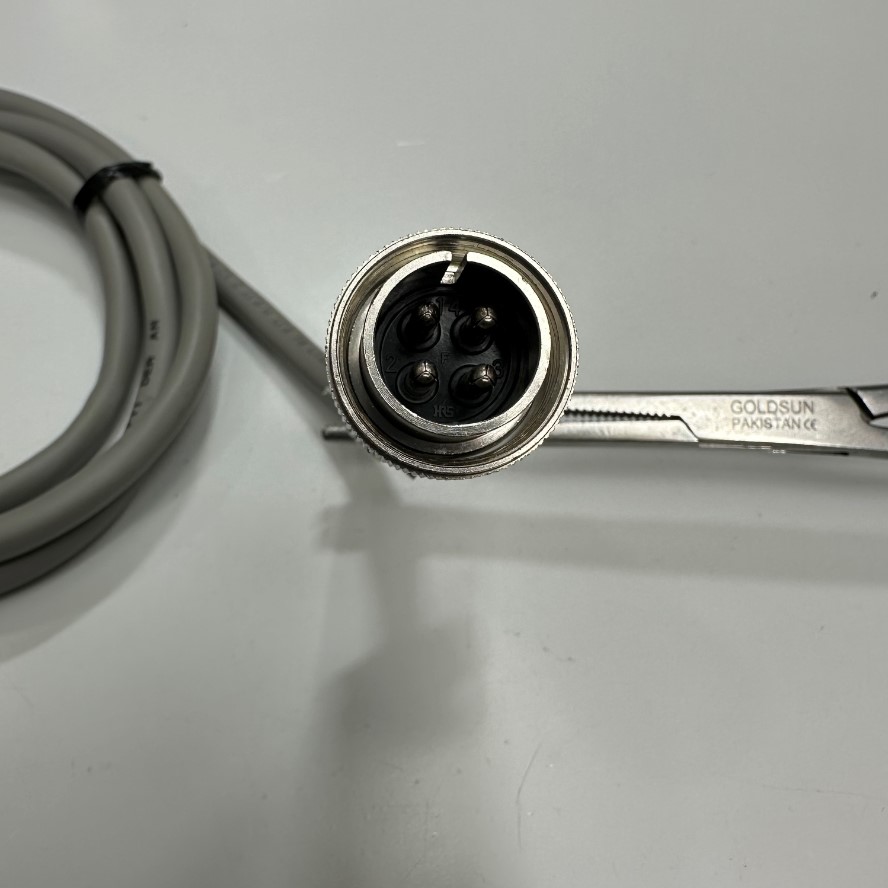

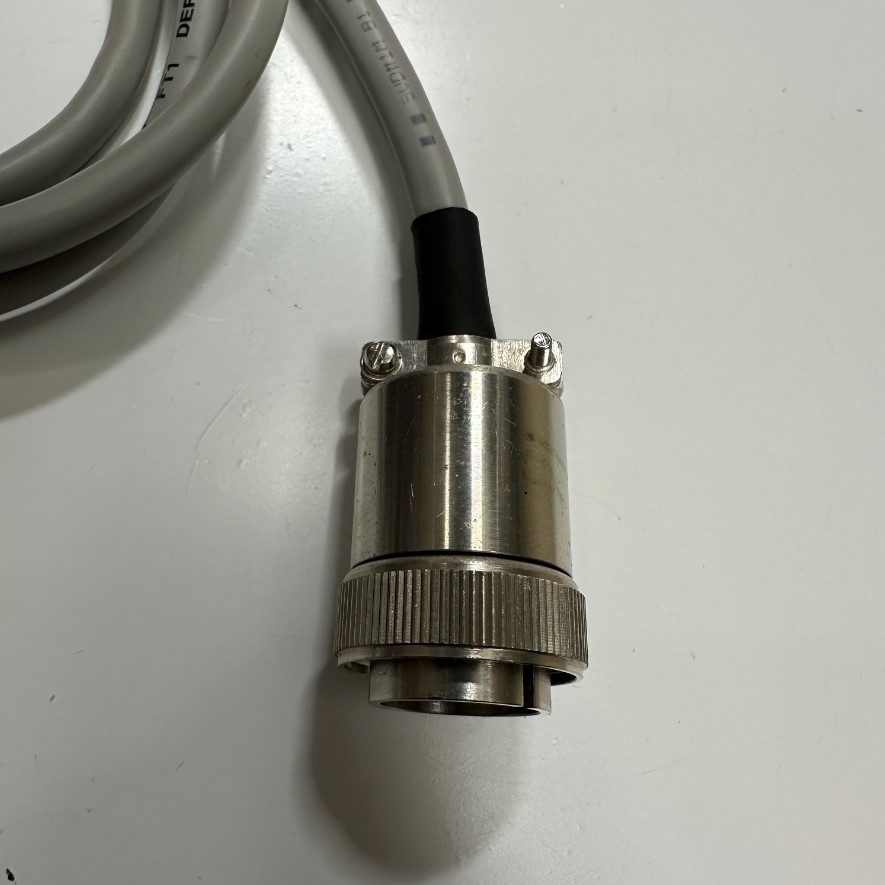

Hirose RM15TP-4PA(71) 4 Pin Male Circular Connector

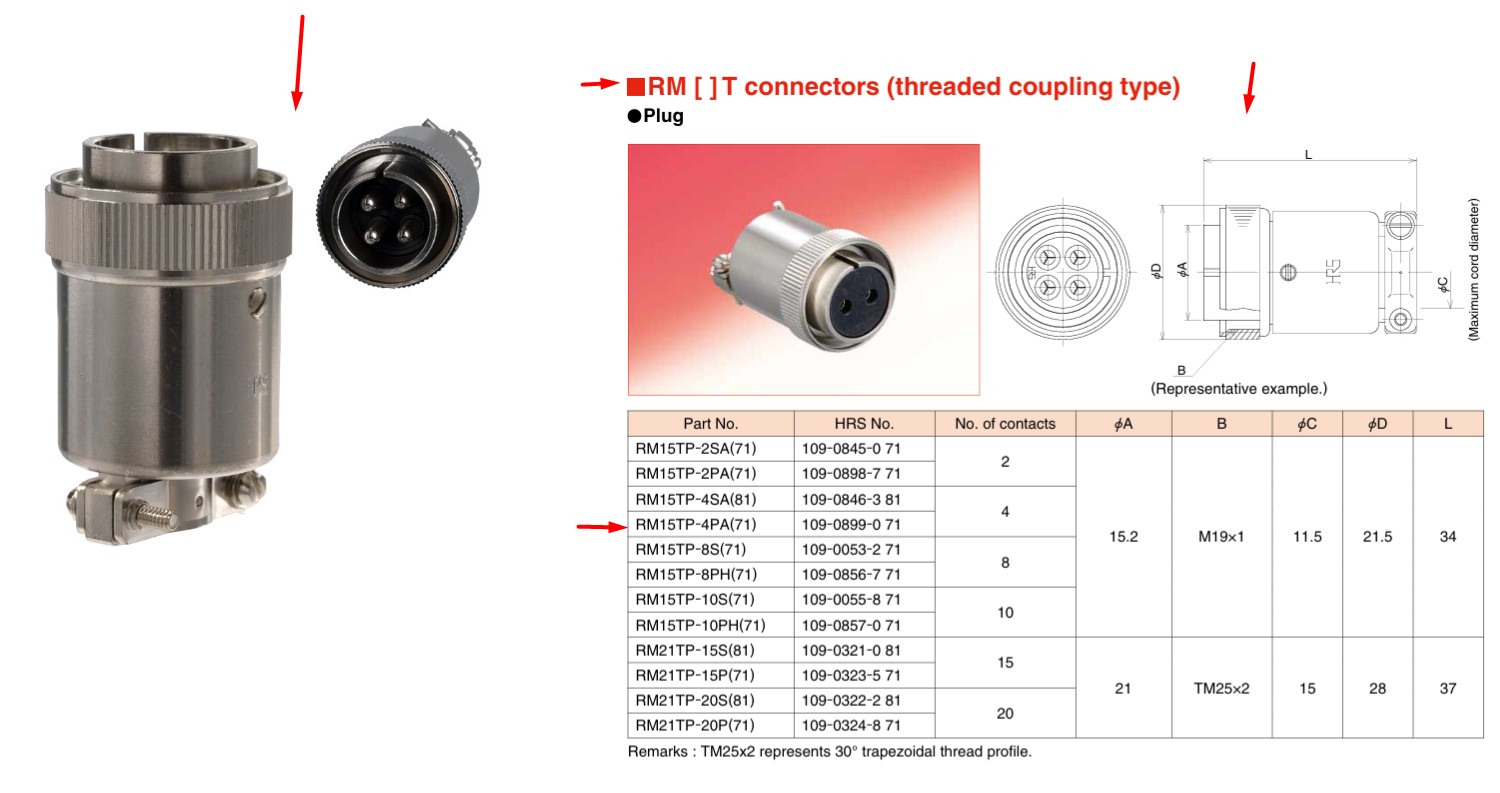

Specifications Diagram Hirose RM15TP-4PA(71) 4 Pin Male Circular Connector

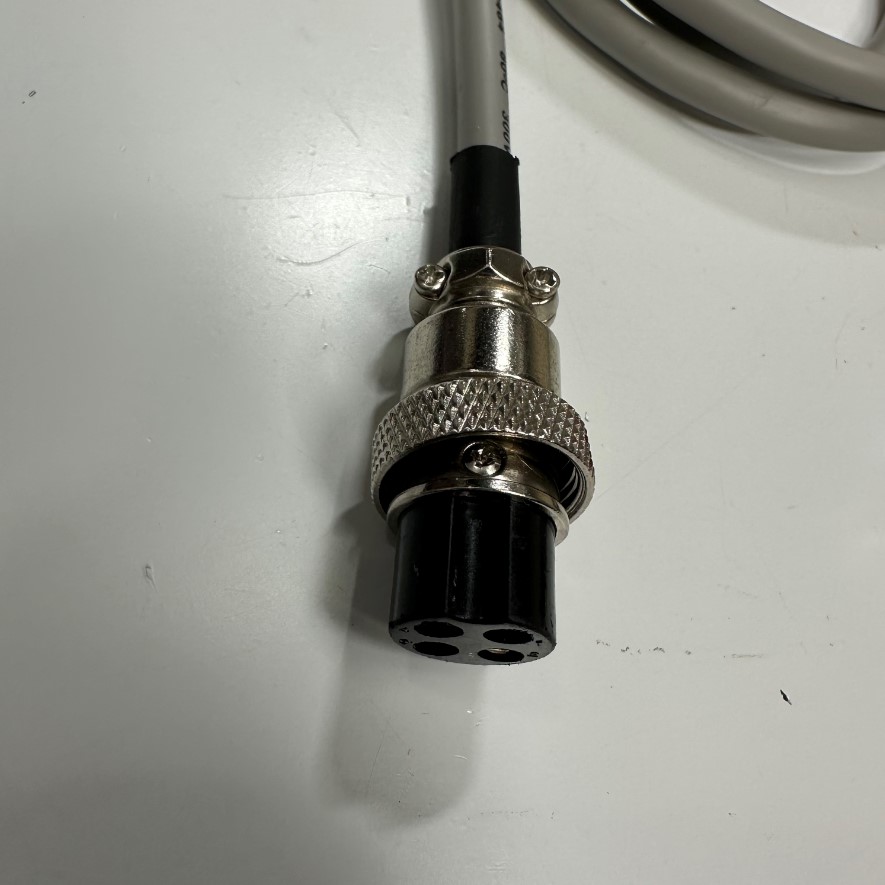

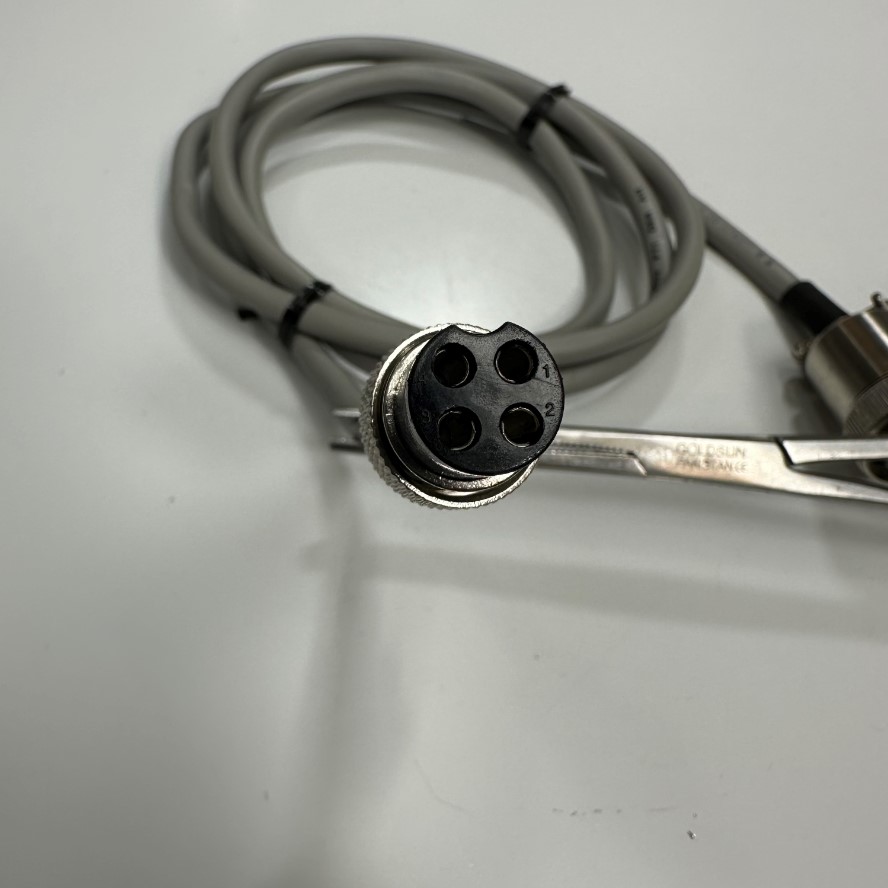

Apex PLT-164-P-R 4 Pin Female Circular Connector

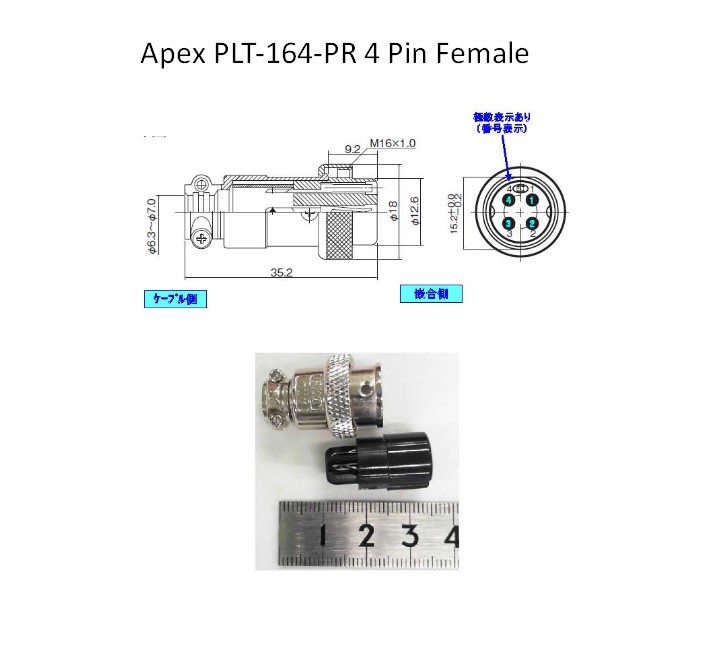

Specifications Diagram Apex PLT-164-PR 4 Pin Female Circular Connector

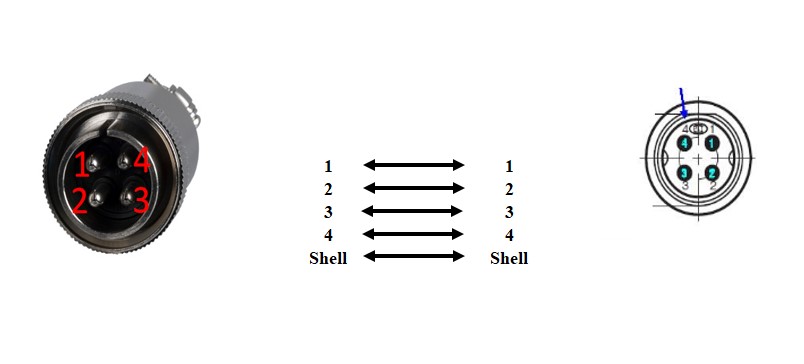

Connector Pins Diagram

Specifications
Brand: Taiwan/Original Signal and Power Cable
Model number: Signal and Power Industrial Communication
Connector Type 1: Hirose RM15TP-4PA(71) 4 Pin Male Circular
Connector Type 2: Apex PLT-164-P-R 4 Pin Female Circular
Contact Plating: Gold-Plated
Number of Conductors: 4 x 0.35mm²
Conductor Size AWG: 22AWG
Voltage Rating: 300V
Cable E74020-C AWM STYLE 2464 80°C 300V VW-1 CSA LL87003 AWM I/II A/B FT1 DER AN
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Outer diameter: 5.5mm
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Operating Temperature: -20°C to 80°C ~105°C
Material: Cu
Shielding: Yes
Color: Grey
Cable Length: 1.2M ~ 4ft
