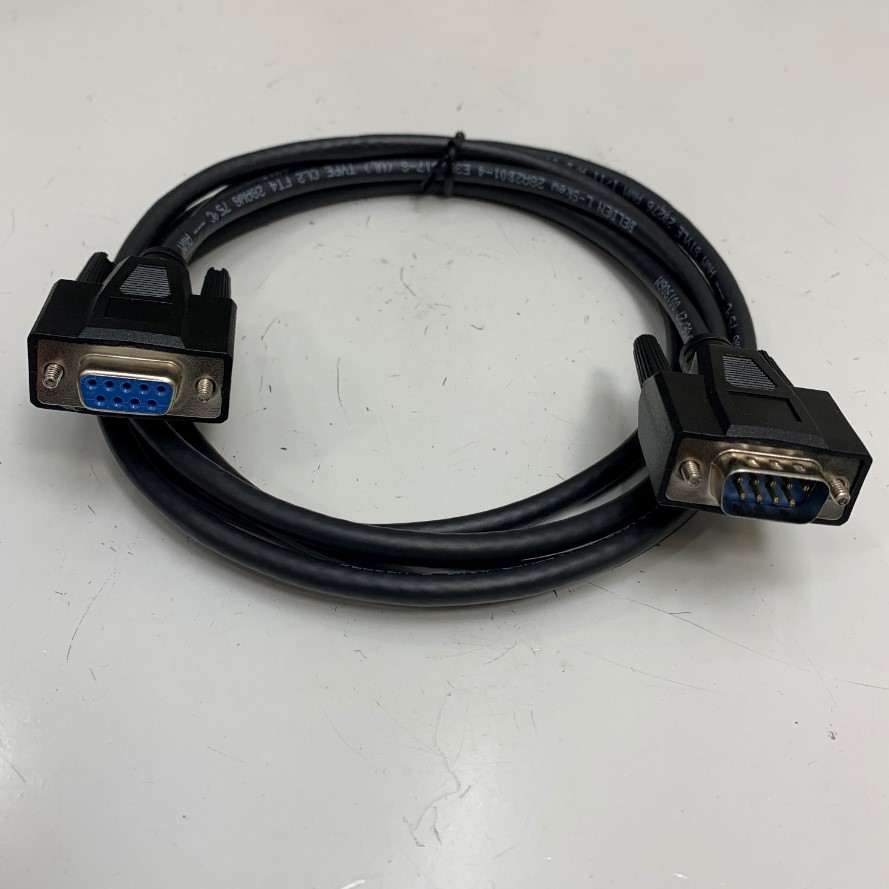

Cáp 2M 6.5ft BELDEN KRS-403XF1K2 RS-232C DB9 Serial 9 Pin Cross RS232 9 Pin Male to Female Shielded Cable Black For Industrial Label Printer Zebra, SATO Thermal Printer, Epson Thermal Printer
Mã SP: 11190
Thương hiệu: KTT Thermal Printer Cable
Loại sản phẩm: DB9M/DB9F RS-232C Cross Cable
Đánh giá
:Giá
:400.000₫
(Giá sản phẩm chưa bao gồm VAT)
Mô tả :
Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc
Bảo hành: 12 tháng
Tình trạng: Còn hàng
Mua Hàng Online
Mr Khanh: 091.301.5851
:khanh81b
Mr Đức: 034.694.3558
: vuvietduc8586
Mr Hiển: 094.816.2498
:hien.thientruong
Mr Khôi: 037.308.1800
Mr Lam: 085.514.0226
Mr Khoa: 098.131.9702
サンワサプライ RS-232Cケーブル KRS-403XF1K2
Specifications
Brand: ViệtNam/Thientruongpc
Hàng theo tiêu chuẩn Việt Nam RS-232C Interface Data Communication
PartNumbe: BELDEN KRS-403XF1K2 Cable RS-232C witch Computer Communication Data Transfer

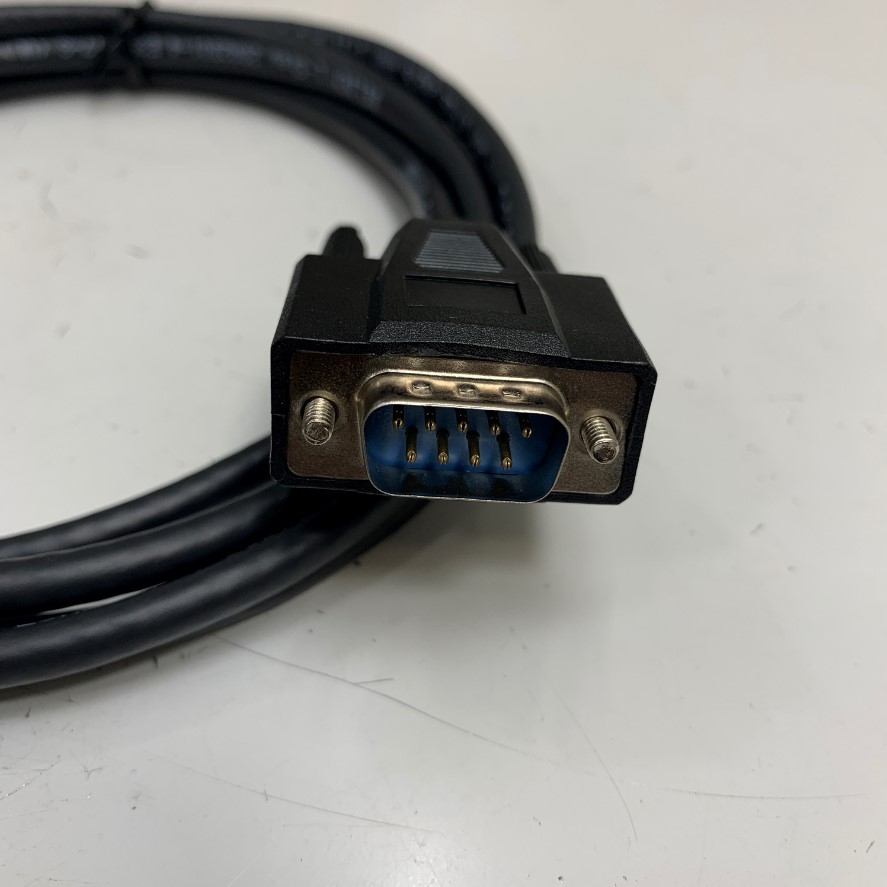

Connector 1: RS232 DB9 Male Thermal Receipt Printer

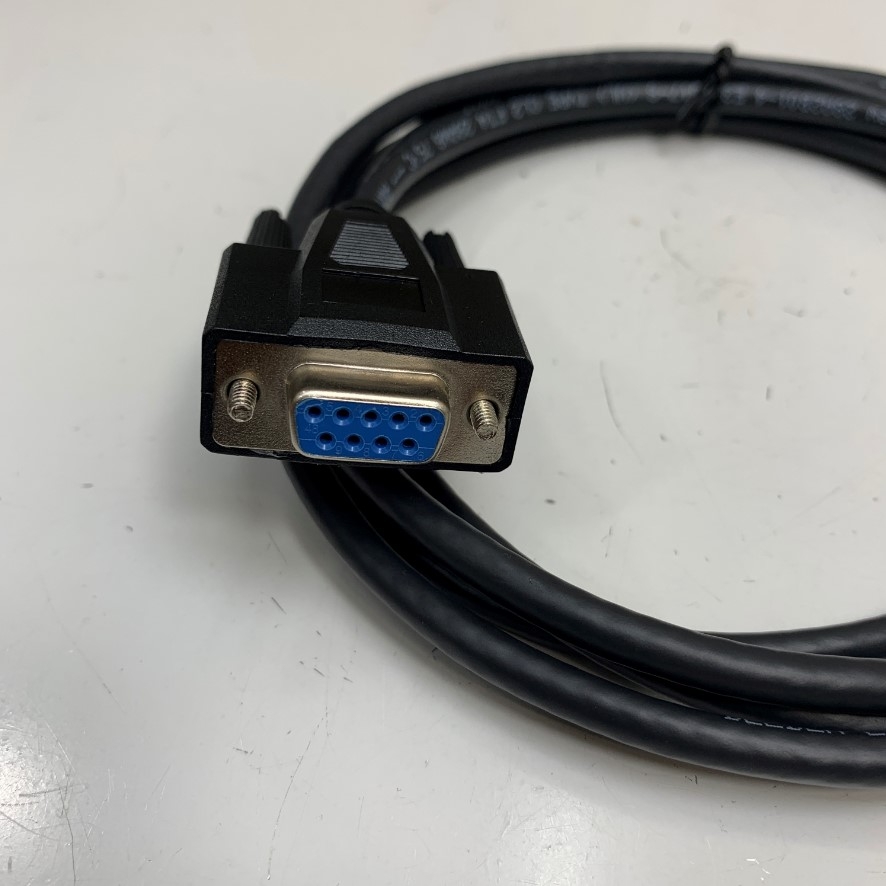

Connector 2: RS232 DB9 Female (Computer/HMI)
Cable Type: Serial Null Modem RS-232C DB9 Male to DB9 Female Cable
Connectors: RS-232C DB9 Male to DB9 Female
Connector plating: Nickle Plated
Wire: Cable Shielded 28AWG 80°C 30V OD 5.8mm
Wire Gauge (AWG): 28 AWG
Jacket Material: PVC 80C VW-1
Voltage Rating: 30V
Cable Style: Round
Wire Diameter (mm): 5.8mm
Shielding: Yes

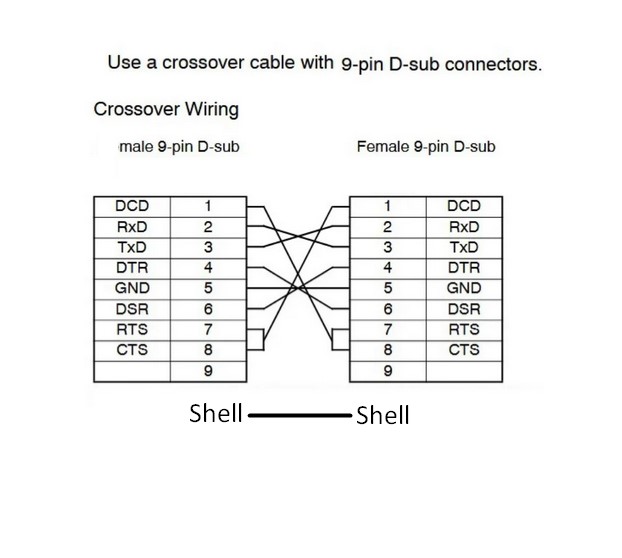

Pin-Out: Connection: 1-7+8 / 2-3 / 3-2 / 4-6 / 5-5 / 6-4 / 7+8-1 / Shield-Shield
Length : 1.8M ~ 6ft
Shield structure: Shielded
Temperature flexible: -5° to +80°
Temperature fixed: -40° to + 80°
Material: Cu
Cáp 2M 6.5ft BELDEN KRS-403XF1K2 RS-232C DB9 Serial 9 Pin Cross RS232 9 Pin Male to Female Shielded Cable Black For Industrial Label Printer Zebra, SATO Thermal Printer, Epson Thermal Printer
