Cáp 10M 33ft CS-DSDMDB50MF-030 DB50 Male to Female 50 Pin D-Sub 3 Rows Data Shielded Cable Black OD 14mm For I/O Signal Encoder Servo Drive/CNC Machining Cable/Siemens Simatic

Mã SP: 11167

Thương hiệu: KTT Industrial/PLC/CNC

Loại sản phẩm: DB50 Male to Female Cable

Đánh giá

:

Giá

:

5.000.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: ViệtNam/Thientruongpc
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Gọi điện

Mua Hàng Online
‬
Mr Khanh: 091.301.5851
:khanh81b

Mr Đức: ‭‭‭034.694.3558‬
‬ : vuvietduc8586

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

Mr Khôi: ‭‭‭037.308.1800
‬
‬ Mr Lam: ‭085.514.0226

Mr Khoa: ‭‭‭098.131.9702

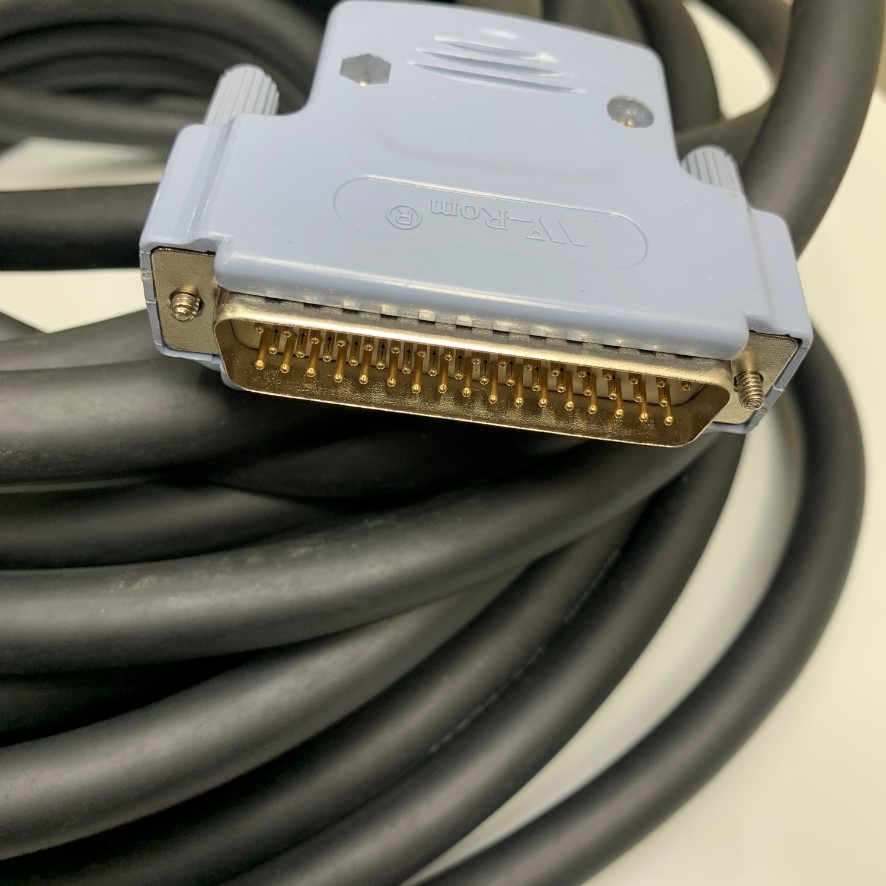

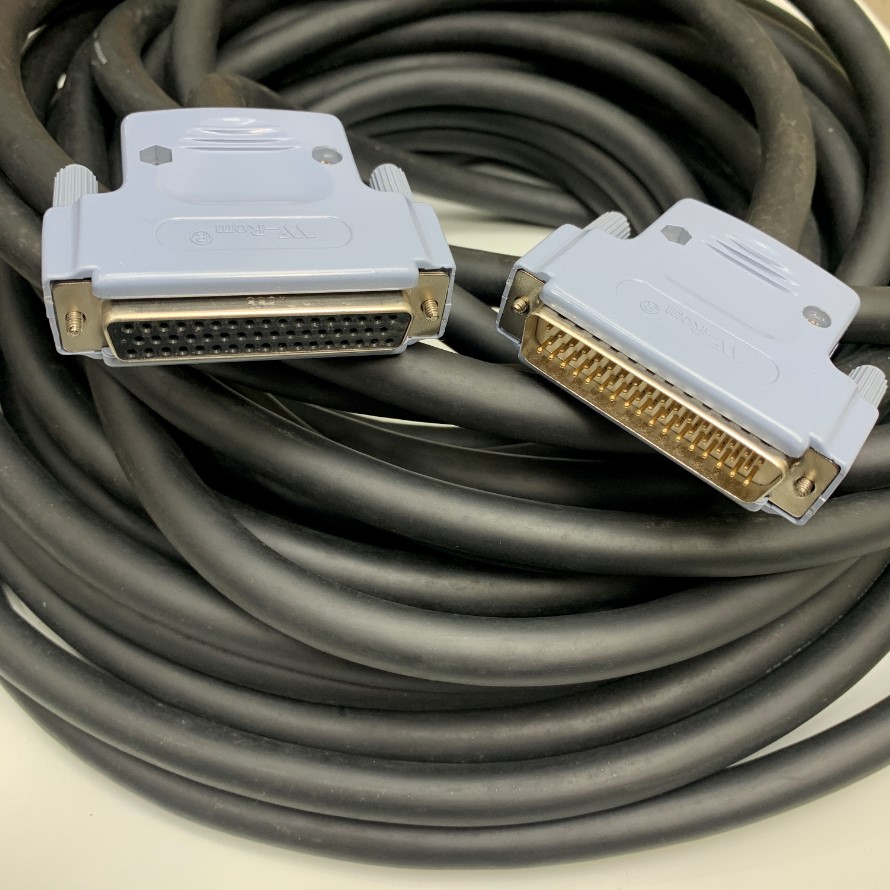

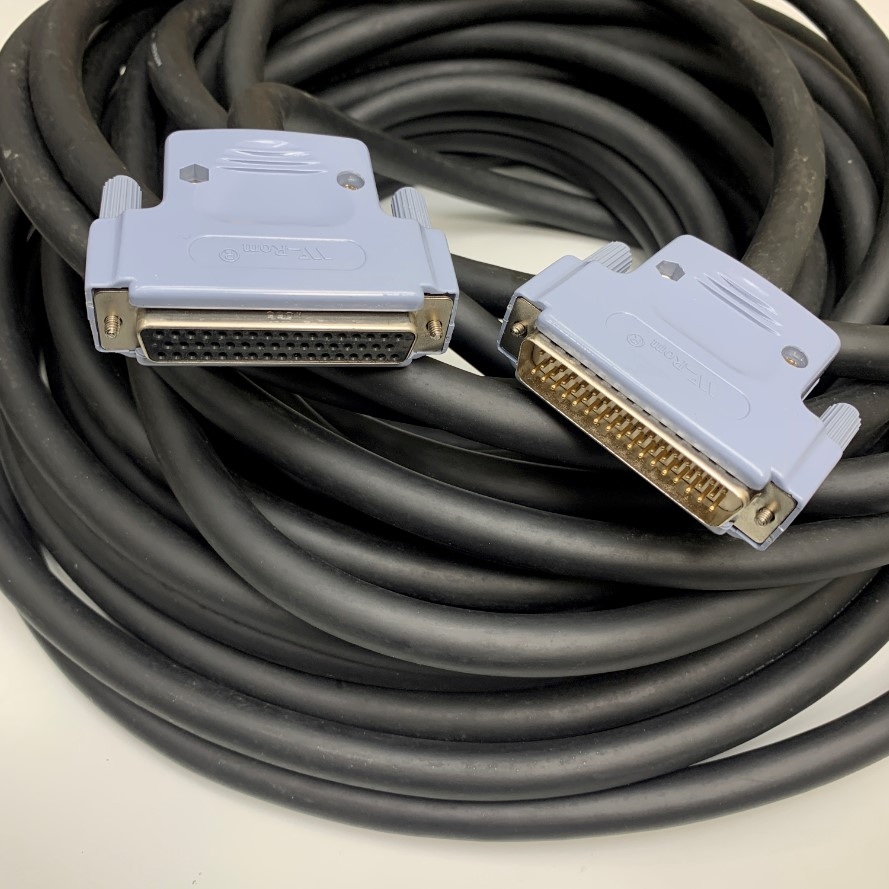

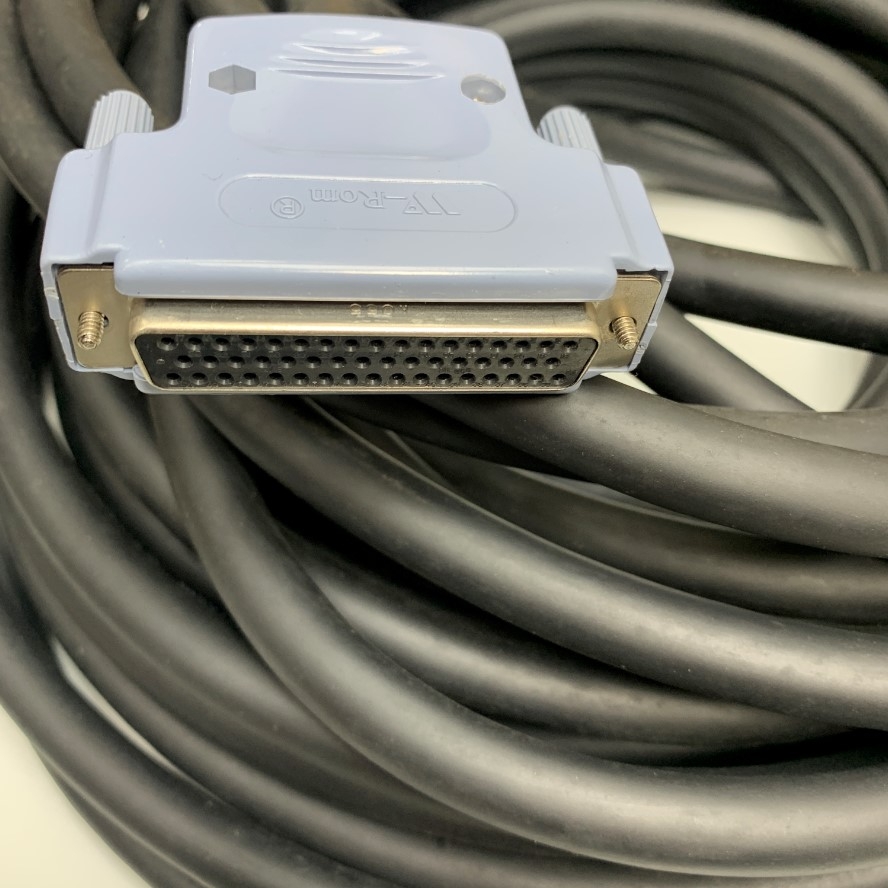

Cable DB50 Male to Female Connector D-SUB 3 Rows 50 Pin

DB50 50 Position Male / Female D-Sub Cables Datasheets

Specifications
PLC Siemens Simatic/CNC Machine Servo Motor Interface IO Control Cable
Brand: ViệtNam/Thientruongpc I/O Signal Data Cable
Cable Type: Communication IO Data Cable
Connector 1: Jack DB50 3 Rows Male Solder Connector With Screw (DB-50H W-ROM Housing Shell)
Connector 2: Jack DB50 3 Rows Famele Solder Connector With Screw (DB-50H W-ROM Housing Shell)
Connector plating: Connector Gold Plated
Gender: DB 50 Pin Male to DB 50 Pin Female
Wire: 28AWG - Cable OD=14mm (HITACHI 25PR 50 Core x 0.25mm² Cable OD 14mm)
Cable: 80°C 300V VW-1
Max Operating Temperature: 85 °C
Min Operating Temperature: -25 °C
Pin-Out: Connection: 1-1 / 2-2 / 3-3 / .-. / .-. / 48-48 / 49-49 / 50-50 / Shield-Shield
Cable Length: 10M ~ 33ft
Color: Black
Cáp 10M 33ft CS-DSDMDB50MF-030 DB50 Male to Female 50 Pin D-Sub 3 Rows Data Shielded Cable Black OD 14mm For I/O Signal Encoder Servo Drive/CNC Machining Cable/Siemens Simatic
