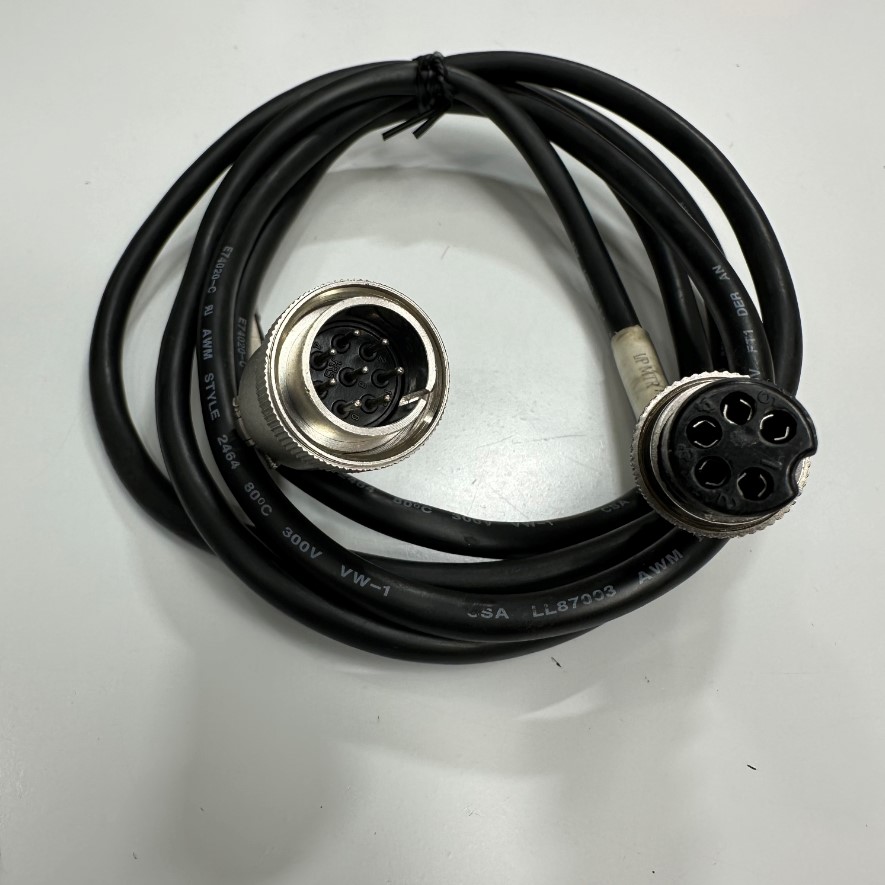

Cáp 1.6M 5.3ft Cable Connector Hirose RM15TP-8PH(71) 8 Pin Male Circular to Apex PLT-165-P-R 5 Pin Female Circular For Signal and Power Cable Industrial

Cáp 1.6M 5.3ft Cable Connector Hirose RM15TP-8PH(71) 8 Pin Male Circular to Apex PLT-165-P-R 5 Pin Female Circular For Signal and Power Cable Industrial

Mã SP: 12371

Thương hiệu: Original I/O Cable

Loại sản phẩm: Hirose 8 Pin Male to Apex PLT 5 Pin Female

Đánh giá

Giá

2.500.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: Taiwan/Original Signal and Power Cable
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Mua Hàng Online
‬
Mr Khanh: 091.301.5851

Mr Lam: ‭085.514.0226‬‬

Mr Khoa: ‭‭‭098.131.9702‬

Mr Khôi: ‭‭‭037.308.1800
‬
Hỗ trợ kỹ thuật Khanh: ‭038.724.5670‬

Chi Tiết Sản Phẩm

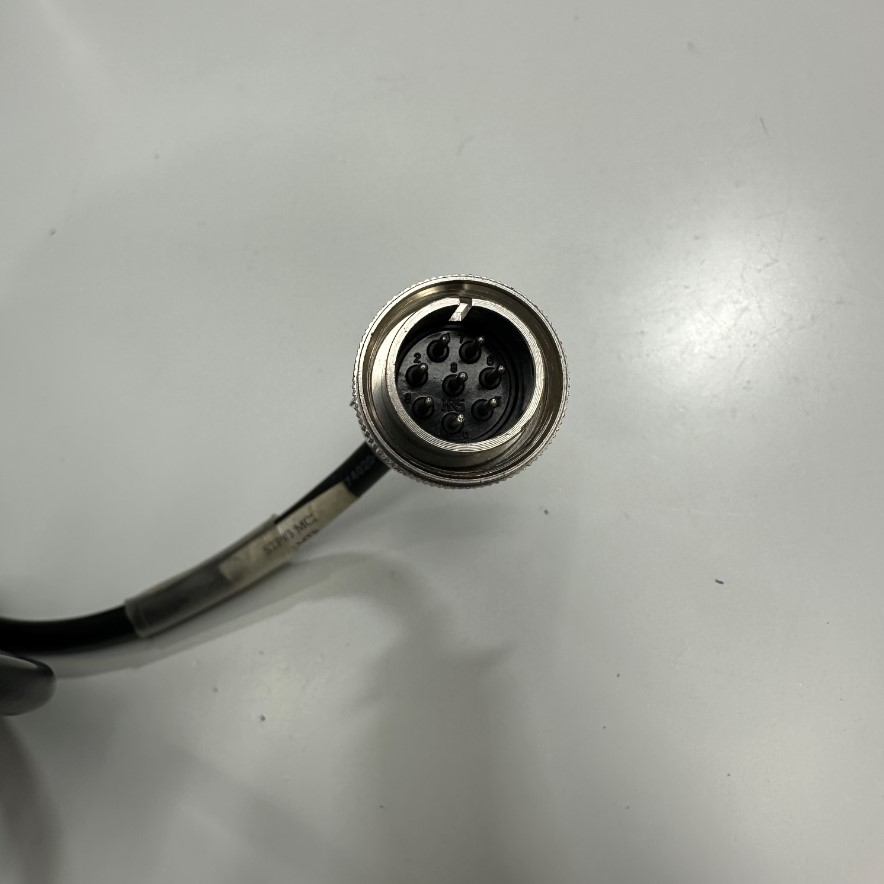

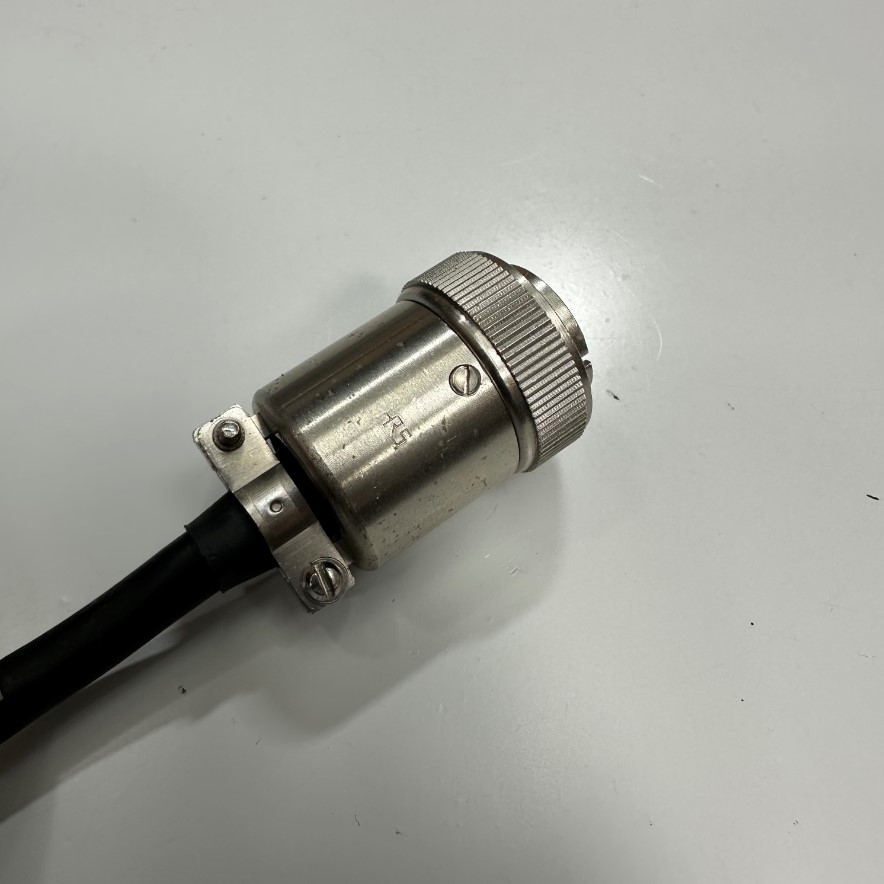

Hirose RM15TP-8PH(71) 8 Pin Male Circular Connector

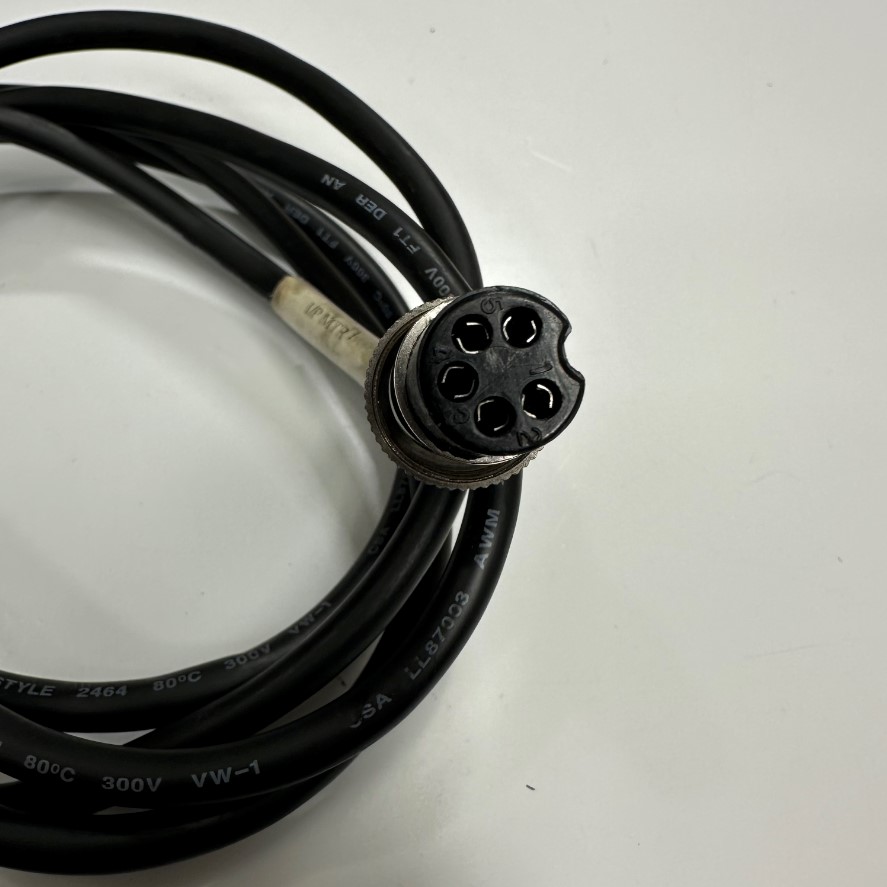

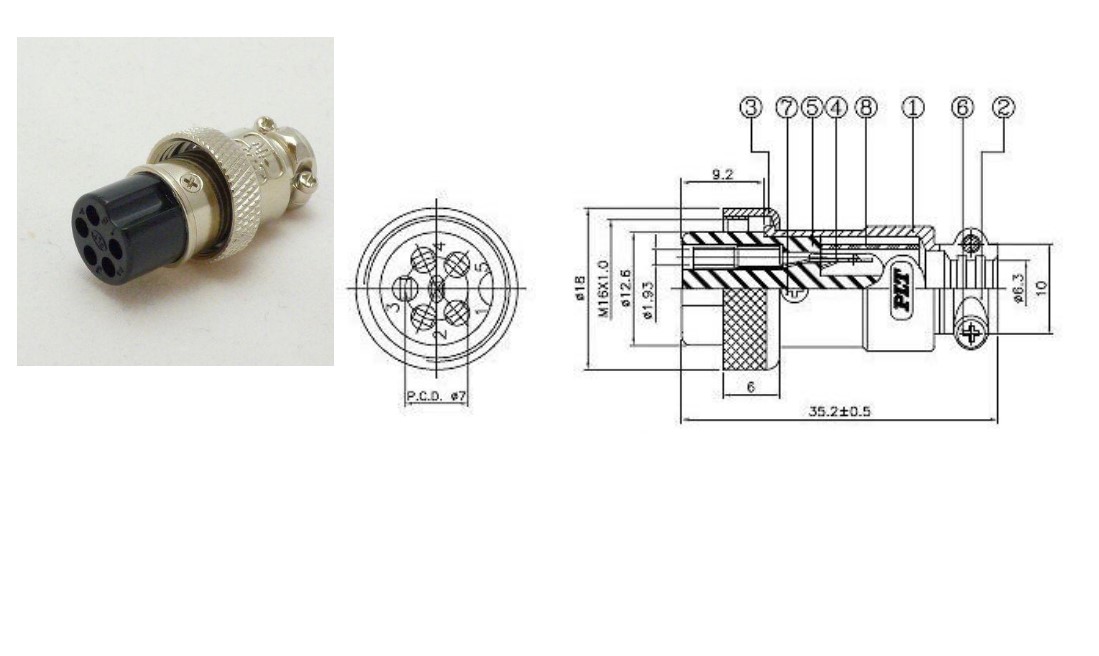

Specifications Diagram Apex PLT-165-P-R 5 Pin Female Circular Connector

Connector Pins Diagram

Specifications
Brand: Taiwan/Original Signal and Power Cable
Model number: Signal and Power Industrial Communication
Connector Type 1: Hirose RM15TP-8PH(71) 8 Pin Male Circular
Connector Type 2: Apex PLT-165-P-R 5 Pin Female Circular
Contact Plating: Gold-Plated
Number of Conductors: 4 x 0.35mm²
Conductor Size AWG: 22AWG
Voltage Rating: 300V
Cable E74020-C AWM STYLE 20276 80°C 30V VW-1 CSA LL78003 DER AN
Cable Jacket Material: PVC (Polyvinyl Chloride)
Material Shape: Round Wire
Outer diameter: 6.0mm
Dielectric Withstanding Voltage: 500V AC (r.m.s.) / 1 minute
Operating Temperature: -20°C to 80°C ~105°C
Material: Cu
Shielding: Yes
Color: Black
Cable Length: 1.6M ~ 5.3ft
