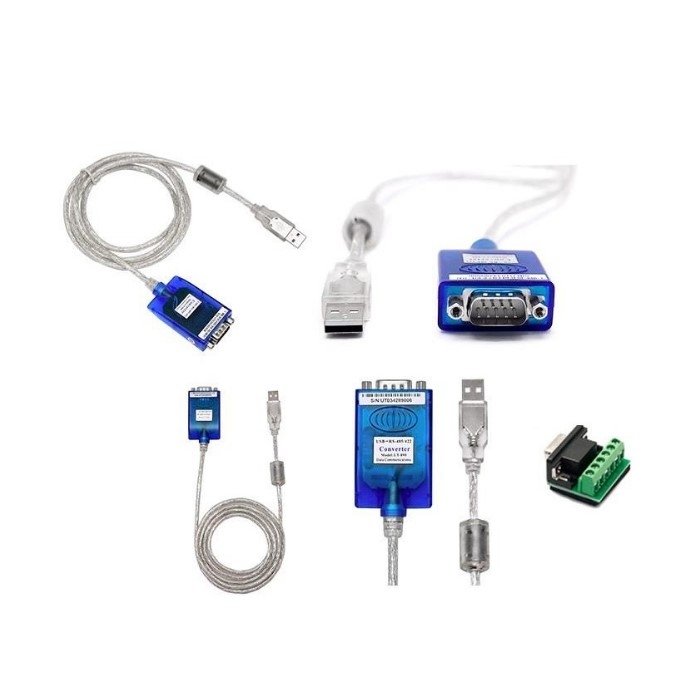

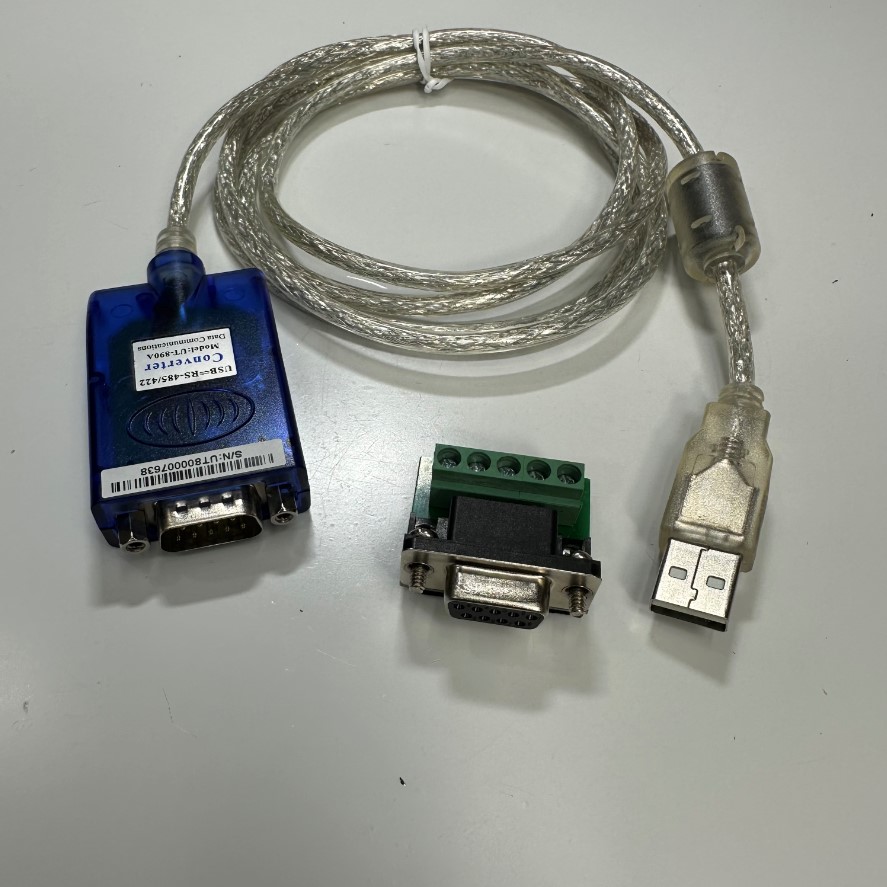

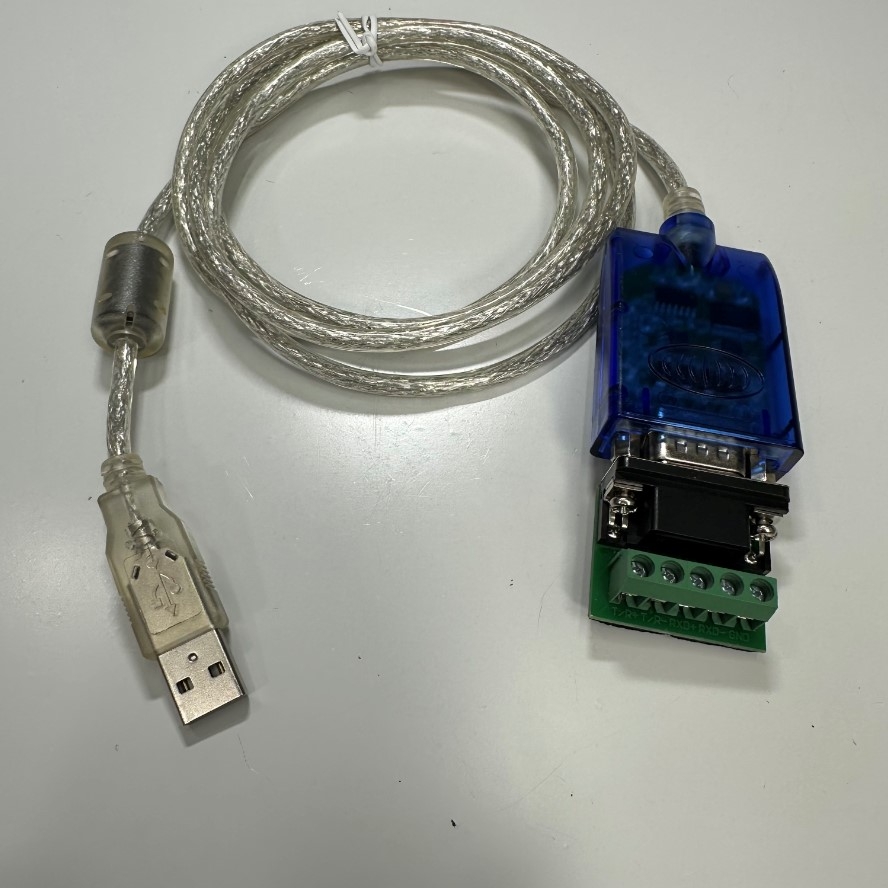

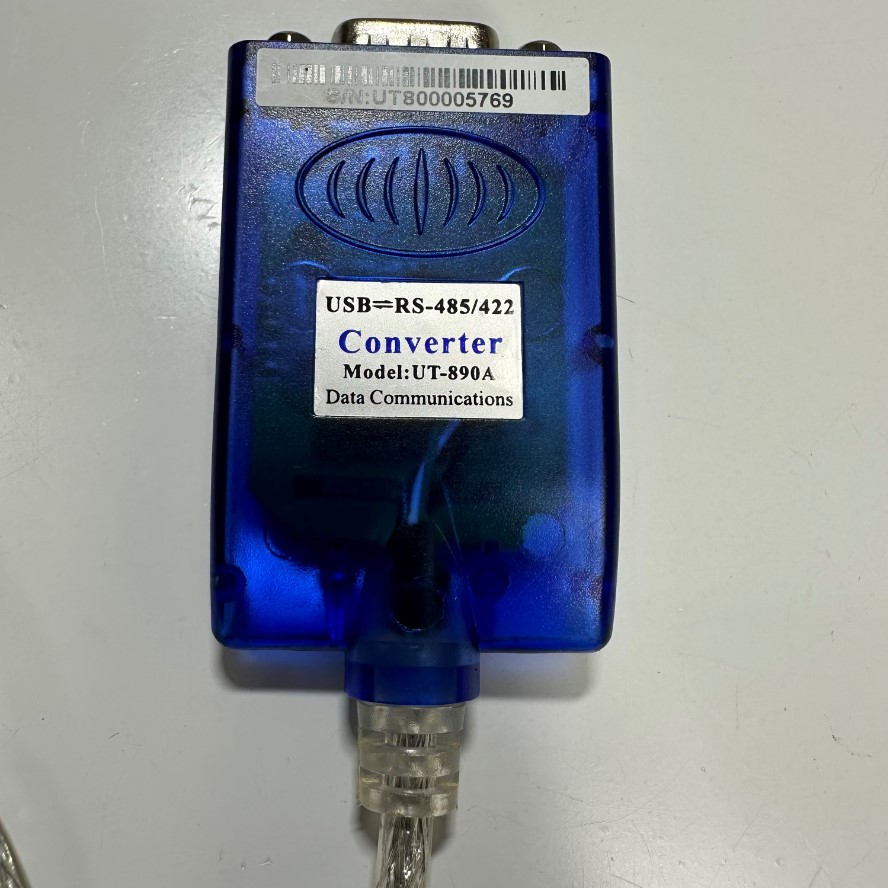

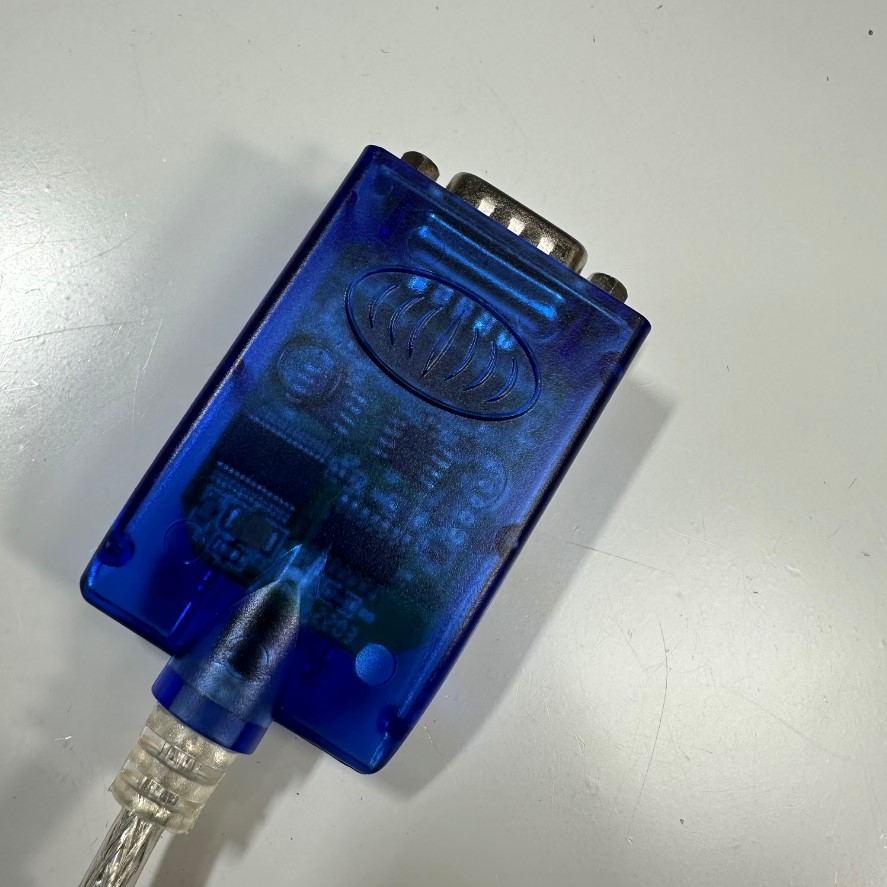

Bộ Chuyển Đổi UOTEK UT-890A USB 2.0 to Serial RS-485/422 Converter 1.5M For Thiết Bị Công Nghiệp Data Industrial Software

Mã SP: 8466

Thương hiệu: UOTEK

Loại sản phẩm: USB to RS422/RS485 Converter

Đánh giá

:

Giá

:

600.000₫

(Giá sản phẩm chưa bao gồm VAT)

Mô tả :

Xuất xứ/Nguồn hãng: China/UOTEK
Bảo hành: 12 tháng
Tình trạng: Còn hàng

Mua Hàng Online

Mr Hiển: ‭094.816.2498‬
:hien.thientruong

‬ Mr Đức: ‭‭‭034.694.3558‬
: vuvietduc8586

Mr Khanh: 091.301.5851
:khanh81b

Mr Khoa: ‭‭‭098.131.9702

‬ Mr Lam: ‭085.514.0226

Mr Khôi: ‭‭‭037.308.1800

● Standards: USBV1.1, 1.0, 2.0, RS-485, RS-422 EIA
● USB Signal: VCC, DATA+, DATA-, GND, FG

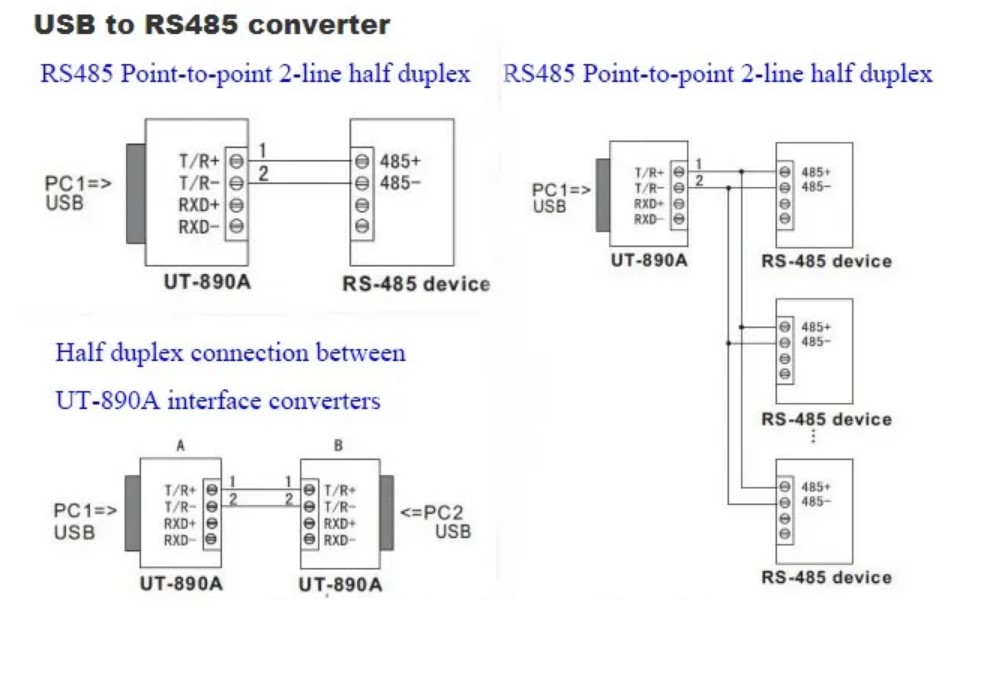

● RS-485 signal: T/R+, T/R-, GND

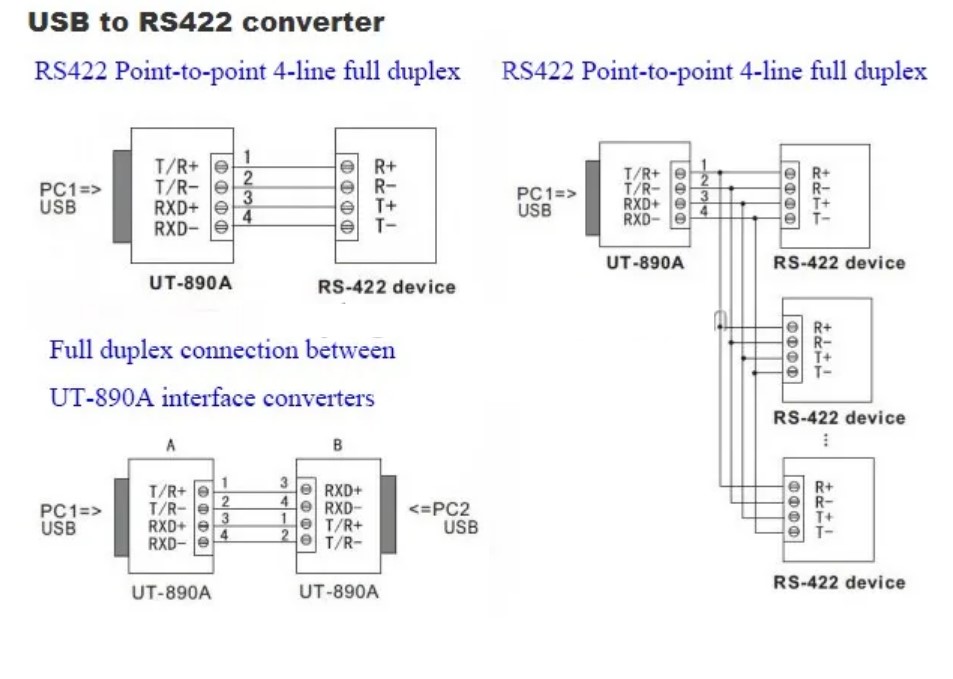

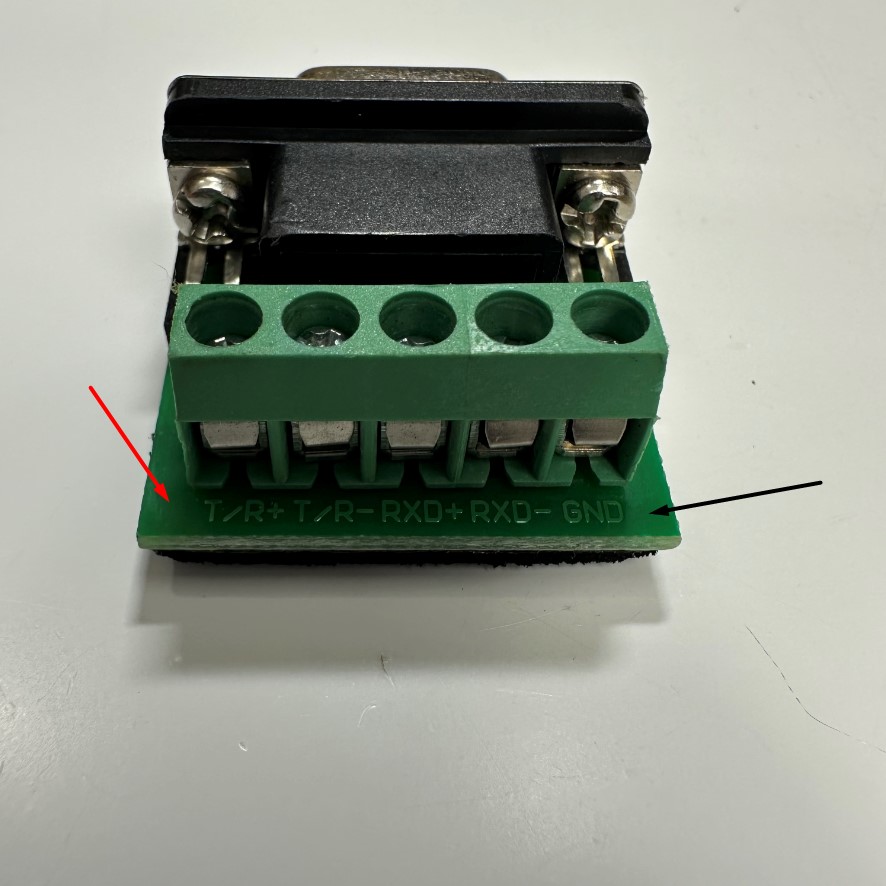

● RS-422 signal: T/R+, T/R-, RXD+, RXD-, GND
● Working mode: Asynchronous, point to point or point to multi-point, 2 wires half-duplex or 4 wires full-duplex
● Direction control: Adopts traffic direction auto control technology
● Baud rate: 300-921.6Kbps auto-detect serial signal
● Loading capacity: Supports point to multi-point communication, allows to connect 32 sets RS-422 or RS-485 device
● Transmission distance: 1,200m(9,600bps) for RS-485/422, no more than 5m for USB
● Port protection: surge, ±15KV ESD protection

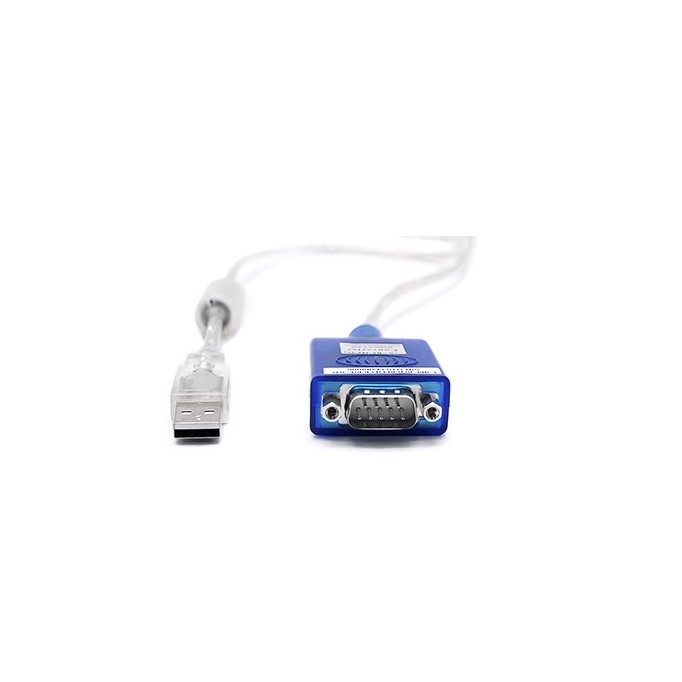

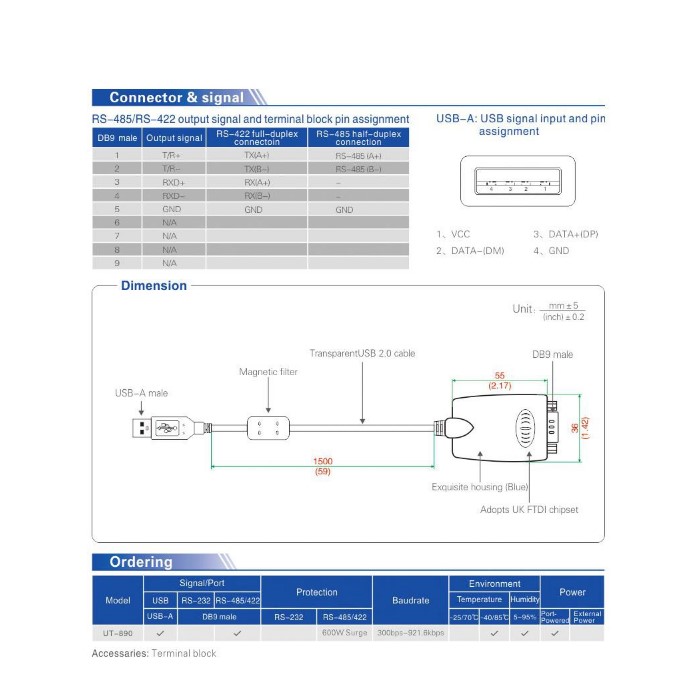

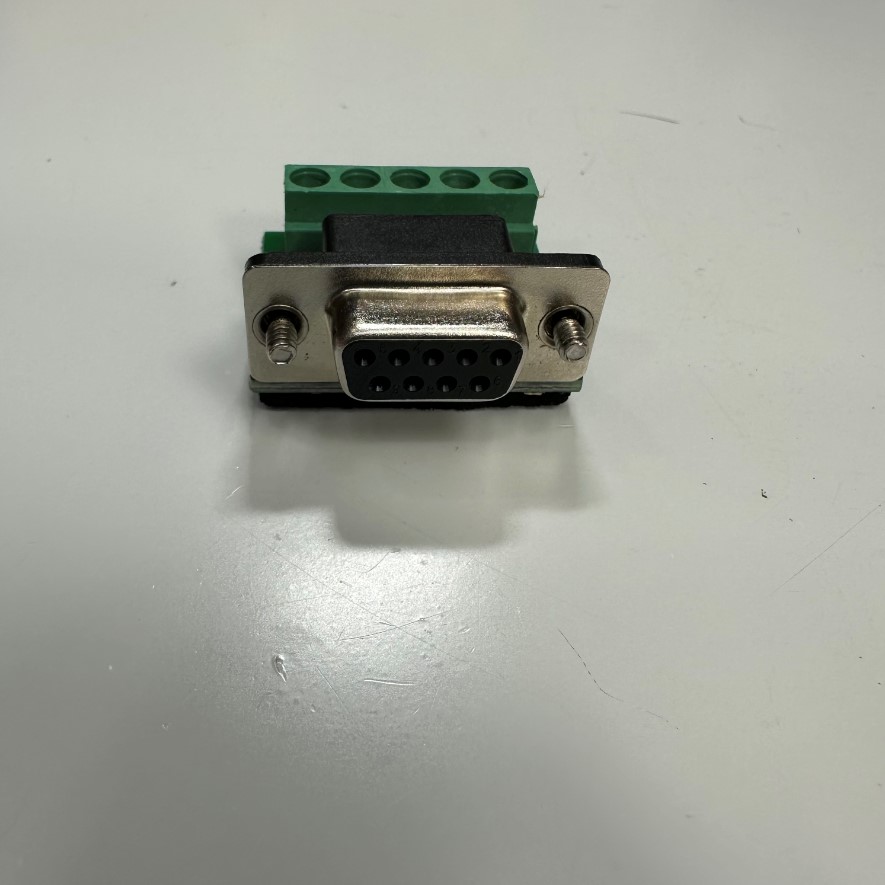

● Connector: USB-A male, DB9 male
● LEDs for indicating PWR TXD, and RXD activity
● Transmission media: Twisted-pair or shielded cable
● Length: 1.5m
● Operating temperature: -40℃ to 85℃
● Relative humidity: 5% to 95%
● Transmission distance: 0-1,200m

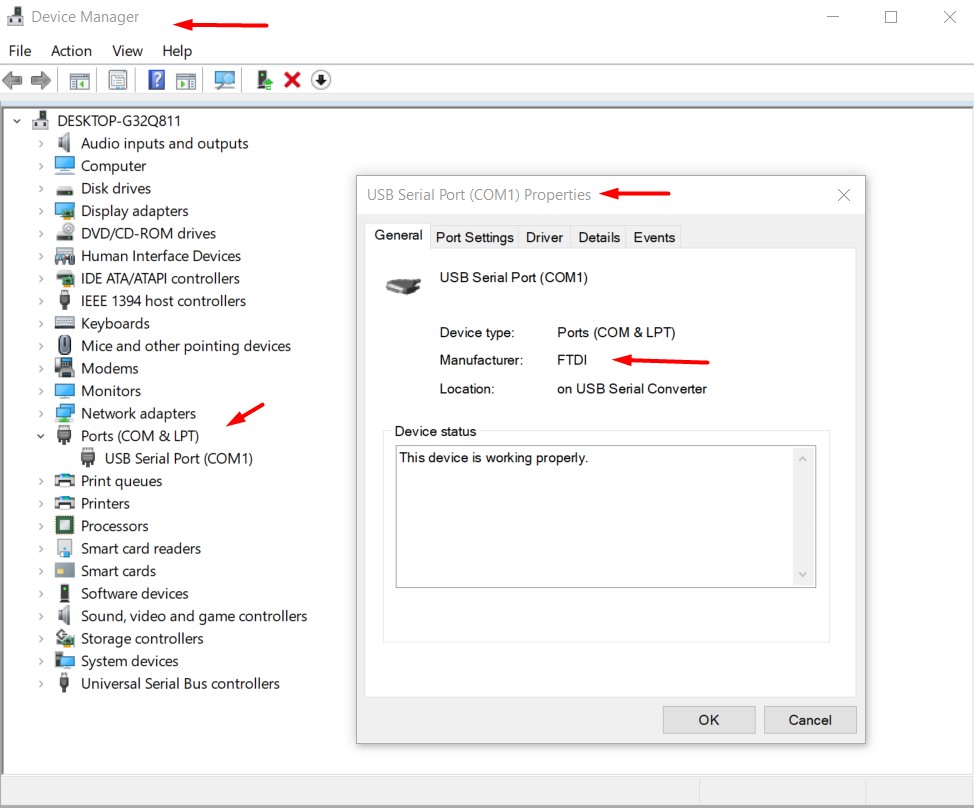

● Supports Win2000/2003/2008/2012/XP/Vista/7/8/8.1/10/CE/Mac/Linux
Bộ Chuyển Đổi UOTEK UT-890A USB 2.0 to Serial RS-485/422 Converter 1.5M For Thiết Bị Công Nghiệp Data Industrial Software
