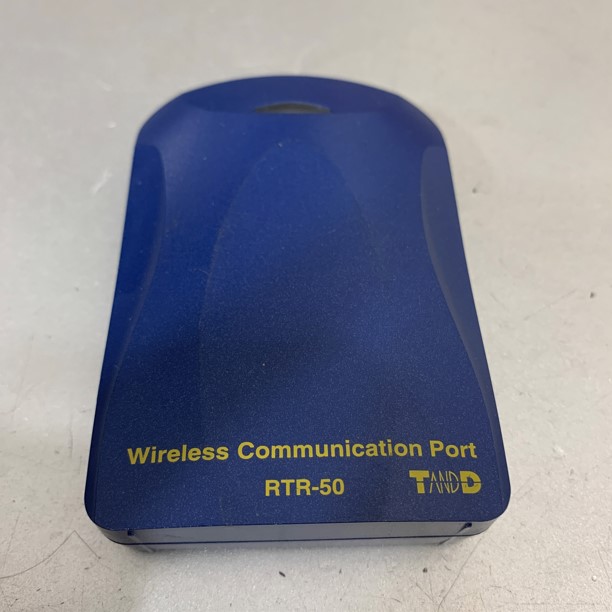

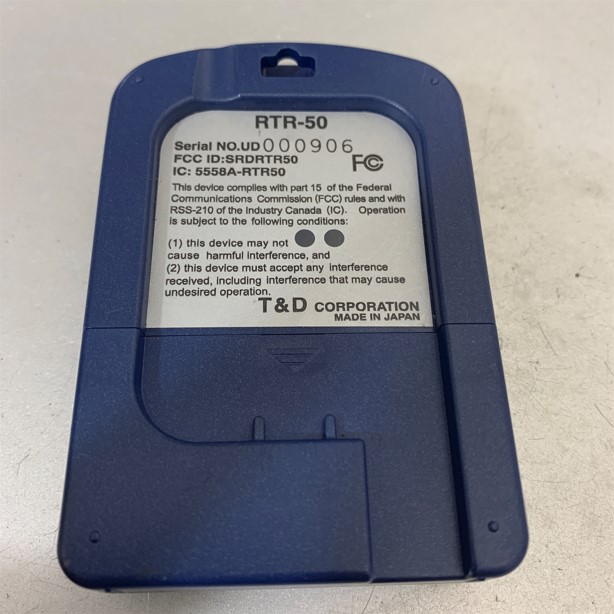

Bộ Chuyển Đổi RS232 Không Dây Wireless Communication Port RTR-50 Legacy USB Connected Base Station and Repeater

TR-50

Compatible Devices

RTR-51(L)/51A(L)/52(L)/52A(L)/52Pt(L)/53(L)/53/53A(L)/RVR-52A(L)

Functions

Wireless Communication: Download Data, Monitoring / Warning Monitoring, Start / Stop Recording, Wireless Repeater Function
Optical Communication: Download Data / Start / Stop Recording

Wireless Specifications

ETSI EN 300-220 [ Frequency Range: 433.050 to 434.79MHz ],
FCC Part15 Section249 / IC RSS-210 [ Frequency Range: 902 to 928MHz ]

Power

Base Unit : USB bus power, AC Adaptor(AD-0604 or AD-0638(*1) )

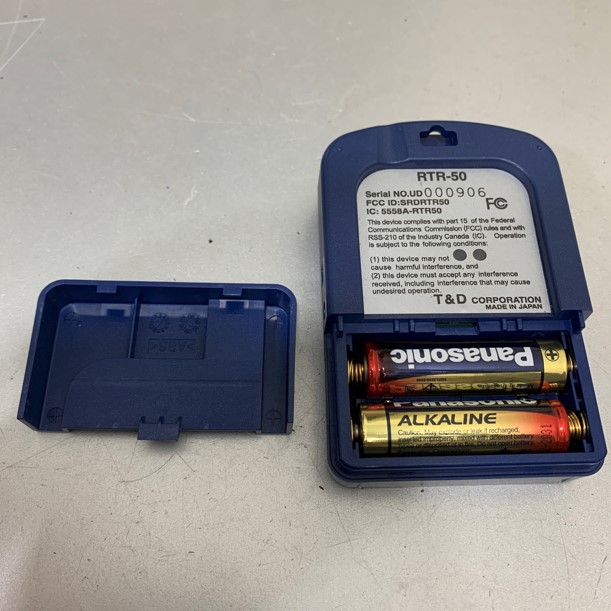

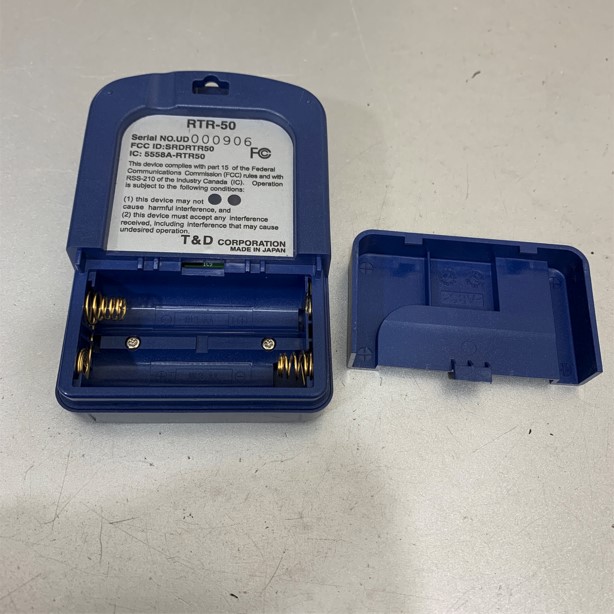

Repeater : 2 AA batteries, AC Adaptor(AD-0604 or AD-0638(*1) )

Battery Life

6 Months of continued use on 2 AA alkaline batteries when used as Repeater for five minutes a day.

Communication Time

Wireless Communication:
1 unit of full data takes about 420 seconds (when Repeater not used) When communicating via Repeaters, the approximate time for that communication is calculated as follows: "420 seconds + (Number of Repeaters x 420 seconds)".

Optical Communication:
1 unit of full data takes about 160 seconds

LED

Green LED
(Blinks during Wireless Communication and PC Communication)

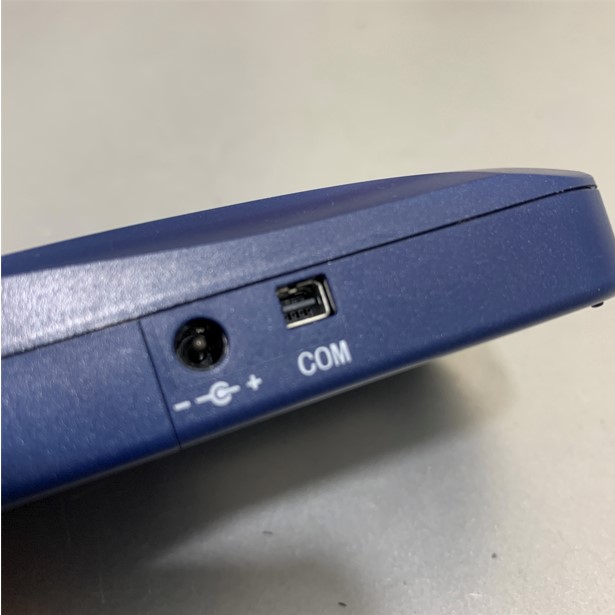

Interface

USB miniB Connector / Serial [Mini serial] (19200bps)

Operating Environment

Temperature: -10 to 60 °C (-30 to 60 °C when external power connected)
Humidity: 20 to 80%RH (No condensation)

Dimensions

H 96 - W 66 - D 25mm

Weight

Approx. 60g (Batteries not included)

Standard Kit

USB Communication Cable - 1,
RTR-50 for Windows Software CD-ROM - 1, Users Manual - 1

Compatible OS

Microsoft Windows 7 32/64bit English
Microsoft Windows Vista 32bit English
Microsoft Windows XP 32bit(SP2 or above)
