Cầu Đấu Siron T003-D 20 Pin MIL to 2 Port IDC Soket 10 Pin 2.5mm Terminal Block PLC Programming Screw DIN Rail Terminal Block

Cầu Đấu Siron T003-D 20 Pin MIL to 2 Port IDC Soket 10 Pin 2.5mm Terminal Block PLC Programming Screw DIN Rail Terminal Block For Panasonic Fp Series with Indicator Light

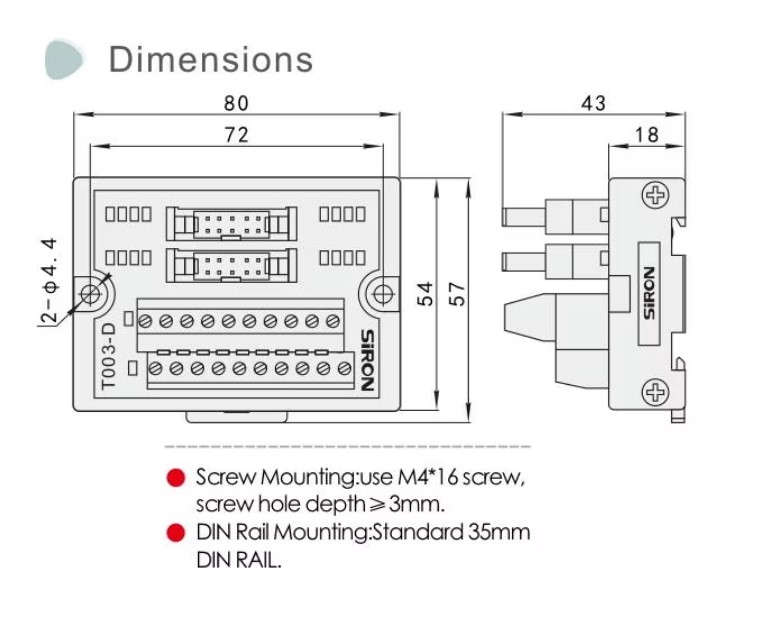

Siron T003-D Terminal Block Dimensions

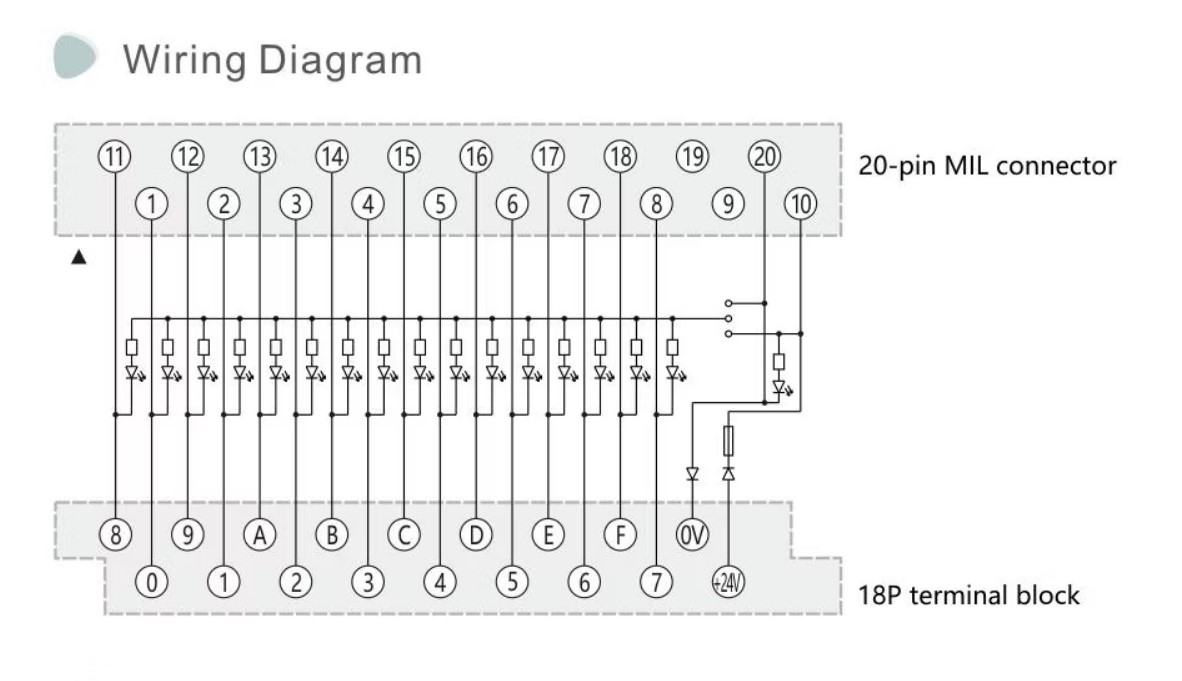

Siron T003-D Terminal Wiring Block Diagram

Specifications
Brand: Taiwan/Siron Original Terminal Block
Model: Siron T003-D Terminal Block
Suittable PLC: Panasonic Fp Series
Suitable PLC: Omron
DIN Rail Mounting: Standard 35mm DIN Rail
Name: 16-Bit Transfer Terminal Board
Interface Type: 20 Pin MIL
Interface Type: IDC Soket
Nominal Coil Voltage: DC24V
Nominal Operating Current: 1A
Suitable cable: X216-1; X216-2; X21-1-500MM
Suitable PLC: Panasonic
FP0-C16T/C16CT(IN)
FP0-C16P/C16CP(IN)
FP0-C32T/C32CT/T32CT(IN)
FP0-C32P/C32CP/T32CP(IN)
FP0-E16T/P(IN)
FP0-E32T/P(IN)
FP0-E8X
FP0-E16X
Fp∑-C28(IN)
Fp∑-C32(IN)
FP0-C16T/C16CT(Out)
FP0-C16P/C16CP(Out)
FP0-C32T/C32CT/T32CT(Out)
FP0-C32P/C32CP/T32CP(Out)
FP0-E16T/P(Out)
FP0-E32T/P(Out)
FP0-E8YT
FP0-E16YT
Fp∑-C32L(Out)
Fp∑-C28L(Out)
