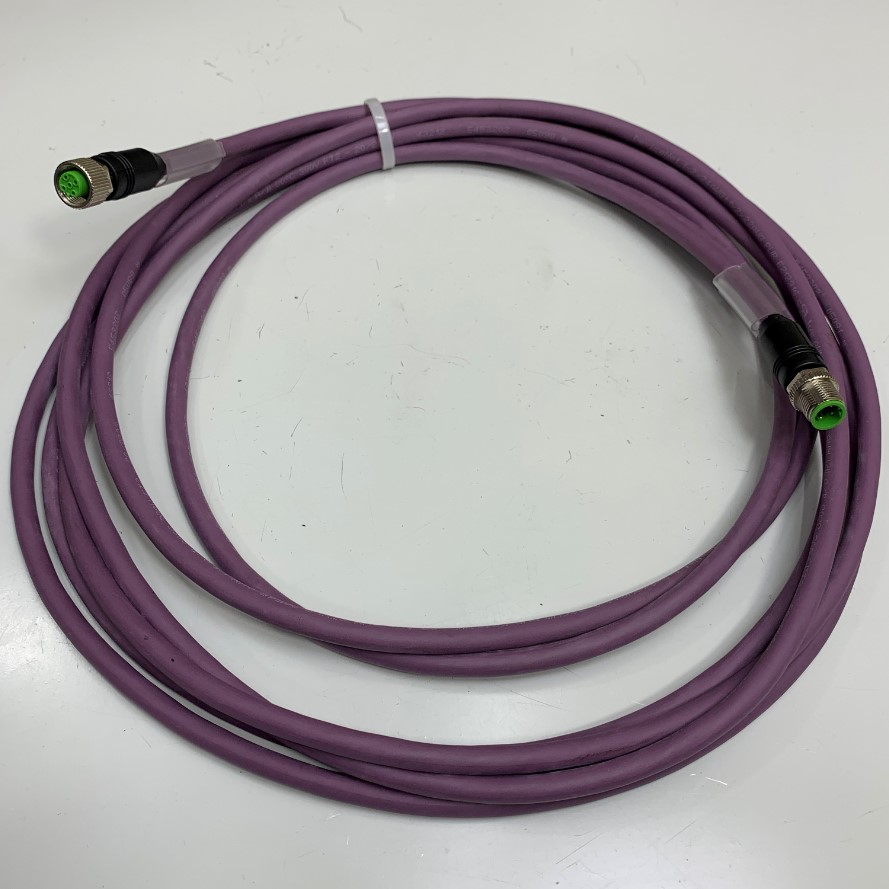

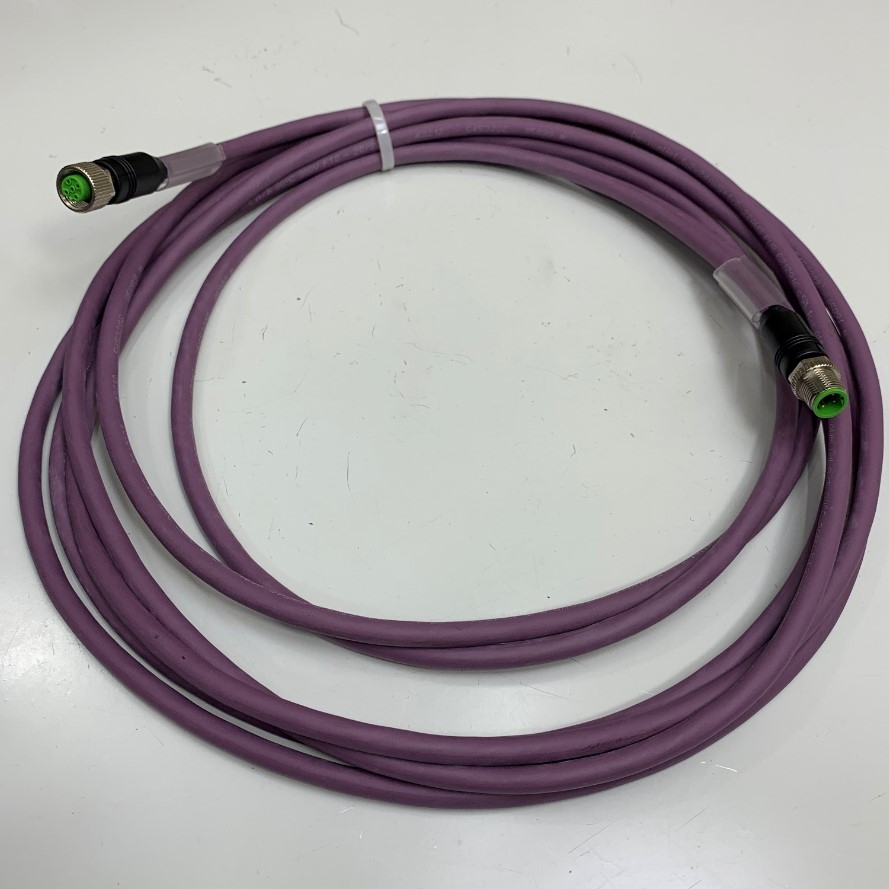

Cáp Murrelektronik 7000-44032-8030500 Dài 5M 17ft Cable M12 B-Code 4 Pin Male to M12 B-Code 4 Pin Female Shielded 24AWG 2 x 0.25mm² + 2 x 0.34 mm² 22AWG For Sensor Actuator Cable

MURRELEKTRONIK 7000-44032-8030500 CABLE

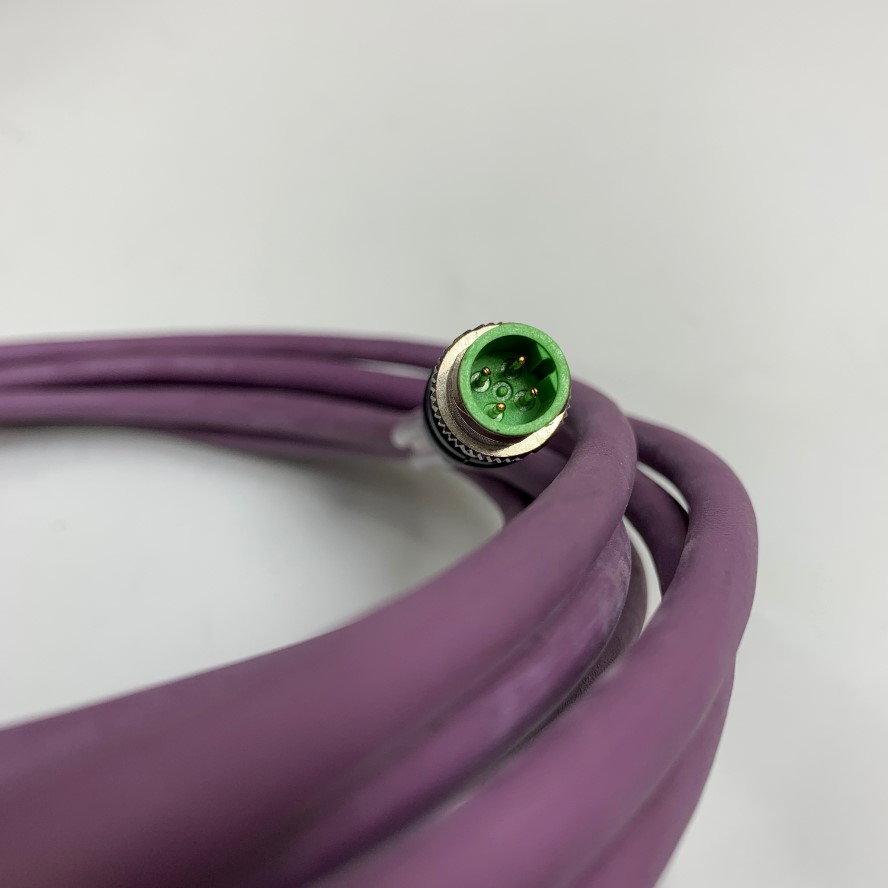

Connector M12 B-Coded 4 Pin Male

Cable DeviceNet 1x2x24AWG+1x2x22AWG PUR E212916 AWM STYLE 20549 80°C 300V FT2

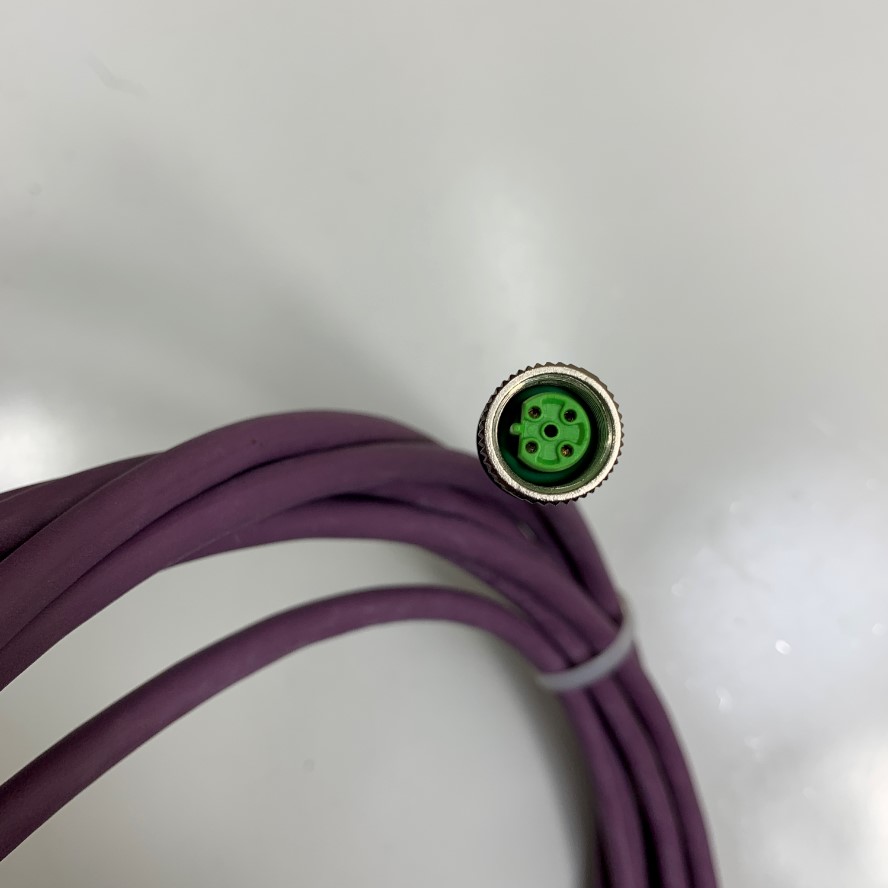

Connector M12 B-Coded 5 Pin Female

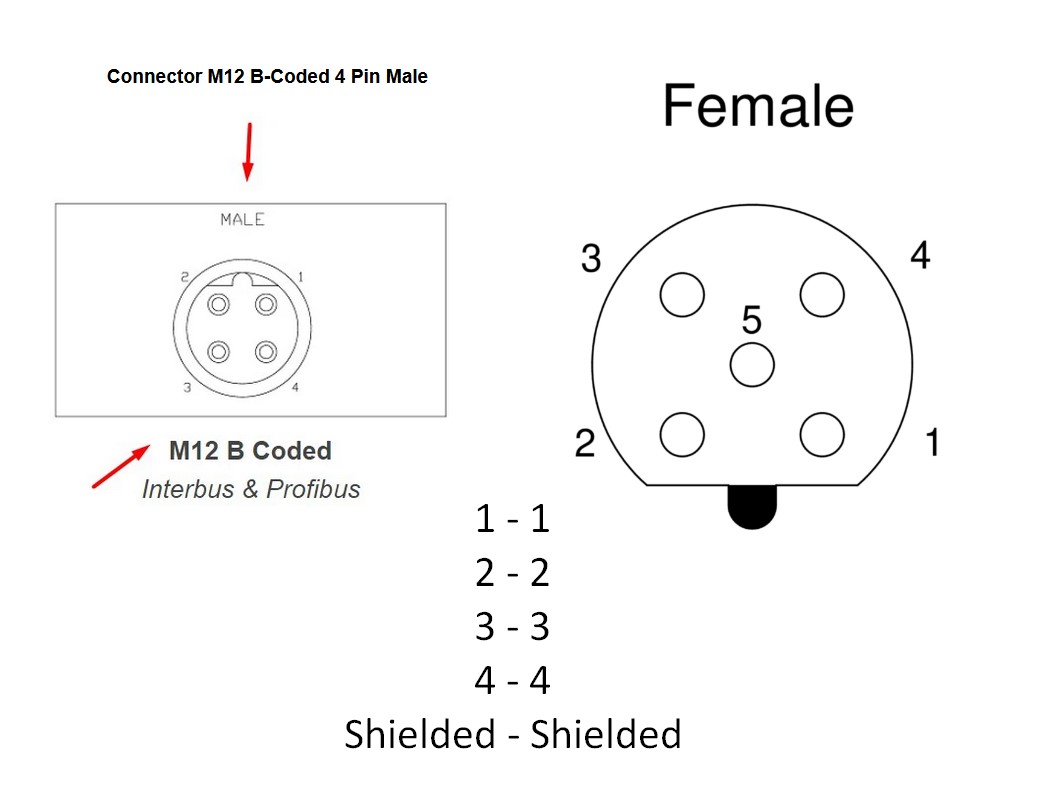

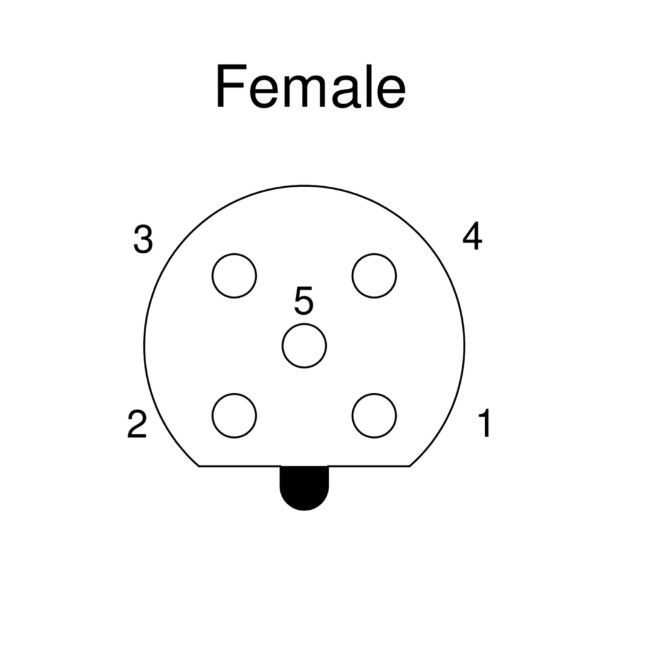

Pin-Out: Connection

Specifications
Primary brand: Murrelektronik
Main function: Cable
Product series / family name: Cabling systems
Sub-range name: straight connector (M12) to straight connector (M12)
Functions: Connecting cable / cordset
Design: shielded
Number of circuits: 4 circuits
Color: violet jacket
Rated Voltage (DC): 60Vdc max.
Rated voltage (AC): 60Vac max.
Connection type:
4-pin straight male M12 B-coded connector
4-pin straight female M12 B-coded connector
Cross-section:
2 x 0.25mm2 + 2 x 0.34mm2
2 x #24AWG + 2 x #22AWG
Length: 5m ~ 16ft
Degree of protection: IP67
Material
Polyurethane (PUR) jacket
Tin-plated Copper (Cu) wire
Zinc die-cast Nickel-plated lock
Polyurethane (PUR) connector
Ambient air temperature for operation: -25...+85 °C
