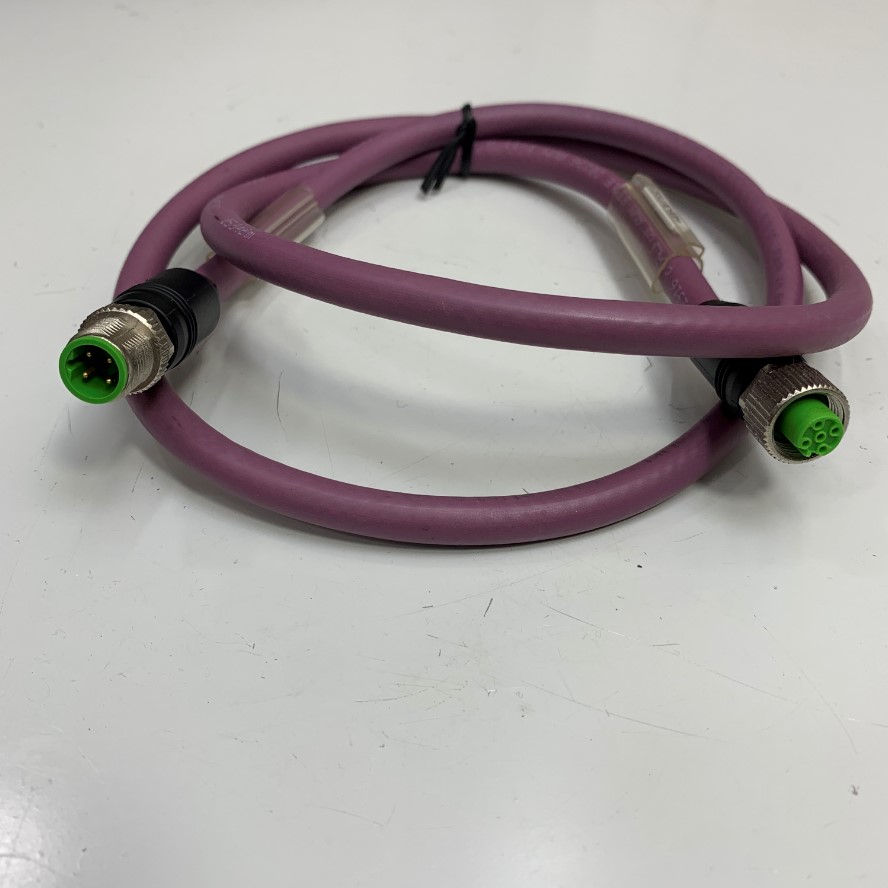

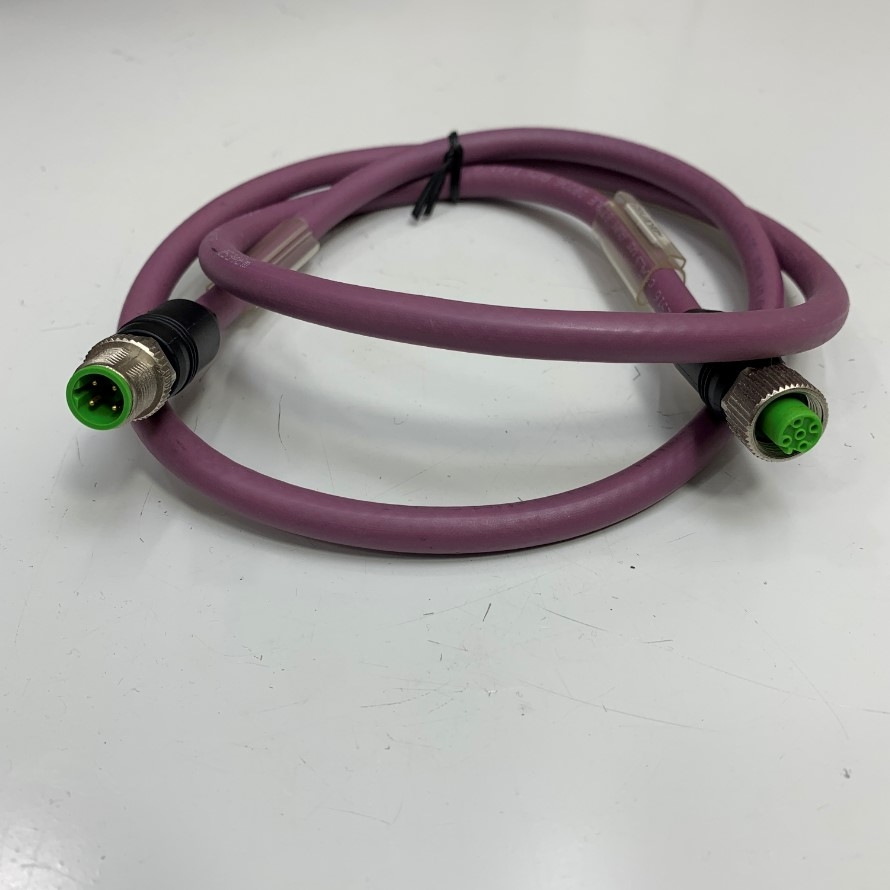

Cáp Murrelektronik 7000-44001-8400100 Dài 1M 3.3ft Cable M12 B-Code 4 Pin Male to M12 B-Code 2 Pin Female Shielded 24AWG 2x0.25mm² For Sensor/actuator boxes, Fieldbus modules and Industrial controllers

7000-44001-8400100 Murr Elektronik Sensor Automation cable M12-M12

Cable L2 PROFIBUS FAST-Connect 1P24/2.55 150 Ohm AWM STYLE 20236 80°C 30V FT1

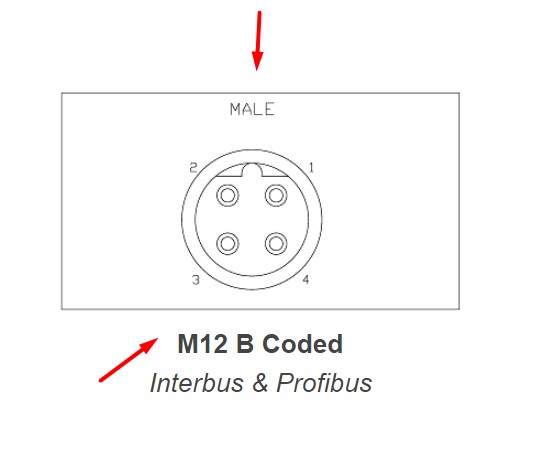

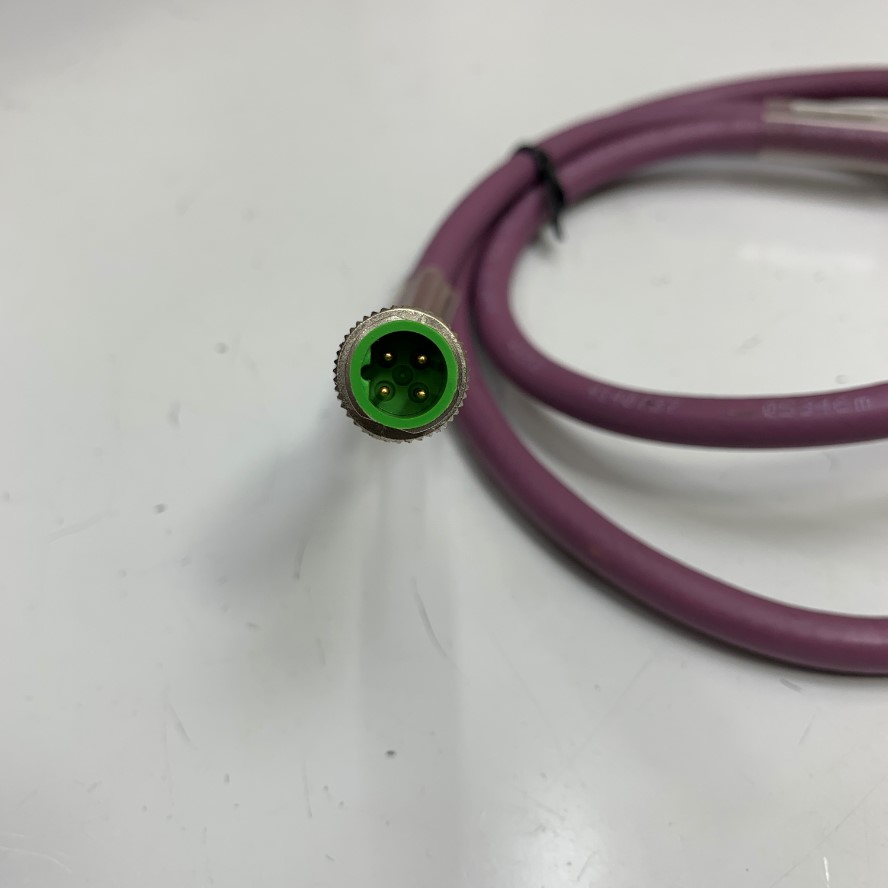

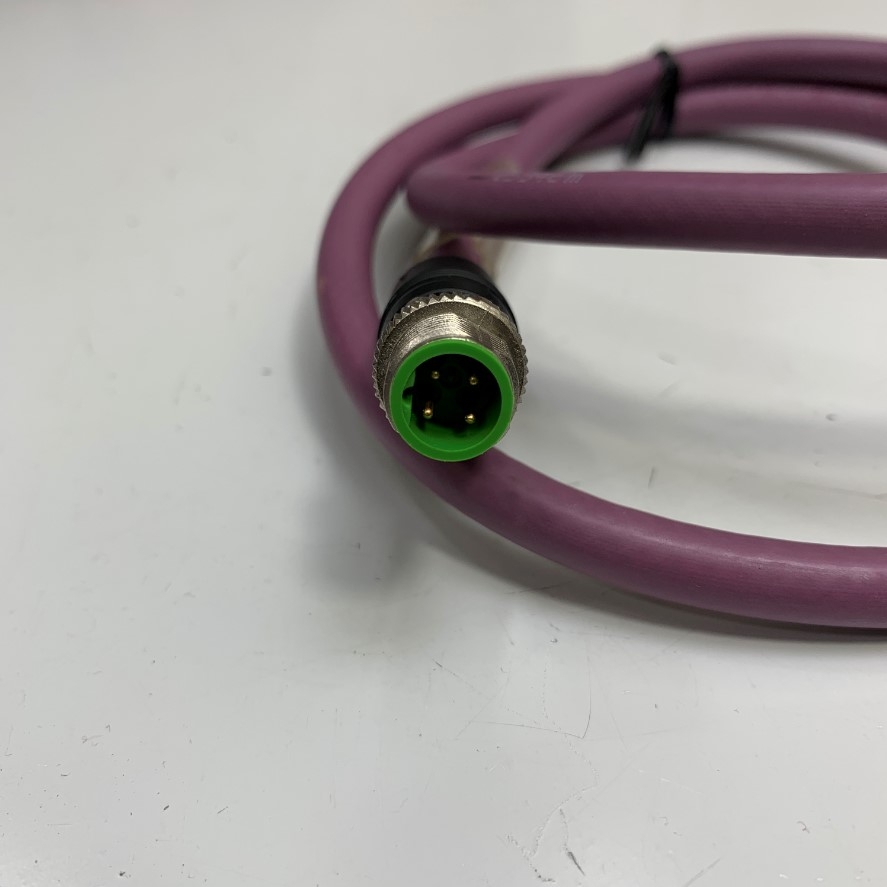

Connector M12 B-Coded 4 Pin Male

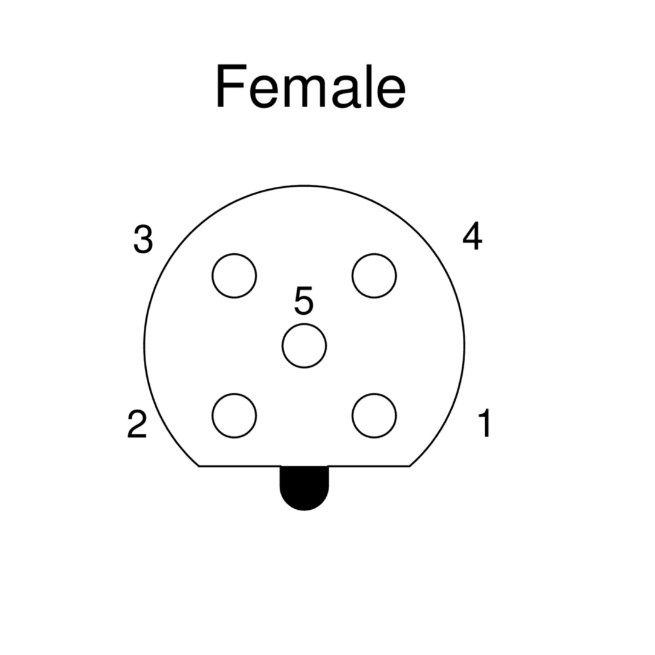

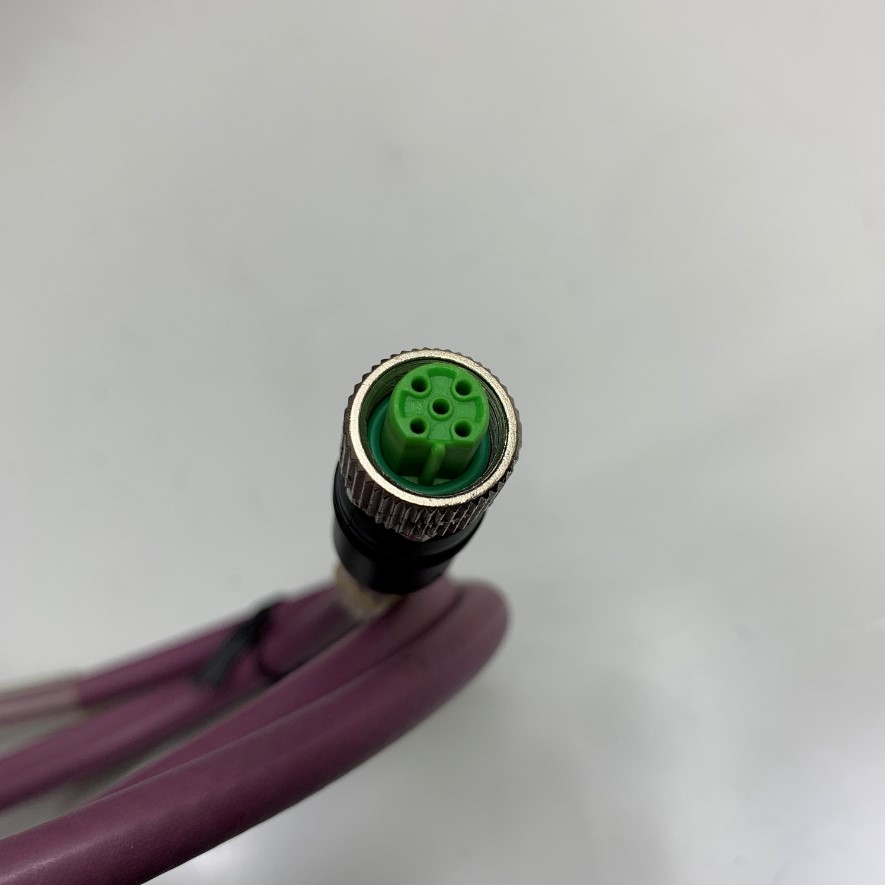

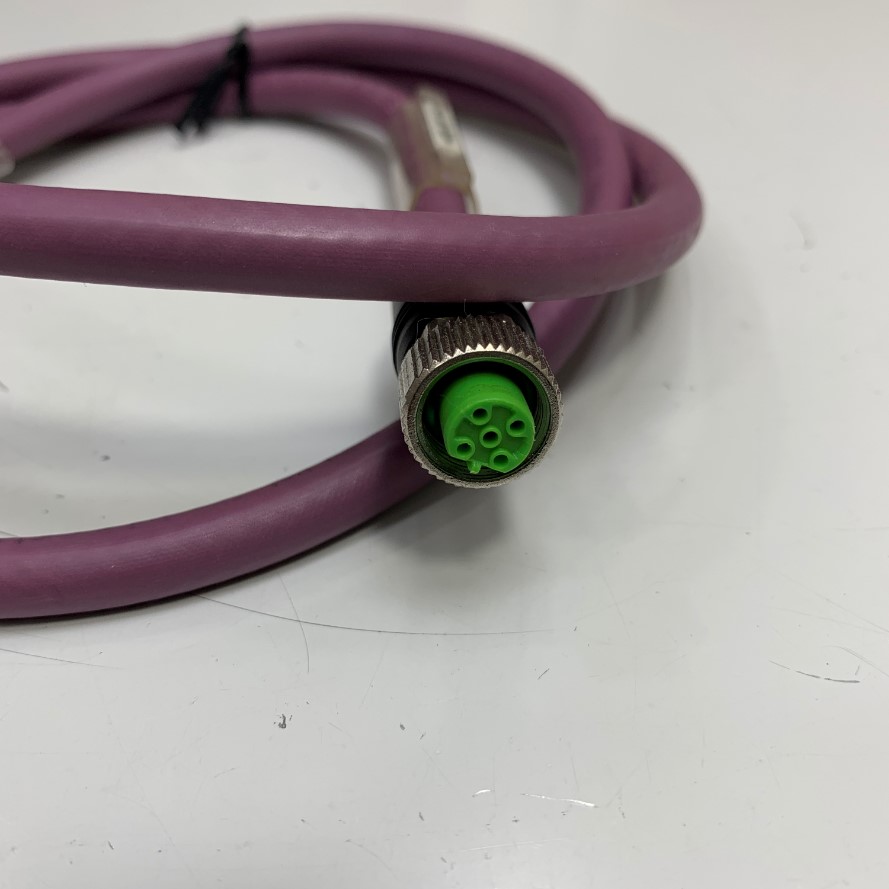

Connector M12 B-Coded 5 Pin Female

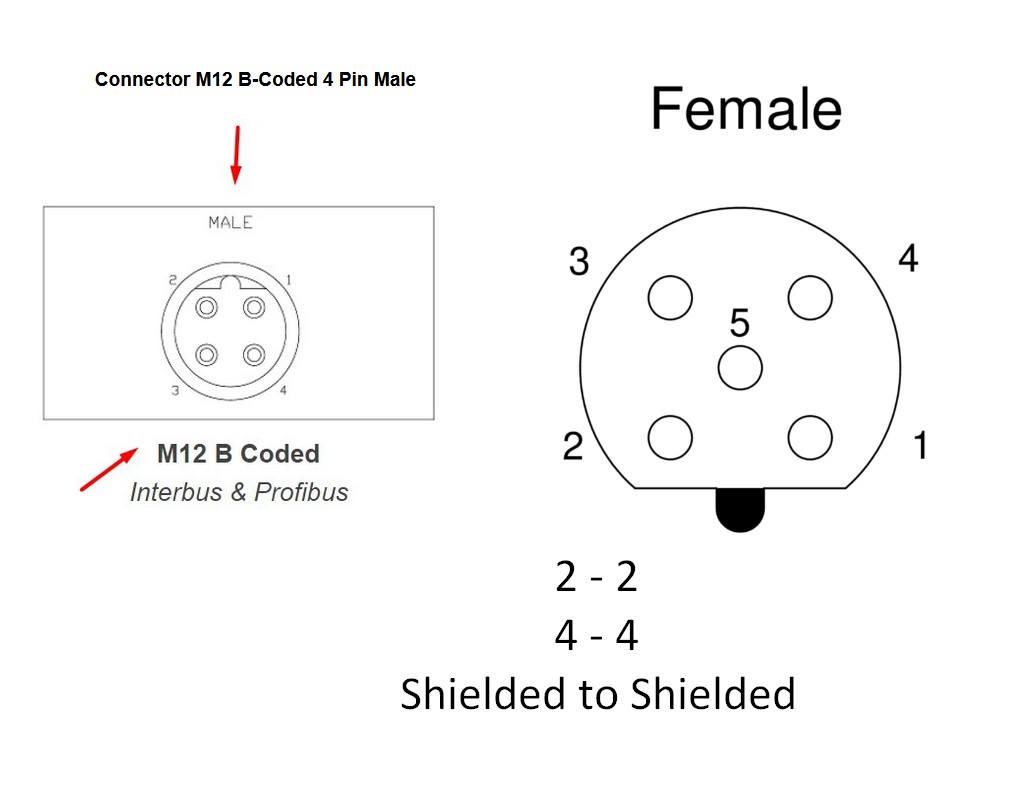

Pin-Out: Connection

Specifications
Primary brand: Murrelektronik
Main function: Cable
Product series / family name: Cabling systems
Sub-range name: straight connector (M12) to straight connector (M12)
Functions: Connecting cable / cordset
Design: shielded
Number of circuits: 2 circuits
Color: violet jacket
Rated Voltage (DC): 60Vdc max.
Rated voltage (AC): 60Vac max.
Connection type: 4-pin straight male M12 B-coded connector /  2-pin straight female M12 B-coded connector
Cross-section: 1 x (2 x 0.25mm2) /  1 x (2 x #24AWG)
Length: 1m ~3ft
Communication protocol: PROFIBUS
Degree of protection: IP65 IP66K IP67
Material
Polyurethane (PUR) jacket
Copper (Cu) wire
Zinc die-cast Nickel-plated lock
Polyurethane (PUR) connector
Ambient air temperature for operation: -25...+85 °C
Location of origin: Germany
