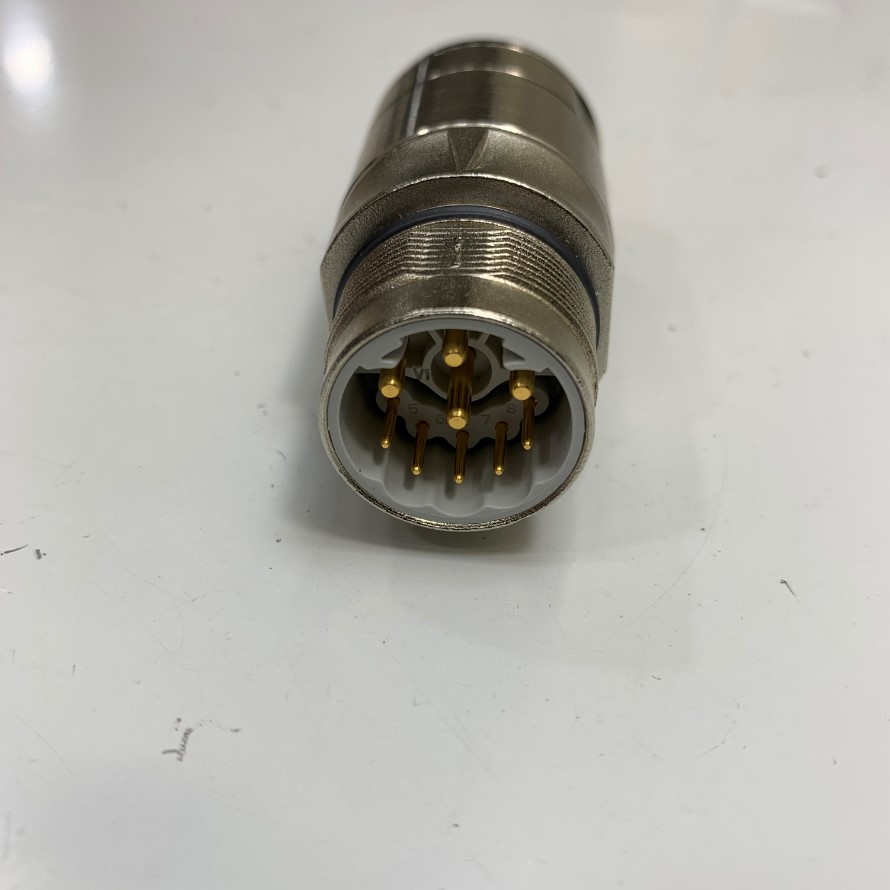

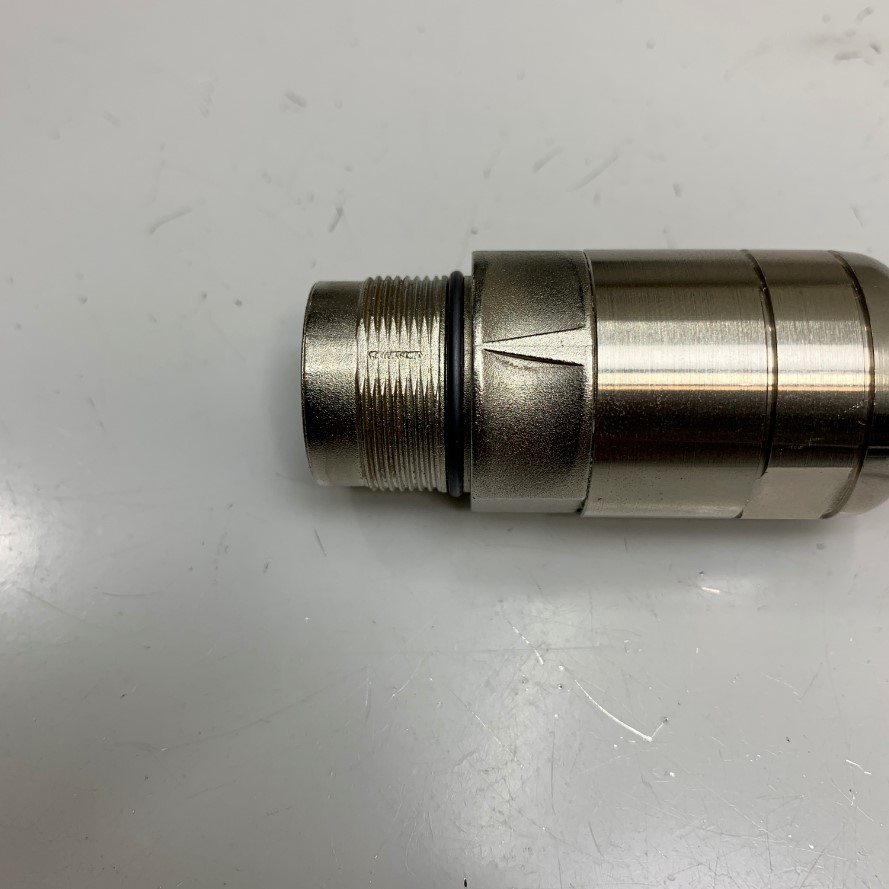

Đầu Jack Original Kubler Connector M23 9 Pin Male (5+4+PE) Crimp Insert Without Contacts For M23 Signal and Power Siemens Servo Cable 9 Pin Industrial Connector

Max Crimpstift 5 x 1 mm, 4 x Crimpstift 2 mm

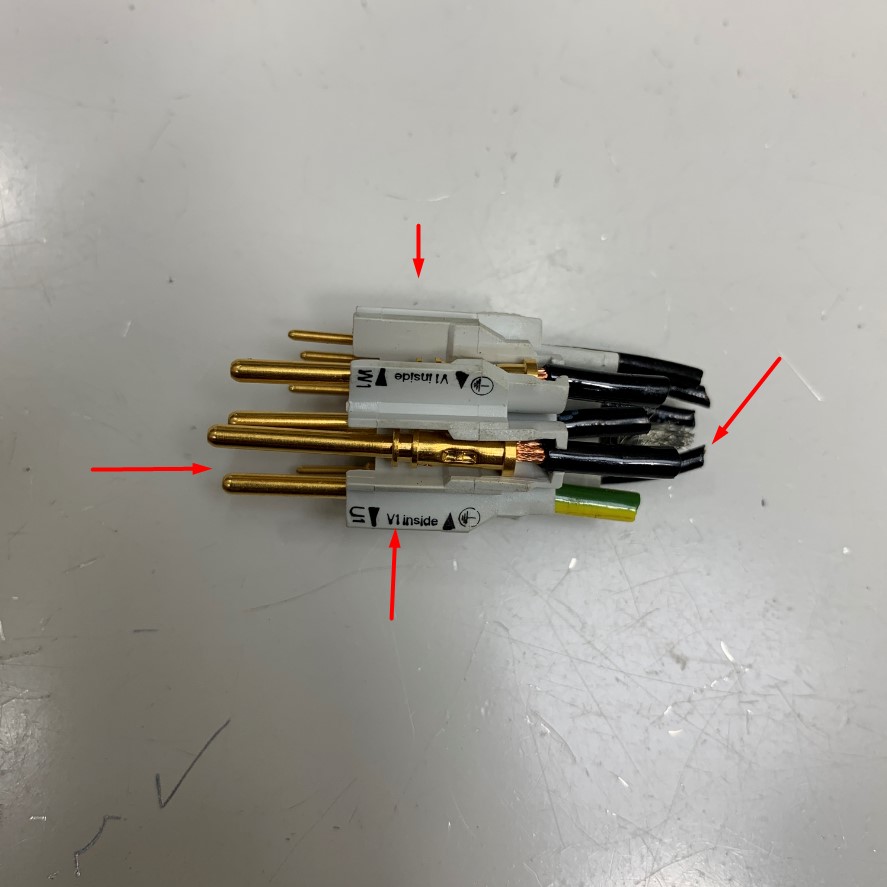

M23 power contact insert (m) 9-pin (5+3+PE), crimp insert without contacts

Dimension(mm) ΦA=12.6, ΦB=17.8

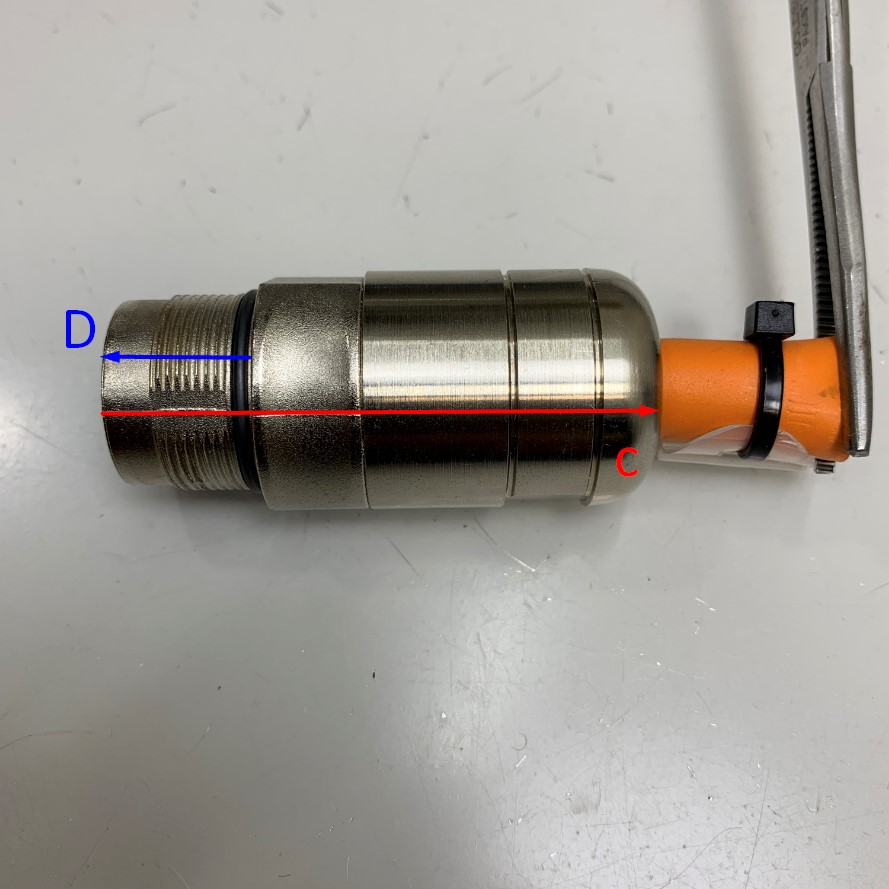

Dimension(mm) ΦC=60, ΦD=16

Hàng tiêu chuẩn chất lượng cao đi thieo thiết bị M23 Servo Connector Siemens
Germany/Original Kubler Connector M23
Specifications
Manufacturer: Kubler Connector M23
Number of poles: 9
Product: Crimp insert
Nominal current (A): 8, 28
Nominal voltage (V): 600
Certificates: UL
Temperature range: -40...+125°C
Technical data
Connection type: Crimping
Number of poles: 9

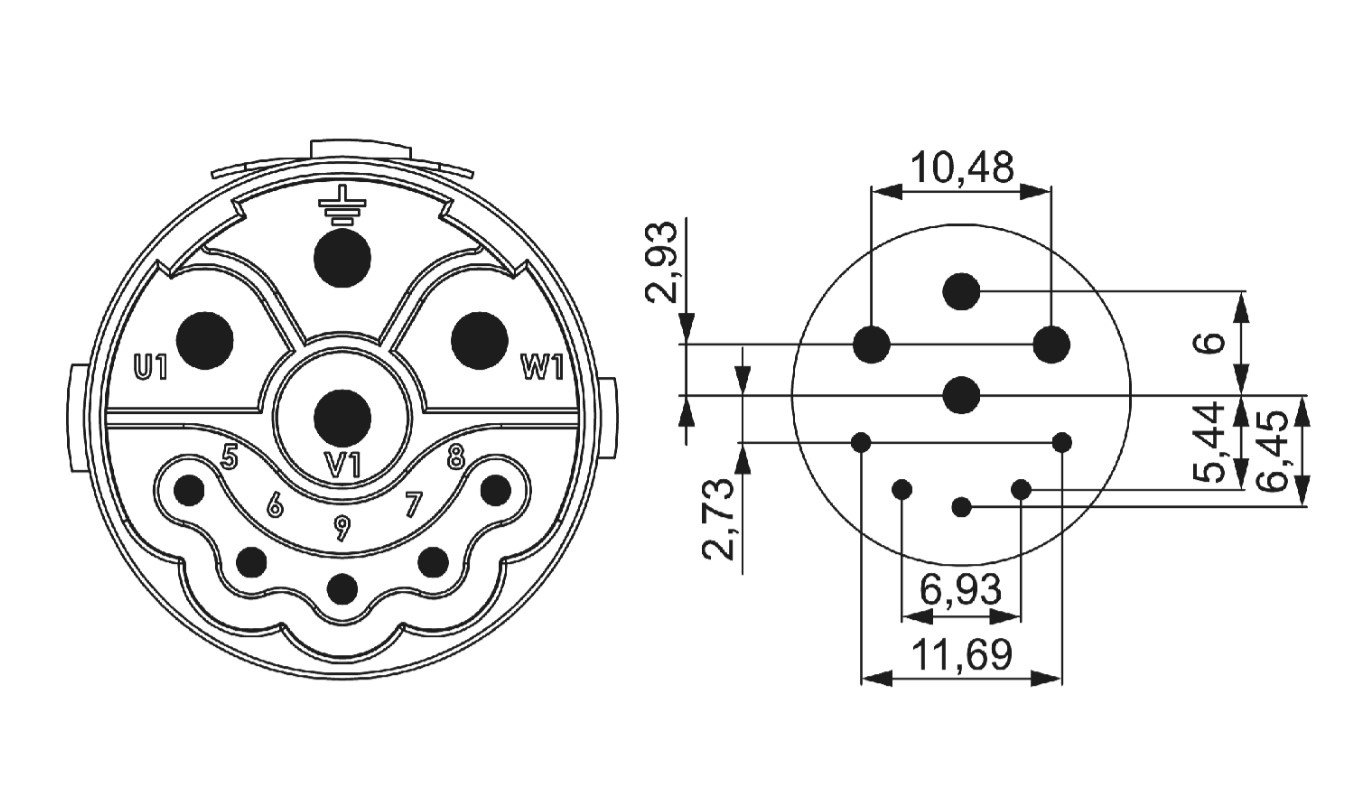

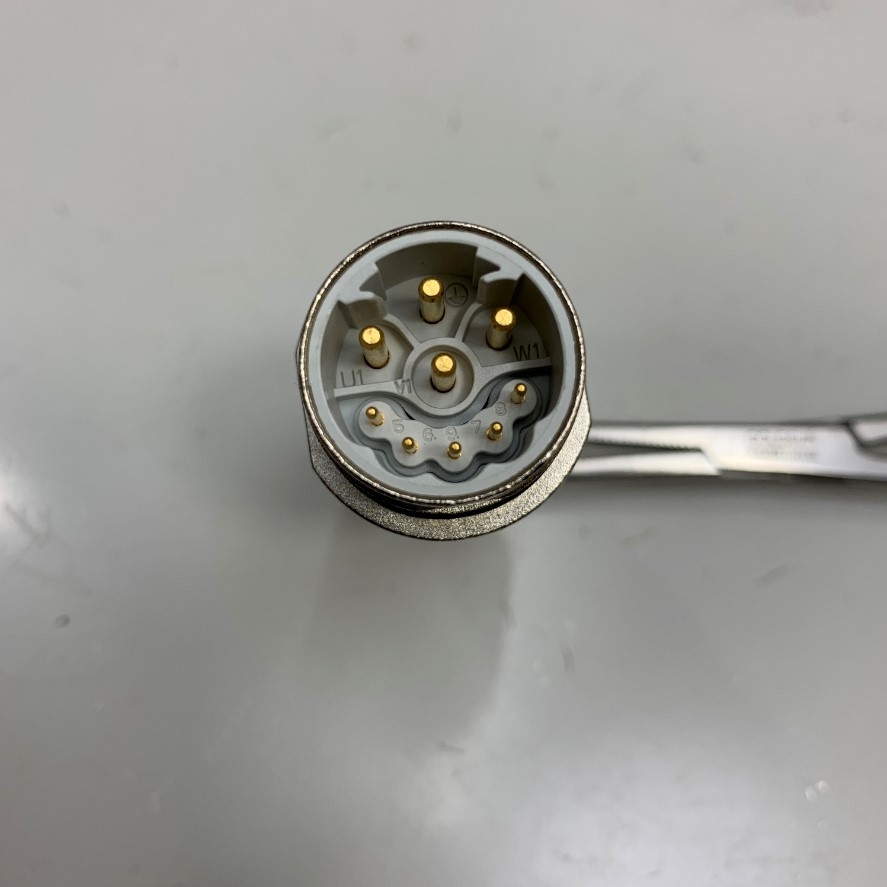

Pole image: 5 + 3 + PE
Coding: 5, 6, 7, 8, 9, PE, U1, V1, W1
Use: Pen
Color contact insert: blue
Insulator material: PA 6, PBT
Number of contacts Signal: 5
Number of contacts Power: 3
Contact Ø signal: 1 mm
Contact Ø power: 2 mm
Signal connection cross-section: 0.75 - 4 mm²
Connection cross-section power: 0.75 - 4 mm²
Rated current signal: 8 A
Rated current power: 28 A
Rated voltage for pollution degree 3 Signal: 160 V~
Rated voltage for pollution degree 3 Power: 600 V~
Test voltage signal: 2500 V~
Test voltage power: 4000 V~
Insulation resistance signal: > 10^13 Ω
Insulation resistance Power: > 10^13 Ω
max. contact resistance signal: 3 mOhm
Max. contact resistance power: 3 mOhm
Temperature range: -40°C...+125°C
Degree of soiling: 3
Flammability: V-0 (UL 94)
