Đầu Jack Original Kubler Connector M23 10 Pin Male Crimp Insert Without Contacts For M23 Signal and Power Siemens Servo Cable 10 Pin Industrial Connector

M23 power Contact insert (m) 10-pole Crimp insert without contacts

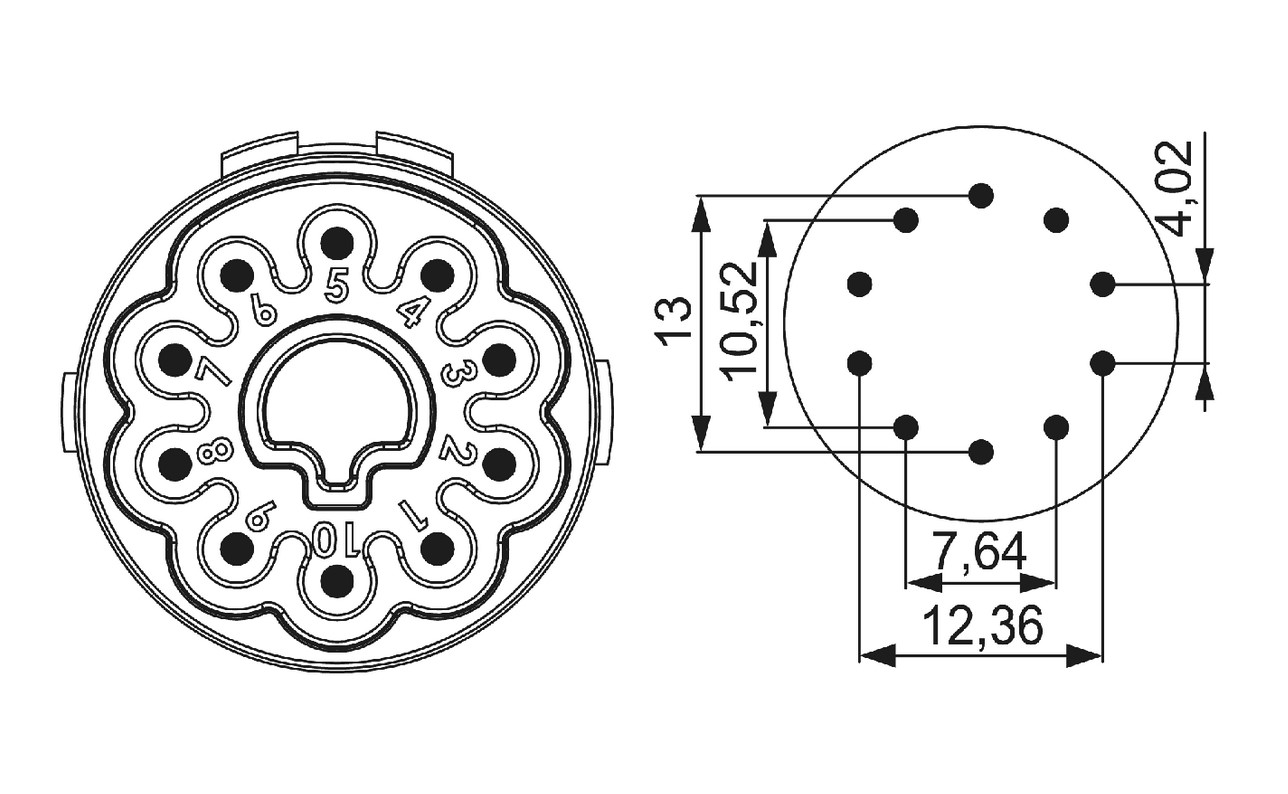

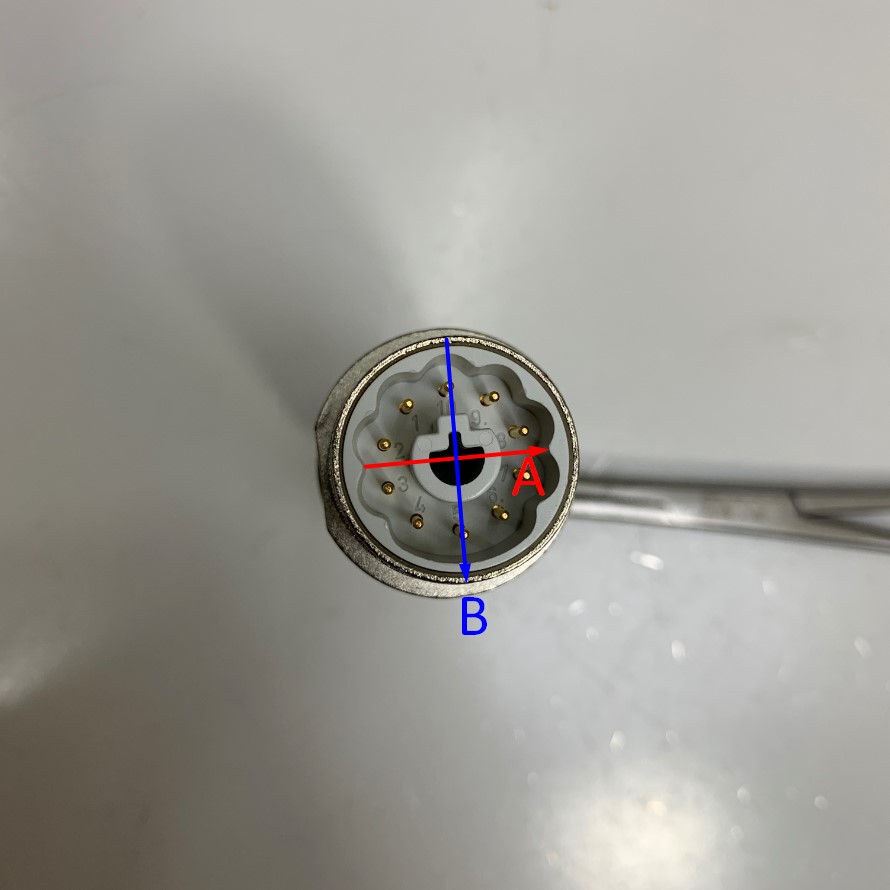

Dimension(mm) ΦA=16.1, ΦB=21.6

Hàng tiêu chuẩn chất lượng cao đi thieo thiết bị M23 Servo Connector Siemens
Germany/Original Kubler Connector M23
Specifications
Manufacturer: Kubler Connector M23
Number of poles: 10
Product: Crimp insert
Nominal current (A): 10
Nominal voltage (V): 100 AC
Certificates: UL
Temperature range: -40...+125°C
Technical data
Connection type: Crimping
Number of poles: 10
Pole image: 10
Use: Pen
Color contact insert:
Insulator material: PA 6, PBT
Number of contacts Signal: 10
Contact Ø signal: 1 mm
Signal connection cross-section: 0.14 - 1.5 mm²
Connection cross-section power: 0.75 - 4 mm²
Rated current signal: 10 A
Rated voltage for pollution degree 3 Signal: 160 V~
Test voltage signal: 2500 V~
Test voltage power: 4000 V~
Insulation resistance signal: > 10^13 Ω
max. contact resistance signal: 3 mOhm
Max. contact resistance power: 3 mOhm
Temperature range: -40°C...+125°C
Degree of soiling: 3
Flammability: V-0 (UL 94)
