Đầu Jack Original Heidenhain Connector M23 12 Pin Male Crimp Insert Without Contacts For M23 Signal Connector Siemens Servo Cable 12 Pin Industrial

Heidenhain Signal Connector M23 12 Pin Male Crimp insert without contacts

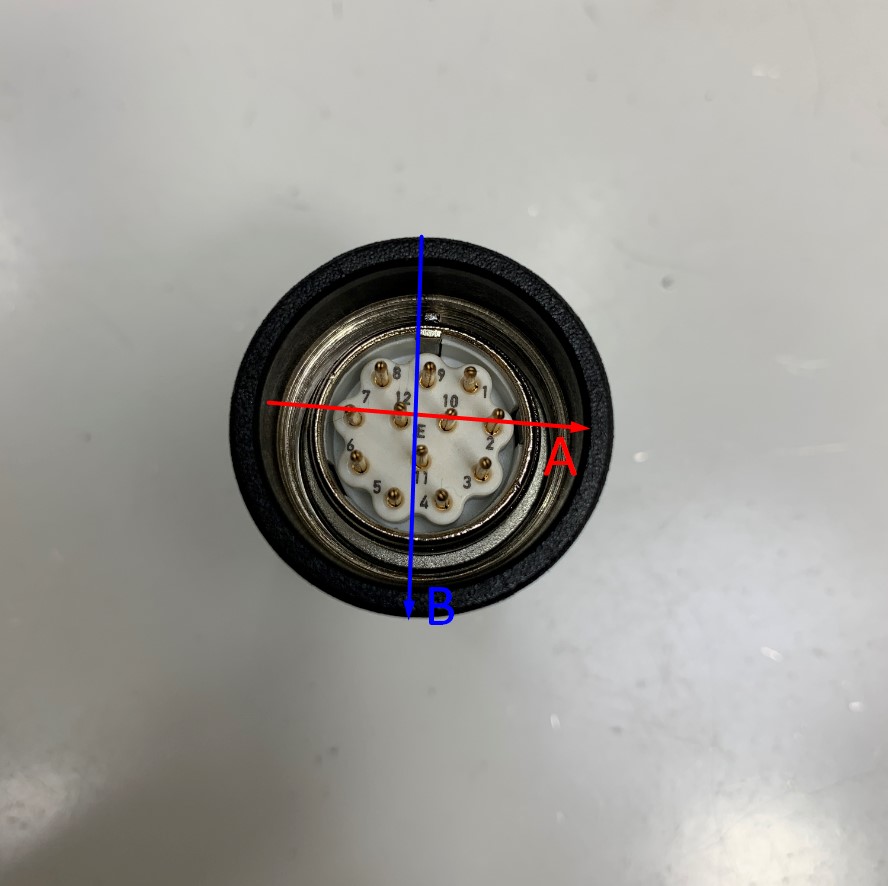

Dimension(mm) ΦA=23, ΦB=28

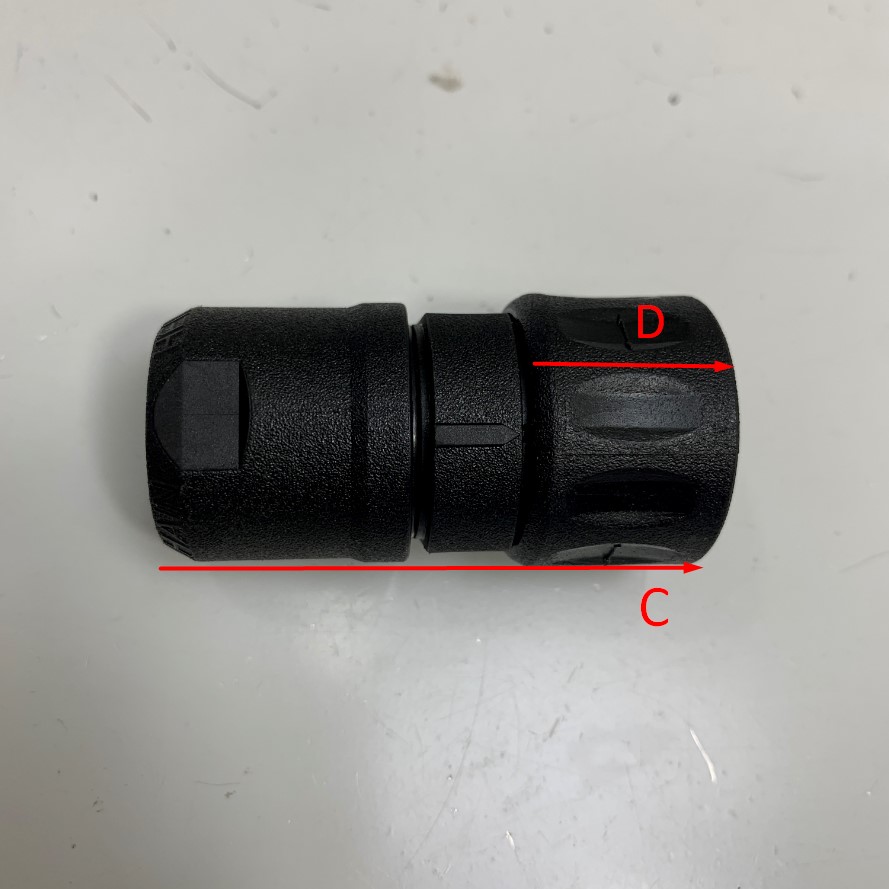

Length(mm) C=55, D=20

Hàng tiêu chuẩn chất lượng cao đi thieo thiết bị M23 Servo Connector Siemens
Germany/Original Heidenhain Connector M23
Specifications
Manufacturer: Heidenhain Connector M23
Number of poles: 12
Product: Crimp insert
Nominal current (A): 5
Nominal voltage (V): 160 AC
Certificates: UL
Temperature range: -40...+125°C
Plating: Gold Plating Over Nickel in Contact
Technical data
Connection type head A: Male connector, M23, 12-pin, straight
Connection type head B:
Connection type: Crimp Insert Without Contacts
Locking plug connector: Quick screw connection
Connector material: High quality plastic, nickel-plated
Connector color: Gold Plating Over Nickel in Contact
Shielding: Shielded
Permitted cable diameter: 4.5 mm ... 10.5 mm
IP Rating: IP67
Đầu Jack Original Heidenhain Connector M23 12 Pin Male Crimp Insert Without Contacts For M23 Signal Connector Siemens Servo Cable 12 Pin Industrial
